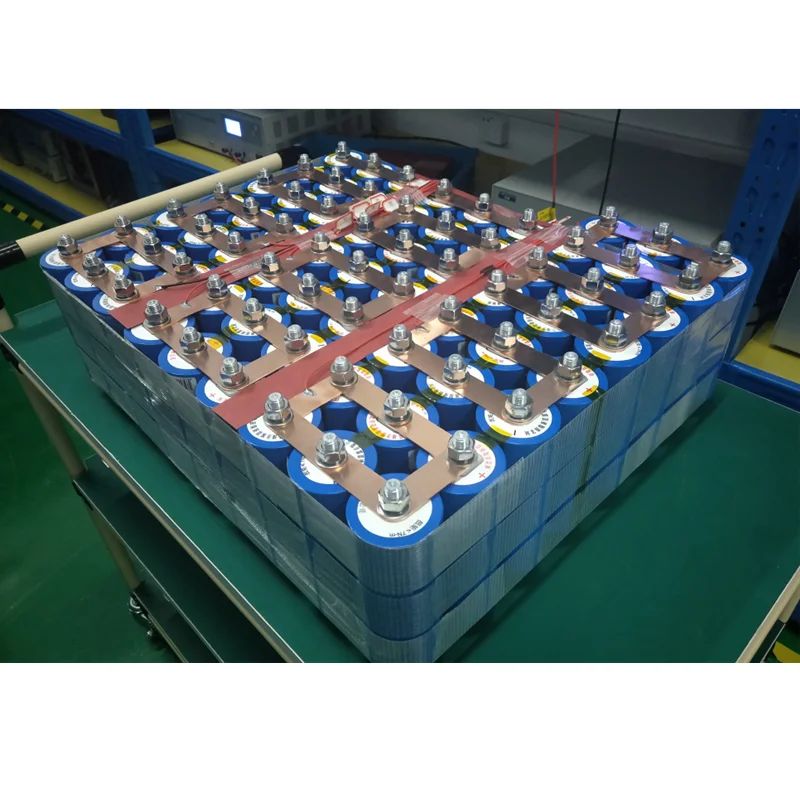

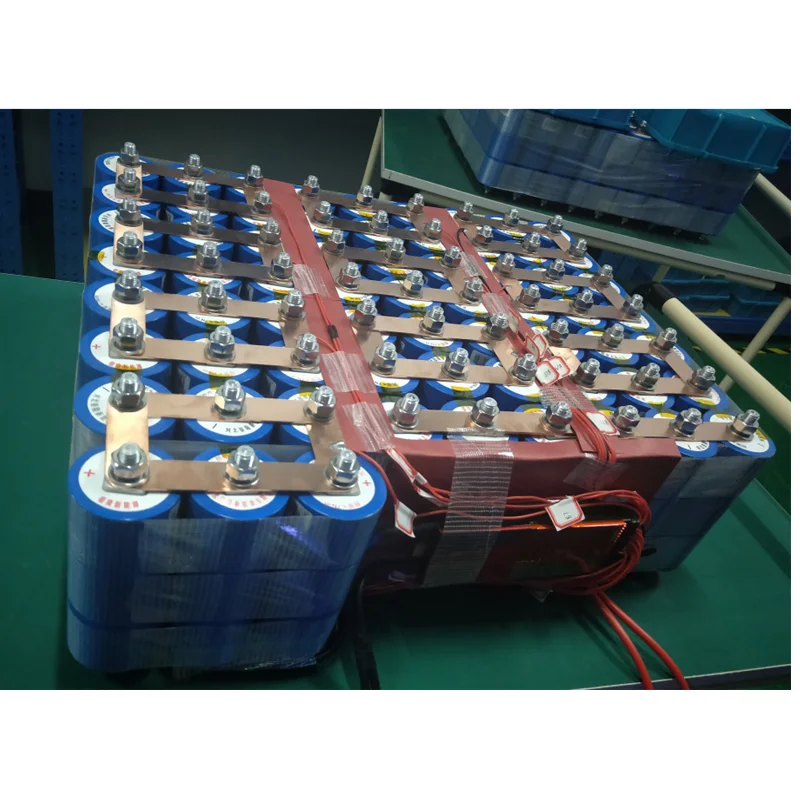

48v100Ah LTO Battery 10KWH with 200A BMS for Off Grid System





LTO Advantages
  • Faster charge: 10mins fully charged
  • Higher discharge rate: Up to 10C

  • Wide working temperature range: -50°C ~ 65°C

  • Super long cycle life:  over 30,000 times

Specification



No.

Items

Specifications

1

Nominal Voltage

48V

2

Nominal Capacity

100Ah

3

Chemistry

Lithium Titanate battery(LTO)

4

Max. Charge Current

200A

5

Continuous DischargeCurrent

200A

6

Peak Discharge Current

400A

7

Full Charged Voltage

50.6V(2.3V per cell)

8

Charge Cut-off Voltage

59.4V (2.8V per cell)

9

Discharge Cut-off Voltage

33V  (1.5V per cell)

10

Net Weight

107kg

11

Dimensions

Can be customized



Other LTO Batteries

We supply full range of LTO Batteries :

Yinlong Cylindrical 66160 30Ah ,35Ah and 40Ah ;66260 55Ah


Yinlong Prismatic LTO 2,3V 30Ah and 33Ah


Toshiba LTO 2.9Ah ,10Ah and 20Ah

]W$2T6KHD~X1]3HD~B_7M[S.png           U)KY5_UWQ)WN[G85PGXCV`Q.png

Accessories

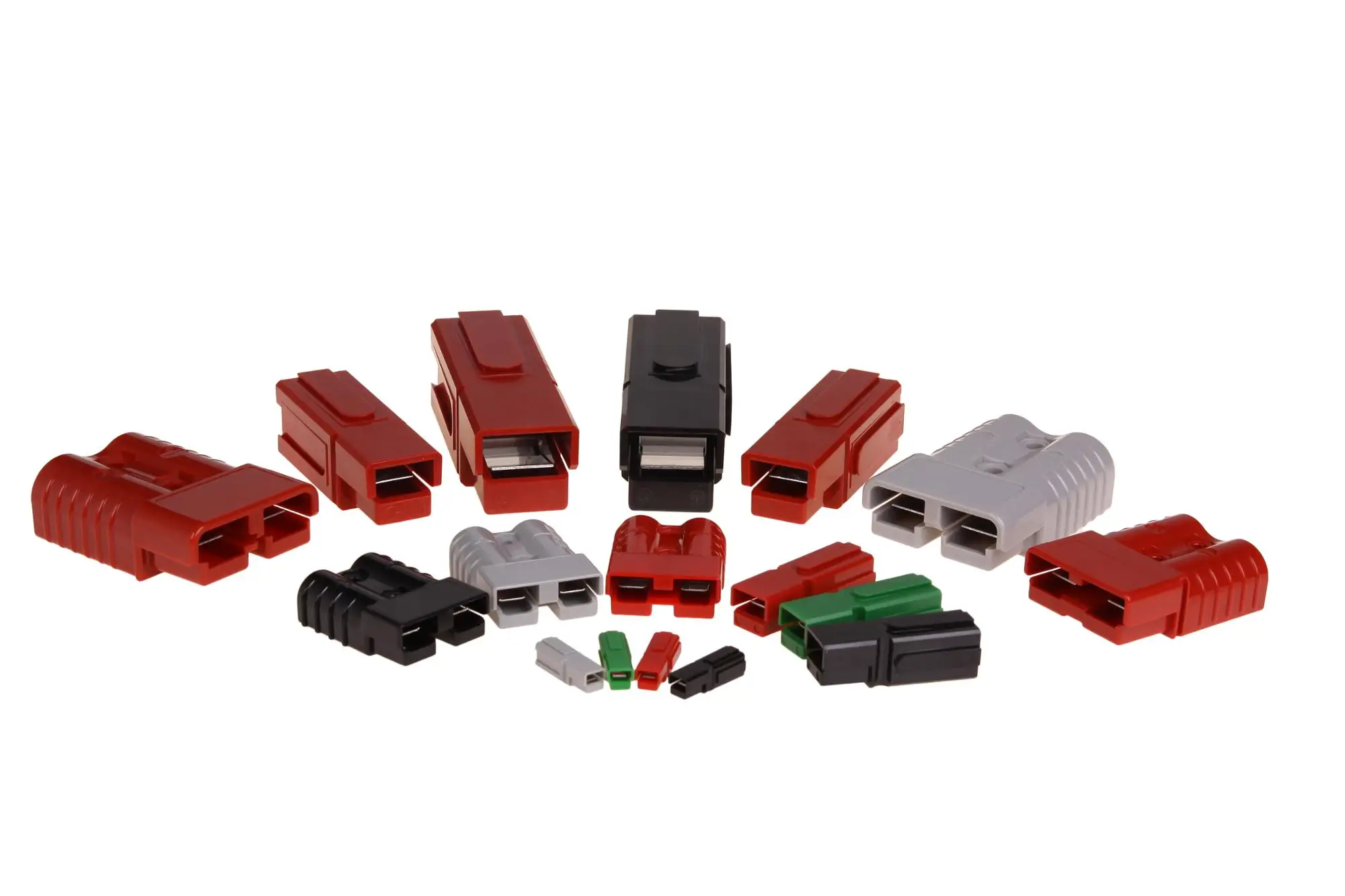

US Plug    EU Plug    Au Plug    UK Plug    Anderson    XLR    3 Pin Plug   XT60    XT90 DC

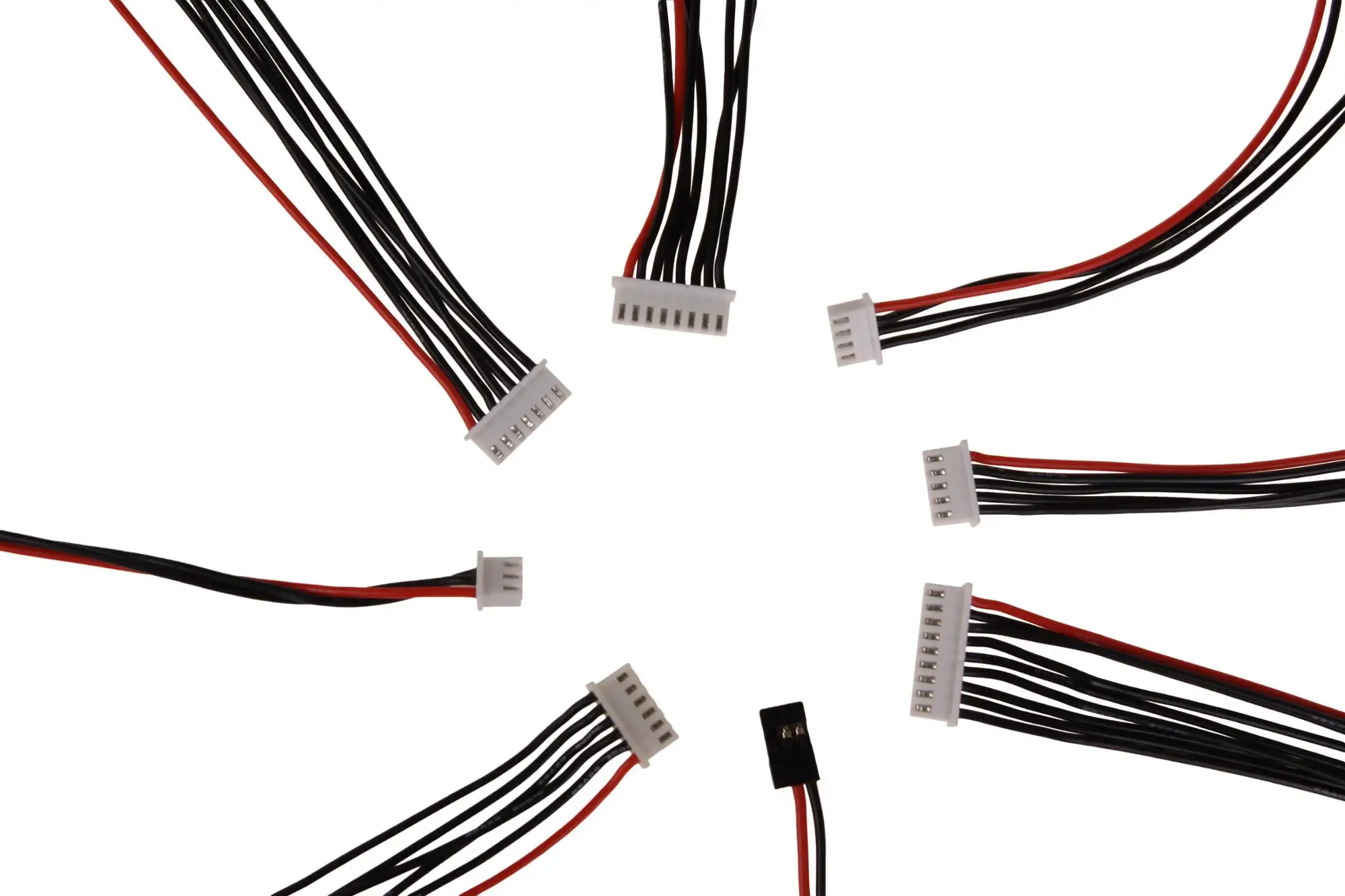

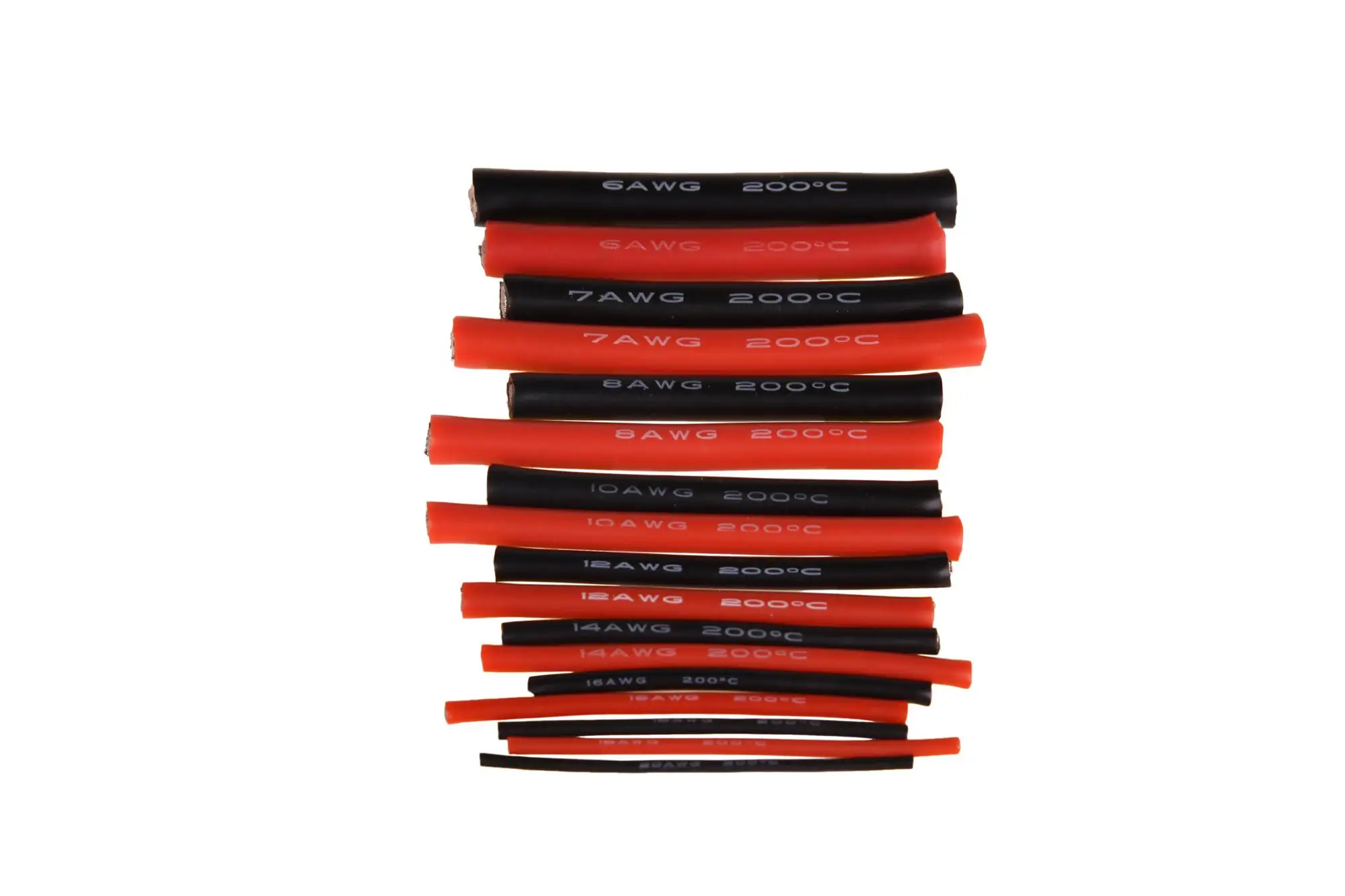

Current Lead:8 12 14 Type Wire to make battery packs


Applications

·  Passenger and commercial plug-in hybrid electric vehicles (PHEVs)

·  Passenger and commercial battery electric vehicles (BEVs)

·  Mild and micro hybrid vehicles

·  Long-Duration (LD) grid energy storage systems

1) Electric vehicles and charging stations, tourist coaches, yachts, wind and solar energy storage power, traffic signals

2) Solar hybrid street lighting, UPS power supply, home storage

3) Coal, disaster relief emergency, weather radar, electricity, smart grid, communication base stations

4) Hospitals, finance, telecommunications , system critical backup power systems
