standard highway guardrail dimensions highway guardrail tools

Normal Sizes

L:3200/3810/4000/4300/4320× W:306/310/312/380X

Height : 80/82/83/85×  Thickness :2.75/3/4mm.

Available in different sizes.

Materail

Q235,Q345

 Profile

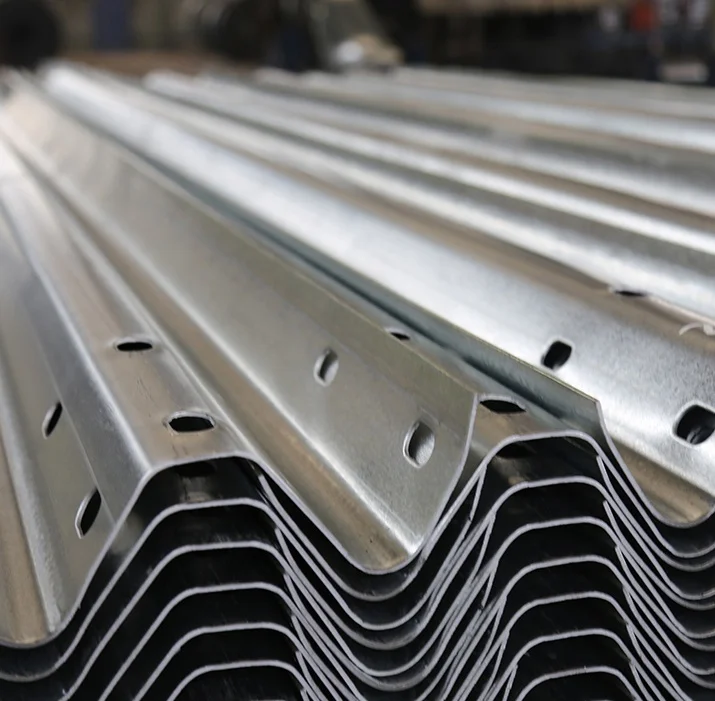

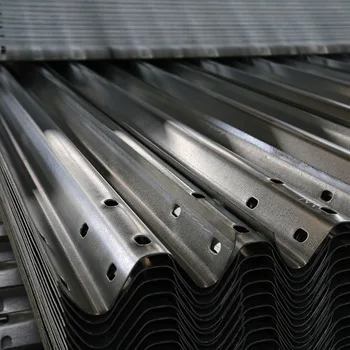

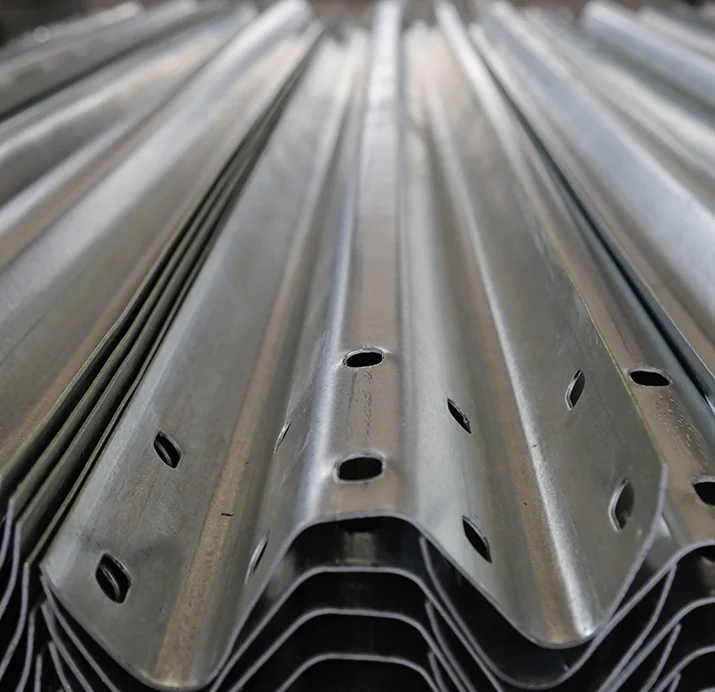

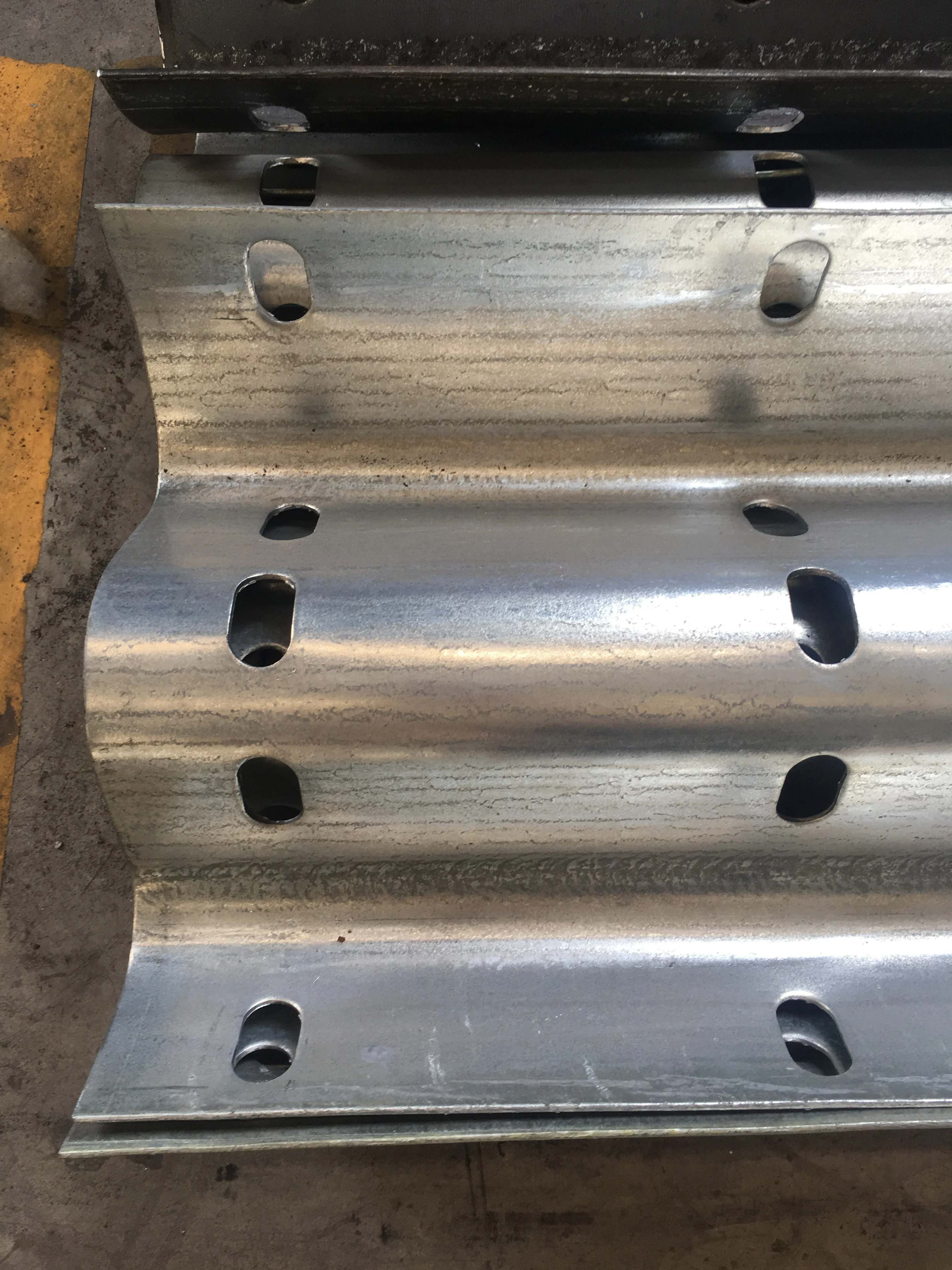

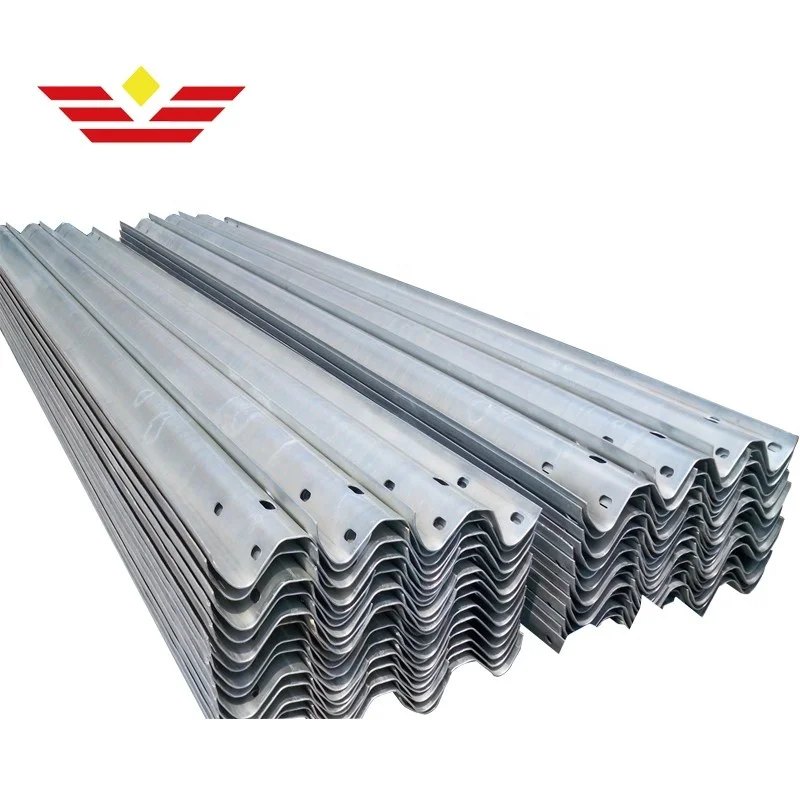

W beam , Thrie beam

 Surfacce treatment

Hot dipped galvanized or plastic sprayed coating

 Applicabele Standards

JT/T2811995(Corrugated Sheet Steel Beams For Expressway Guardrail - China), AASHTO M180(Corrugated Sheet Steel Beams For Highway Guardrail - USA), RAL RG620 (German) or any other International Standards

 Base Steel

Grade Q235B (equivalent to S235JR according to DIN EN 10025 and Gr. Daccording to ASTM A283M) or Q345 (S355JR / ASTM A529M 1994)

 The Thickness of Galvanized (Double Sides)

550g/m2 (40µ) or 1100 g/m2 (80µ) or 1200 g/m2 (85µ) or as per your request

Features

Great corrosion resistant, high intensity, long and durable, with good impact resistance, low cost, long life, higher security,environmental protection, etc.

Relevant Parts

 Required for Guardrails Post, Spacer (C, U and Sigma types etc) and Fasteners, Bolts&Nuts,Terminal,Reflectors

MOQ

one 20 feet container

 Price Terms

FOB,CFR,CIF

Payment Terms

T/T,L/C at sight

Other special specification as per client's requirement or drawings
