Online Water Enviroment Quality Monitoring Chlorophyll Analyzer Sensor

Share on (62306462858):


Price:

Quantity:


Product Overview

Description

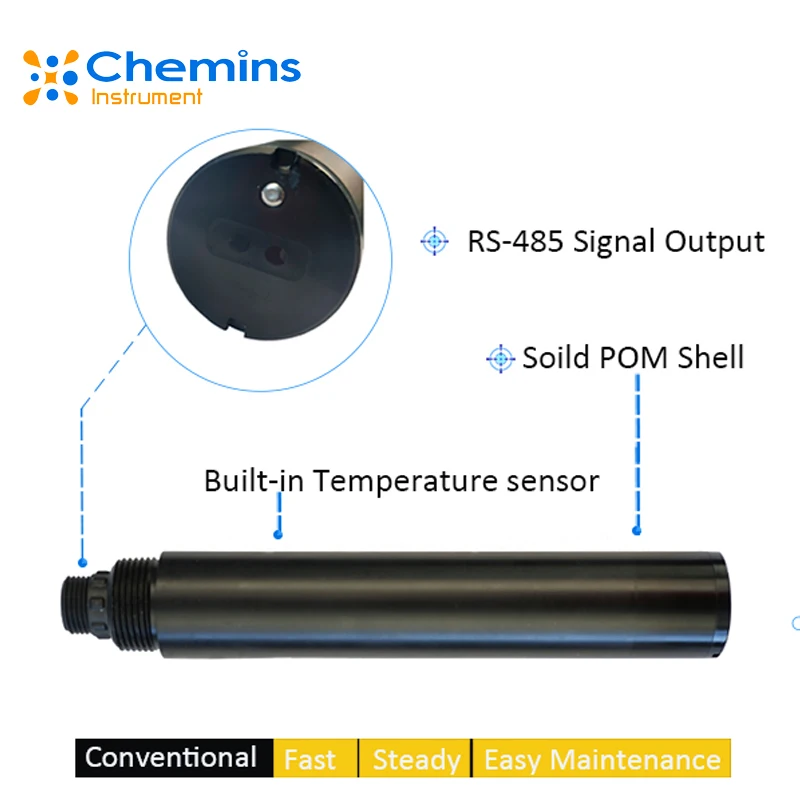

Internet Of Things Online Chlorophyll Sensor CHLO-206



Product Overviews


The chlorophyll sensor uses leading optical technology, integrated design, high efficiency power management, rugged structure, stable sensor performance, maintenance-free and frequent calibration, and can be used online for a long time. It can be used for research, investigation and monitoring of rivers, lakes, ponds, marine surveys, aquaculture, drinking water sources, algae and phytoplankton conditions.


• 0-400ug/L


• Resolution: 0.1ug/L


• 0-50 °C; IP68 protection, water depth within 20 meters


• Built-in temperature sensor


• Support RS-485, Modbus/RTU protocol


• Convenient, fast, stable and easy to maintain





Technology



























































Measuring range



0~400ug/L



Resolution



0.1 ug/L,0.1℃



Precision



±3%,±0.5℃



Calibration method



Two-point calibration



Protection level



IP68



Deepest depth



Underwater 20 meters



Temperature range



0~50℃



Sensor interface



RS-485(Modbus/RTU)



Power information



12~24VDC ±10%



Power consumption



<0.5W



Cable length



5 meters, other lengths can be customized



shell material



POM










Note:The sensor should not be installed upside down or horizontally when installed, at least at an angle of 15 degrees or more.






Related Products

















Application


Suitable for environmental monitoring,environment analysis,modern agriculture,sewage treatment,smart city,food and medical,water treatment,tap water otheprocess and fields.














Packaging


This product includes:
Sensor*1

User manual*1
Certificate*1








After-Sales Service


Company provides the after-sale service within one year from the date of the sales, but does not include the damage caused by improper using. If you need repair or adjustment, please send it back, and the freight should be paid. When sending back, determine the good packaging to avoid transit damage, and the company will be free maintenance device damage.
