China  WDPG industrial spray dryer price





Description:

Spray drying process is the widest used in the liquid forming process and in drying industry. The drying technology is most suitable for powder, particle products from materials, such as,solution, emulsion, SC and pumpable paste states material. For this reason, when the particle size and distribution of the final product, their residual water contents, the stacking density and particle shape must meet the precision standard, spray drying process is one of the most desired processes.

Principle:

After filtering and heating, the air enters into air distributor on top of the Drying Equipment. The hot air enters into the drying tower spiral form and uniformly. By .passing through high-speed centrifugal atomizer on top of tower, the material liquid will rotate and be sprayed into the extremely fine mist liquid beads. Through the very short time of contacting with heating air, the material can be dried into final products. The final products will be discharged continuously from the bottom of drying tower and from cyclone separator.

The waste gas will be discharged from exhaust fan.

Features:

• At a high speed of drying, after spraying of the material liquid, the surface area will be increased greatly. In the hot air flow, 95%-98% of water can be evaporated at a moment. The time of completing the drying needs only several seconds.


• This is especially suitable for drying the heat sensitive materials. Its final products own good uniformity, mobility, dissolving capacity. And the final products are high in their purity and good in their quality.


• The production procedures are simple and the operation and control are easy.The liquid with the moisture contents 40-60% (for special materials, the contents may reach 90%) can be dried into the powder of particle products for one time. After drying, there is no need for crushing and sieving, so as to reduce operation procedures in the production and to enhance product purity. The product particle diameters, looseness and water contents can be adjusted through changing the operation condition in a certain scope. It is very convenient to carry out control and management.

Application:

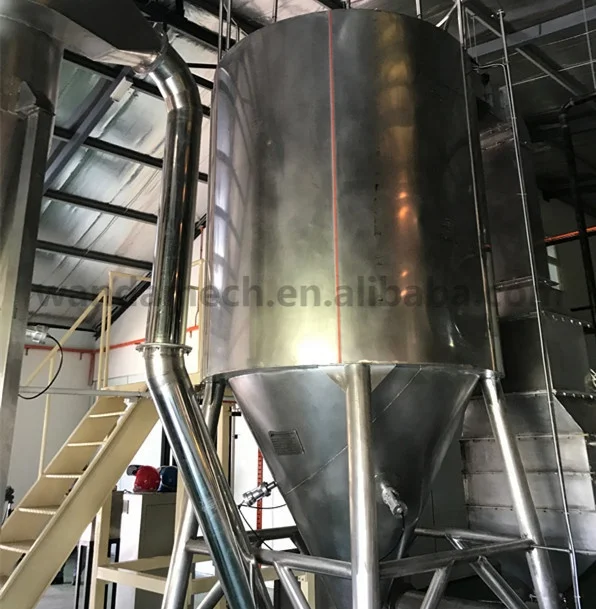

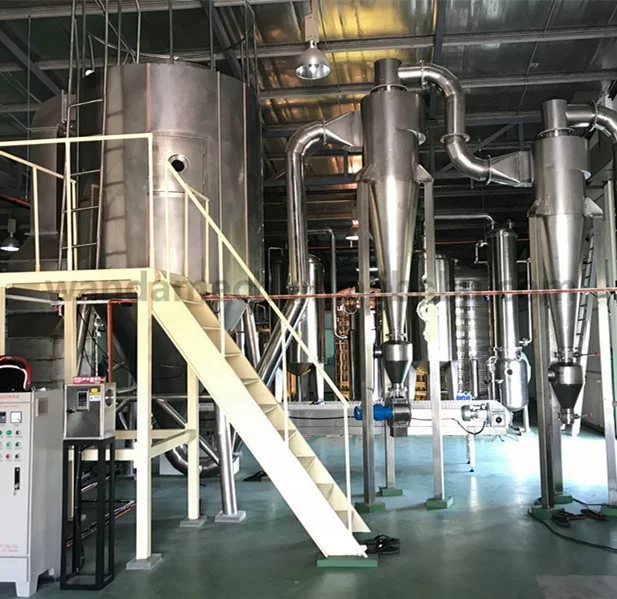

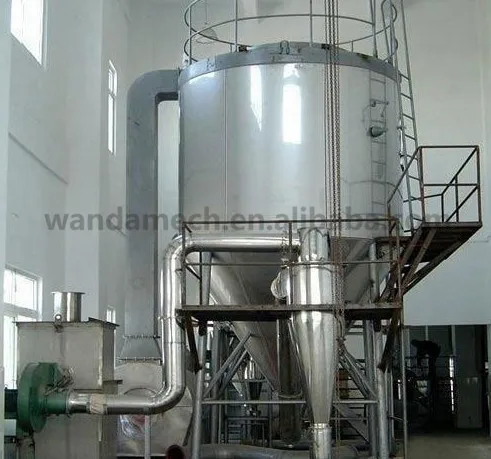

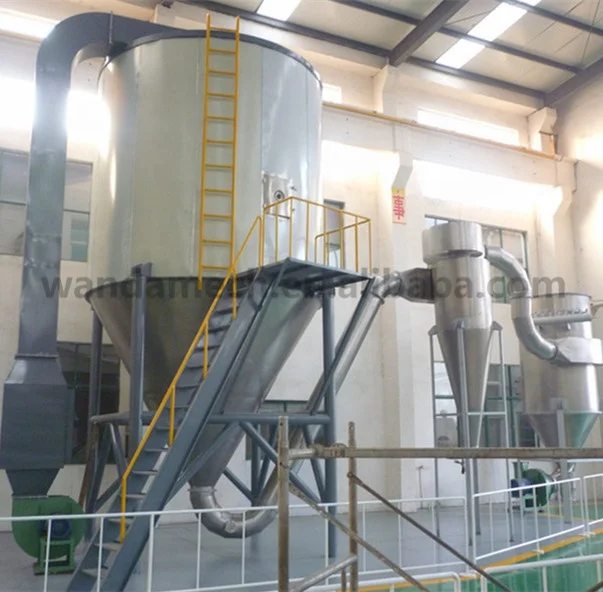

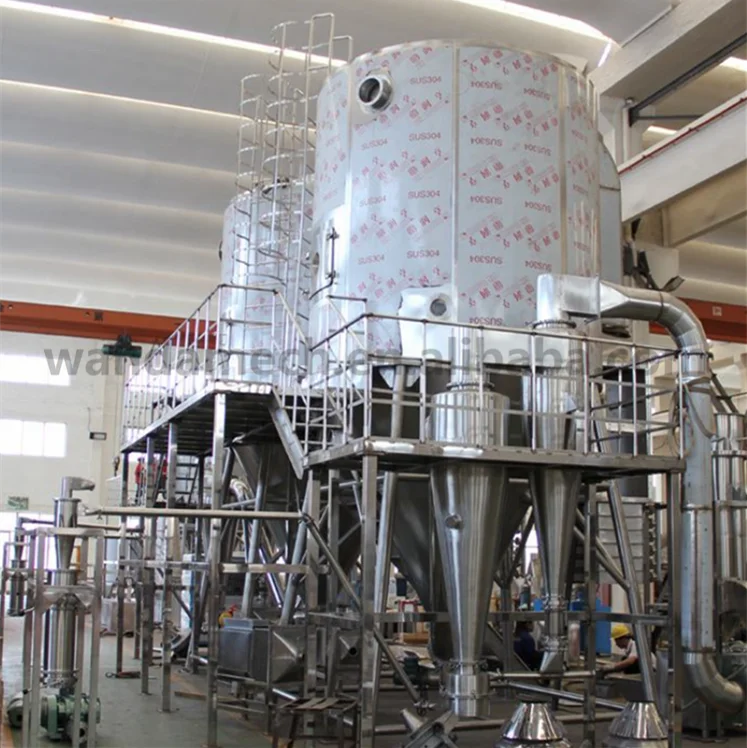

Product picture:

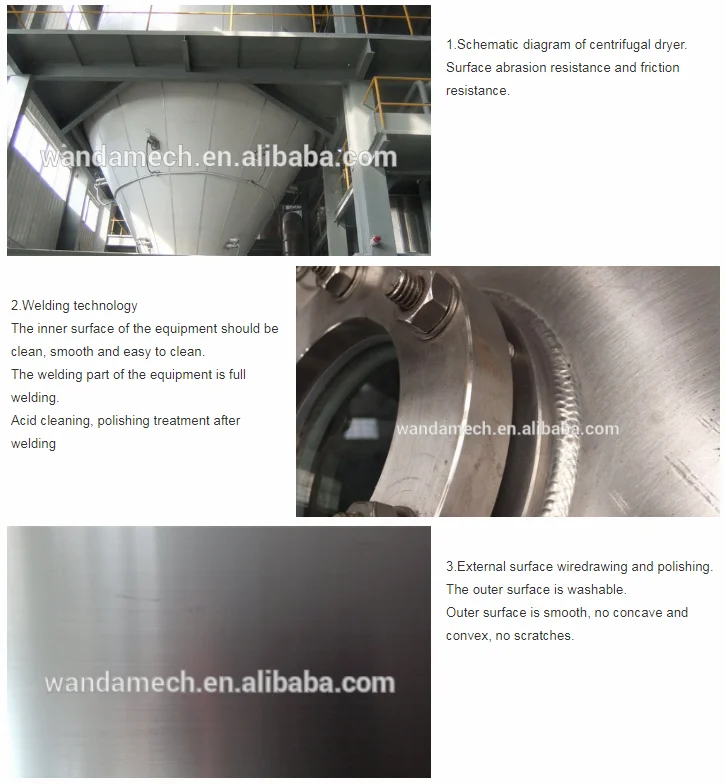

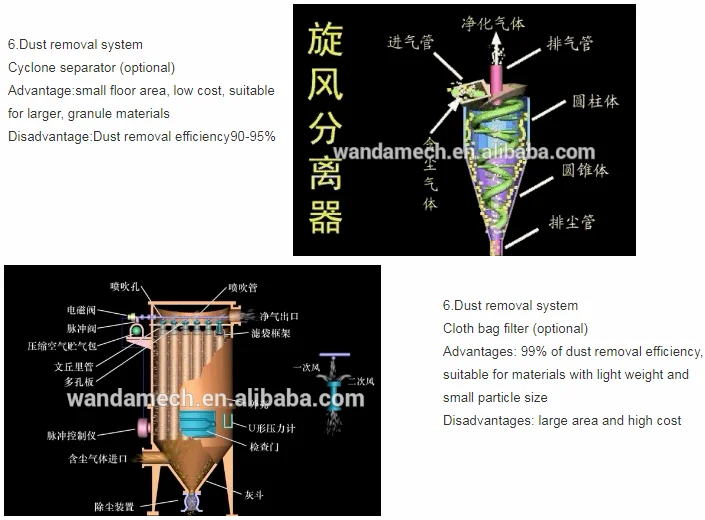

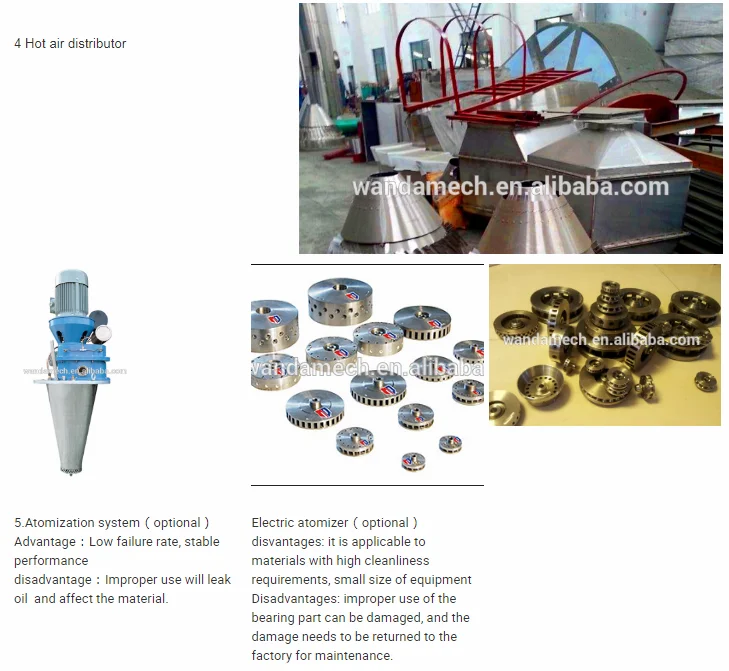

Detail part:

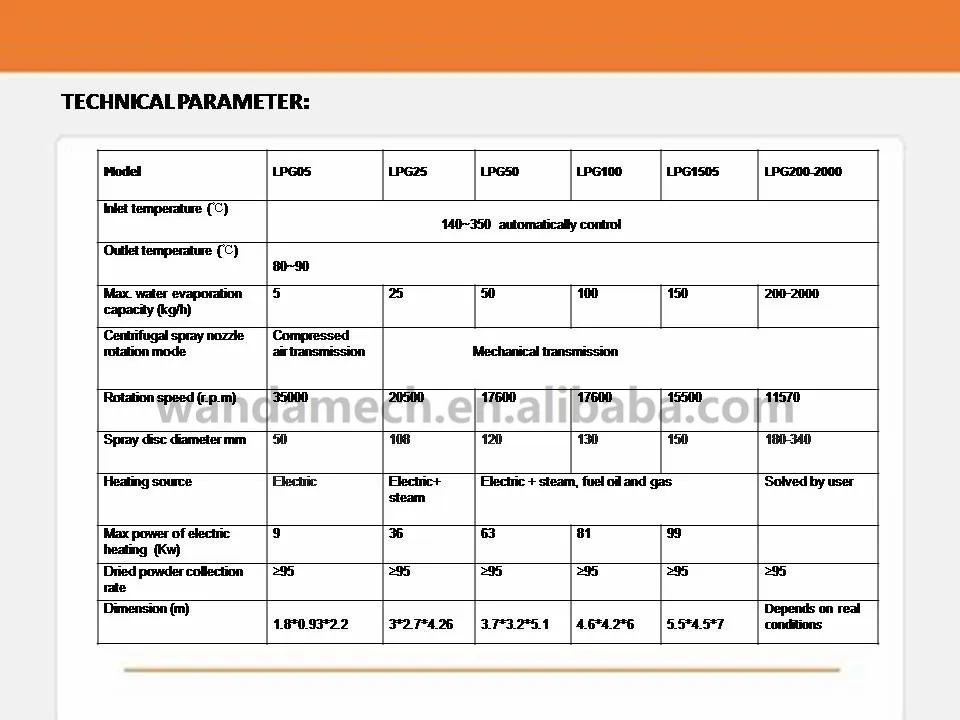

Product technical parameter:

Dear customer pls kindly noted the model select of the spray dryer is based on the water evaporation capacity, kindly let us know the moisture information then we can analyze and select the most suitable model to both save energy and cost-effective.^-^









Packing&Shipping:

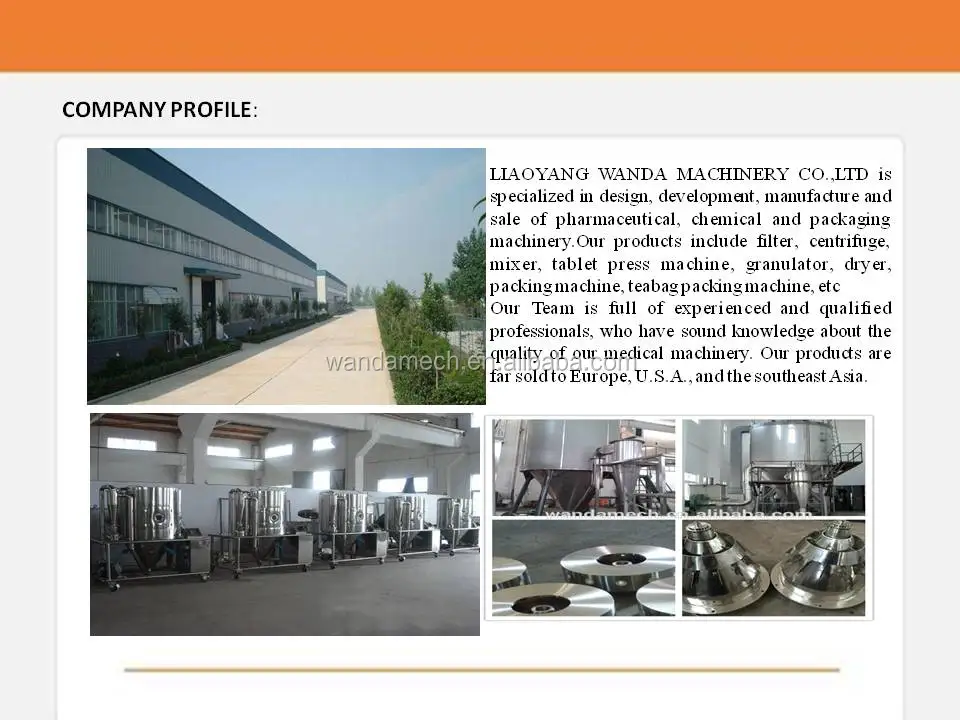

About us:

Wanda Machinery Co., Ltd. specializes in R&D, manufacturing, operation, export and related services of rotary flash dryers, centrifugal spray drying equipment, vibrating fluidized bed dryers, etc. The production base is located in Liaoyang City, Liaoning Province,China. Equipment designed over the years has been involved in the fields of medicine, chemicals, pesticides, electronics, mining, food, dyes, pigments and so on. The market is spread all over the country.
Wanda Machinery not only has a group of capable engineers and senior management personnel with more than ten years of work experience, but also has a group of excellent production personnel. They have excellent capabilities in research, design, service, etc. Over the years, they have devoted themselves to researching and summing up in practice. "Pragmatism, innovation, integrity, pursuit of excellence", a deep understanding is a strong guarantee for the quality of customers' products!







Our Service:

We sincerely invite you to be our long term relationship friend , and we always prepared to provide our best services for you and would like you to know below we want to present :

l 1. Each machine is manufactured by professional experienced staff.

l 2. 12 months warranty + 100% QC inspection Before Shipment.

l 3. Overseas  services provided. Technicians can be sent to spot for guiding the installation and debugging. Training operators and accomplish the  commissioning.

l 4. Consultant services for whole machine life, 24 hours technical support by email and phone.When warranty date expired, lifetime maintenance service is provided and at buyer’s cost.

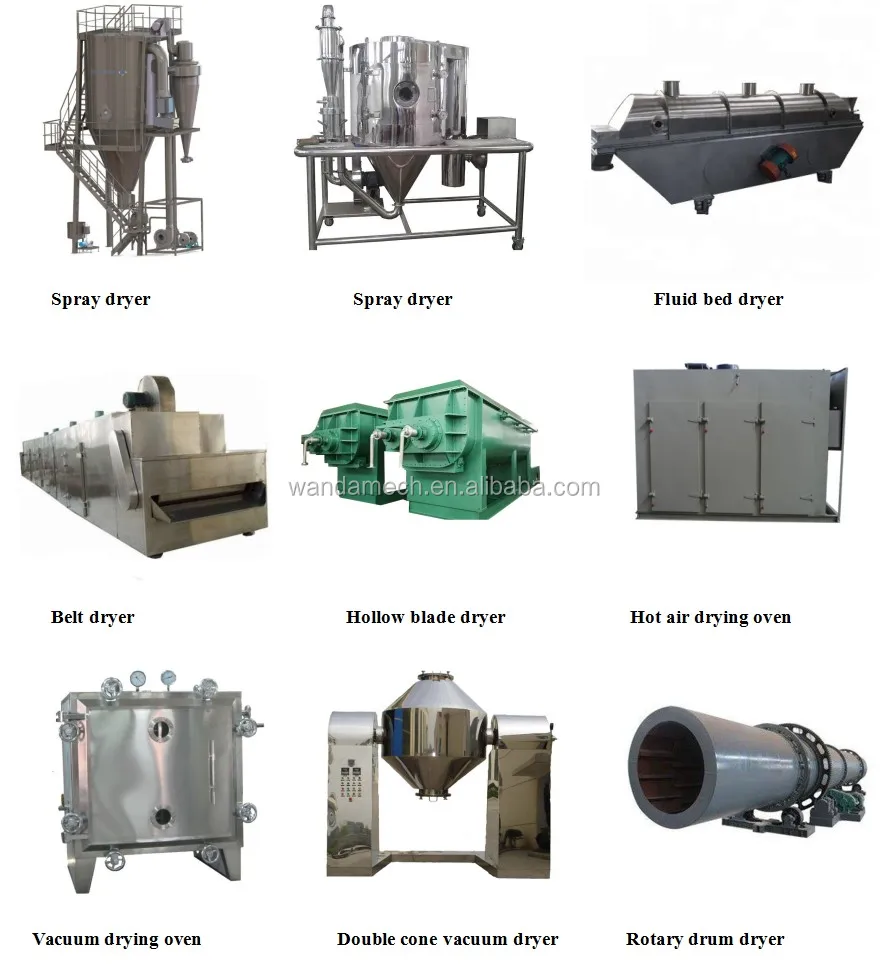

 Other feature products:
