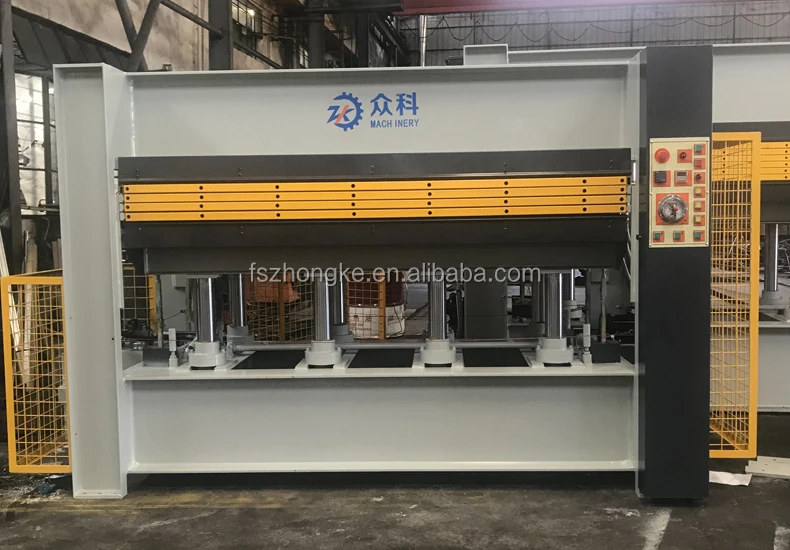

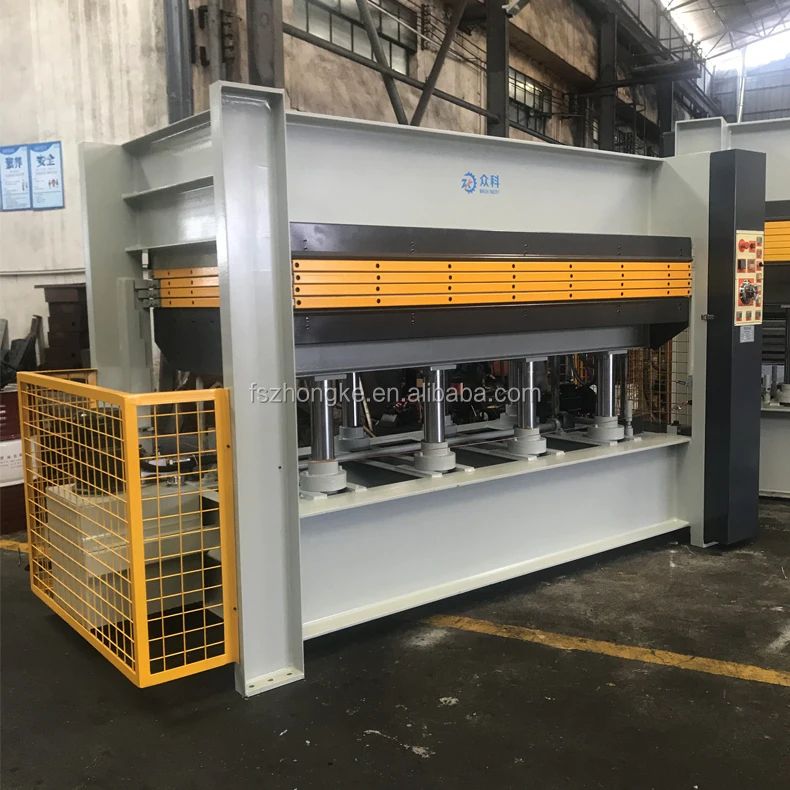

chipboard hot press machine hydraulic hot press machine
US $11500-$12000

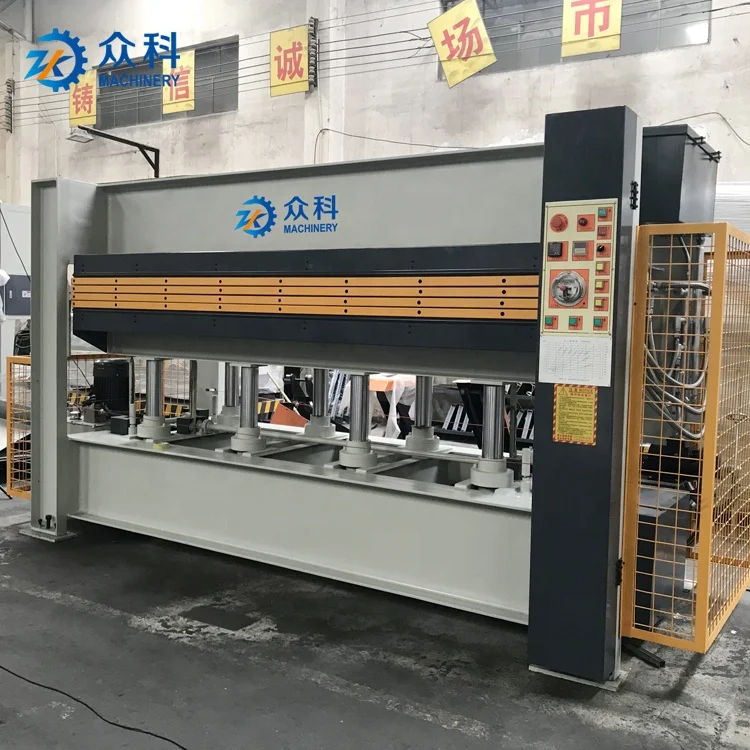

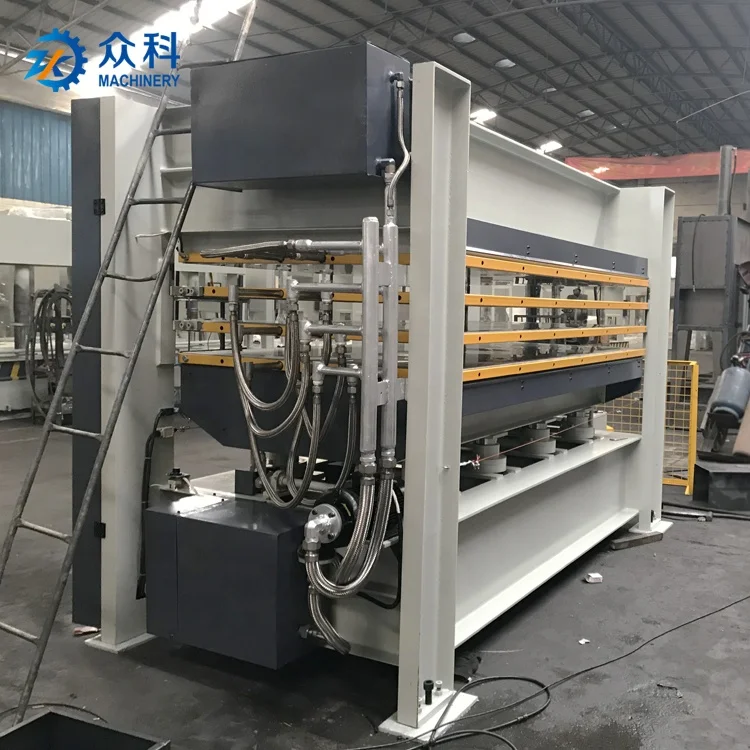

Wood hot press machine/Woodworking hot press oil press
- Category: Press >>>
- Supplier: Foshan ZK Machinery Co. Ltd.
Share on (62306848829):
Product Overview
Description
Product Description
The machine is applied for various sorts of decorating onto plywood, veneer ,fireproofing-board ,decorating-paper etc. Easy to operate,working exact and fast high efficiency, it is the necessary pressed work-piece in panel furniture.
Detailed Images

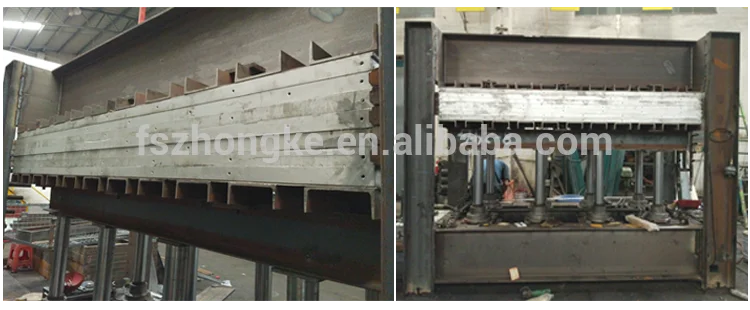

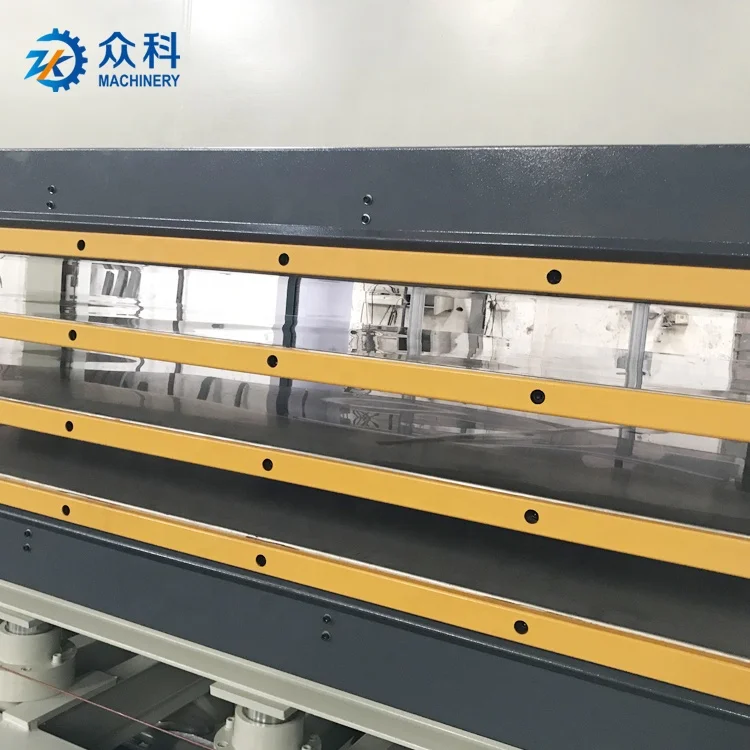

Machine Body
1) Machine frame: use excellent armor plate of folding to joint with excellent channel steel.
2) Adopt solid drilled conduction board, pre-heating faster, uniform thermal conductivity and energy consumption lower
2) Adopt solid drilled conduction board, pre-heating faster, uniform thermal conductivity and energy consumption lower

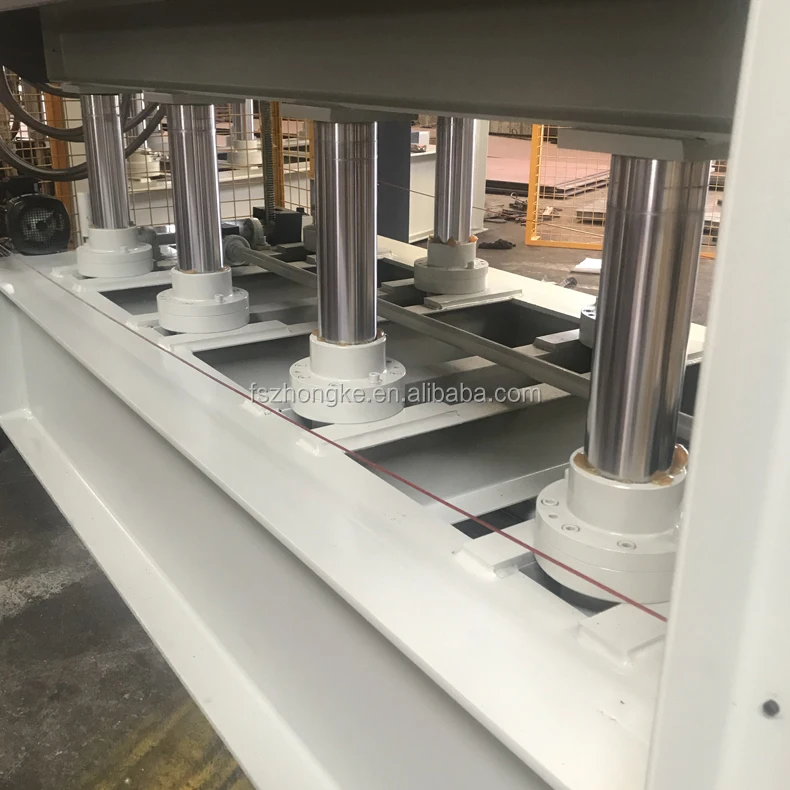

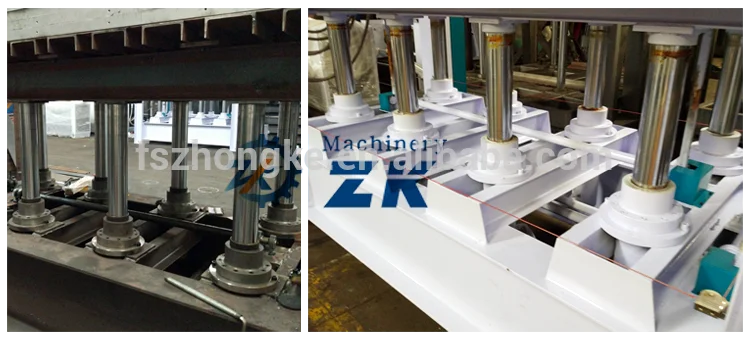

Oil Cylinder
Diameter of the oil cylinder is 90-100mm, Use with providing hydraulic station. Postion mode for cylinder, grind, plate hard chromium on the surface and polish piston

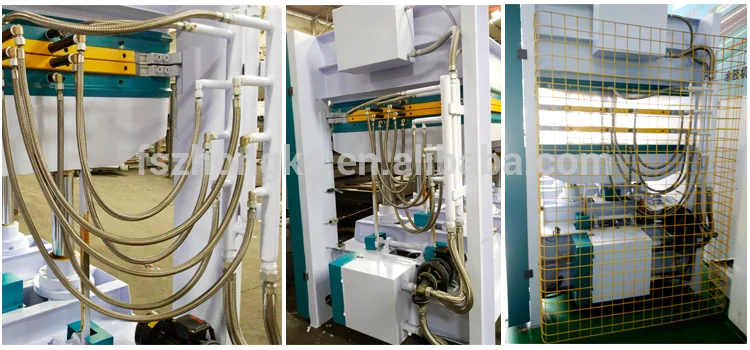

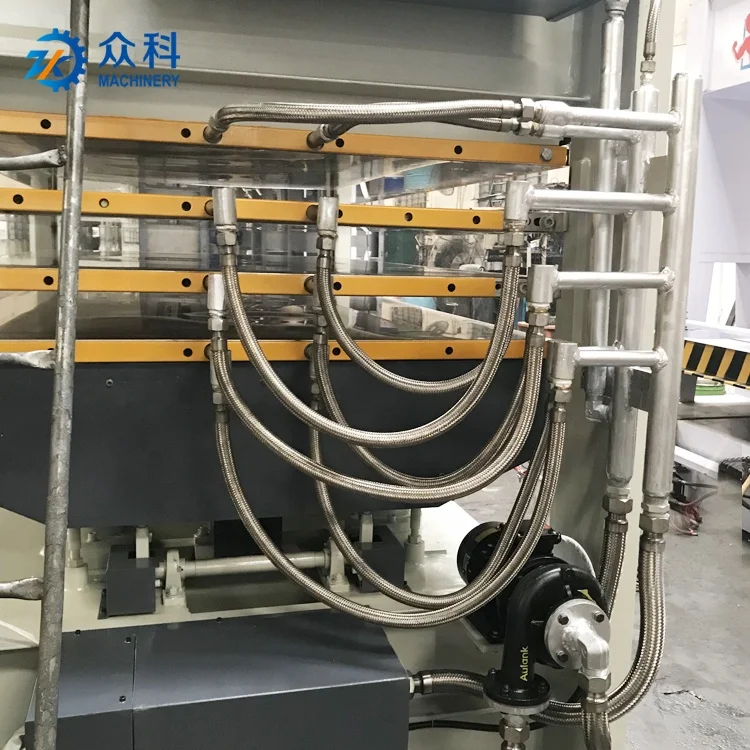

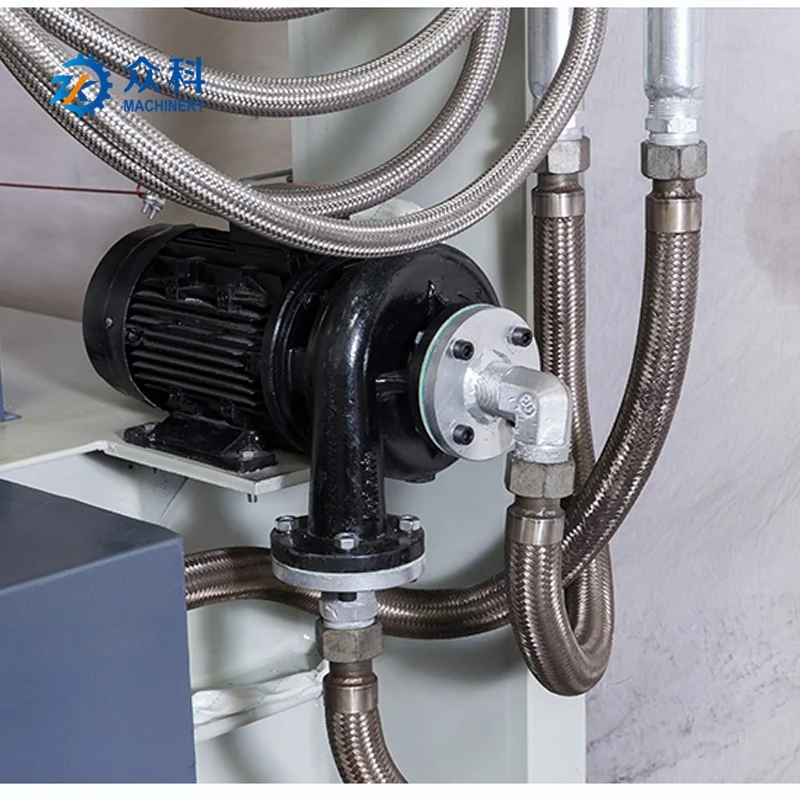

Machine Valve And Heating system
Quality valve for auto-open hydraulic valve, high holding pressure, reliable performance, less human factors.
Size Information
Model | MH3848×100T-1 | MH3848×120T-3 | MH3848×200T-5 | MH3848×120T(5) |
Number of the layers(opens) | 1 | 3 | 5 | 5 |
Distance between press plates | 200mm | 100mm | 100mm | 100mm |
Maximum temperaturu of the press board | 120 degree | 120 degree | 120 degree | 120 degree |
Press board size | 2500×1300 ×42mm | 2500×1300 ×42mm | 2500×1300 ×42mm | 2500×1300 ×42mm |
Max pressure | 100T | 120T | 20T | 120T |
Oil cylinder diamter | Φ90×8pcs | Φ100×8pcs | Φ100×10pcs | Φ100×8pcs |
Install power | 27kw | 48kw | 60kw | 60kw |
Weight | 5500KG | 8000KG | 11000KG | 10000KG |
Overall size | 3550×1500×1900mm | 3500×1700×2200mm | 3550×1700×2500mm | 3550×1500×2500mm |
Related Products
Packing&Shipping
1.Thick PE foam inner, plastic film outside, in case of damage during transportation
2.Seaworthy wooden case as the general export package should be additional charged
2.Seaworthy wooden case as the general export package should be additional charged
Company Introduction
ZK Machinery major product is precision panel saw & thicnkesser & surface planer. Time has tested the quality of our products and the good credit of our company,that is why we have more than 100 agents both at home and abroad and more and more foreign customers are coming to us.
Other woodworking machines,like cnc wood lathe, wood press, drilling machine, and other various products are also popular with customers from southeast,the Middle East,etc.
As a fast growing enterprises, ZK MACHINERY have the whole world in view,and try to be better and better, We are working hard to provide our customers perfect machines along with our technical support and after sale service. Also we will keep to "quality is first, reputation is everything" as our tenet!
Sincerely hope you could witness the development of ZK MACHINERY and you are warmly welcomed to visit our factory.
Other woodworking machines,like cnc wood lathe, wood press, drilling machine, and other various products are also popular with customers from southeast,the Middle East,etc.
As a fast growing enterprises, ZK MACHINERY have the whole world in view,and try to be better and better, We are working hard to provide our customers perfect machines along with our technical support and after sale service. Also we will keep to "quality is first, reputation is everything" as our tenet!
Sincerely hope you could witness the development of ZK MACHINERY and you are warmly welcomed to visit our factory.
