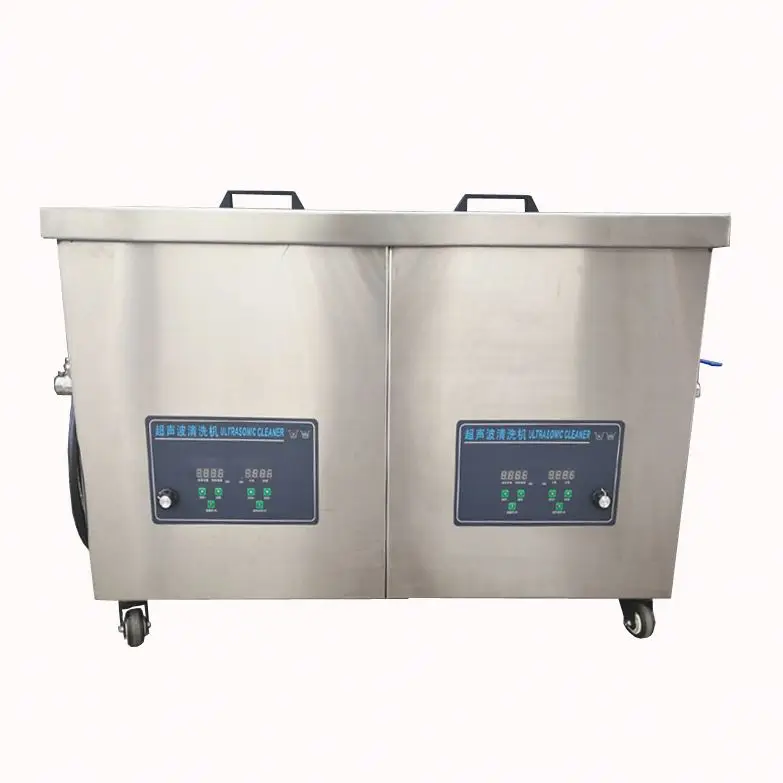

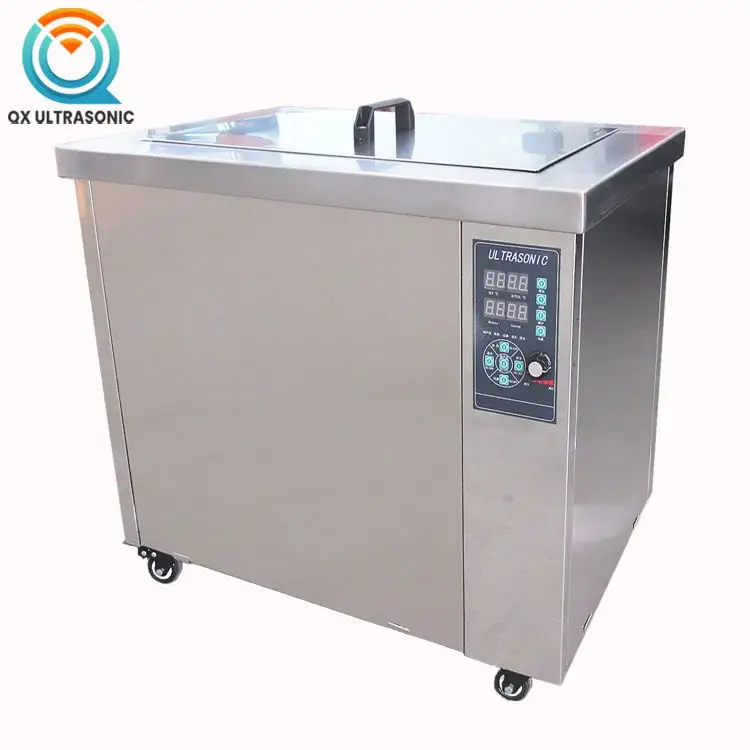

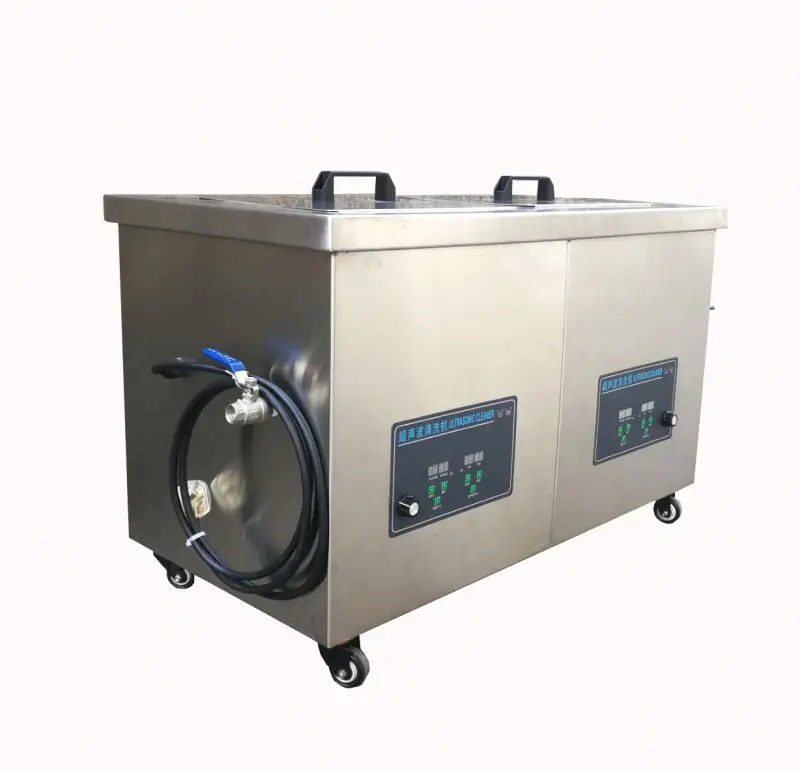

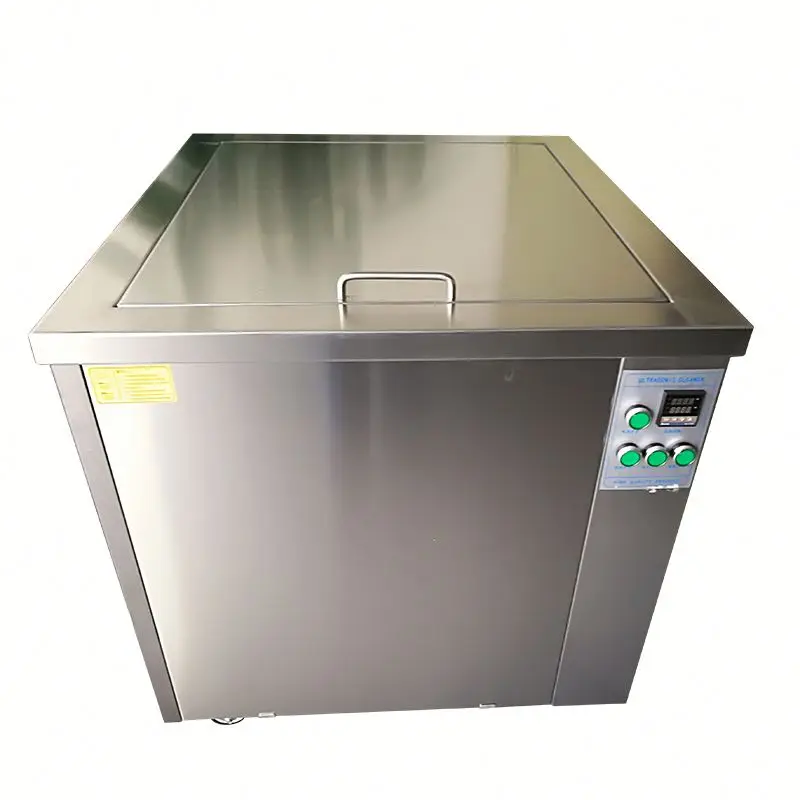

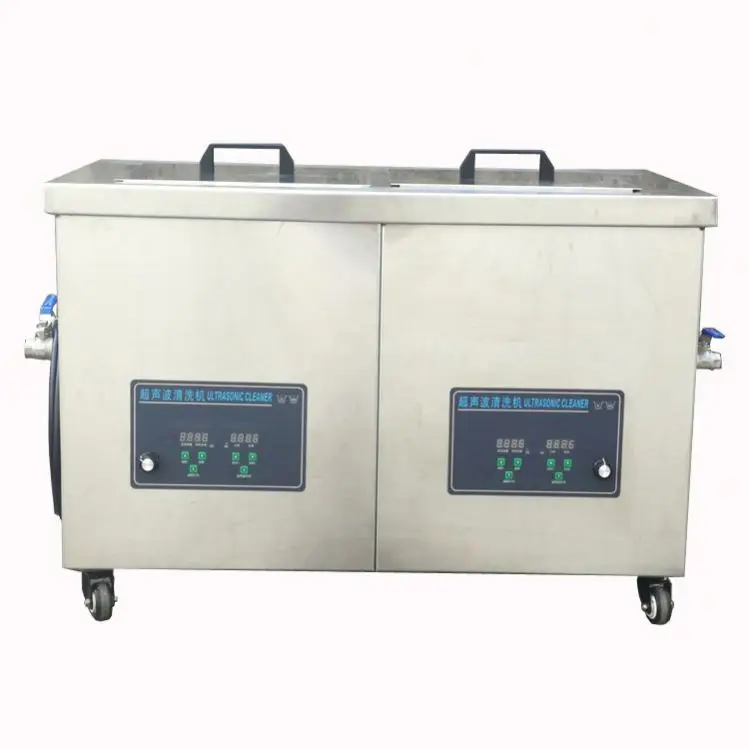

Sonicator Wheel Rim Ultra Sonic Cleaning Machine Cleaner 200L Pcb Injector Ultrasonic Water Bath

Customize Various Different Size Ultrasonic Cleaning Machine according to the cleaning objects.

Two cleaning tank ultrasonc machine. (Ultrasonic Cleaning +Drying)

♥ If you are interested in our product,

♥ Pls just feel free to send us your inquiry.

♥ We wil try our best to quote the competitive price for you!----- Contact Us Now

1)Tank: one tank or multiple-tank

2)Tank size: length *width * height (mm).

3)Cleaning tank material:

high quality SUS304 stainless steel of thickness 2 mm;

high-quality SUS316 stainless steel of thickness 2 mm.

Remark: SUS304 stainless steel is prevent from weak acid, weak base and weak corrosive. At present, the SUS304 is an agreed materials by market to used as steel cleaing tank. If you need a strong acid, strong alkali or corrosive solution as a kind of ultrasonic cleaner, you should use SUS316 stainless steel ultrasonic cleaning tank. SUS316 stainless steel is resistant to strong acid, alkali and corrosive liquid.

4)Frequency selection:

Usually,the frequency of industrial ultrasonic cleaner on the market is 40 KHZ or 28 KHZ at present.However,you can choose the frequency according to your cleaning items and the difficulty of cleaning item’s besmirch,then customized cleaners accordingly.

5)Ultrasonic Frequency Range:

Low Frequency :17 KHZ, 20 KHZ, 25 KHZ, 28 KHZ, 40 KHZ

High Frequency: 68 KHZ, 80 KHZ, 120 KHZ, 132 KHZ, 200 KHZ

Reminder: The smaller ultrasonic frequency bring the greater strength of cleaning. For example, 28 KHZ frequency’s cleaning effect is greater than 40 KHZ.

6)Ultrasonic Power Choose:

The Ultrasonic Power is calculated according to your tank size and the quantity of industrial ultrasonic transducer.
Heating power:

Generally, if there is not specified degrees, we will install the heat plate according to the capacity size, and temperature is 20-80 degrees.

7)Time Settings:

At present,1 — 30 minutes is ok. You can fixed the time to be 1-9999 minutes adjustable according to your cleaning items requirements.

8)Design of Ultrasonic.

Vibration plate type, sticky bottom type and hanging type. Till now, all of ultrasonic is the sticky bottom type on market. You can customize vibration plate type or hanging type according to your clean items requirements.
