Высокая мощность 100 Вт rgb светодиодный чип 100 Вт cob led rgb
- Category: High Power LED >>>
- Supplier: Ningbo Junsheng Electronics Co. Ltd.
Share on (62307494656):
Product Overview
Description
Epileds chip high power 100w rgb led chip diode
100w rgb high power led
low voltage DC operated
high reliability and long life time
soon delivery
RoHs&CE
high power 100w rgb led chip
Electrical and optical characteristics (Ta = 25℃)
Parameter | Symbol | Test Condition | R | G | B | Unit | |||
Min | Max | Min | Max | Min | Max | ||||
Forward Voltage
| VF | IF = 3000mA | 20.0 | 24.0 | 32.0 | 34.0 | 32.0 | 34.0 | V |
Luminous Flux
| Φv | IF = 3000mA | 1200 | 1500 | 2300 | 2600 | 450 | 650 | lm |
Dominate Wavelength
| λd | IF = 3000mA | 620 | 630 | 520 | 530 | 460 | 470 | nm |
Reverse Current | IR | VR=5V | 10 | μ A | |||||
Viewing Angle
| 2θ1/2 | IF = 3000mA | 120 | De | |||||

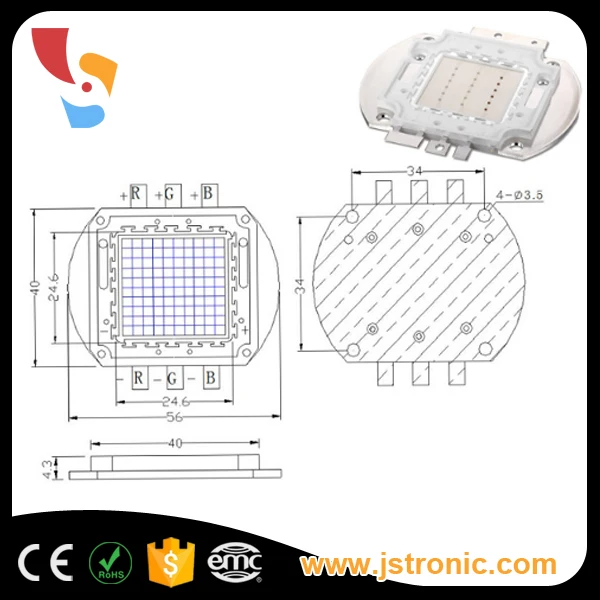

100w rgb led chip outline dimension
We promise all our led chip are 100% power enough,some seller sell only 50%-70% power.
Our LED chip will work more than 50000hours if the working temperature is less than 60 Degree,so they need to work with heatsinks.
Jstronic will support worldwide customer the quality LED component and lighting product, and help customer each other develop. LED field is hot and very energetic; it will be go ahead and especially new technology solved in power and reduce cost.
We provide customer high quality and innovative LED products, with perfect service.
Our main is to help customer reach their goals.We are making great efforts to achieve their win-win situation and sincerely welcome you to join us.
Welcome to visit our factory.
For more details or free samples testing,please"send"now.
