Wholesale Recycle Plastic Granules Making Machine Price/Plastic Granulating Machine/Polyester Staple Fiber Manufacturer In Zhang
- Category: Plastic Raw Material Machinery >>>
- Supplier: Zhangjiagang,Fenghua,Mchinery,Co.,Ltd.
Share on:
Product Overview
Description

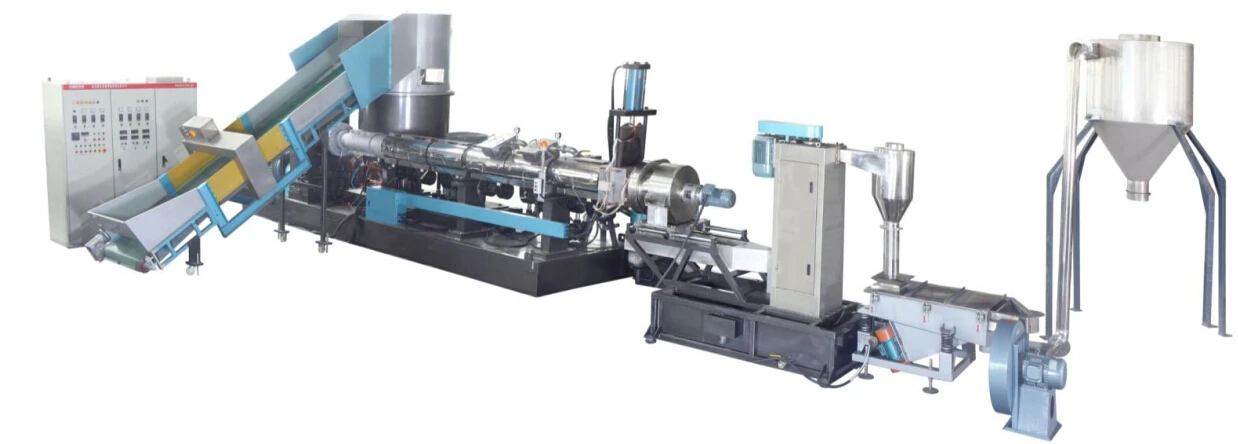

PVC PET PE plastic pelletizing machine / recycle plastic granule making machine
1.capacity:100-600kg/h according to client's demand
2.water cooling way plastic granulator
3.suitable for pp ,pe,ps,ABS material
pvc plastic pelletizing machine configuration reference
extruder specification for plastic pelletizing machine
Final product for plastic pelletizing machine
Product Description
SJ series of plastic recycling granulator
Application and Features
This machine adopts hot cutting method to granulate;
It is mainly used for PVC plastic granules, its features as follows: advanced equipment, strong commonality, high productive capacity.
It can equip with different specifications hosts, it can obtain the yield that users need.
Main Technical Data:
Model/specification | Length-diameter ratio | Production(kg/h) | Screw speed(rpm) | Driving power (kw) | Center high(mm) |
SJ-30/25 | 25:1 | 1.5-10 | 15-150 | 5.5 | 1000 |
SJ-45/25 | 25:1 | 5-38 | 12-88 0-5 | 7.5 | 1000 |
SJ-65/25 | 25:1 | 20-85 | 13-130 | 22/7.3 | 1000 |
SJ-65-25A | 25:1 | 10-30 | 0-27 | 7.5 | 1000 |
SJ-65-25B | 25:1 | 10-45 | 0-37 | 11,15,18.5(customize as User) | 1000 |
SJ-90/25 | 25:1 | 50-100 | 33.3-100 | 5.5/18.3 | 1000 |
SJ-90A | 25:1 | 30-60 | 0-30 | 7.5 | 1000 |
SJ-90/25B | 25:1 | 60-90 | 0-30 | 22 | 1000 |
SJ-120/25 | 25:1 | 84-190 | 17-52 | 55/18.3 | 1000 |
SJ-150/25 | 25:1 | 50-300 | 7-42 | 100/75 | 1000 |
SJ-200/25 | 25:1 | 180-430 | 5-15 5-30 | 100/16.7 | 1000 |
Attached machinery | |||
Cooling water tank | Send grain windmill | Particle cutting machines | Tin the material storing barrels |
LX-2HP × 2sets | 0.8×1.0×2.3 | ||
2.2×0.6×0.8 | VS4p×2HP | ||
LX-3HP × 2sets | 0.8×1.0×2.3 | ||
2.2×0.6×0.8 | VS4p×3HP | ||
LX-5HP × 2sets | 0.8×1.0×2.3 | ||
2.5×0.8×0.9 | VS4p×5HP | ||
LX-5HP × 2sets | 0.8×1.0×2.3 | ||
3.0×0.8×0.9 | VS4p×7.5HP | ||

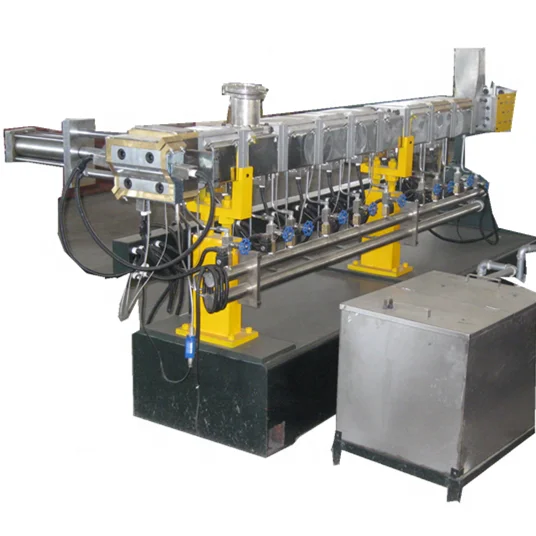

conical twin screw extruder for plastic pelletizing machine

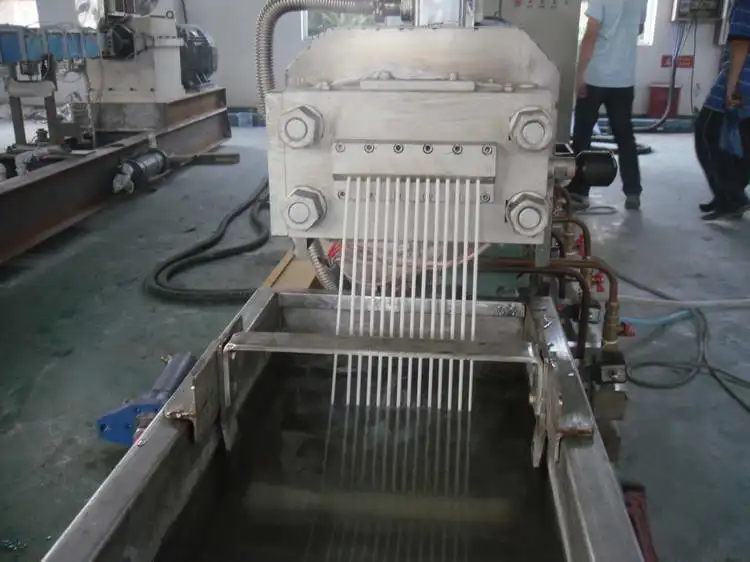

Cooling mold for plastic pelletizing machine
Any question about plastic pelletizing machine ,please feel free to contact us ,
we are pleased to recommend suitable product for you according to your practical demand!
