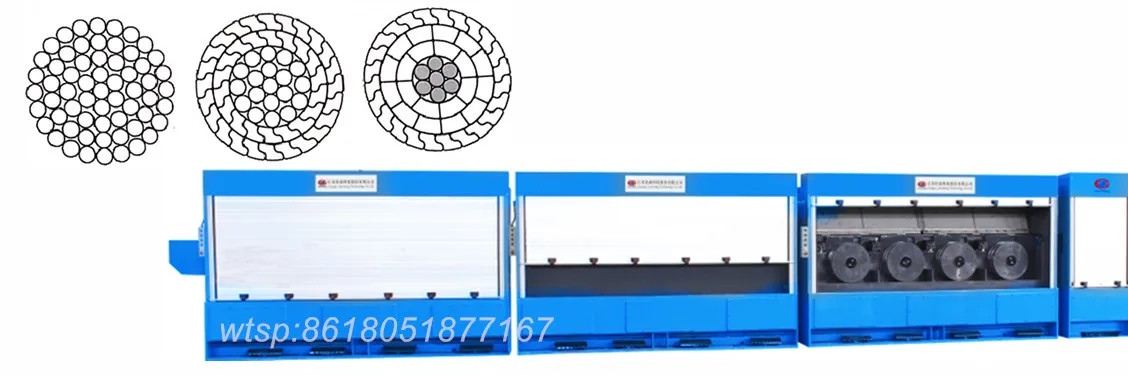

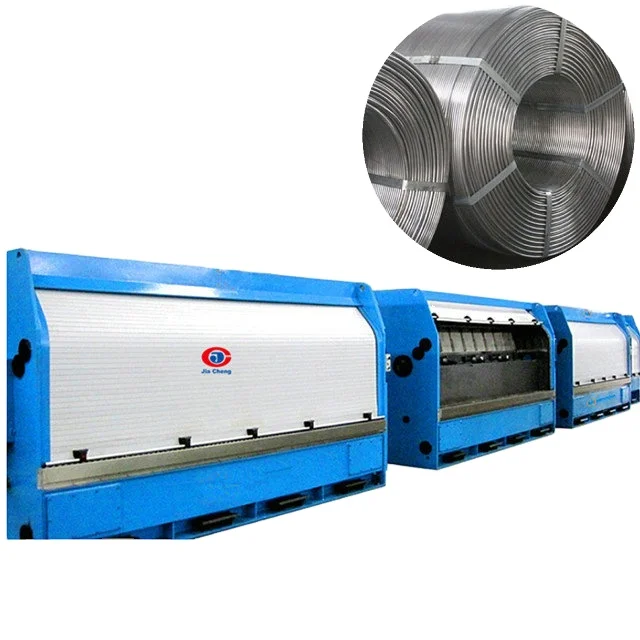

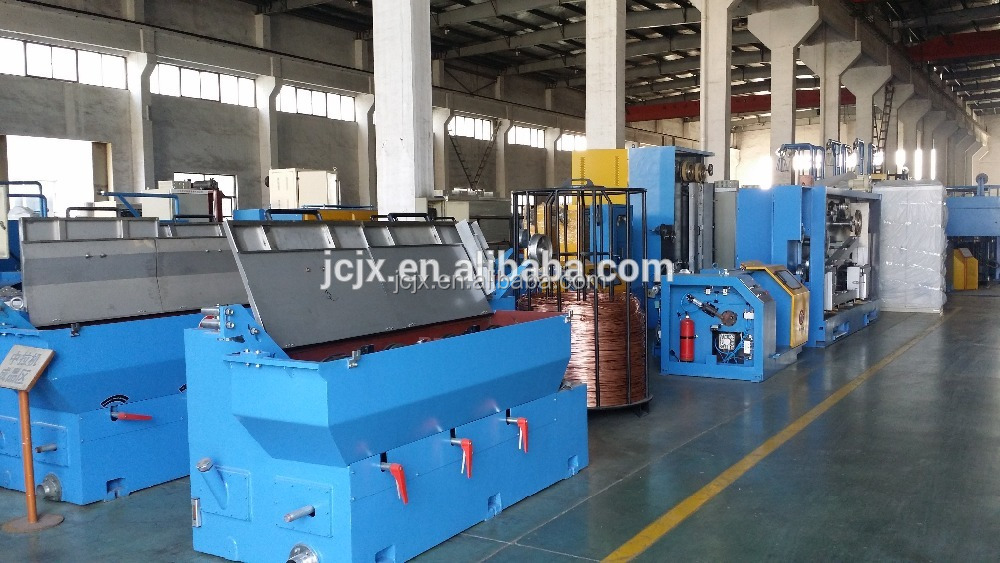

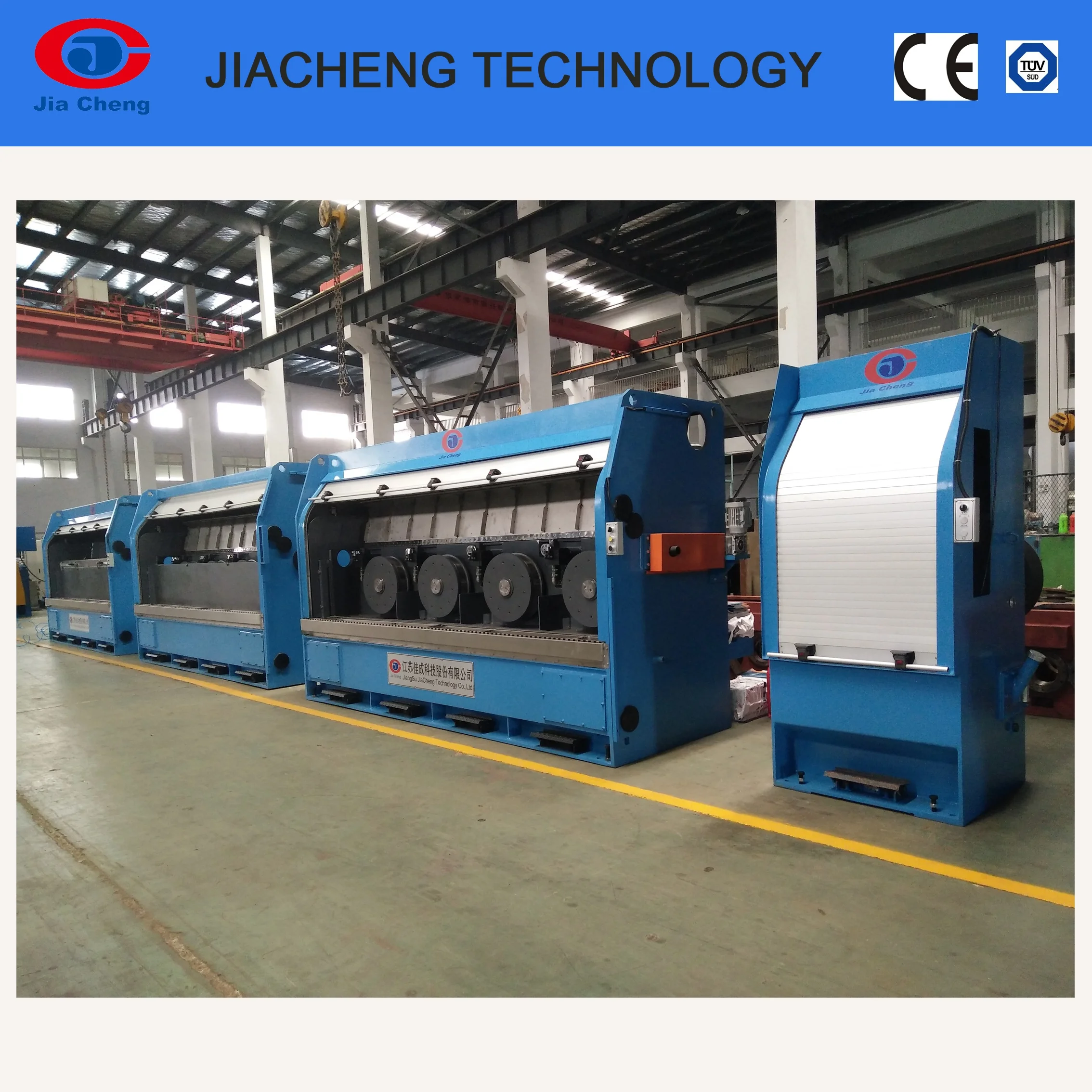

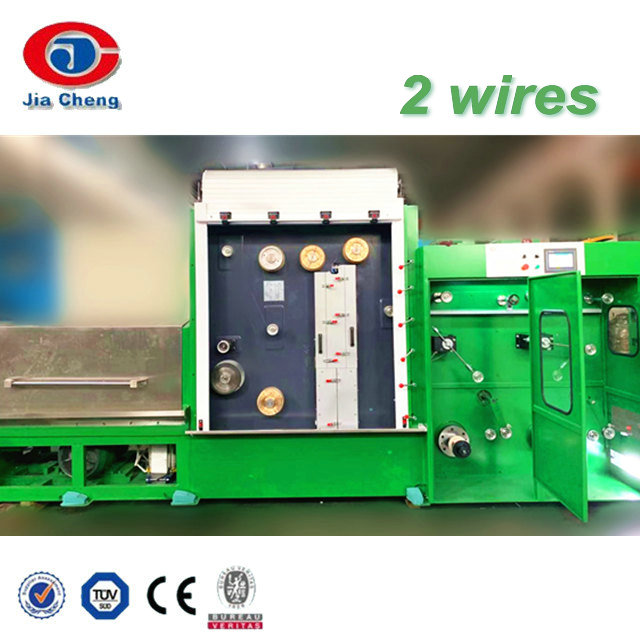

This kind of machine is used to draw two al,al alloy rods
from 9.5 mm to 1.6mm-5mm(al) 2.1mm-4.5mm(al alloy) with high speed
she
can also be used to drawn double copper rods.
she

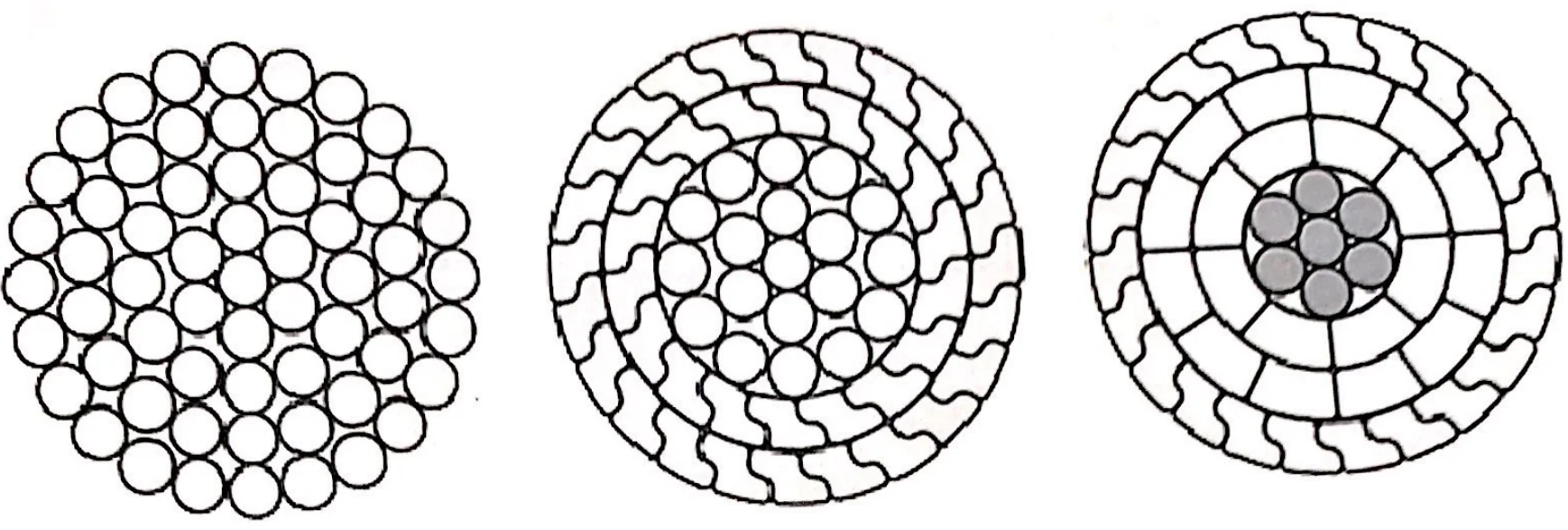

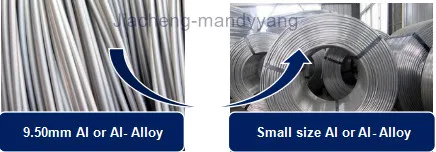

can drawing 9.5mm aluminium alloy rod to 3.1mm-4.5mm (1.7mm-5mm)Aluminum alloy round wire or equivalent cross-sectional area s-shape, z-shape, trapezoidal wire
she
suitable for carbon fiber cable, Al conductor Composite Core (ACCC conductor) and reinforced cable.

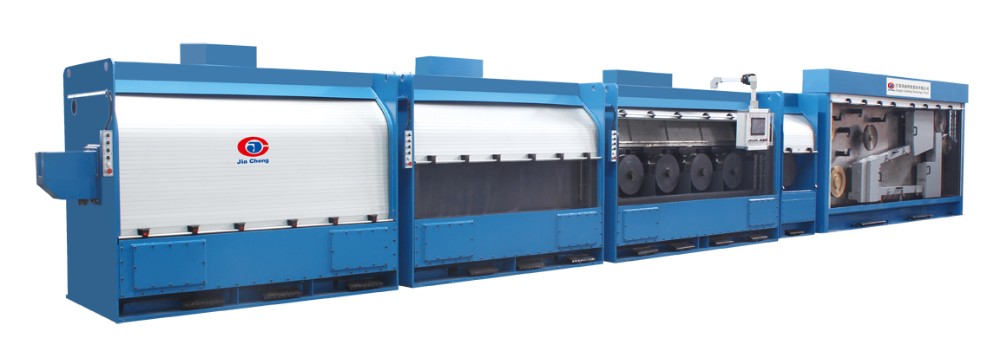

Feature of main body

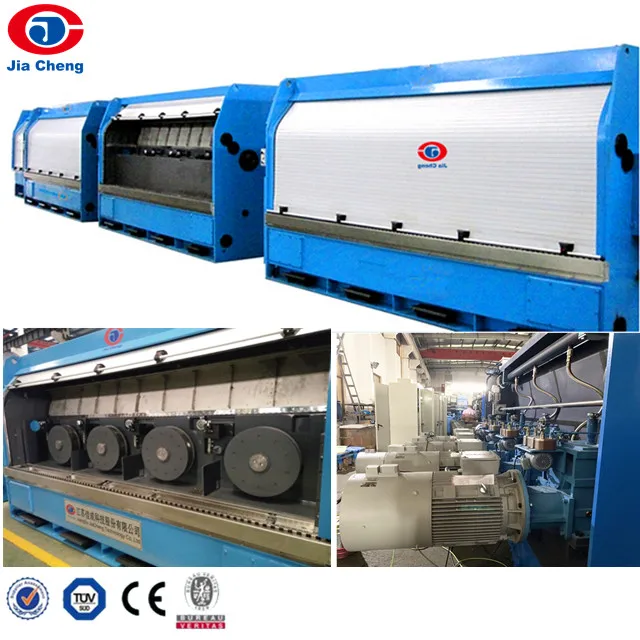

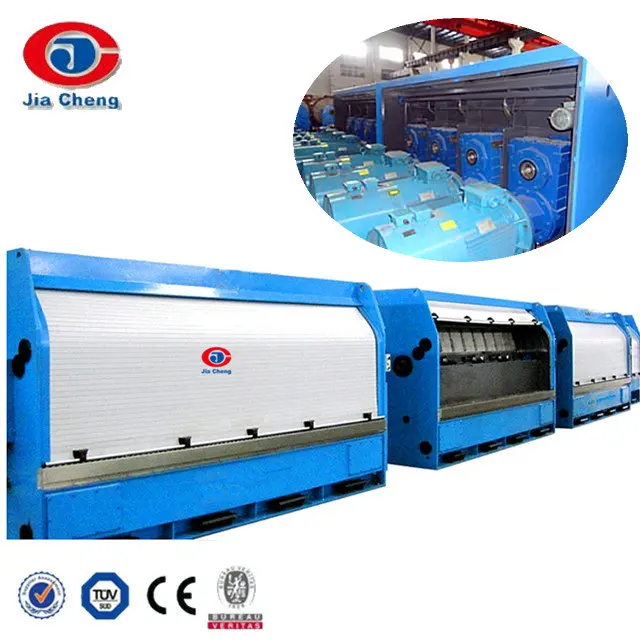

she is welded from high-strength metal steel plate and finished by tempering and aging treatment.Guaranteed to be absolutely stable and easy to install!The front end of the main stand has a wire drawing wheel, followed by a drive system for the motor, reducer and guard.

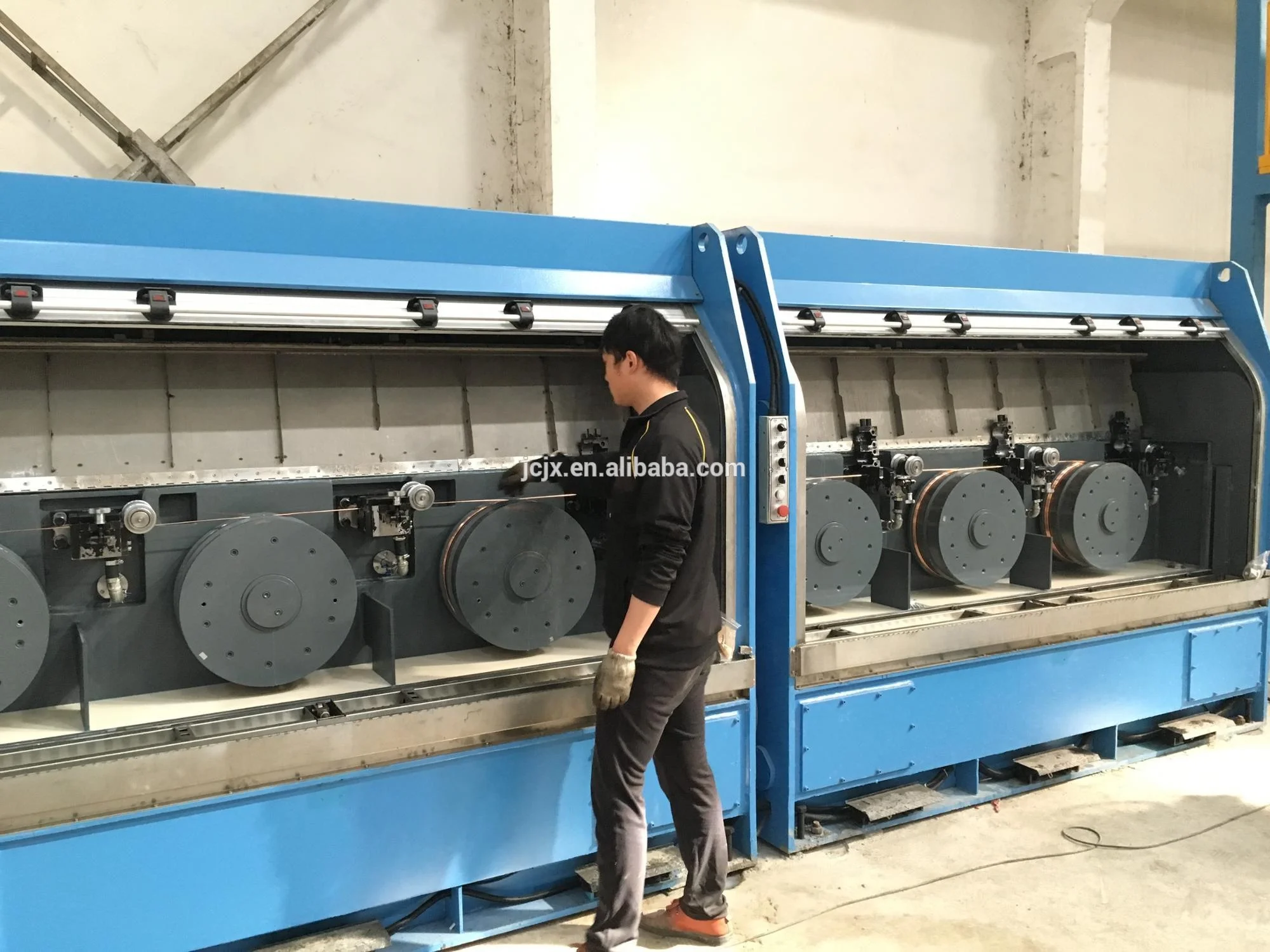

Feature of each drum

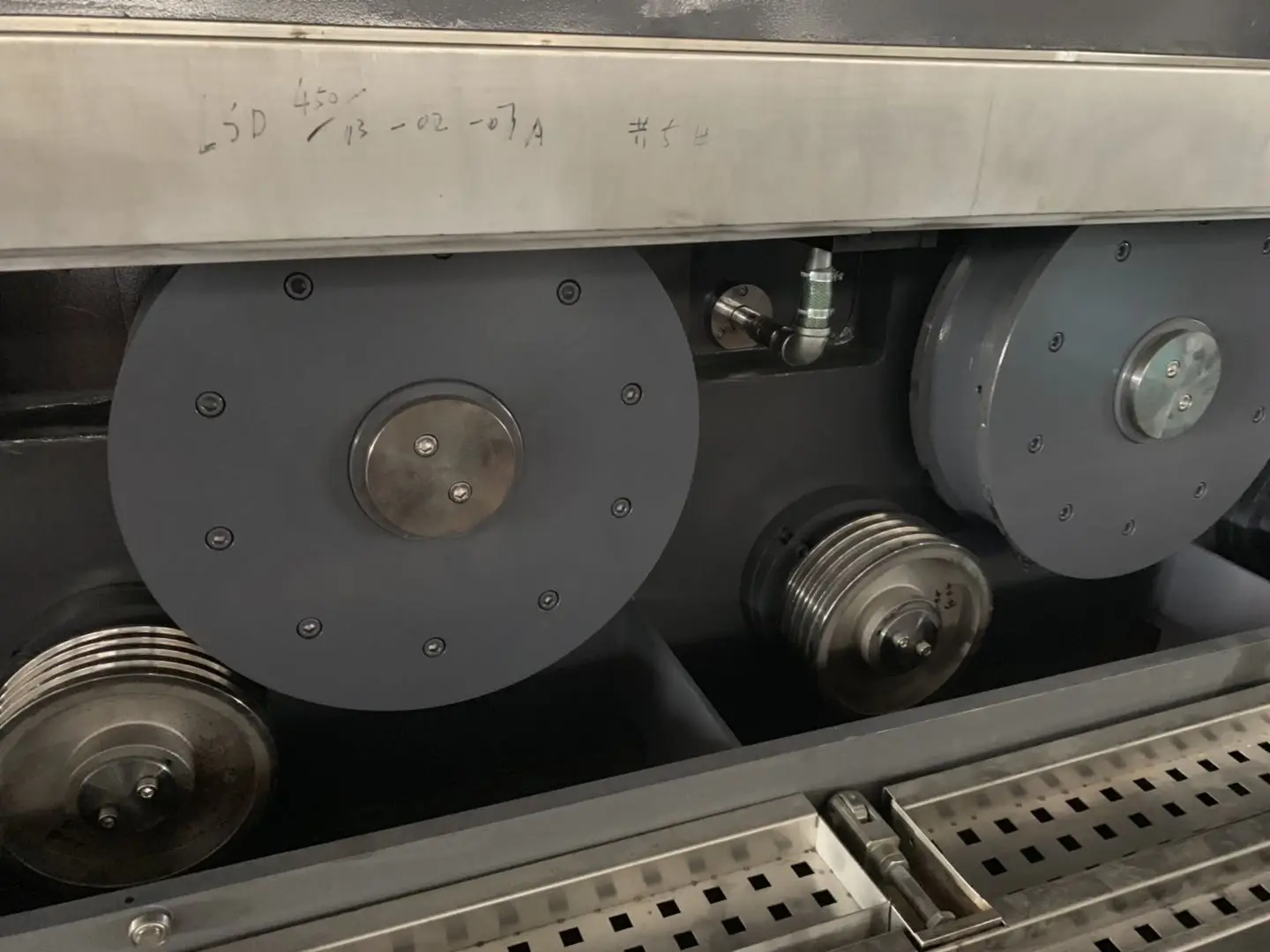

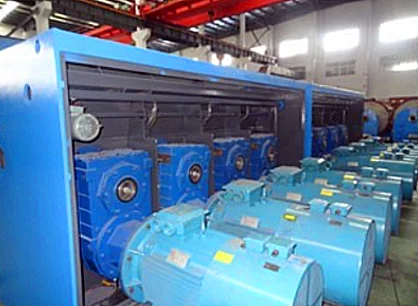

Drum wheel The fixed speed wheel is inlaid structure, the surface of the wide drum rim is sprayed with tungsten carbide, and the double-cone structure is used on both sides. When the surface is worn, only the drum ring needs to be replaced.

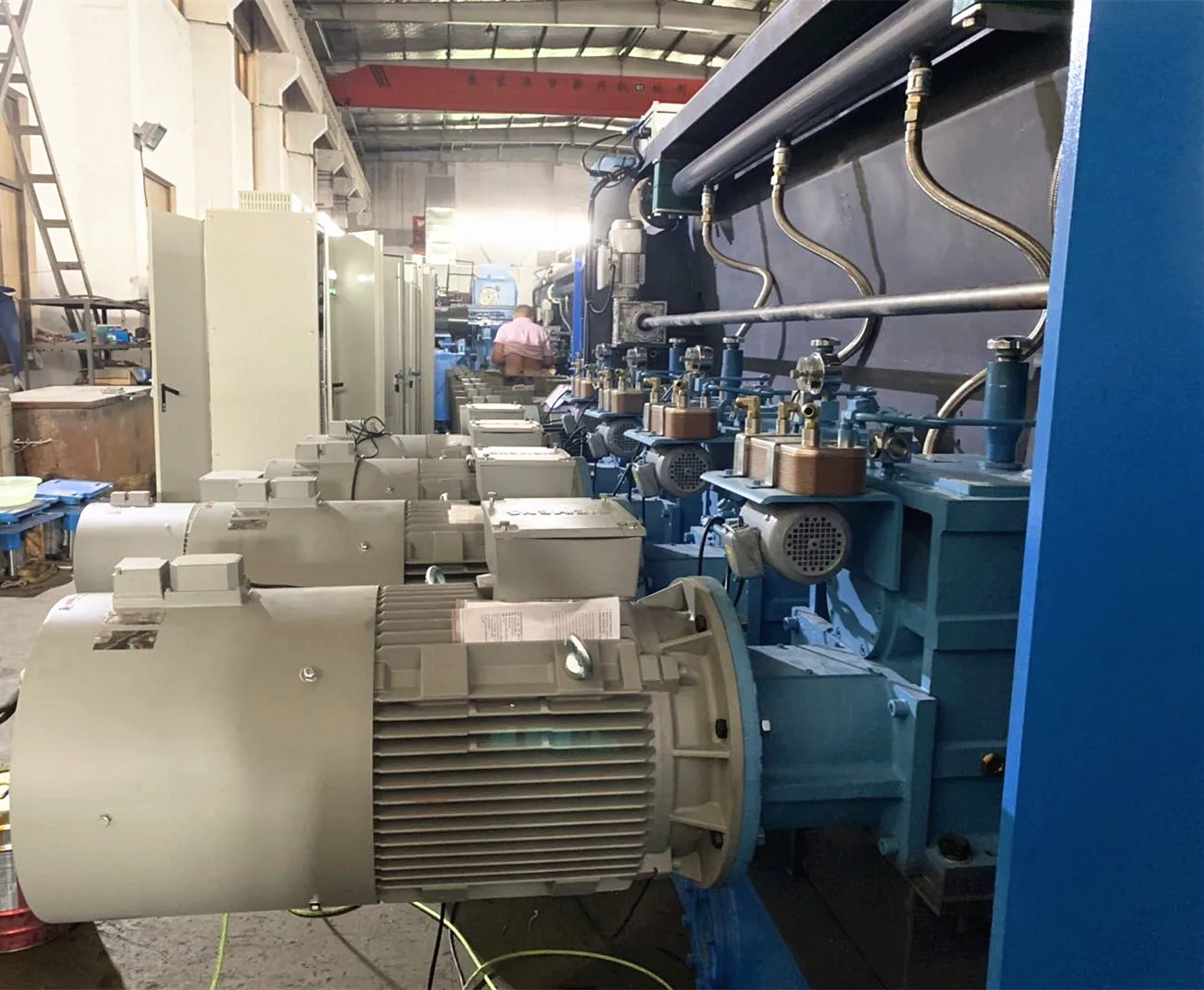

Feature of the individual motor
Each of her drawing drums is driven by a separate AC variable frequency motor through a reducer. The motor and the gear box are connected by a coupling. Plc unified control, can realize mode-hopping operation, can stop unused drums when drawing large-size wire, energy-saving and efficient
Size Information
Machine Type
LSD450/13-2
LSD450-11/2
LSD450/9-2
Drawing Wire No.
24.4
2 wires
27.9
Max. Die No.
13*2
11*2
9*2
Inlet wire dia.(mm)
Copper
2*Ø8
Al, Al Alloy
2*Ø9.5
Outlet wire dia.(mm)
Copper
2*Ø1.2-Ø3.5 1*Ø3.5-Ø4.5
2*Ø1.2-Ø3.5 1*Ø3.5-Ø4.5
2*Ø1.2-Ø3.5 1*Ø3.5-Ø4.5
Al, Al Alloy
2*Ø1.2-Ø3.5
2*Ø2.2-Ø5.0
2*Ø2.8-Ø5.0
Max. Drawing Speed(m/s)
30
25
20
Main Motor(KW)
45/55/75/132K(AC)
Capstan Arrangement
Horizontal Type
Take-up Type(Optional)
Double Take-up/Single Take-up/Coiler
Packing&Shipping
After Sales Service
Pre-Sales Service
In order to guarantee the customers are able fully to operate the machine, if the customer need, we can help customer training, includes:
①Free service guarantee period is: 12 months after shipping (except wearing parts) ② Provides long term spare supply, technical support and maintenance service for the machine, but we will charge for travel fee and other basic cost. We guarantee when we get the information of the customer, our engineers will analyze immediately, then response as soon as possible, if need our engineers come, 24hours will be arrived inland, and one to two week oversea based on getting visa on time.
Company Introduction
we established in 1990.We are the professional manufacturer have more than20 yearsof experience in making all kinds of wire and cable machinery,realize the wire from drawing to extruding.
we are the factory not the trade company,Machine's body and other key components and parts are produced by our own factory, quality is reliable.,andwe can control .the price;.the quality and .the delivery time;
We have annealing,stranding,extruding machine and cable auxiliary equipment(for example:wire winding machine,take up and pay-off machine,wire wrapping machine and so on)
FAQ
A:I just get into this industry, I don't know how to plan?
Q : Every salesman of us can tell you how to plan the workshop ,how to install the equipment,how to save the costs and so on.
A: How can i install my machine when it arrives?
Q:We will send our engineers to your factory to install the machines and train your staff how to operate the machines
A:How about the spare part?
Q:We can offer you a spare parts list for your reference.
A : Which industries are mainly targeted at JIACHENG's equipment?
Q : Wire and cable, enameled wire, electron beam, cutting line, magnetic wire,and S.S.wire etc.
