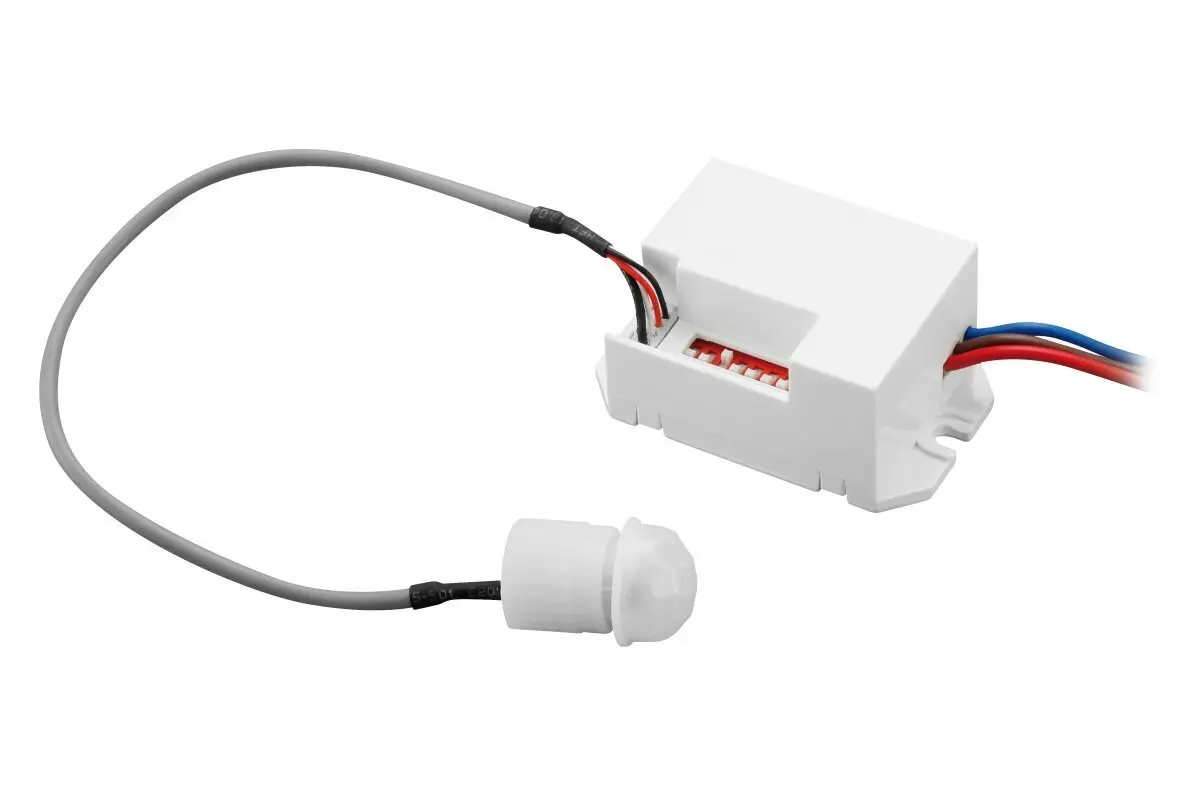

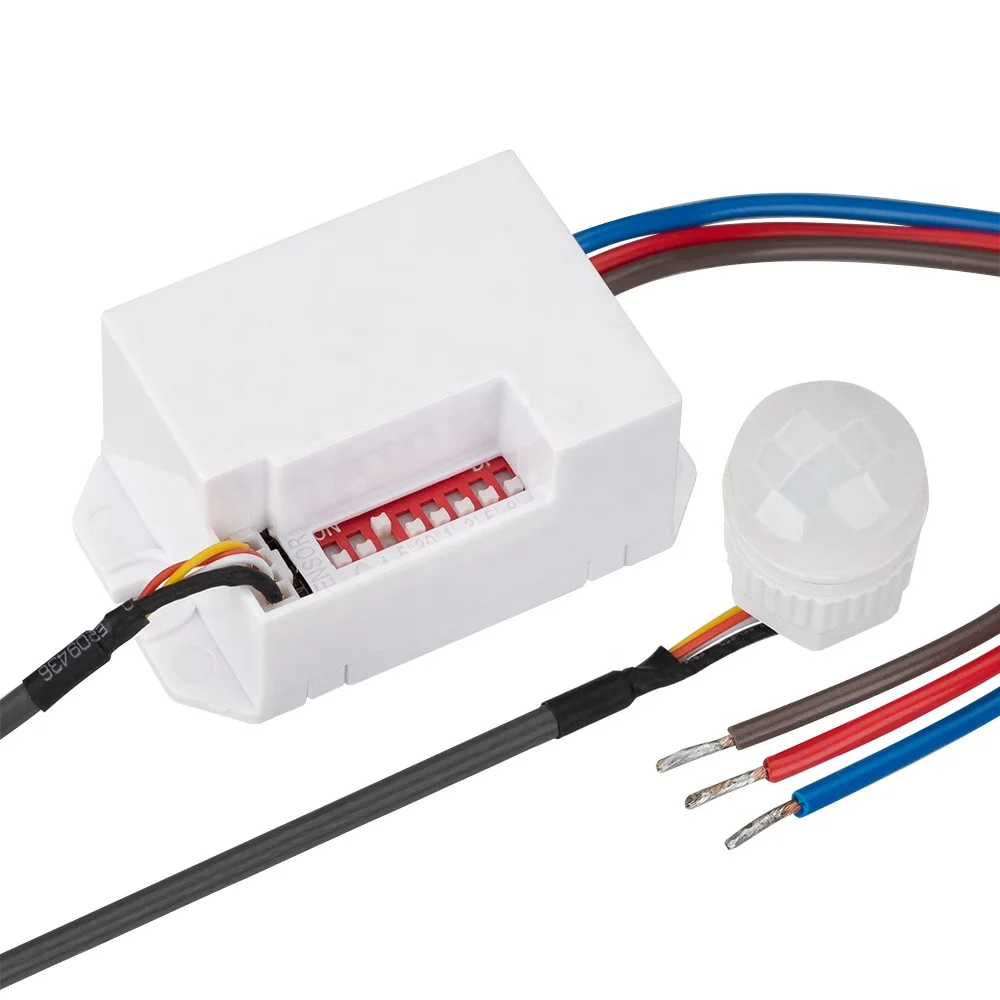

Mini PIR Sensor Indoor, Ceiling Flush Mounted Infrared Motion Sensor, Range max. 6m/360
- Category: Sensors >>>
- Supplier: Yiwu Beide Technology Co. Ltd.
Share on (62309302041):
Product Overview
Description
Mini PIR Sensor Indoor, Ceiling Flush Mounted Infrared Motion Sensor, Range max. 6m/360
Product Description
The Infrared sensor detects movements of people, large animals and vehicles within a detection range of up to 8m at a detection angle of 360° and switches on the connected lighting. After a preset time of approx. 5 seconds to 8 minutes, the motion detector switches off again when no more movements are detected. With the aid of a controller, the switch-on sensitivity can be regulated in relation to the ambient brightness (in the range between 3 and 2,000 LUX). In addition, the detection chamber can be adjusted in a targeted manner thanks to its vertical swivelling capability.
Specifications:
Detection Angle: 360 Degrees
Detection Range: 8m
IP Rating: IP20
Time Setting: 5Sec.30Sec.1.3.5.8Min.Off
Power Source: 110-240V/AC
Rated Load: 800W
Max Power Frequency: 50/60Hz
Ambient Light: Work Temperature: -10~+40
Package Content:
- 1 x Motion detector
- 1 x User Instruction
The motion detector is for indoor and outdoor use. The included manual clearly describes the installation process.
On the Smartwares Motion detector you receive 24 months warranty.

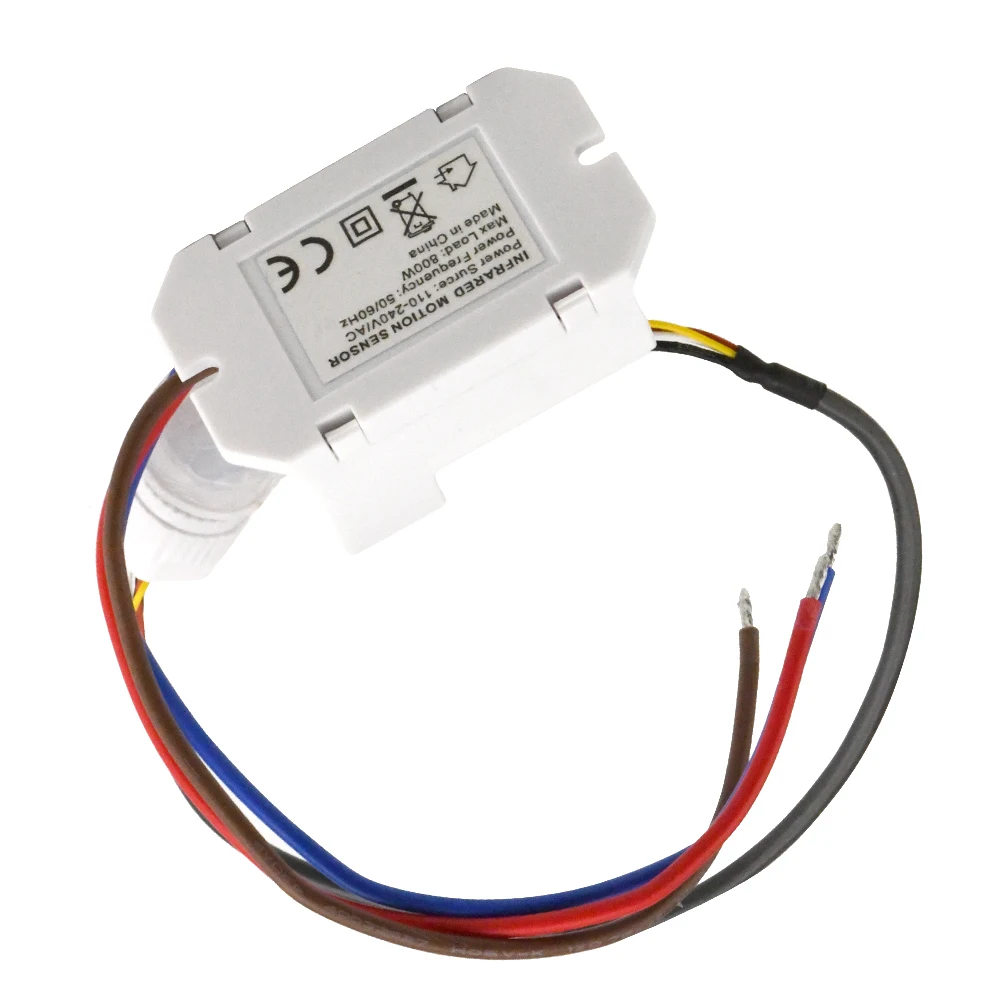

Detailed Images
Certifications
Our service
♦PACKING: Neutral packing with new carton or according to customer requirments.
♦PAYMENT: T/T,Paypal,West Union,30% deposit, 70% balance before delibery.
♦LEAD TIME: Sample in 3-5 working days and large order in 12-15 working days.
♦TRANSPORT: By DHL/UPS/FEDEX, Air cargo or Sea shipment.
♦PORT OF SHIPMENT: Shanghai,Ningbo,China.
♦MOQ: 10 piece. Providing DISCOUNT and OEM service for large order.
Check below for more information on placing orders:
| 1.Inquiry-Professional quotation. |
| 2.Confirm the price, lead time, quality details, payment term etc. |
| 3.Our sales send the Proforma Invoice with seal. |
| 4.Customer make the payment for deposit and send us Bank receipt. |
| 5.Inform the clients that we have got the payment and begin to produce. |
| 6.Middle Production send photos to show the production line which you can see your products in. Confirm the production and inform the estimated time. |
| 7.End production-Mass production photos send you for approval. You can also arrange third party Inspection. |
| 8.Clients make payment for ballance and Ship the goods.Inform the tracking number and send all the documents for clients custom clearance. |
| 9.Order can be say“finish” when you receive the goods and satisfy with them. |
| 10.Feedback to our about Quality,Service,Market Feedback & Suggestion.And we can do better. |
You can directly make order online or contact me for more details, thanks for cooperation!
