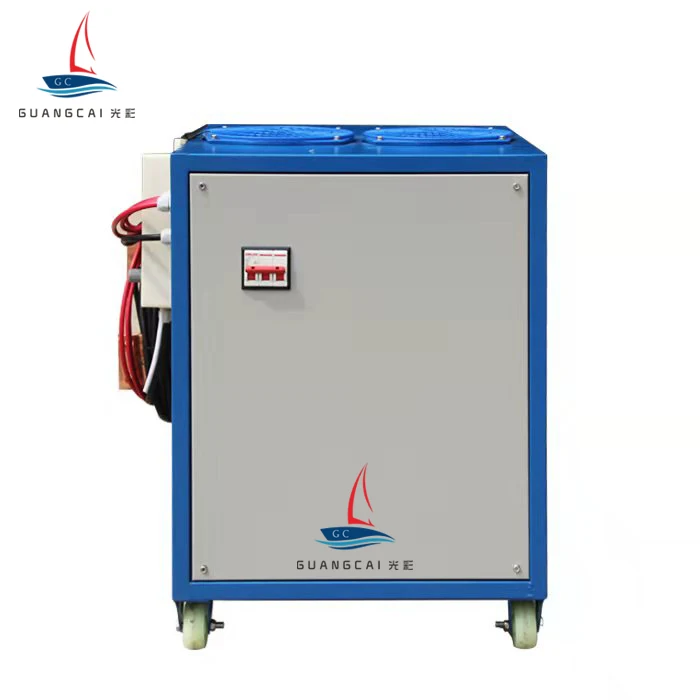

Гальваническая машина/выпрямитель для обработки сточных вод
- Category: Metal Electroplating Machinery >>>
- Supplier: Linyi Guangcai Metal Surface Technology Co. Ltd.
Share on (62310571795):
Product Overview
Description
Product Description
input voltage | 3phase 380VAC/400v/415v/440v/480v,50HZ | |
output voltage | 0-12v dc adjustable | |
output current | 0-10000a adjustable | |
Adjustment range | From 0-100%continuously adjustable voltage and current | |
Output conditioning method | Switching mode,PWM Pulse control | |
Machine efficiency | ≥90% | |
Constant voltage control accuracy | Within 1.0%of rated output voltage | |
Constant current control accuracy | Within 1.0%of rated output current | |
Insulation resistance | 5MΩ or more | |
Cooling system | Forced air cooling water cooled can be choosed | |
Operating temperature | -15-45℃(overheating self-protect) | |
Ambient temperature | -30-65℃ | |
Relative humidity | 30-85% | |
protection | Over heating,over current,over voltage,lack phase,over load,input over/low voltage | |
Control mode | 6 meter cables Remote control box | |
Product Application
widely used in plating gold,silver,zinc,nickel,copper,chrome, anodizing,electrolysis,Electrophoresis…and win high reputation among our customer. Several innovative technologies obtain national patents and users worldwide.
Our Advantages
1) Small, light and high efficiency
2) High frequency pulse current output
3) Flexible use, simple operation
4) Complete protection function
5)extra function:0-5v,4-20ma,0-10v,rs485,PLC interface,timer,ampere hour meter,slow start,touch screen
2) High frequency pulse current output
3) Flexible use, simple operation
4) Complete protection function
5)extra function:0-5v,4-20ma,0-10v,rs485,PLC interface,timer,ampere hour meter,slow start,touch screen
