Product Description

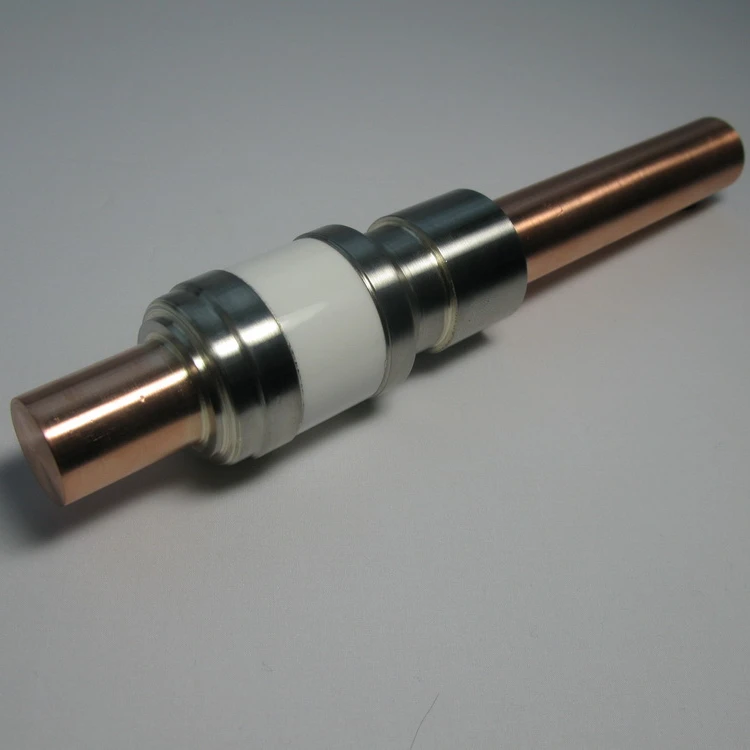

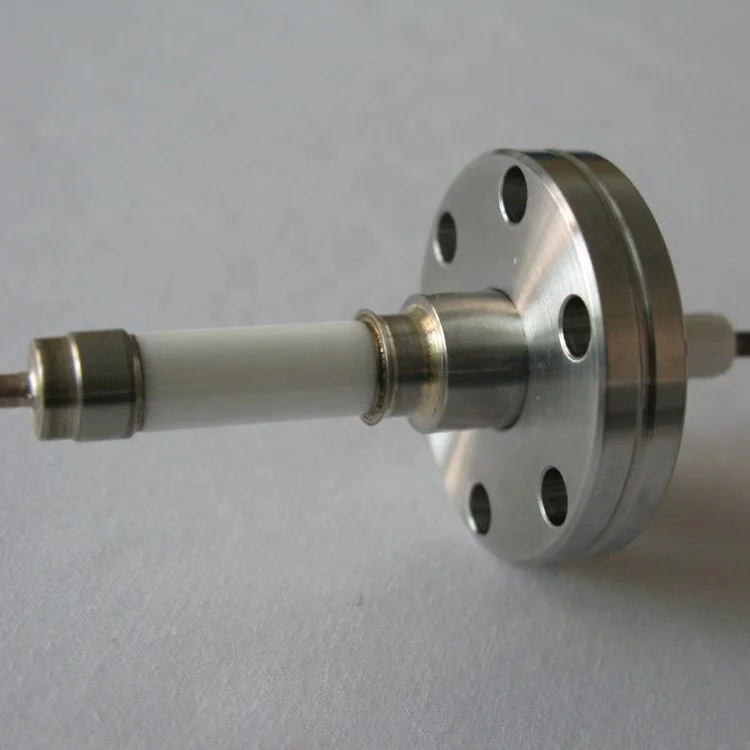

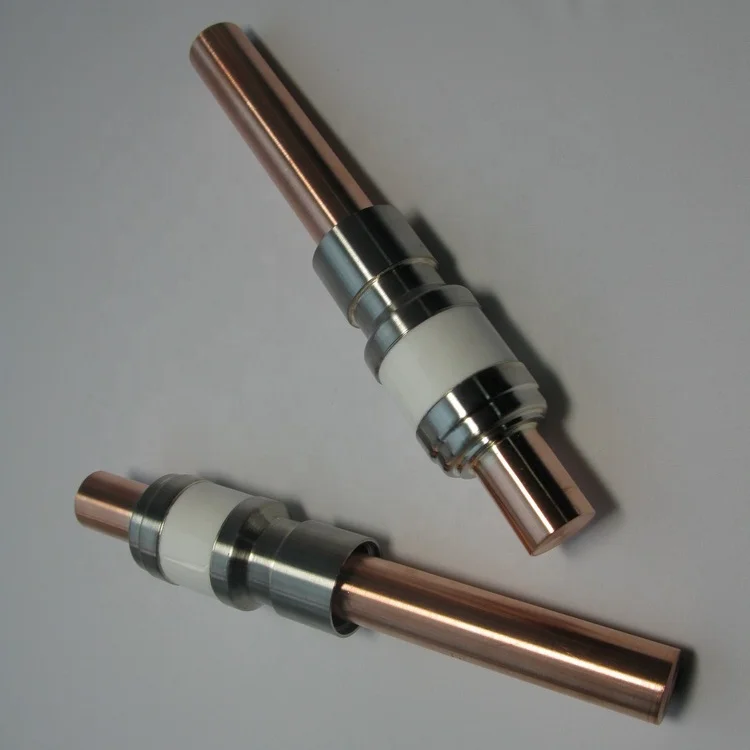

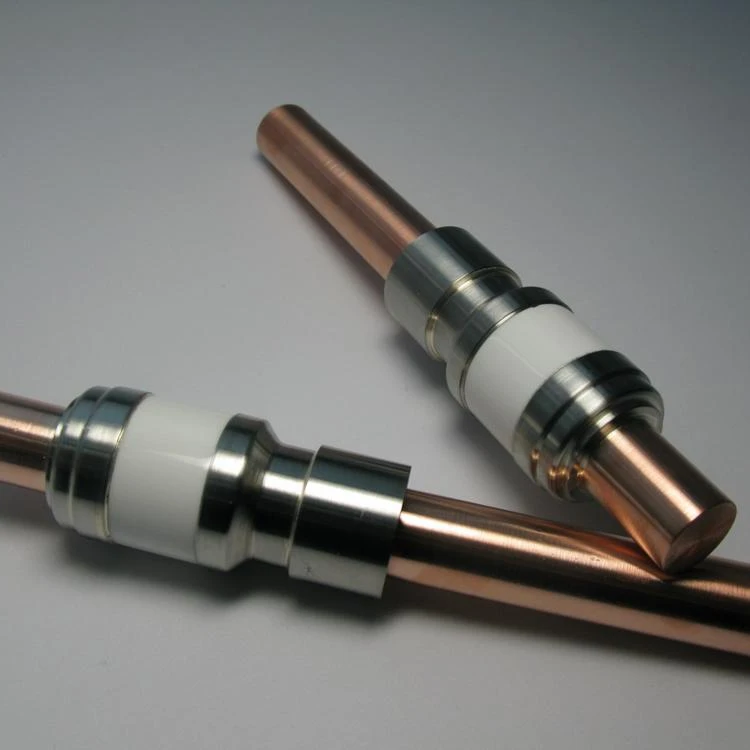

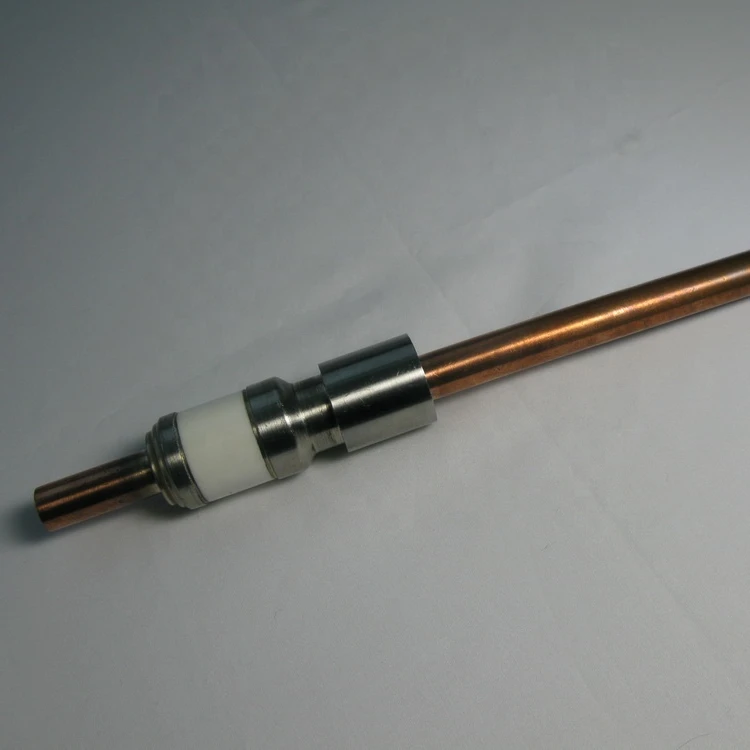

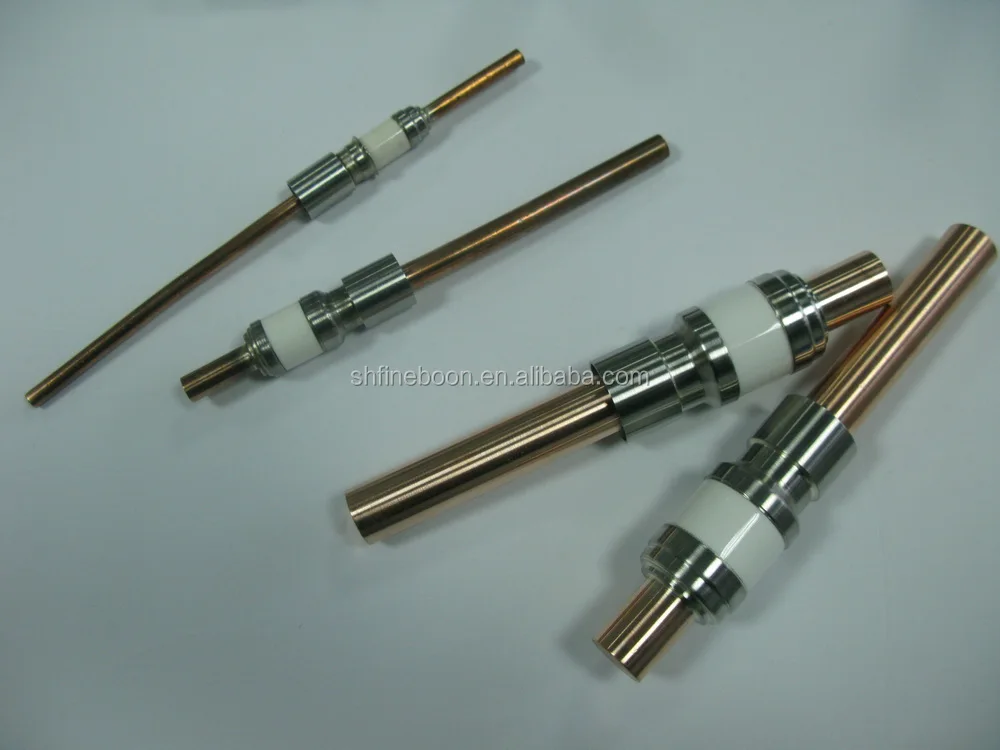

Advanced Industrial Power Feedthrough Filter for Vacuum Equipments
- Brazed with CF flangeor baseplate directly
- 100% hellium leaking tested before shipping
- High precision and good appearance after brazing
- High bonding strength after brazing in vacuum furnace
- Good insulation, anti-magnetic, static electricity-free character for insulation use
- Excellent thermal shock resistance and good thermal stability after brazing
- Outstanding bending strength and toughness
- Anti corrosion & abrasion resistance in harsh working environments
- Complying with ROHS and REACH regulations
- Reliable quality, Non-toxic, healthy material, Eco friendly
- Professional ceramic to metal brazing team is available for your requests of various feedthrough
- Professional ceramic to metal brazing team is available for your requests of various feedthrough
Product Name | Advanced Industrial Power Feedthrough Filter for Vacuum Equipments |
Compositions | 96.0% alumina,OFHC Copper, 316SS and Kovar alloy, |
Ceramic Metalization | Sintered with Molybdenum & Manganese (Mo+Mn), then Nickel plating |
Flange Type | CF flange or Baseplate |
Pin Type | OFHC Copper Pin or Tube |
Max. Voltage | 5000V |
Max.Current | 30A |
Vacuum Appplication | HV or UHV |
Max. Using Temperature | -200 oC - 450 oC |
Using Fields | Vacuum equipments, Fuel cell, PVD or CVD machines, cotrolling valves, Semi conductors, Electronic Equipments |
Belows are the Various Standard Alumina Performance Characters Data Sheets
& Various Zirconia Performance Comparison sheets with other ceramic materials
Production Equipment
Press Machines
We can provied extrusion, dry press and CIP press forming for ceramics green bodies.
Sinter Furnaces
We have many electric sintering furance with different size available for green body sintering use.
Quality Control
Passed the ISO9001:2008 quality system authentication and ROHS authentication.
Our Company
Factory Birdview
Our factory for various brazed feedthrough production
Workshops View
Our workshops for various brazed feedthrough production
Packing & Delivery
Packing Details: Individual bubble bags for each brazed feedthrough, seaworthy package
Delivery Details: 30 days after purchase order of brazed feedthrough was issued
1. Shockproof bubble bags for each brazed feedthrough
separately in carton
2. All cartons are loaded in ply-wood standard pallets with plastic films wraped
3. All shipping methods are available for your choice
FAQ
Q: Are you trading company or manufacturer?
A: We are a professional ceramic factory with exporting office in Shanghai.
Q: How long is your delivery time for various brazed feedthrough?
A: Generally it is 30 days for our brazed feedthrough after your purchase order was issued to us
Q: Do you provide samples of brazed feedthrough? is it free or charged?
A: Yes, we could offer the sample of our own brazed feedthrough for free, but don't afford freight.
Q: What is your terms of payment for brazed feedthrough?
A: Payment<=1000USD, 100% in advance before shipping.
Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have any other question for our brazed feedthrough, pls feel free to contact us as below:
