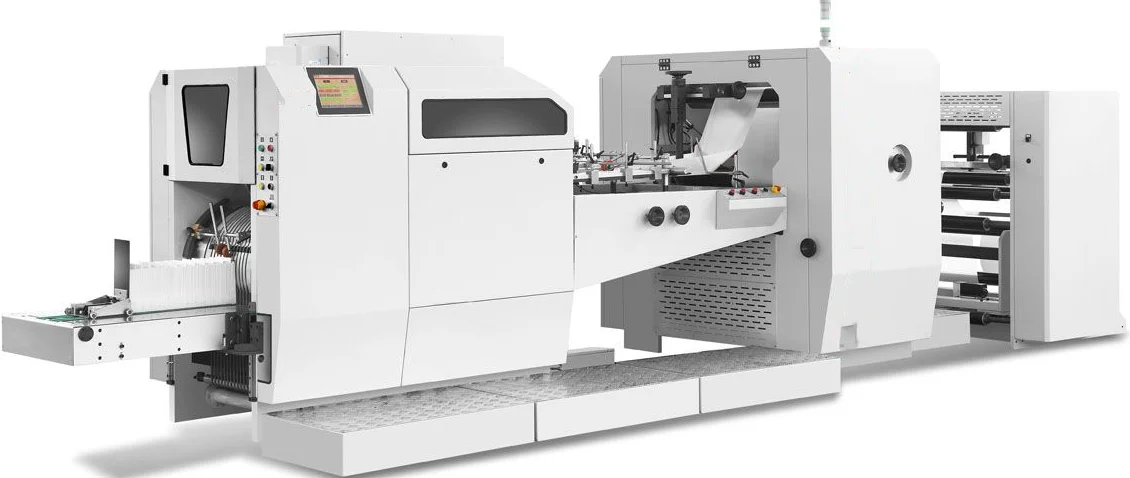

RZJD-G350 High Speed Sharp Bottom Paper Bag Making Machine
RZJD-G350 Full automatic high speed sharp bottom paper bag making machine is suitable for varied primary and printed rolling paper, such as Kraft paper,slick paper,coated paper,medico paper and so on. It finishes all procession all in a time consisting: perforating, middle gluing,printed pattern calibration, tube forming, calibration snapping, bottom folding, bottom forming, and collect final product quantitatively. This machine operate easier, working more efficient, and performance more steadily. It is a fantastic machine for full paper bag, paper bag with window, leisure snack bag, bakery bag, fast food bag, dry fruit bag eco-bag and so on. 1. Available Germany LENZE human-computer touch screen,it is easy to operate and control. 2. Available Germany LENZE motion controller((PC)), integrated with optical fiber,ensure the machine with high speed steadily. 3. Available GermanyLENZE servo motor integrated with Germany original SICK rectifying photo sensor, ensure the printed paper length under tracking precisely. 4. The loading and unloading of the raw materials adopts the hydraulic automatic lifting structure, and the full automatic tension control is adopted for the reel. 5. Available Italy SELECTRA material edge rectify system, substantially cut off the edge alignment time.
Specification
Model
RZJD-G350
Length of cutting bag
165-715mm
Bag length
160-715mm
Bag width
70-320mm
Insert size
20-120mm
Bag mouth height
15/20mm
Bag speed
50-650pcs/min
Paper feed width
200-920mm
Paper material diameter
Φ1000mm
Inner diameter of paper
Φ76mm
Paper material thickness
35-80g/m²
Working Air Current
More than 0.12m³/ minutes, 0.5-0.8MPa
Machine power
380V 26kw
Total weight
6500kg
Machine Dimesion
7300x3000x2200mm
Samples
FAQ
1.Q : What about the price of the machine?
A:Pls contact with our sales manager to get quotation or pls send mail to us to get more information.
2.Q:How long is the warranty of the machines ?And other Service ?
A: Warranty is 12 months after the machines arrive. Our engineer can provide service overseas if you need. And we also provide installation and operation training.
3. Q : How about your delivery time ?
A:The delivery time is within 30-60 days depend on the different type or machine. Pls contact with us to learn more.
4.Q:What`s the price term and payment method?
A:We usually use FOB, CIF and CFR. Payment method : 100 % T/T (30% deposit + 70% before shipment ) or other payment method.
