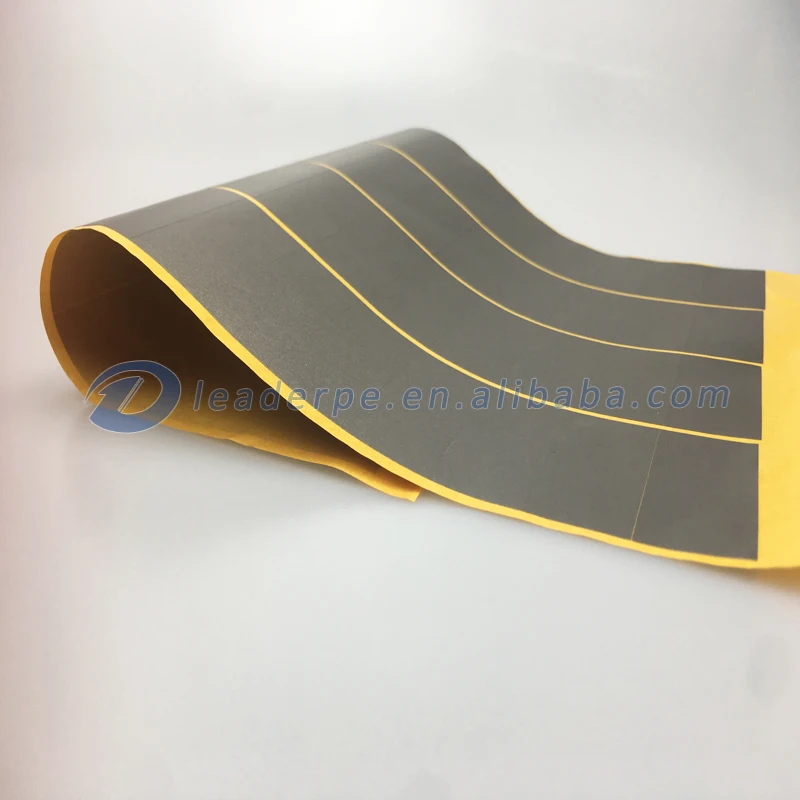

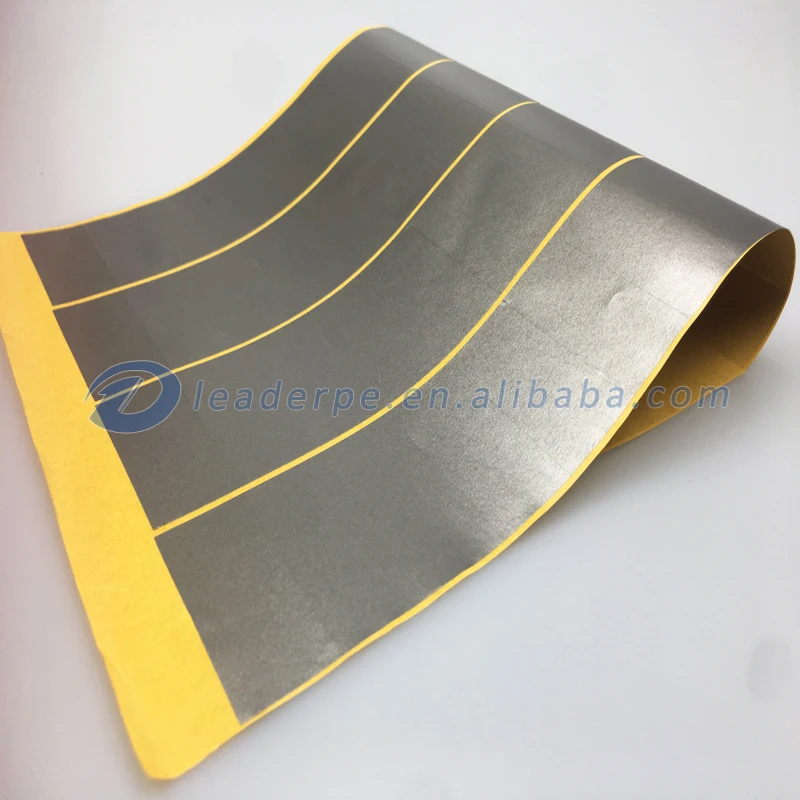

The anti magnetic material has three layers, including absorber layer, adhesive/tap, and release paper.
Features of anti magnetic material
Wide range of anti-electromagnetic interference frequencies (10 M~6 GHz)
Ultra-thin thickness up to 50 μm
Good flexibility, resistance to bending, easy die cutting
Low thermal resistance, in line with RoHS and HF standards
Avaliable thickness: 50 µm,100 µm, to, 1500 µm, T<1000µm,can be made by Roll,T>1000µm, will be made by sheet
Technical Data of Electromagnetic Wave Absorbers
Item
Specifications
Frequency
10M ~ 6G Hz
Thickness
500 ± 10 µm
Size
300MM x 20M mm
Density2
3.4 g/cm3
Permeability
120 @ 1 MHz
Temperature
-25~ 120 ℃
Surface Resistance
1 x 106 (min) Ω/
Environment
RoHS Compliance
Halogen Free, PVC Free, Lead Free
The production process of anti magnetic material includes metal smelting, pulverization, flaking and shaping. The complete EMI absorber materials production process is fully automatically and quality guaranteed with advanced manufacturing equipment. We can produce the customized high quality and cost effective wave absorber paster manufacturer within a short time based on customers'specific requirements.
Application
Application of wave absorber paster manufacturer
Smartphone, tablet, digital camcorder
Electronic payment, electronic label
Precision medical equipment
Automatic identification system military stealth
Application Equipment
Position on Equipment
Remark
PDA/GPS
Noise on the processor/chip
Barcode Scanner
Flat cable
Mobile Phone
CPU,Intenna,between the speaker and the handset,RFID tags
EMI shielding, RFID
Cable
Cable harness
thin film absorbing material
Digital Camera
For linking the FPCB between the display and the body
thin film absorbing material
Test and Measurement equipment
In the equipment
Although the amount is small, it is expensive
DMB/Navigation
Improve receiving sensitivity
Electric wave absorbing material
Military Use
Confidentiality
Quality Inspection Equipment for EMI Absorber Sheets
In order to ensure every piece of EMI absorber materials is of high quality, we have prepared a lots of inspection equipment, including optical projector, vernier caliper, thickness gauge, resistance test, viscosity meter and more.
Company Information
Leader OPUS devotes to provide customers with quality anti magnetic material at reasonable price with timely delivery and good service. We always insist to help customers to maximize the values and minimize the cost. We can provide the complete EMI shielding solutions at low cost.
Packaging & Shipping
Certifications
Leader OPUS is an ISO9001:2015 quality management system and EU RoHS environmental directives implemented enterprise. Our anti magnetic material are certificated with UL, REACH. The strict tests in function, quality, reliability and production feasibility at the design stage of each EMI electromagnetic wave absorber and the strict quality management in production ensure excellent quality EMI shielding materials.
FAQ
Do your require MOQ? No MOQ for most anti magnetic material, but some should negotiate.
Can you help to design? Sure, we have a profession R&D team to helping design and offer you suitable solutions.
Can I take sample? We are honored to provide you sample for testing.
What's the leading time? 1~3 working days for sample order and 5~7 working days for mass production.
How can you guarantee the quality of your wave absorber paster manufacturer? With advanced production machine and testing equipments,we ensure 100% quality inspection before shipping.
