Product Description
Technical advantages
1.It has the arc pressure signal interface connected with the CNC system, and also with the arc successful signal interface
2.Low frequency arc, small arc keep running, greatly reduce interference to CNC system.
3.Soft switch IGBT full bridge inverter technology, double closed-loop current control(UC3846)
4.Machine is with passive power factor correction technology with high power factor and input voltage range from 320v-450v.
5.Constant current output, overcome the voltage drop, it overcomes the cutting instability, arc bias phenomenon caused by different length of plasma arc.
4.High inductance reactor, high arc pressure design, energy concentration, cutting seam narrow.
5.Cutting at least 20A to maximum cutting current continuously adjustable.
6.With non-contact high frequency arc striking method,with the pilot arc function, excellent instantaneous arc strike.
7. Built-in overheating, overcurrent, air undervoltage protection circuit to extend the service life of the cutting nozzle.
8.With 2T/4T selection function, it is convenient for long welding operation, full digital current display.
9.More than 160A models are equipped with water-cooled cutting torchs, which greatly extend the life of accessories.
Air Plasma Cutter LGK-120 for Gantry /Portable/Table CNC Plasma Cutting Machines
Technical Parameters
Air Plasma Cutter LGK-120 for Gantry /Portable/Table CNC Plasma Cutting Machines
Model
LGK-120
Voltage Range(V)
3 Phase 380V/415V±15%
Frequency(HZ )
50/60
Rated Input Power (KVA)
20
No Load Voltage (V)
330
Working Current Range(A)
20-120
Maximum Cutting Thickness (mm)
40
Middle Penetration Thickness(mm)
20
Quality cutting thickness
<14mm
Arc Start Non-Contact Arc
Arc Start Non-Contact Arc
Cutting pressure(mqa)
0.3-0.5
Recommended Air Compressor Displacement m3
0.36
Weight(kgs)
48
Dimension(mm)
657*316*660mm
Air Plasma Cutter LGK-120 for Gantry /Portable/Table CNC Plasma Cutting Machines

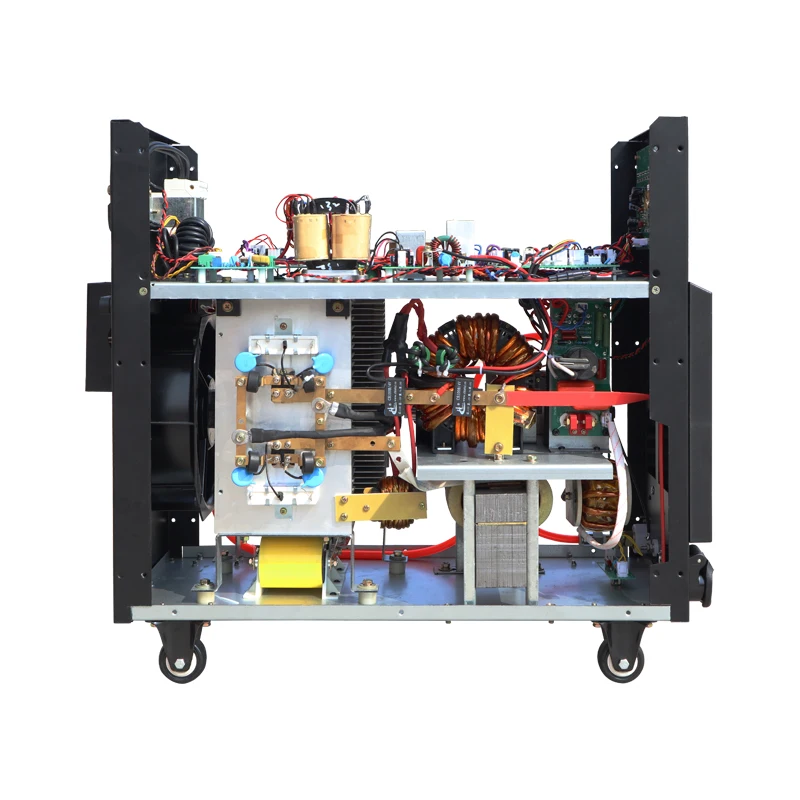

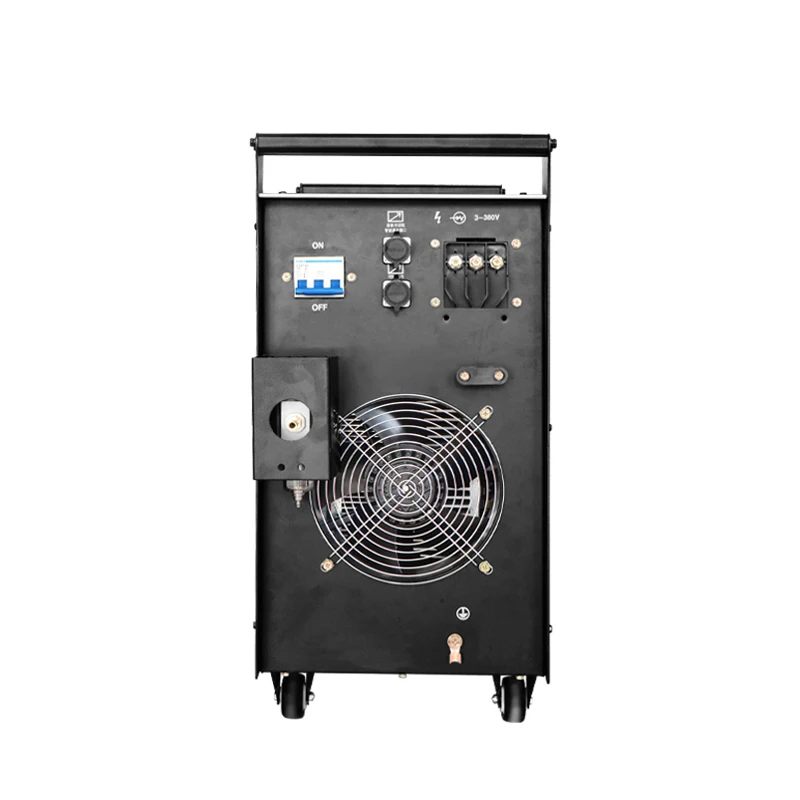

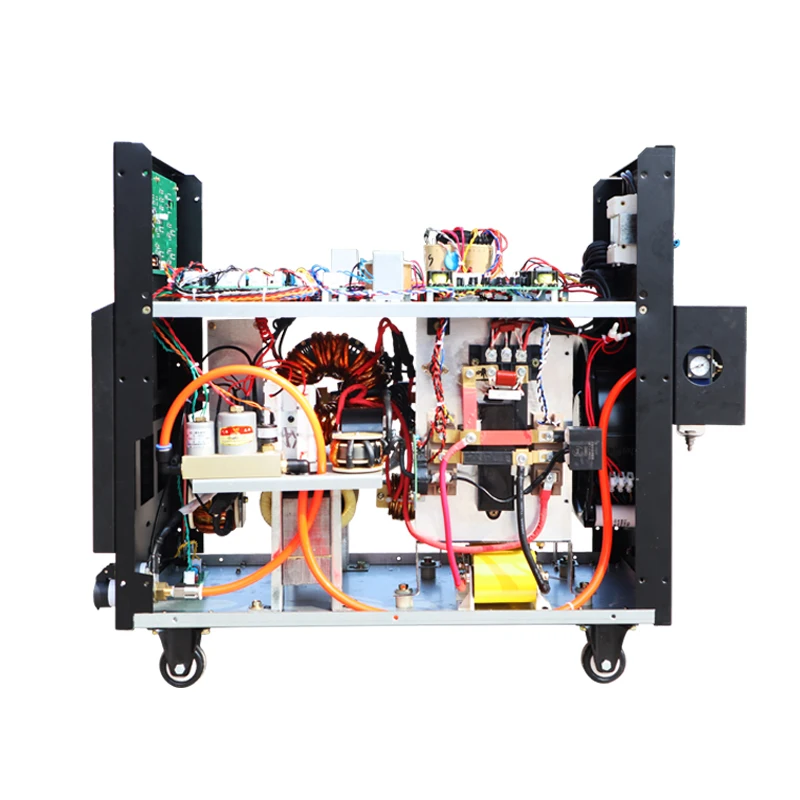

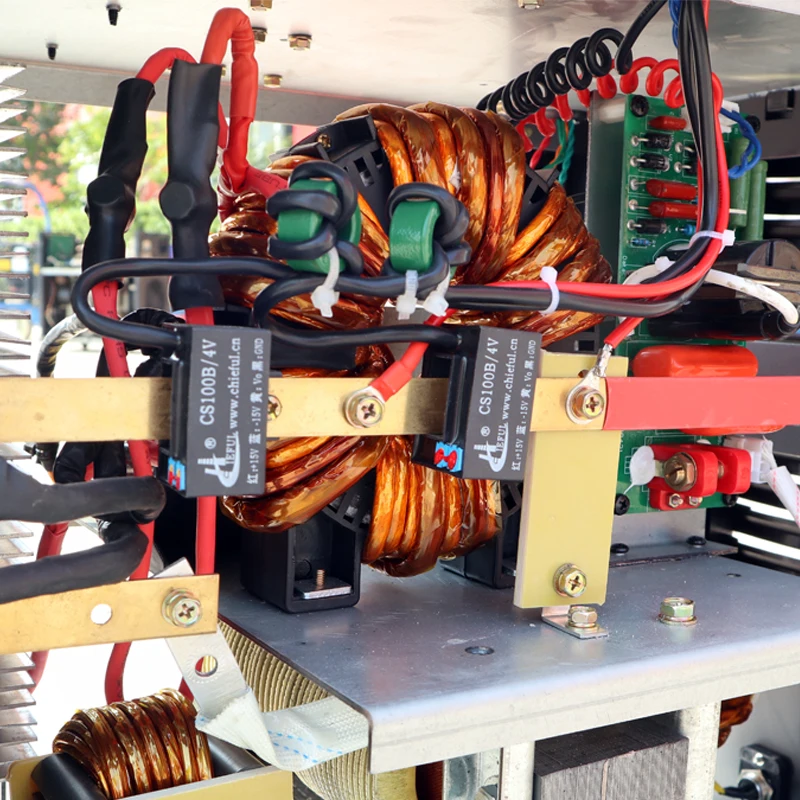

Detailed Images
Air Plasma Cutter LGK-120 for Gantry /Portable/Table CNC Plasma Cutting Machines
Company Information
YOMI focus on whole range of welding machines development and manufacturing. It is established in 2006. Now it has growed up to Leading company in welding machine field and also supply OEM for some famous brand in the world.
Our factory has the most advanced workmancraft and processing machine ,such as YAMAHA SMT ,Automaticg glue sprayer, Large wire terminal machine, Computer double wave soldering and insertion wave soldering machine and also some testing machines, which greatly ensure the high automation and quality of our welding machines.
Our welding machines include MMA, MIG/MAG,TIG, CUT, SAW, RSR,RSN,Spot Weld and Stud Welding Machines. We are customer-leading company. We are sincerely invite all partners from worldwide to join us and develop the market together!
Best sales service plasma power source LGK-100 for plasma cutting machi
Our Services
1.OEM is available
2.Deliver time: If there are plasam cutting machines at stock, we will deliver them within 3-7 working days after received payment. If there is no plasam cutting machines at stock, we can deliver within 10-15 days.
3.Payment: we can accept T/T, Western Union, L/C, Aliexpress Escrow,Credit Card.
4.Guarantee and after sales service:
a. 1 years warranty for all machines.
b. Maintenance manual.
d. 24 hours after sales service on line.
e. For big order, engineers can supply on-site maintenance instructions.
