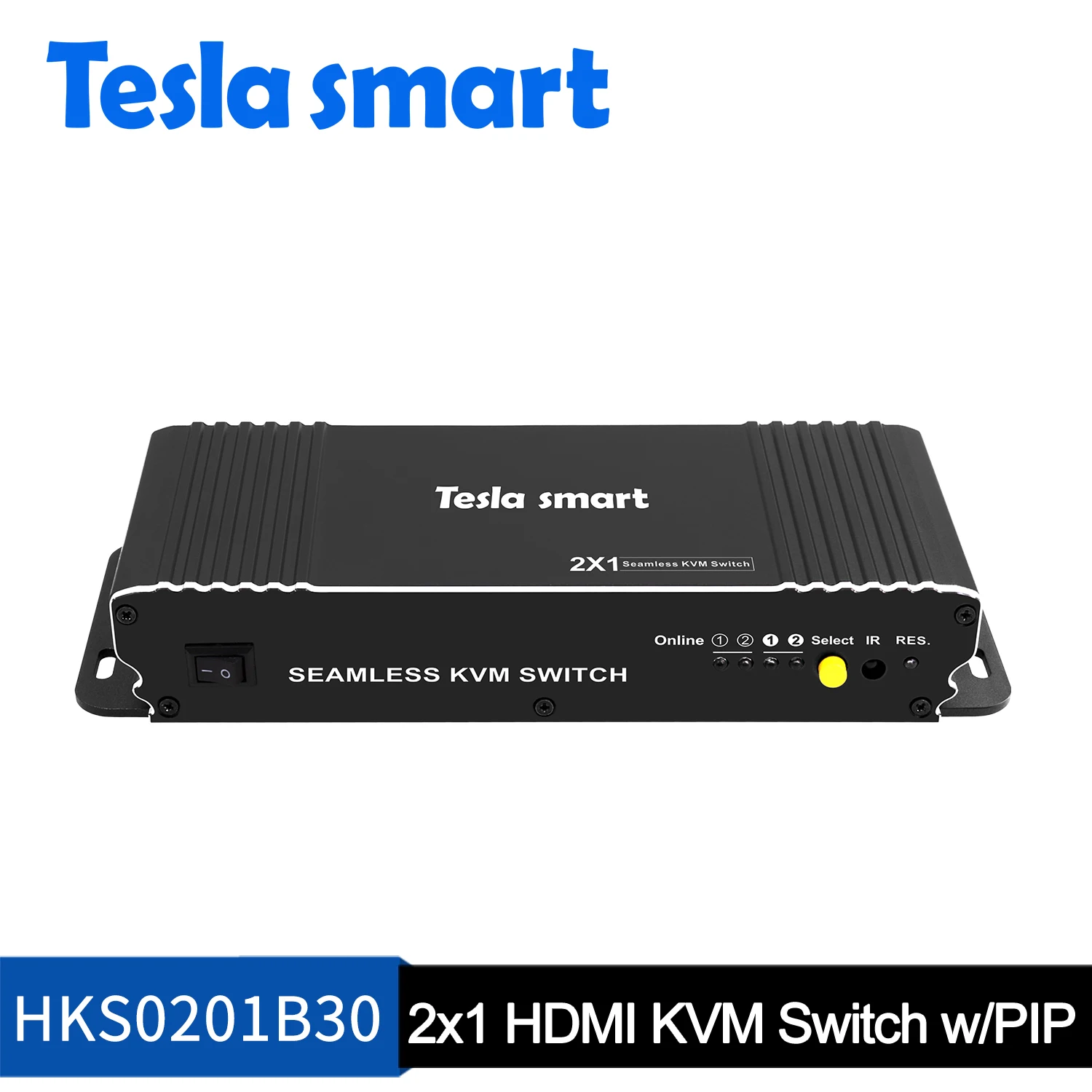

Great looking 2 Port Seamless HDMI KVM Switch with PIP
- Category: KVM Switches >>>
- Supplier: Shenzhen Tesla Elec Technology Co. Ltd
Share on (62313487829):
Product Overview
Description
Product Description
Product Name | 2 Ports HDMI KVM Switch |
Material | Aluminum Alloy |
Function | video switching |

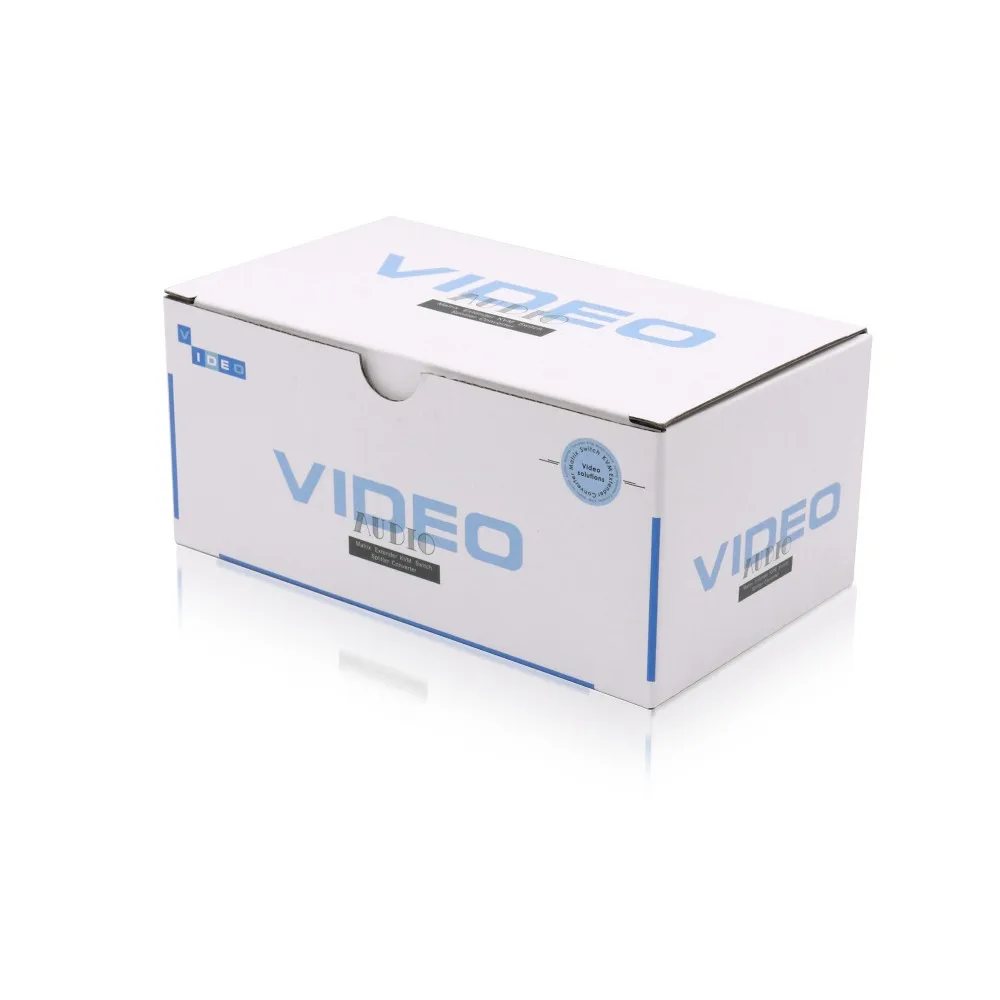

Package | box |

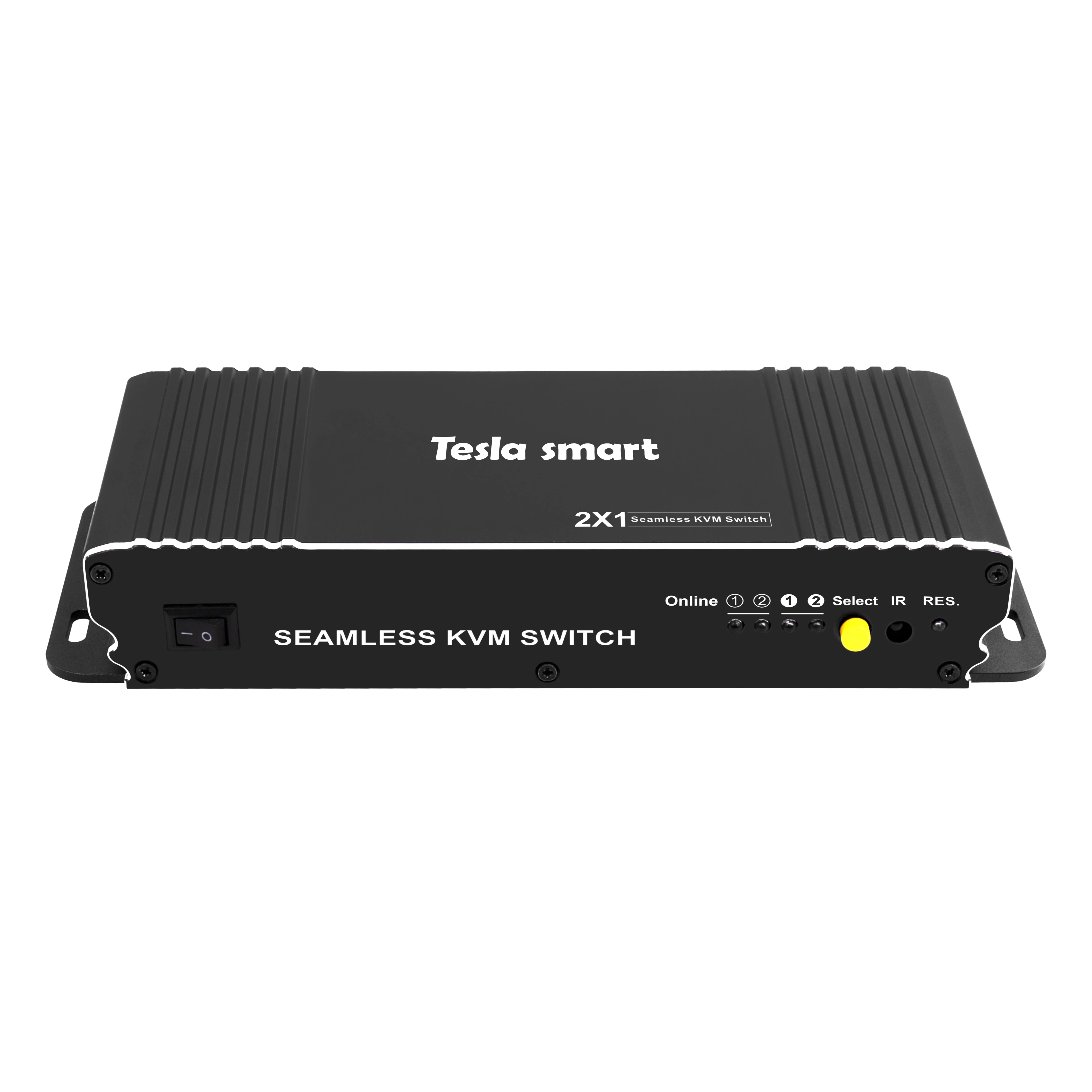

2 Ports HDMI KVM Switch
This 2-Port Seamless HDMI KVM Switch provides you with great flexibility in integrating cross-platform computer equipment easily. It makes you available to share one set of keyboard, mouse and monitor with two PCs.
The 2x1 HDMI KVM Switch supports PIP mode, two signals can display on one display simultaneously. It supports seamless switching of HDMI sources with same resolution, ensures no switching delay and no picture loss. Supports USB 2.0 hub and USB 2.0 keyboard /mouse. By using USB 2.0 hub ports on the KVM, you even can attach USB drive, printer, barcode scanner or other USB devices to the KVM. Switching can be controlled through variable methods, such as the front panel buttons, IR signals, keyboard hot keys, etc.
Features
l Using only 1
set of keyboard, mouse and monitor to control 2 PCs
\t
\t
\t\tl No latency,
support seamless switching
\t
\t
\t\tl Support
PIP(Picture-in-Picture) mode, display two sources simultaneously on one
display
\t
\t
\t\tl Support
resolution up to 3840*2160@30Hz
\t
\t
\t\tl Support auto
switching to monitor computers in a specified time interval
\t
\t
\t\tl Available to
use keyboard and mouse without any delay after switching inputs
\t
\t
\t\tl Support hot
plug, connect or disconnect devices to the KVM switch at any time without turning
off devices
\t
\t
\t\tl With extra
standard USB 2.0 hub port, it is possible to connect bar code scanner, USB hard
drive or other USB devices to KVM just as you have plug these devices directly
to computer
\t
\t
\t\tl With EDID
emulators in each input port, keep PCs always having correct display
information
\t
\t
\t\tl Supports the
use of DVI sources and DVI displays with DVI-to-HDMI cables
\t
\t
\t\tl Switches between two computers using front panel button,
keyboard hot keys, mouse gesture or IR remote control

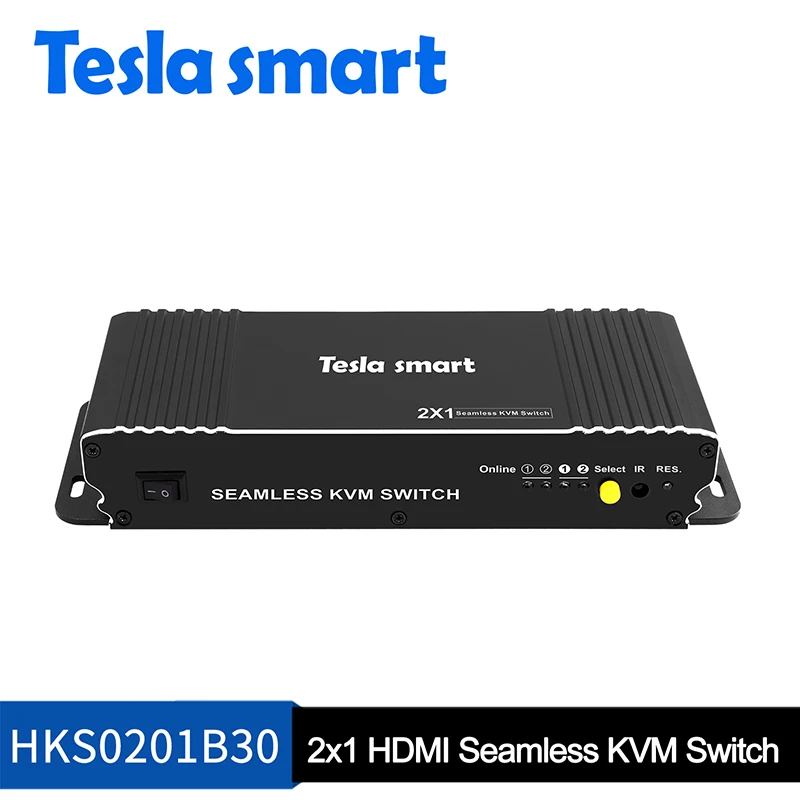

HKS0201B30 | 2-Port Seamless HDMI KVM Switch | |
Functionality: | ||
Auto Scan | Yes | |
Port selection | Front panel buttons | Yes |
Keyboard hotkeys | Yes | |
IR remote control | Yes | |
Mouse gesture | Yes | |
Console commands | No | |
Technical: | ||
Resolution | Up to 3840x2160@30Hz | |
Auto to get EDID | Yes | |
Data rate | 10.2 Gbps | |
Auto scan interval | 1~250 Seconds | |
Beep Sound | On/Off | |
OSD | No | |
Supported OS | Unix/Windows/Debian /Ubuntu /Fedora /Mac OS X/ Raspbian /Ubuntu for Raspberry Pi and other Linux based system | |

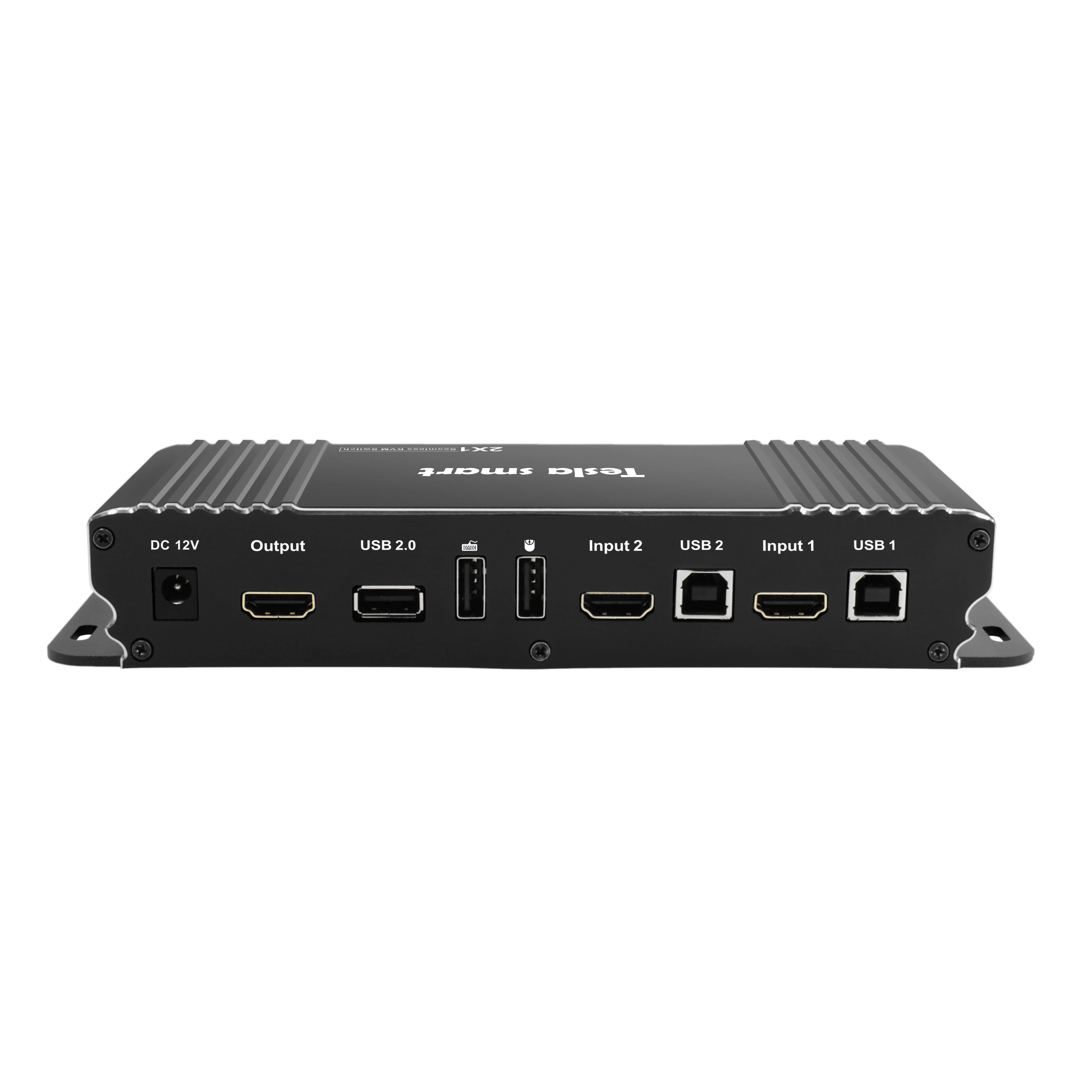

Console ports | Keyboard emulation | 1 * USB Type A |
Mouse emulation | 1 * USB Type A | |
USB 2.0 Hub ports | 1 * USB Type A | |
Video /Audio | 1 * HDMI Type A | |
RS232 | NA | |
LAN | NA | |
System ports | USB Data | 2 * USB Type B |
Video / Audio | 2 * HDMI Type A | |
ESD protection | Human body model - ±8kV (Air-gap discharge) | |
Mechanical: | ||
Chasing material | Aluminum Alloy | |
Product Dimensions | 188 (L) x 72.5 (W) x 35.3 (H) mm | |
Item Weight | 500g | |
Details Images

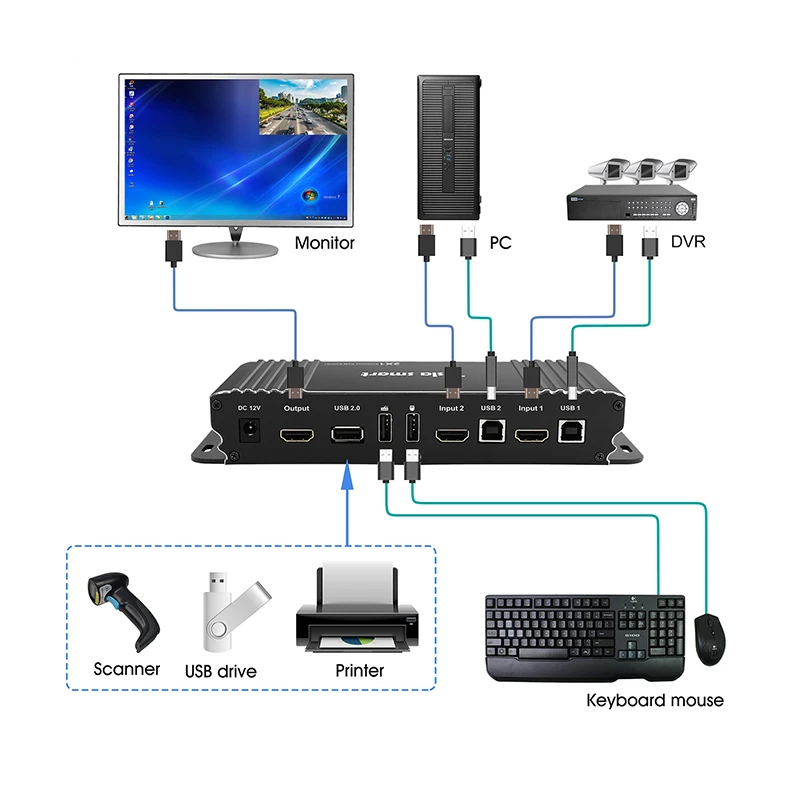

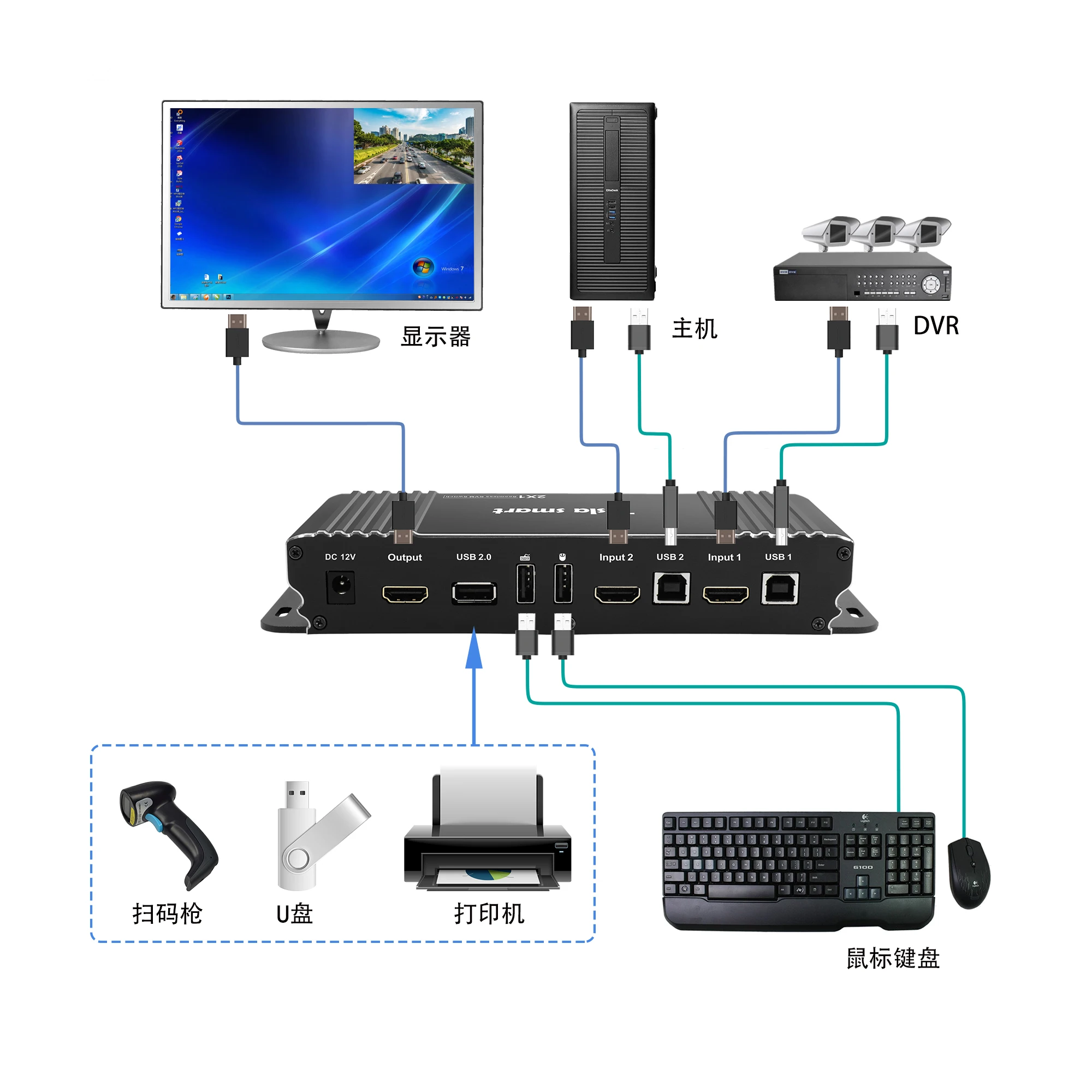

Product Usage
Related Products

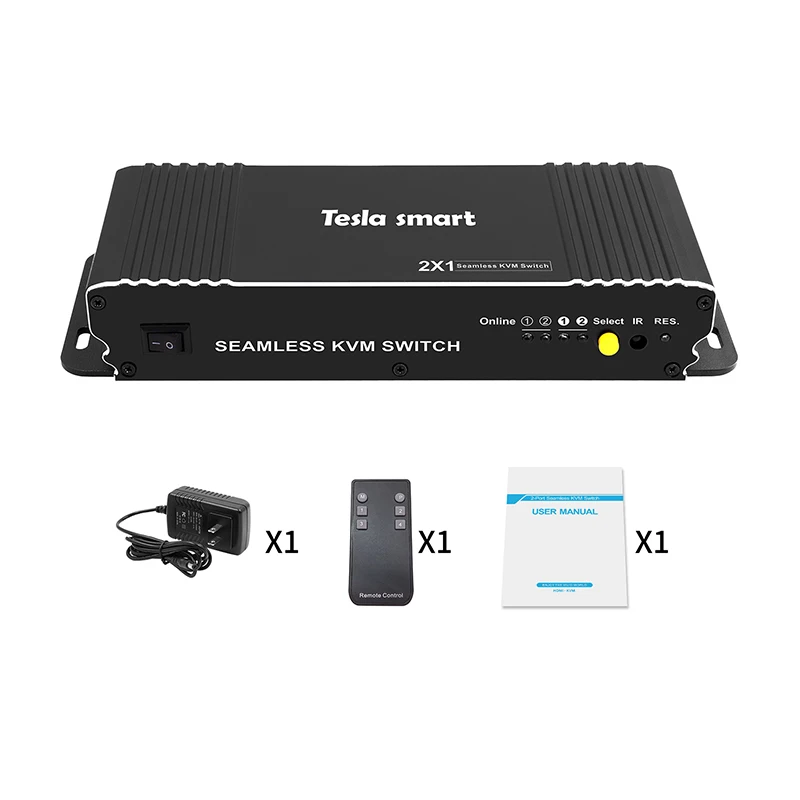

Packing&Shipping
1 * 2-Port Seamless HDMI KVM Switch
\t\t
\t\t
\t\t\t1 * DC 12V Power Adapter
\t\t
\t\t
\t\t\t1 * IR Remote Control
\t\t
\t\t
\t\t\t1 * Quick-Start Guide
