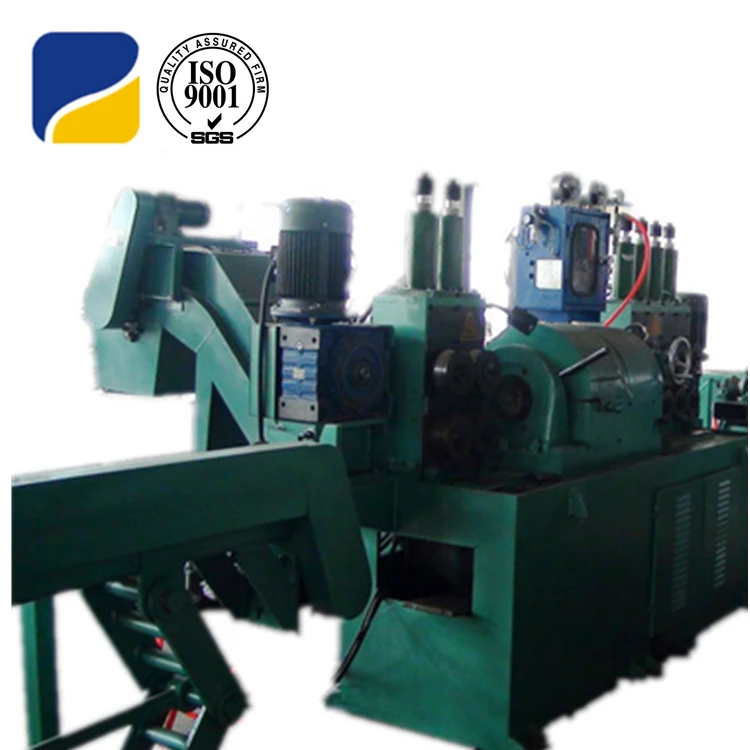

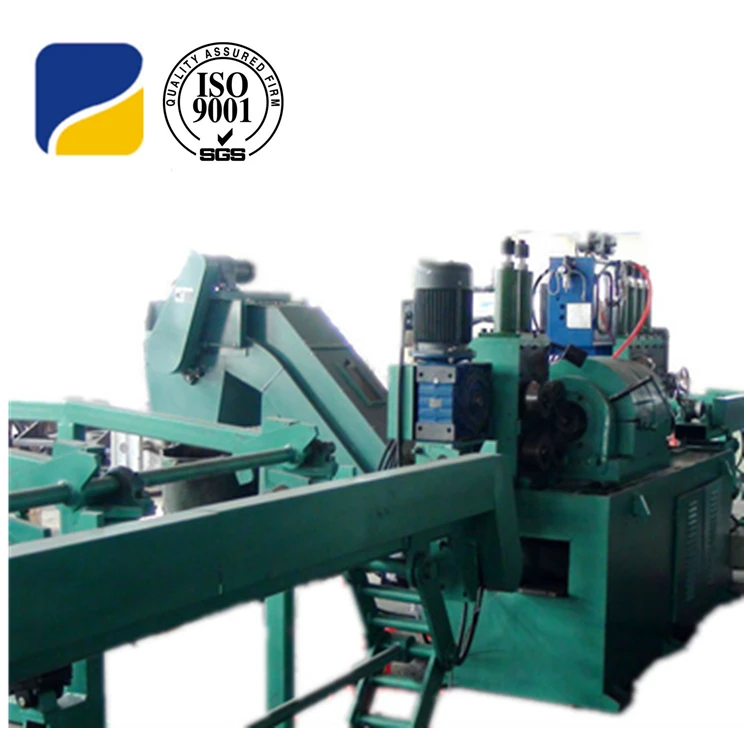

Automatic mechanical steel wire straightening and cutting machine
US $115.00-$385.00
cnc wire straighten and cut machine
- Category: Metal Straightening Machinery >>>
- Supplier: Yantai Haige Machine Tools Co. Ltd.
Share on (62316655851):
Product Overview

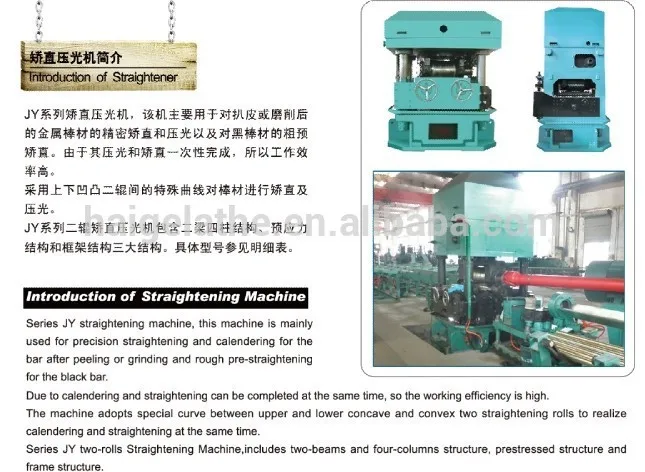

Description

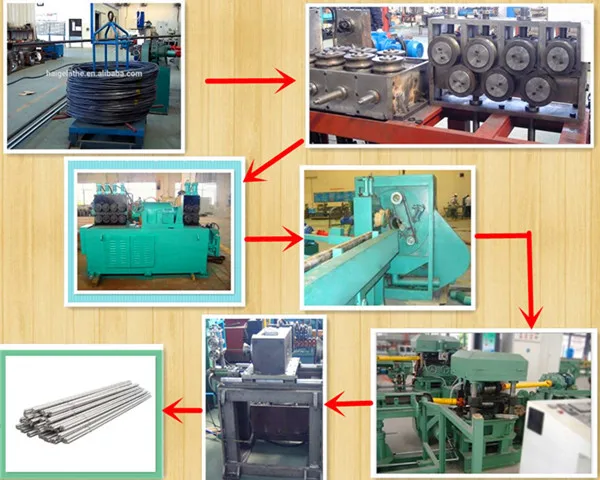

Production Flow
Characteristics
♦ Optimum straightening effect, even with high strength materials
♦ Two-roll principle with concave upper roller and convex bottom roller to ensure that the ends are straightened
♦Straightener roll from alloyed and hardened chrome steel
♦Lateral guidance of the bar to be straightened between the straightener rolls by special guide ledges
♦Long striaghtening roller life due to coolant lubrication

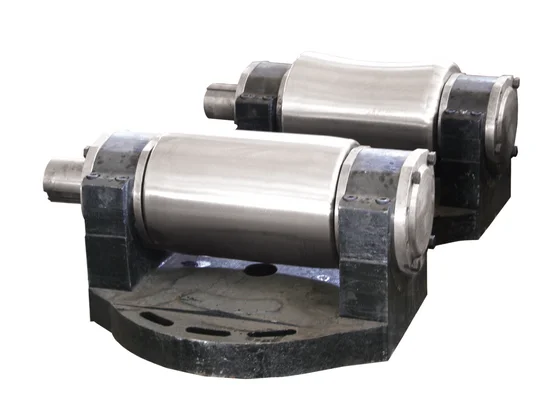

The most essential part:
convex and concave
straightening rollers
whose special curves are researched
and designed by our engineer to
straighten and calender the bars
at the same time
Main Technical Parameters
Specification | JY100 | |||
Raw
Material
| Diameter Range(mm) (excluding drawing material) | Tensile Strength σb≤450(M pa) | Φ25≤d≤Φ100(L ≥3000) | |
Tensile Strength σb≤1000(M pa) | Φ25≤d≤Φ90(L ≥3000) | |||
Surface Hardness | ≤HB380(≤HRC42) | |||
Straightness(mm/m) | Bright Steel≤3 Black Material≤4 | |||
Diameter Tolerance | Bright Steel≤IT10Black Material d-2-GB/T702-2004 | |||
Circular Degree | d≤50 | ≤50% of diameter tolerance | ||
50<d≤80 | ≤65% of diameter tolerance | |||
d>80 | ≤70% of diameter tolerance | |||
Diameter Range(mm) (excluding drawing material) | Bright Steel≤3.2mm~6.3mm | |||
Finished
Products
| Straightness(mm/m) | Bright Steel≤0.40 Black Material≤1.0 | ||
Diameter Tolerance | Bright Steel≤IT8 Black Material:Much better than raw material | |||
Surface Roughness(Ra) | Bright Steel≤0.8μm Black Material:Much better than raw material | |||
Roller Quantity (Pcs) | 2 | |||
Roller Diameter (mm) | Φ380 | |||
Straightening Feeding Speed(m/min) | 2~12 | |||
Main Machine Motor Power (KW) | 75 X 2 | |||
Lifting Motor Power (KW) | 4 | |||
Outline Dimensions (Length*Width*Height) (for your reference) | Full Set (including auxiliary machine) 15.8mX5.5Mx4.6m | |||
Weight(for your reference) | Main Machine 26T Full Set(including auxiliary machine) 32T | |||
Total Capacity(for your reference)KW | 170KW | |||
Compressed Air Source(user prepare by themselves) | 0.5~0.8MPa,3m3/min,two-stage oil-water separator | |||
|
|
|
|
|
Our Customers
Our Services
A. 12 months warranty period.
B. 24 hours welcome to your enquiry.
C.Customized design is available. OEM& ODM are approved.
D.overseas installation,commssioning,training,etc.
E.Special discount can be provided to our distributor.
