HENT German technology pressure relief valve 3 way diverter flow switch

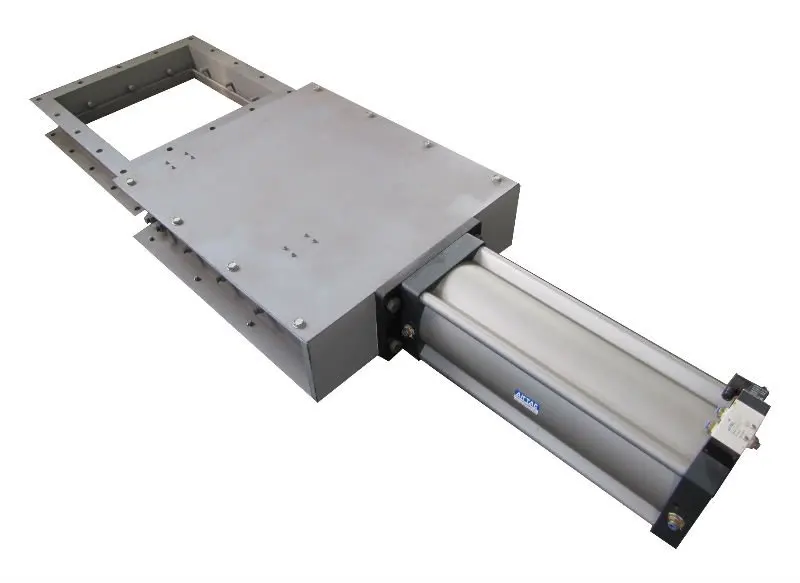

Pneumatic slide valve is the main flow control transmission equipment for powder, grain and small particles. The worn parts of this gate valve are used of wear-resistant materials, it can operate in a poor environment for a long-term without troubles. Not only automatic water valve flow control, HENT also manufactures gate valves equipped with the electric or manual drive device to control valve’s operation.

High sealing, no leaking

Easy installation, no constrain angle

16Mo3 steel for plate, import from German, no deformation ≤600°C

45# steel for screw, brass for screw assembly, avoid adhesion

Square steel in one side of the gate path, rollers in another side, low f

riction & avoid dust stratification

Difunctional cylinder device, Schneider limit switch ,  smooth, low vibration & noise

Product Description













Outline Dimension Drawing











SIZE	AXA	B	N×C	D	E	H
400	400×400	400	4×117	516	586	1798
500	500×500	500	4×142	616	686	2108
600	600×600	600	4×167	716	786	2508
700	700×700	700	6×130	850	892	2908
800	800×800	800	8×110	950	992	3308
900	900×900	900	8×123	1050	1092	3708
1000	1000×1000	1000	9×120	1150	1192	4108







Technical Parameters



Size(mm)	400~1000
Capacity(m3/h)	110~750
Pneumatic Pressure (Mpa)	0.4~0.7
Temperature(°C)	≤550
