Auto Cleaning Pads closed ink cup Pad printer tampografia LC PM1 100NT
- Category: Pad Printers >>>
- Supplier: Luen Cheong Printing Equipment Ltd.
Share on (62317622434):
Product Overview
Description
Product Description

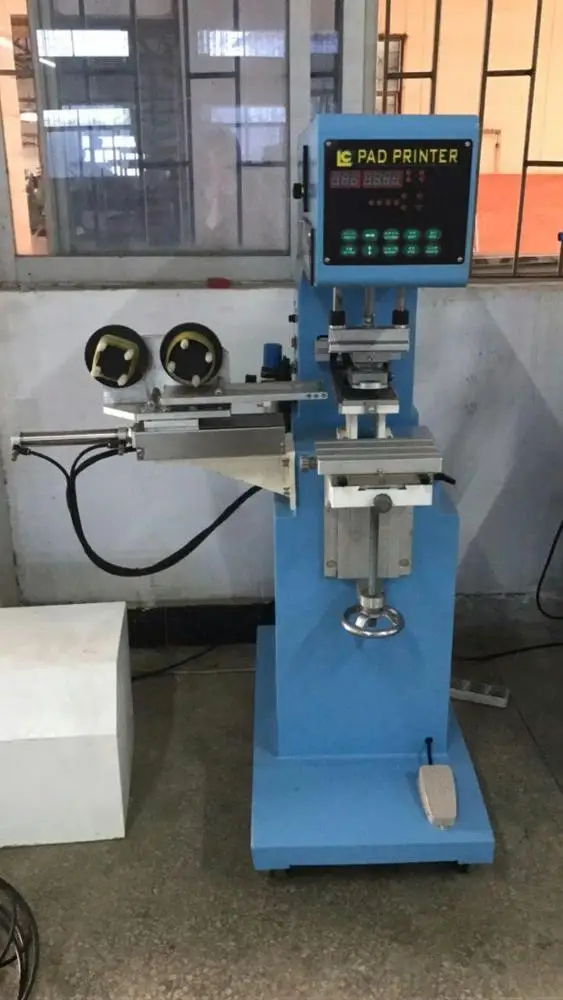

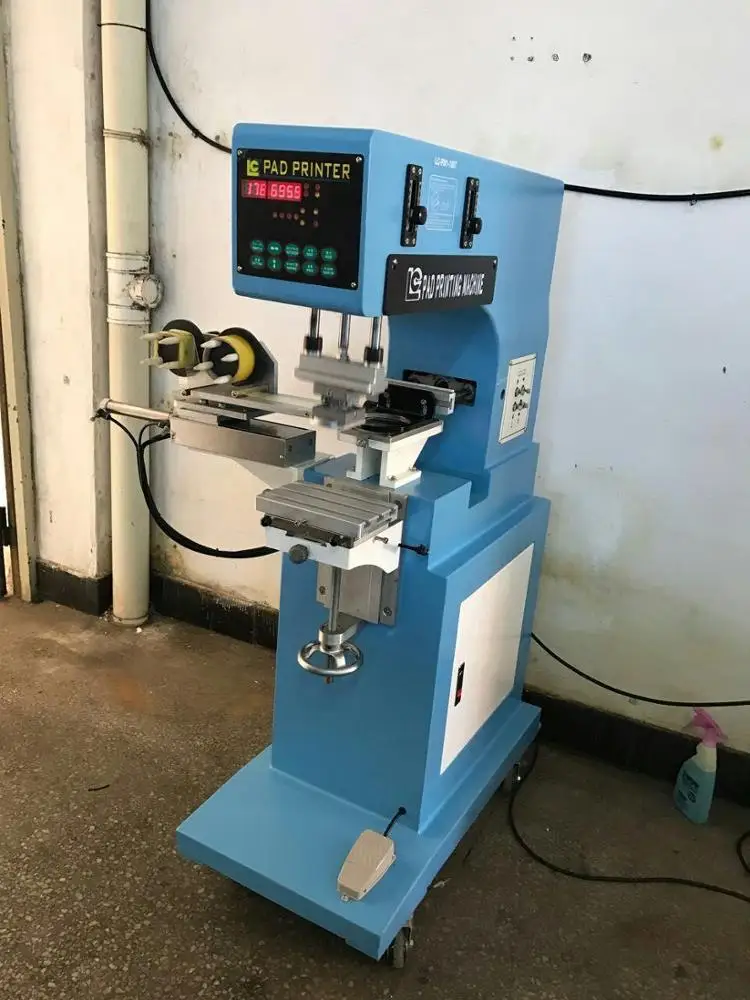

AUTO CLEANING PADS CLOSED INK CUP PAD PRINTER TAMPOGRAFIA LC-PM1-100NT
Applications:
Suitable for metal, glass, ceramic, plastic, wood, leather and other materials in the printing area is relatively small flat or
curved and irregular surfaces precision printing products. Such as cell phone button, golf ball, toys, pens, mouse, electronic
products, handicrafts, heel and so on.
Suitable for metal, glass, ceramic, plastic, wood, leather and other materials in the printing area is relatively small flat or
curved and irregular surfaces precision printing products. Such as cell phone button, golf ball, toys, pens, mouse, electronic
products, handicrafts, heel and so on.
Parameters:
The machine with automatic pad cleaning device can automatically clean plastic head obviates the past trouble of cleaning staff in
the printing process, greatly improving the printing quality and printing speed.
1, the microcomputer control, easy to operate, accurate and reliable.
2, consists of four counters.
3, the body of high quality steel frame structure, surface temperature paint, light weight body solid, beautiful and practical.
4, the oil ink roller assembly and disassembly, and easy to clean.
5, independently adjustable plastic head up and down stroke and speed.
6, automatic balanced squeegee, scraping the oil neat.
7, each of the ink disk blocks can be X, Y, angle independent tuning, chromatic accurate, and improve efficiency.
8, printing ink can stick two in order to obtain a larger printing ink.
9, you can not drop empty lines before and after the glue to prevent the pause when the ink to dry.
10, pneumatic components of Germany FESTO pneumatic components, the movement speed can be adjusted independently.
The machine with automatic pad cleaning device can automatically clean plastic head obviates the past trouble of cleaning staff in
the printing process, greatly improving the printing quality and printing speed.
1, the microcomputer control, easy to operate, accurate and reliable.
2, consists of four counters.
3, the body of high quality steel frame structure, surface temperature paint, light weight body solid, beautiful and practical.
4, the oil ink roller assembly and disassembly, and easy to clean.
5, independently adjustable plastic head up and down stroke and speed.
6, automatic balanced squeegee, scraping the oil neat.
7, each of the ink disk blocks can be X, Y, angle independent tuning, chromatic accurate, and improve efficiency.
8, printing ink can stick two in order to obtain a larger printing ink.
9, you can not drop empty lines before and after the glue to prevent the pause when the ink to dry.
10, pneumatic components of Germany FESTO pneumatic components, the movement speed can be adjusted independently.
Technical Parameters:
Printing colors: 1 color (can be cased)
Printing station: 1Pcs
Cylinder head up and down stroke: 75mm
Glide around the cylinder stroke: 125mm
Front and rear cup oil cylinder stroke: 100mm
Plate area: 100 × 200mm (4 '× 8')
Oil cup diameter: 60 (optional), 90mm
Table size: 200 × 125mm
The fastest speed: 2000 Pcs / Hr
Power: 110V / 220V 50 Hz
Power: 35W
Pressure: 6 Bar
Air consumption: 63 Liter / Min
Printing colors: 1 color (can be cased)
Printing station: 1Pcs
Cylinder head up and down stroke: 75mm
Glide around the cylinder stroke: 125mm
Front and rear cup oil cylinder stroke: 100mm
Plate area: 100 × 200mm (4 '× 8')
Oil cup diameter: 60 (optional), 90mm
Table size: 200 × 125mm
The fastest speed: 2000 Pcs / Hr
Power: 110V / 220V 50 Hz
Power: 35W
Pressure: 6 Bar
Air consumption: 63 Liter / Min
Price Terms︰ FOB shenzhen CHINA,EXW,Dongguan,China
Packing︰ plywood case
Lead Time︰ 7 days confirm deposit
Standards Certificate︰ CE
Application area︰ PLASTICE products, toys, pens, gifts,artware,watchs
Gross Weight︰ 145kg
Free Fittings ︰ SILICONE PADS, CLICHE PLATES, STEEL PLATE
Packing︰ plywood case
Lead Time︰ 7 days confirm deposit
Standards Certificate︰ CE
Application area︰ PLASTICE products, toys, pens, gifts,artware,watchs
Gross Weight︰ 145kg
Free Fittings ︰ SILICONE PADS, CLICHE PLATES, STEEL PLATE
Packing and shiipping
As the picture bellow, we pack goods with high standard ways to ensure the goods not damaged on the way of transportation.
Company information
LUEN CHEONG PRINTING EQUIPMENT GROUP LTD was specializing in manufacturing LC brands . including luding :various pad printer,
silk screen printer, hot foil stamping machine, UV Curing machines & cliche making machine for 28 years.
We passed ISO-9001-2000 certification in 2001 and we are a member of SGIA and all of our industrial printers had passed EURO'S CE
standard.And we are the glod membership of alibaba and got a huge credit all the world .
There are customers from 98 countries to visit our factory and we had a good cooperation.
silk screen printer, hot foil stamping machine, UV Curing machines & cliche making machine for 28 years.
We passed ISO-9001-2000 certification in 2001 and we are a member of SGIA and all of our industrial printers had passed EURO'S CE
standard.And we are the glod membership of alibaba and got a huge credit all the world .
There are customers from 98 countries to visit our factory and we had a good cooperation.
