High temperature film coating used small laboratory coater machine
- Category: Coating Machines >>>
- Supplier: Shenzhen Tico Technology Co. Ltd.
Share on (62318230021):
Product Overview
Description
Product Description
High- temperature film coating used small laboratory coater machine
Battery cell lab equipment ( FILM COATER WITH COVER HEATER ) :
This product is widely used for researches of all kinds of high- temperature film coating,like ceramic films, crystal films, battery material films, and special nano-films, and can adapt to the technology development of high temperature film coating in future.
Features :
1. Temperature controlled heating system is digital displayed, max working temperature is 200℃.
2. Timer is digital displayed; the heating time can be set freely.
3. Coating speed can be regulated at a range of 0~100mm/s.
4. Vacuum aluminum plate used to place and take off the substrate in quick.
5. Stroke can be regulated by travel switch at a range of 10~250mm.

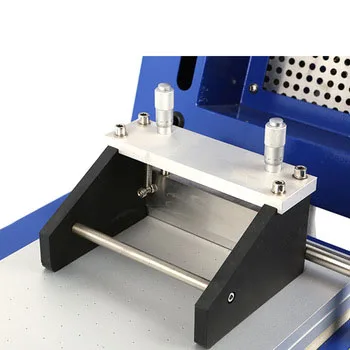

6. Equipped with scraper for regulating coating thickness (the accuracy is 0.01mm).
7. Small dimension saves space.
8. Nice appearance, solid geometry design makes well- formed shape.
Application :
Battery lab
Battery research
Lithium ion battery lab
Material research
Trial-production
| BATTERY CELL LAB EQUIPMENT | |
| Item Name | Automatic Film Coater with Cover Heater |
| Max Stroke | 250mm |
| Vacuum plate | Equipped with vacuum aluminum plate |
| Coating Speed | 0~100mm/s |
| Dimension of vacuum plate | L410mm×W200mm×H30mm |
| Regulating range of scrapper | 0.01~3.5mm |
| Film width | 100mm |
| Heating temperature | Room temperature ~ 200℃ Digital displayed thermostat, the accuracy is±1℃ |
| Power supply | 220V/50Hz |
Weight | 50KG |
Dimension | L800mm×W310mm×H330mm |
Standard Configurations | *applicator *no-oil vacuum pump *horizontal rod *feeding box |

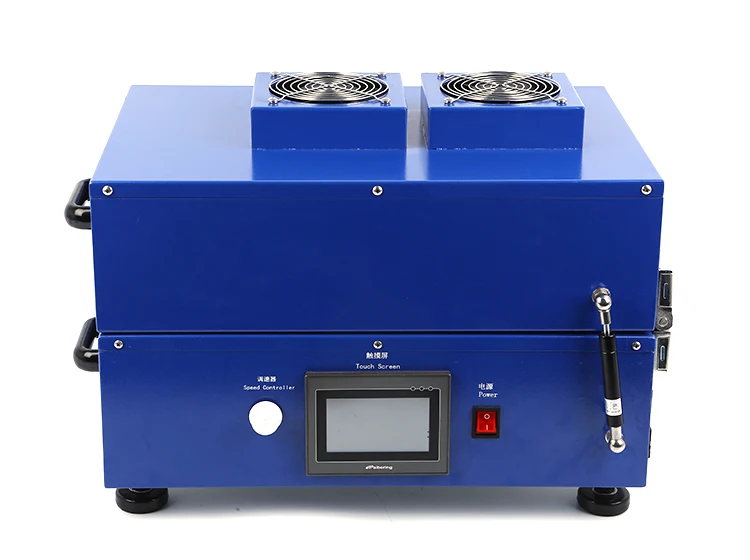

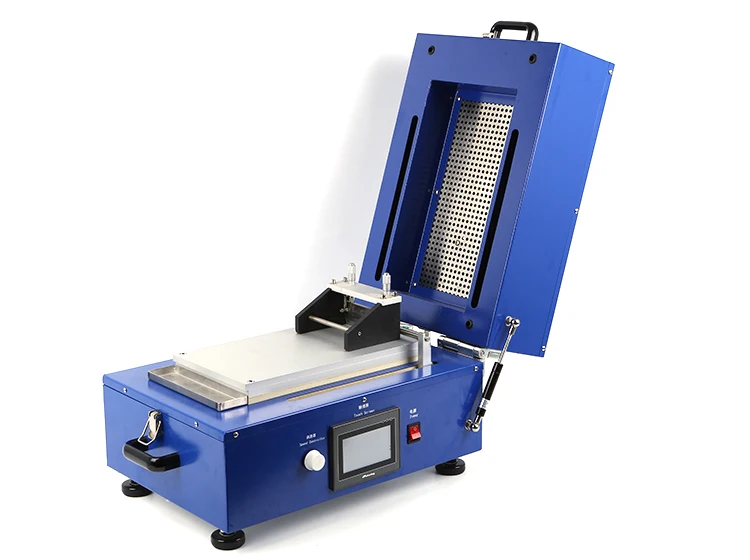

Product show
Hot Products
Company Information
Certifications
FAQ
1.Are you a manufacturer ?
A: Yes, our factory located in Shenzhen China,
We have more than 9 years experience for producing battery equipment.
We have our own designing and production department.
2.What certificate of your product have ?
A : Our products reaches CE certification.
3.Do you accept customized product ?
A : Yes.
4.Do you offer training service for users ?
A : Yes, we have video to show users how to use it.
5.Can you offer overseas installation service ?
A : Yes, we can.
