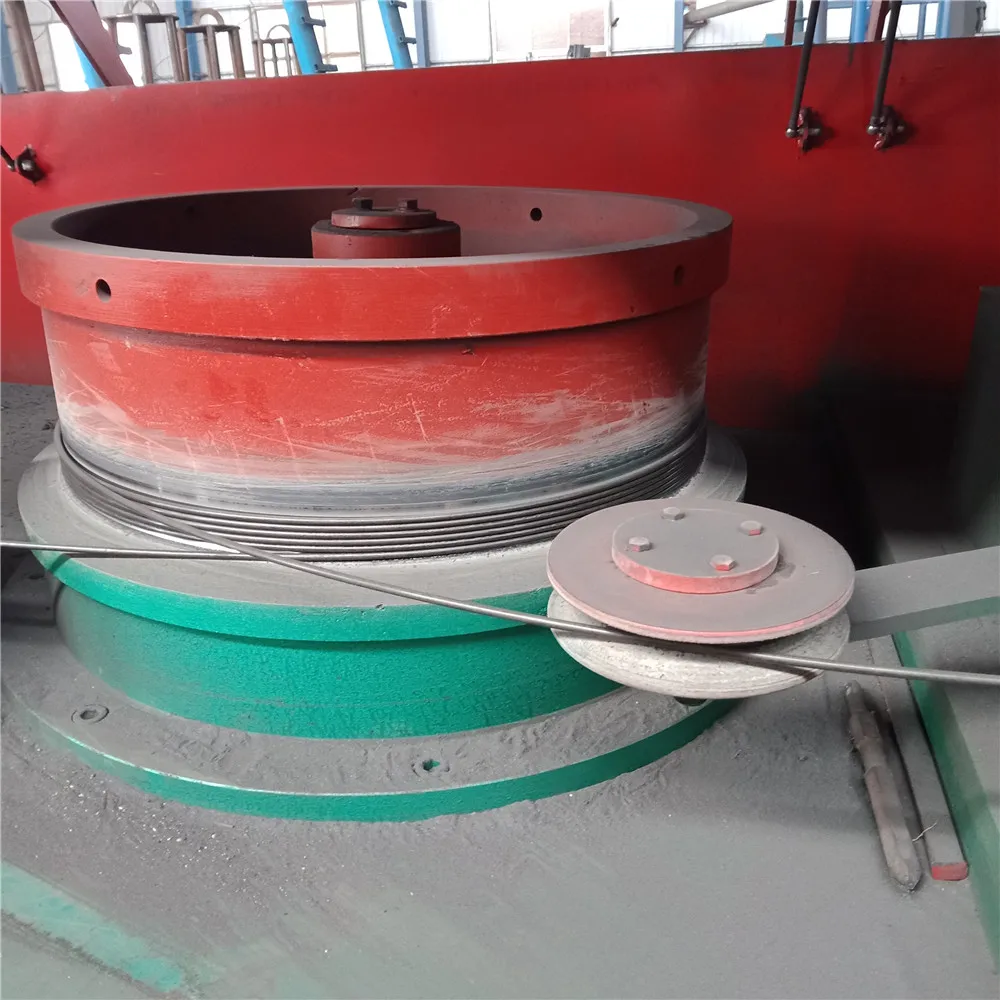

Construction binding wire Straight line wire drawing machine
- Category: Wire Drawing Machines >>>
- Supplier: Hebei Oulite Import & Export Trading Co. Ltd.
Share on (62318590316):
Product Overview
Description
Product Description
The straight line wire drawing machine is a high-end wire drawing
machine developed and produced by the digestion and absorption technology. Main features: The drum has a narrow-slot
water-cooling, the drawing die adopts direct water cooling, and the cooling effect is good. It adopts first-class strong narrow

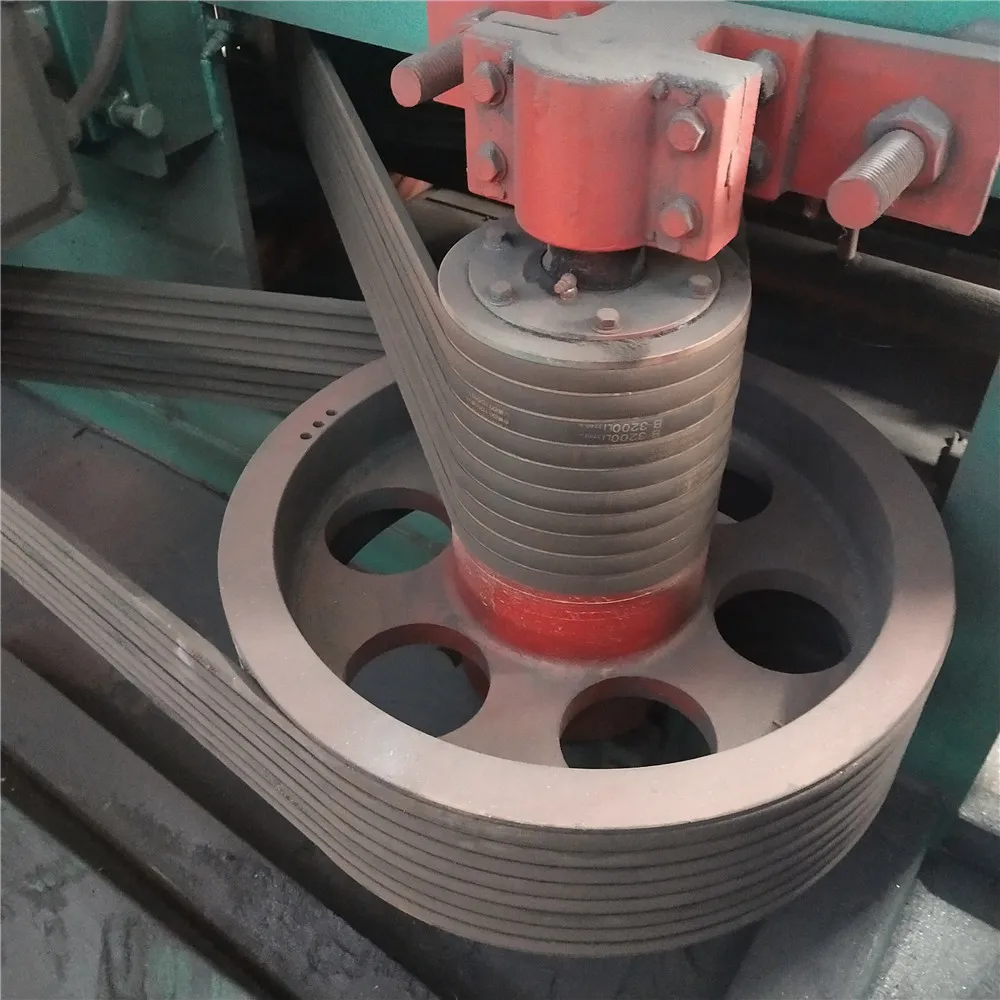

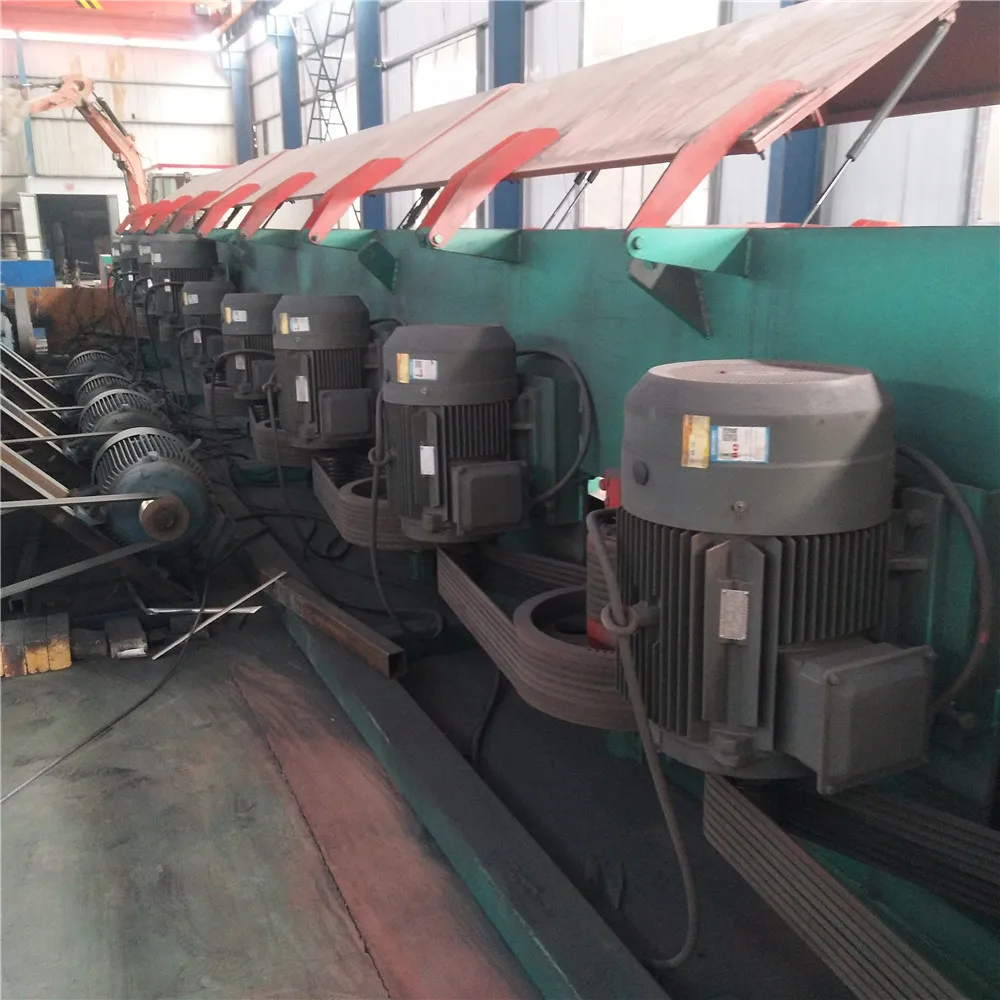

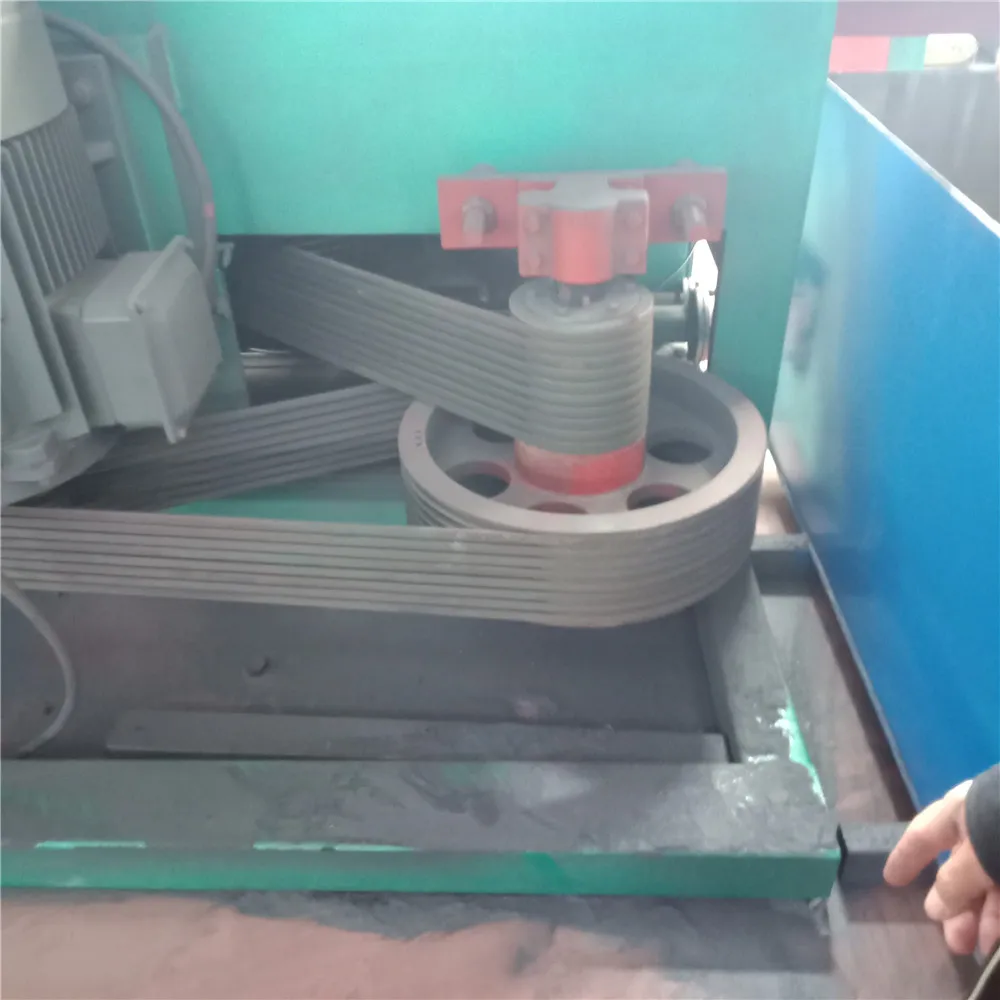

V-belt and standard hard-toothed gearbox transmission, with high transmission efficiency and low noise. It adopts fully enclosed
protection system, good safety, tension tuning, smooth drawing, and several inverters with AC frequency conversion (or DC).
Programmable control system), screen display, high degree of automation, easy operation, excellent quality of drawn products.
machine developed and produced by the digestion and absorption technology. Main features: The drum has a narrow-slot
water-cooling, the drawing die adopts direct water cooling, and the cooling effect is good. It adopts first-class strong narrow
V-belt and standard hard-toothed gearbox transmission, with high transmission efficiency and low noise. It adopts fully enclosed
protection system, good safety, tension tuning, smooth drawing, and several inverters with AC frequency conversion (or DC).
Programmable control system), screen display, high degree of automation, easy operation, excellent quality of drawn products.
Specification | LZ-560 |
Drum diameter | 560mm |
Max inlet wire tensile strength | 1300Mpa |
Drawing numbers | 2-13 |
Inlet wire diameter max | 6.5mm |
Outlet wire diameter min | 1.35mm |
Max wire speed | 15m/s |
Motor | 160-220KW |

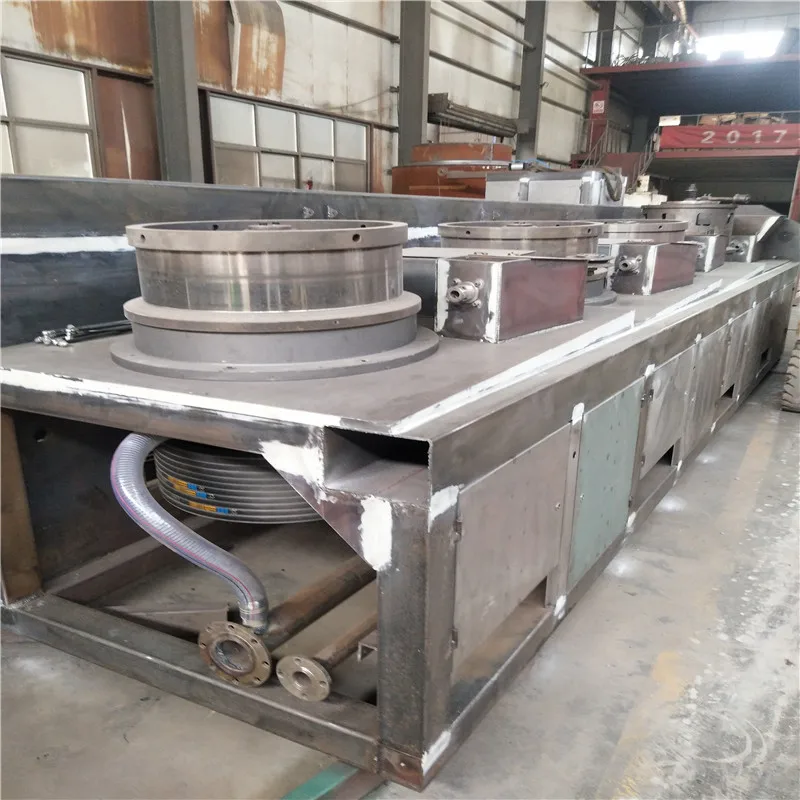

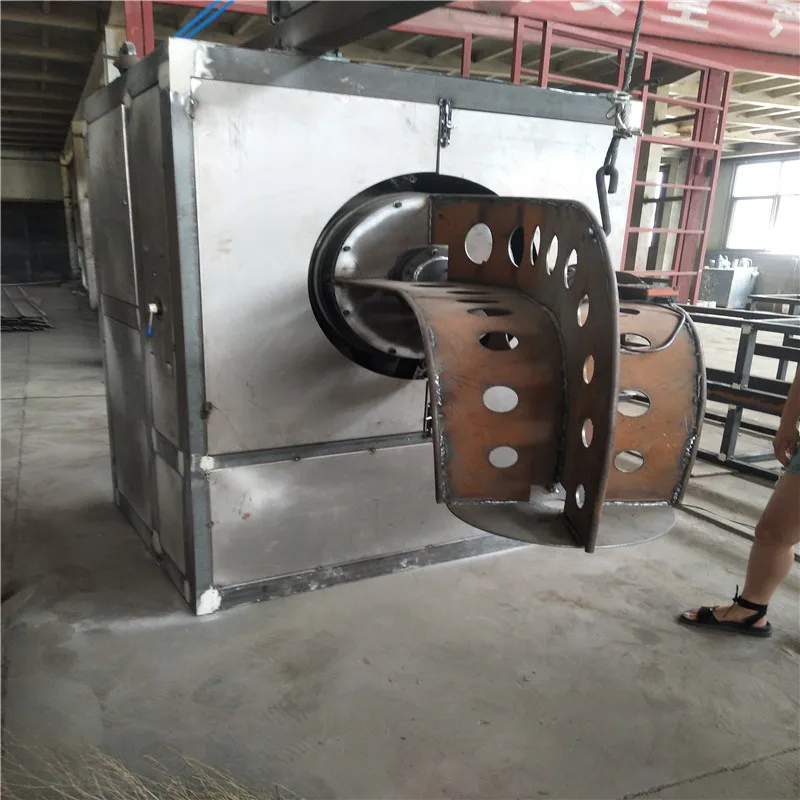

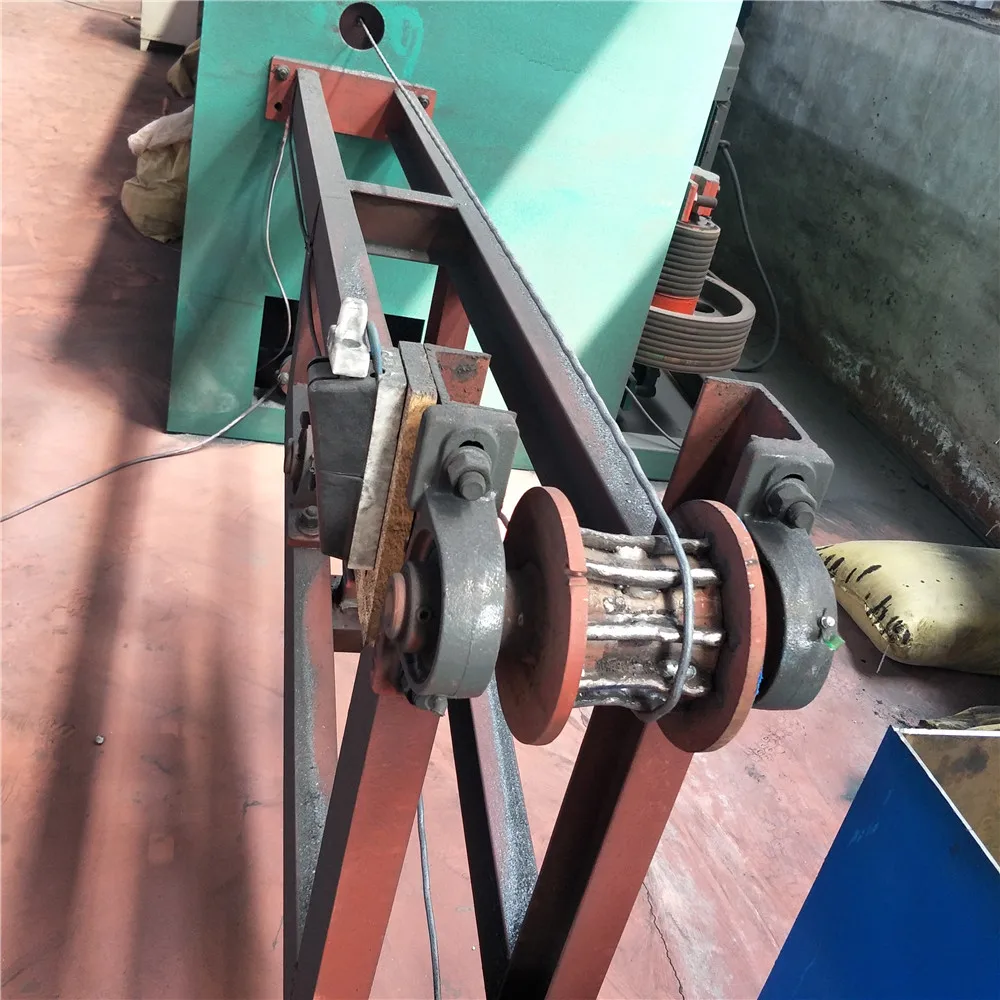

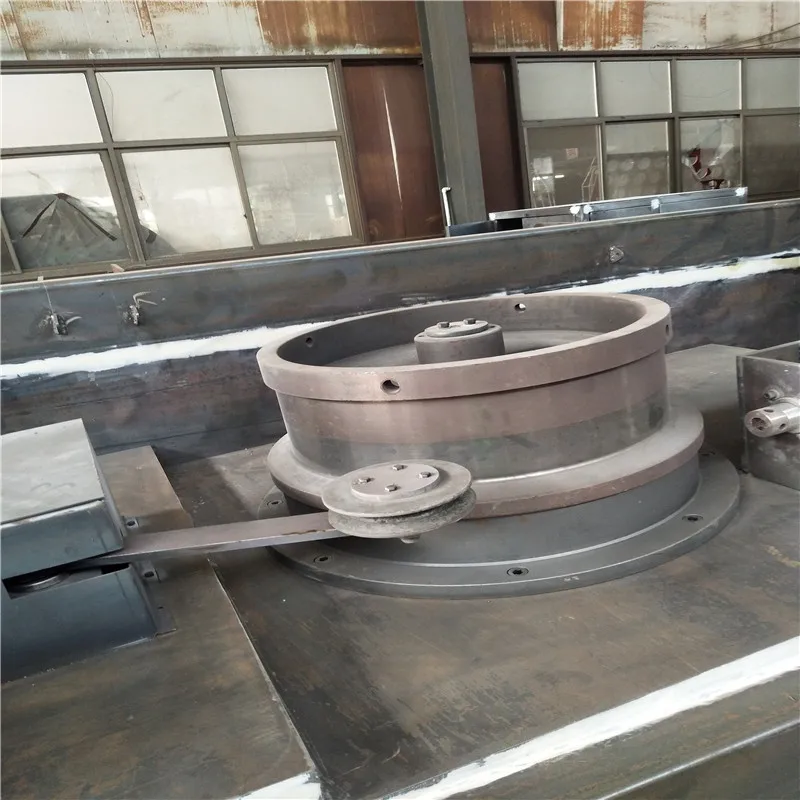

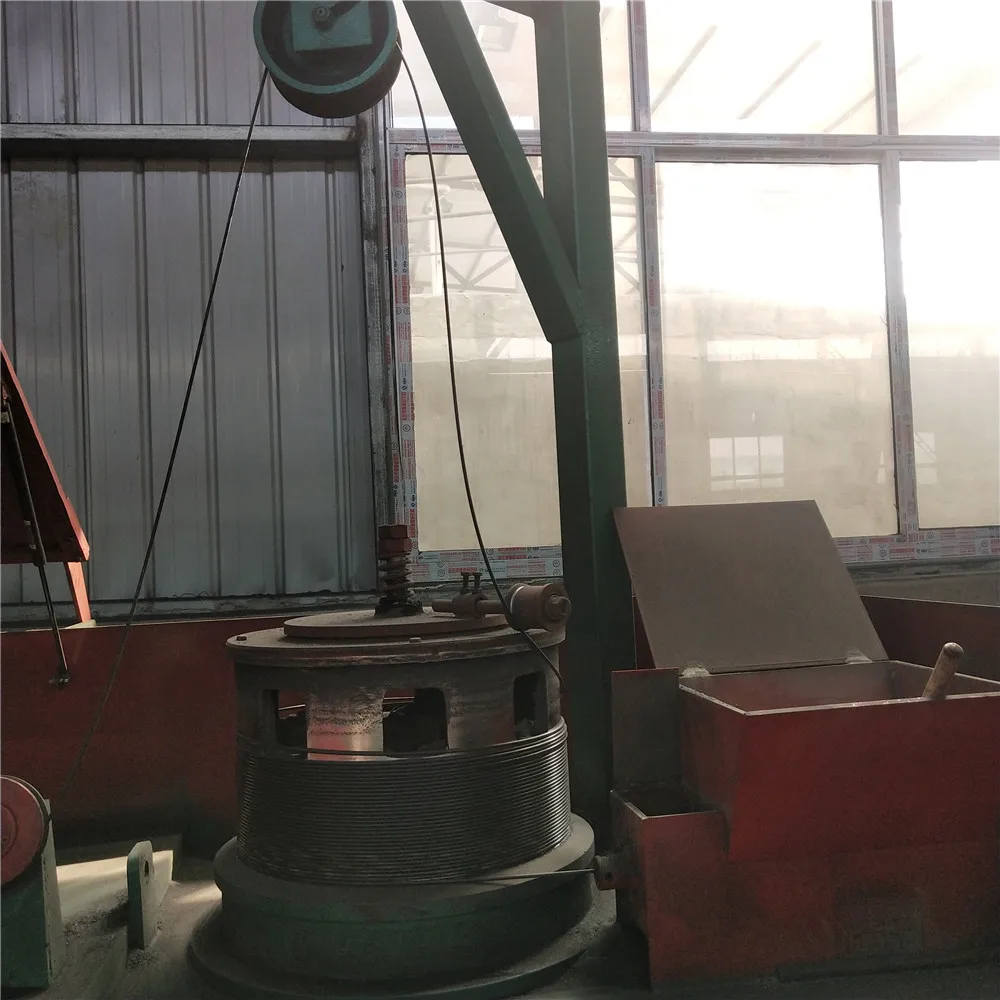

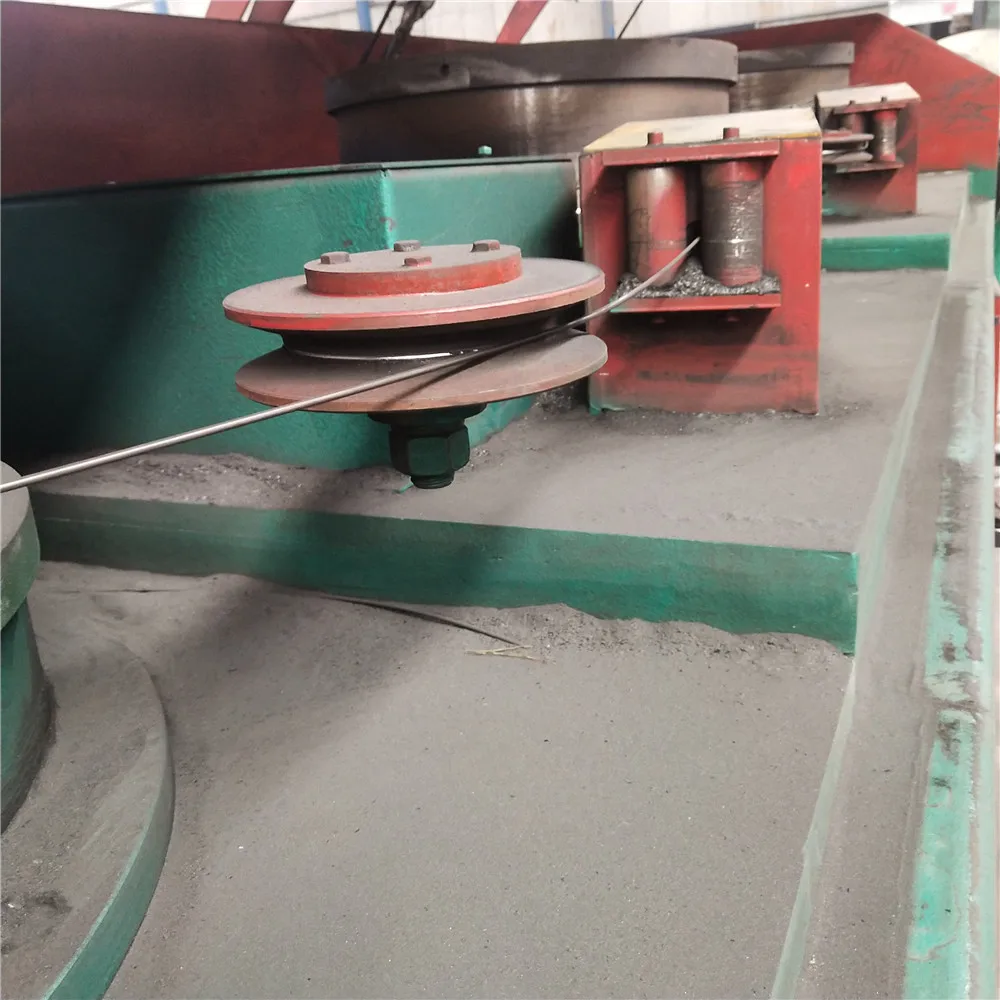

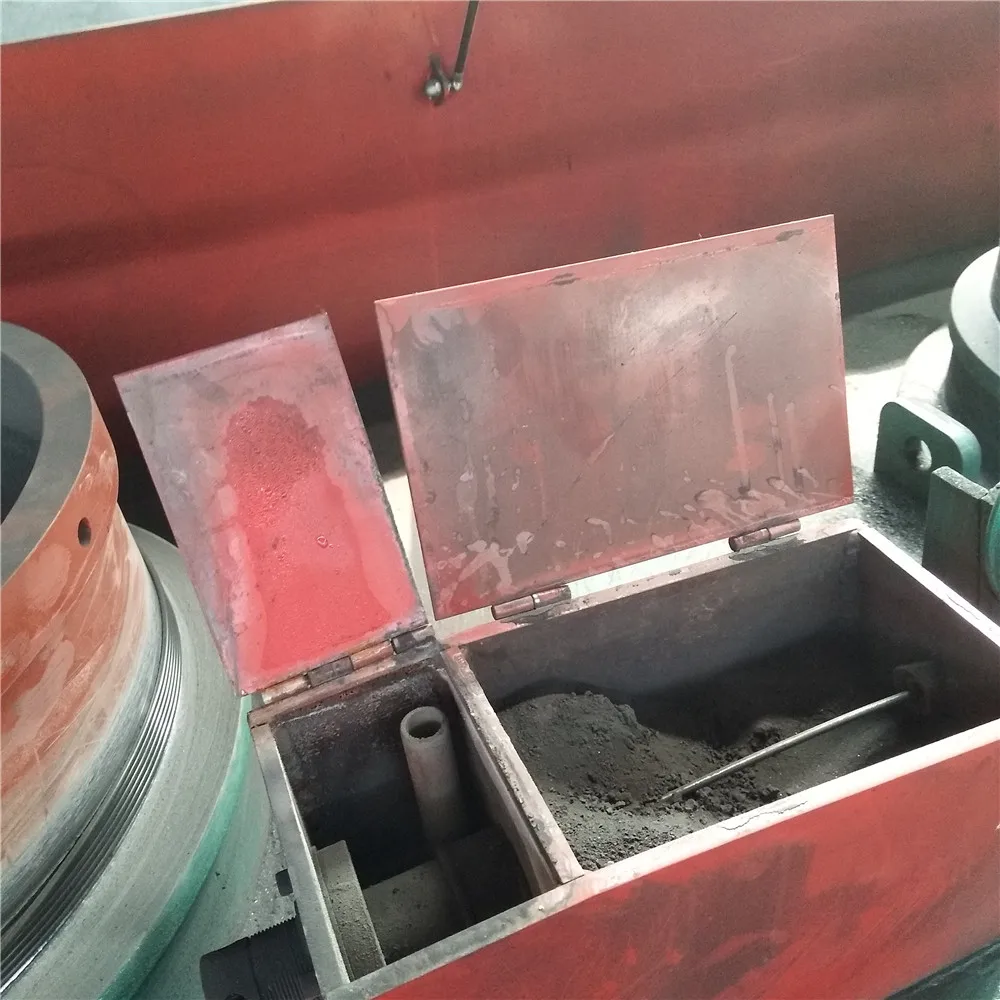

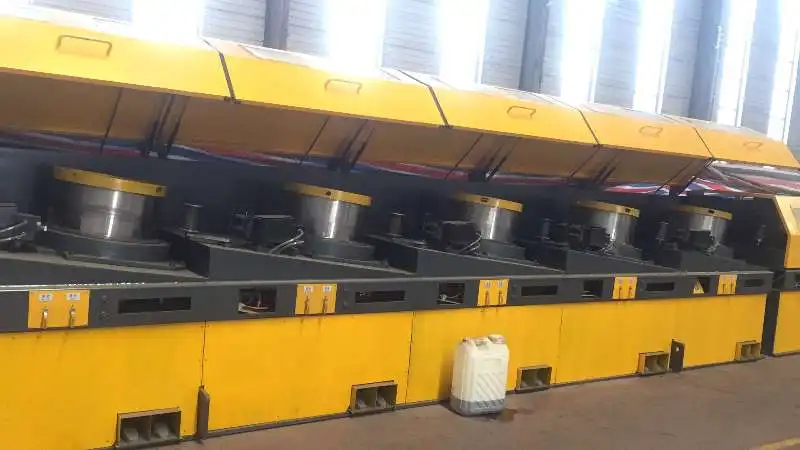

Detailed Images
Straight line drawing machine suitable for drawing various metal wires below 16mm, especially suitable for drawing high quality wire, gas shielded wire,
aluminum clad steel wire, prestressed steel wire, hose steel wire, spring steel wire, steel cord steel wire and medium and high
carbon steel wire. etc.
aluminum clad steel wire, prestressed steel wire, hose steel wire, spring steel wire, steel cord steel wire and medium and high
carbon steel wire. etc.
Size Information
Straight line wire drawing machine whole specification
Specification | LZ350 | LZ400 | LZ450 | LZ500 | LZ560 | LZ600 | LZ700 | LZ750 | LZ900 | ||||||||
Drum Dia.mm | 350 | 400 | 450 | 500 | 560 | 600 | 700 | 750 | 900 | ||||||||
Draw No., | 2-12 | 2-12 | 2-12 | 2-12 | 2-13 | 2-9 | 2-9 | 2-9 | 2-9 | ||||||||
Inlet wire mm | 3.6 | 4.2 | 5.0 | 5.5 | 6.5 | 8 | 10 | 10 | 14 | ||||||||
Outlet wire mm | 0.6 | 0.75 | 1 | 1.2 | 1.35 | 1.6 | 2.2 | 2.2 | 3 | ||||||||
Speed m/s | 20 | 20 | 18 | 18 | 15 | 12 | 10 | 10 | 8 | ||||||||
Motor | 7.5-15 | 7.5-22 | 11-37 | 22-45 | 160-220 | 160-220 | 160-220 | 160-220 | 160-220 | ||||||||
Inlet wire Mpa | 1300Mpa | ||||||||||||||||
Related Products
Packing&Shipping
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
After Sales Service
Whole life on line supporting
1.Test the machine before shipment
2.Guarantee time: one year since machine was at buyer's factory but within 18 months against B/L date.
3.Within guarantee time, if any components are broken under normal condition, we can change for free.
4.We can send our best technician to buyer’s factory for installation, debugging and training.Buyer need to undertake double-way air tickets,Visa,Worker salary USD100.0/ Day,Accommodations.
2.Guarantee time: one year since machine was at buyer's factory but within 18 months against B/L date.
3.Within guarantee time, if any components are broken under normal condition, we can change for free.
4.We can send our best technician to buyer’s factory for installation, debugging and training.Buyer need to undertake double-way air tickets,Visa,Worker salary USD100.0/ Day,Accommodations.

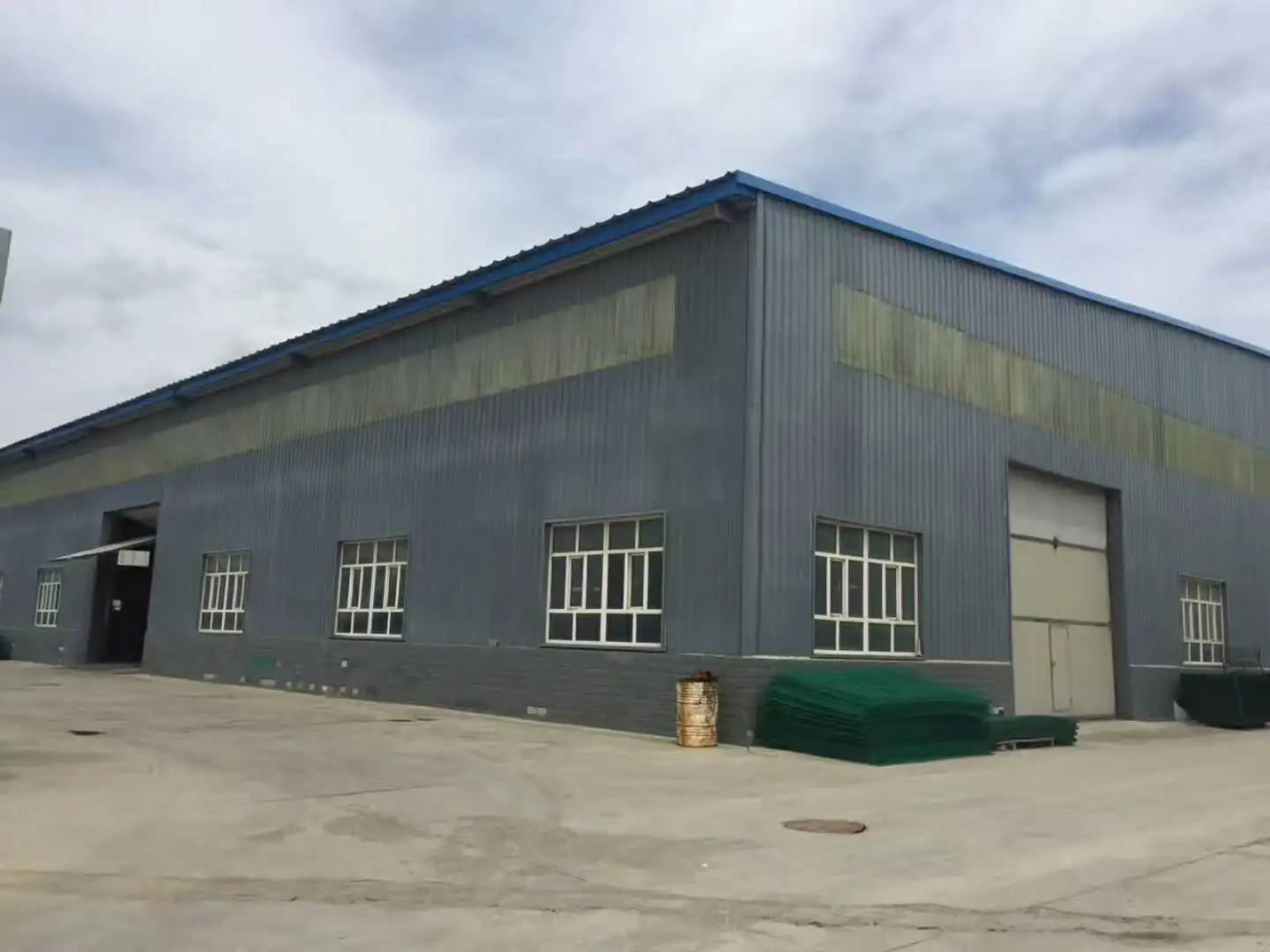

Company Introduction
