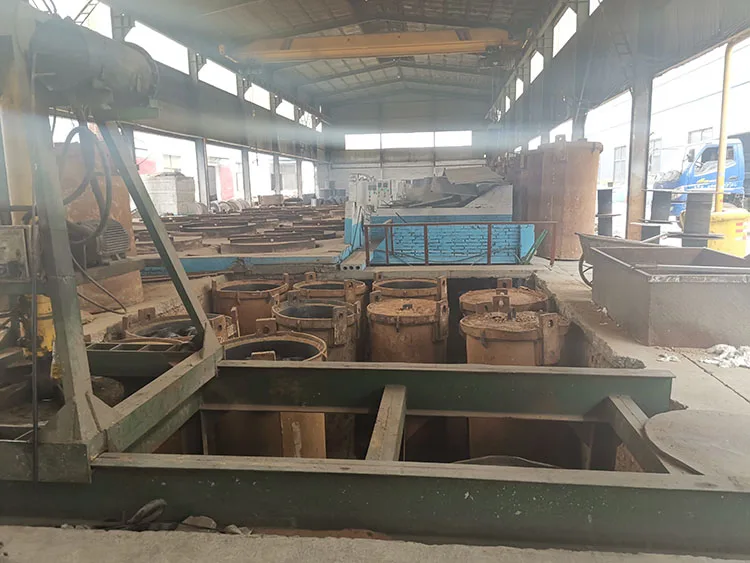

HEBEI FANLIAN lt series wet wire drawing machine
- Category: Wire Drawing Machines >>>
- Supplier: Hebei Fanlian Import And Export Trade Co. Ltd.
Share on (62318618459):
Product Overview
Description
HEBEI FANLIAN lt series wet wire drawing machine
Product Description
Straight Line Wire Drawing Machine
Performance characteristics:
A. Save electricity 40°-45°/ton
B. High production capacity 1.5 tons/hour
C. Low noise
D. Long life time more than 30 years
E. Easy to repaire
F. Easy to control,one worker can control 2 sets production line
A. BASIC TECHNICAL PARAMETER AND ONE SET INCLUDING
Mold type | HBFL-8/550 straight line wire drawing machine |
Drum diameter (traction diameter) | 550mm |
Quantity of drum | 8 |
Input wire diameter | Φ6.0mm |
Output wire diameter | Φ2.0mm |
Inelt wire tensile strength | ≤450mpa |
Maximum compressibility | 90.5% |
Max speed | 12m/s(Φ2.0mm ,1200Kg/H) |
Motor | 22KW*8+ wire collection 15KW=191KW |
The motor is decorated | Motor erection |
Mold size | Φ40mm×30(tungsten steel) |
Drum (tower wheel) arrangement | The nose is upright and inclined |
machine direction | From right to left |

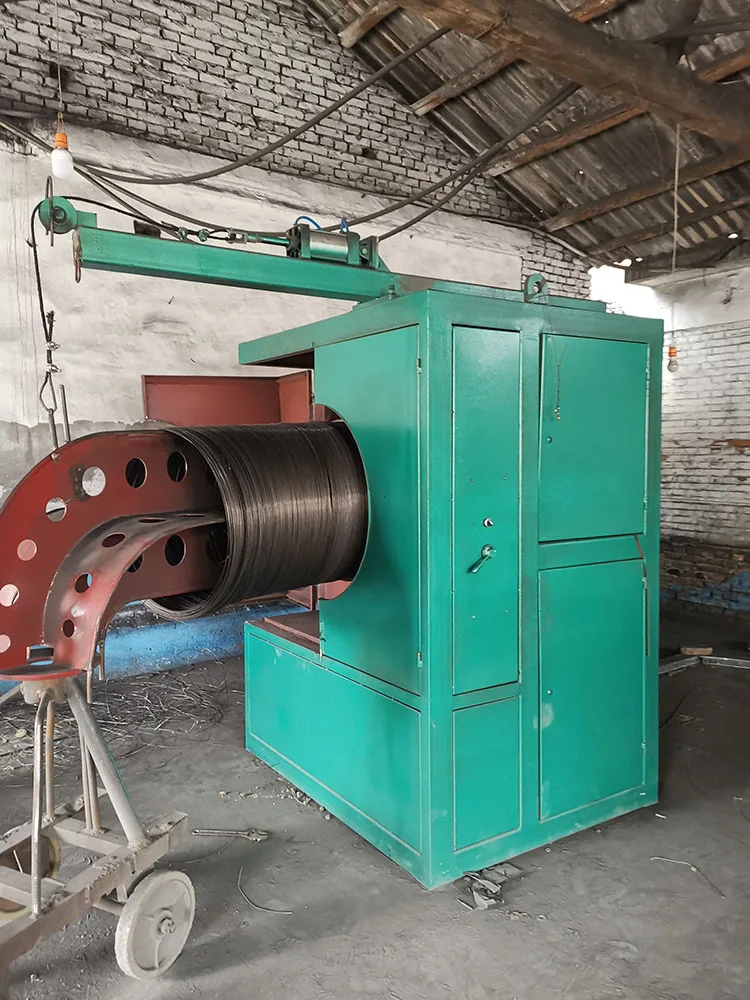

Wire collection type | H type wire collection or elephant nose type |
The finished straightening | finished straightening |
wear-resisting part | Rotating part in contact with wire The surface is sprayed with tungsten carbide |
Roll cooling | Spray water cooling |
Die box cooling form | The first end adds the rotation to pull the pink bar, directly draws the water cooling in the second area |
|
User supplied liquid, external circulation |
Tension frame | Built-in inflation detection |
Rack | 20 steel plate, square pipe welding machine, the body to the minimum |
Drive | Transmitte belt |
Bearing support form | The box is closed |
Safety device | Safety cover, add the observation window, open the cover and automatically slow down, stop the wire for detection |
Bearing lubrication | Tank self-lubrication |
Vacuuming design | Reserve suction holes |
lighting | Each machine is equipped with individual lighting |
Parking brake | Pneumatic brake |
Electric cabinet | Vito structure, protection grade IP54 |
Electrical system | Frequency conversion speed control 485 communication PLC Control |
Energy consumption monitoring | Electricity meters are installed |

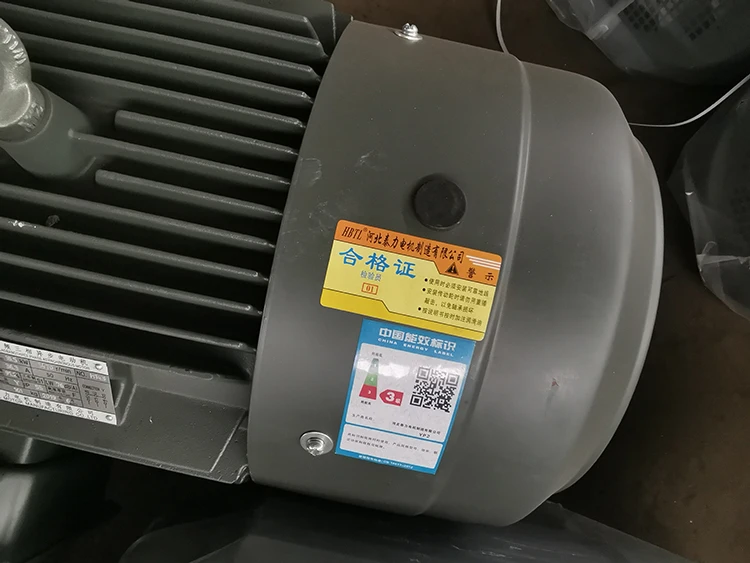

Frequency conversion motor brand | Hebei mengniu motor(China famous brand) |
Low voltage electrical appliances | Delixi brand |

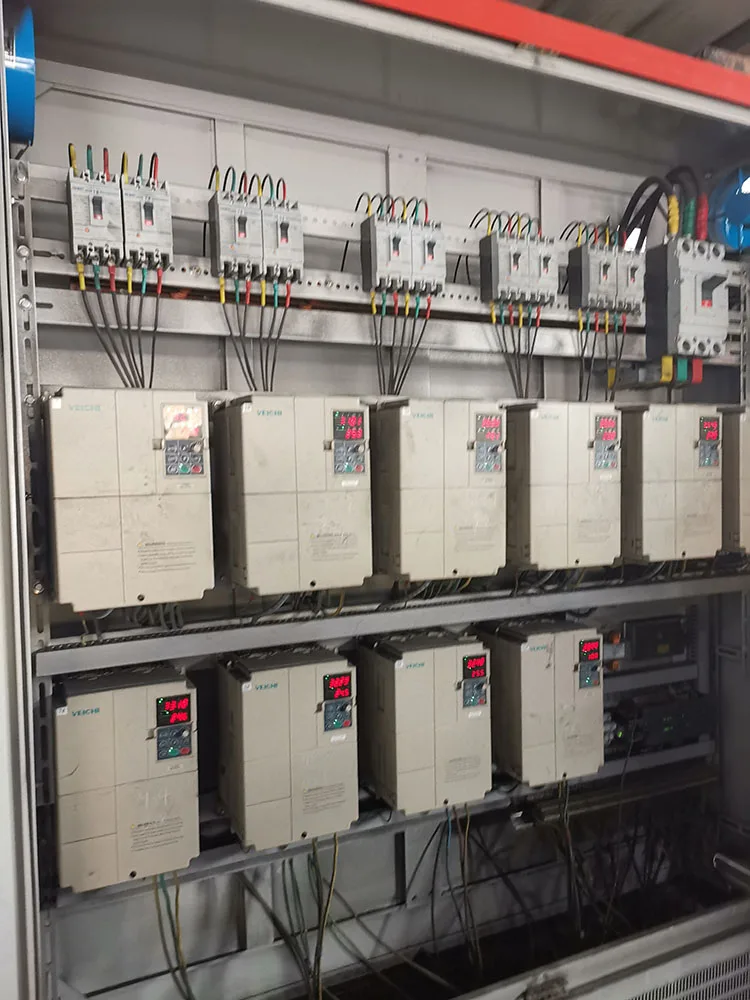

The inverter | 22 kw huichuan inverter, 485 communication, |
Field cable supply | The special control cable shall be provided by the supplier Other control cables and power cables shall be provided by the demander
|
Gas, water, electricity | The demander receives the device interface |
Related Products
Company Profile
Main country:
USA , Mexico , New zealand , Russia , Italy , Turkey , Philippines , Singapore,Kuwait,Thailand , Albania , Tanzania , India and Trinidad and Tobago , Australia Uzbekistan , Kazakhstan , Kuwait , Malaysia , cambodia , vietnam , Myanmar, Algeria , Kenya , South Africa , Swaziland , Mozambique , United Arab Emirates , Oman , Japan.
Packaging and logist
Q:what is the delivery time?
A:We have the machine in stock.
Q:how many workers need for the machine?
A:Only one.
Q:what is the voltage of the machine?
A:The voltage of the machine can be customized as your local.
Q:what is the width of the machine
A:2-6m width.
A:if you want to know more information to the machine, pls inform me,I will try my best to support you.
