Weifang zongon завод 20 лет золотой поставщик для двойного слоя погружения воды PP кокосовый ретортный стерилизатор
- Category: Food Sterilizer >>>
- Supplier: Zhucheng Zhonggong Machinery Co. Ltd.
Share on (62318630891):
Product Overview
Description

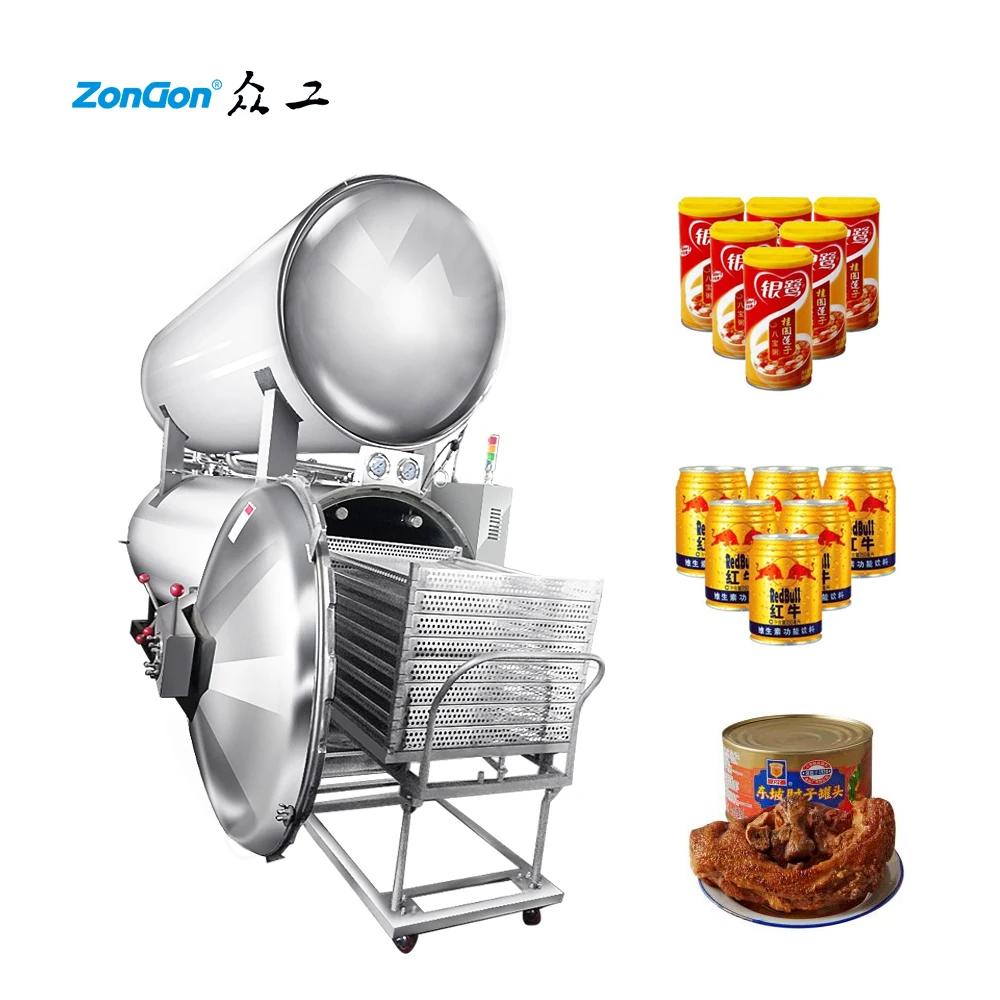

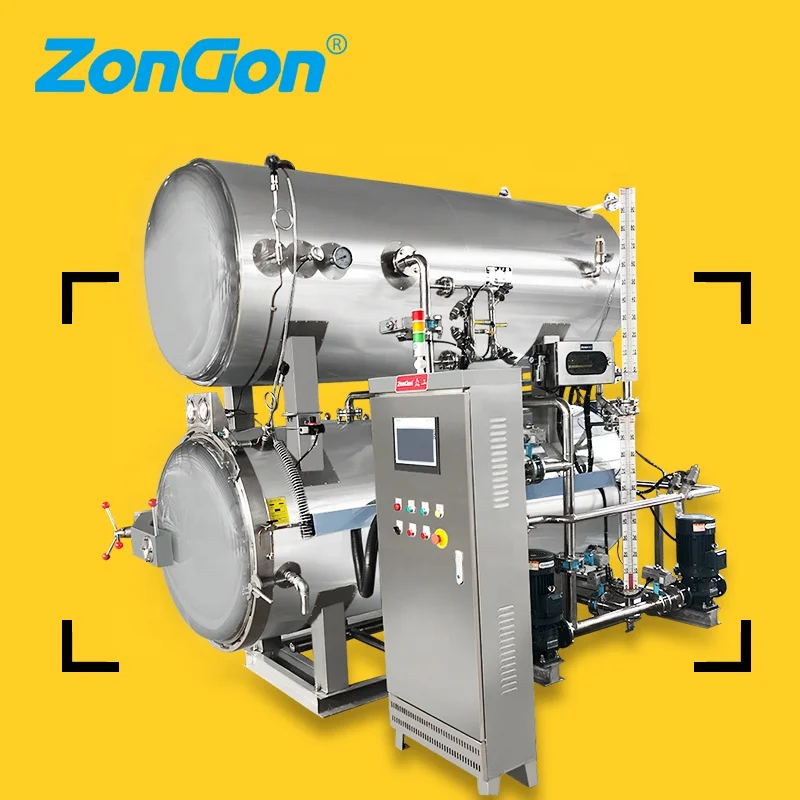

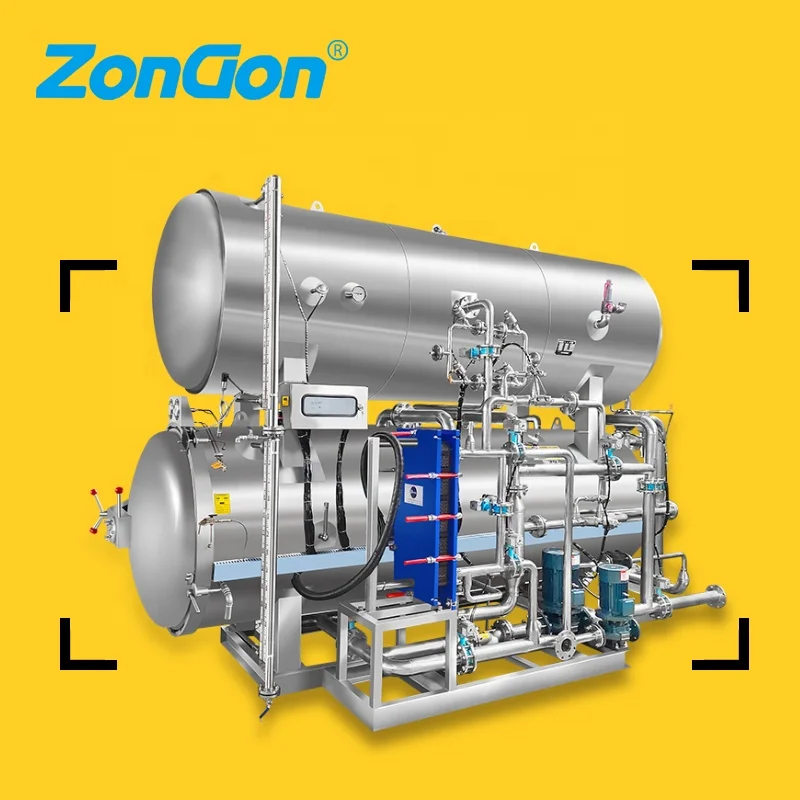

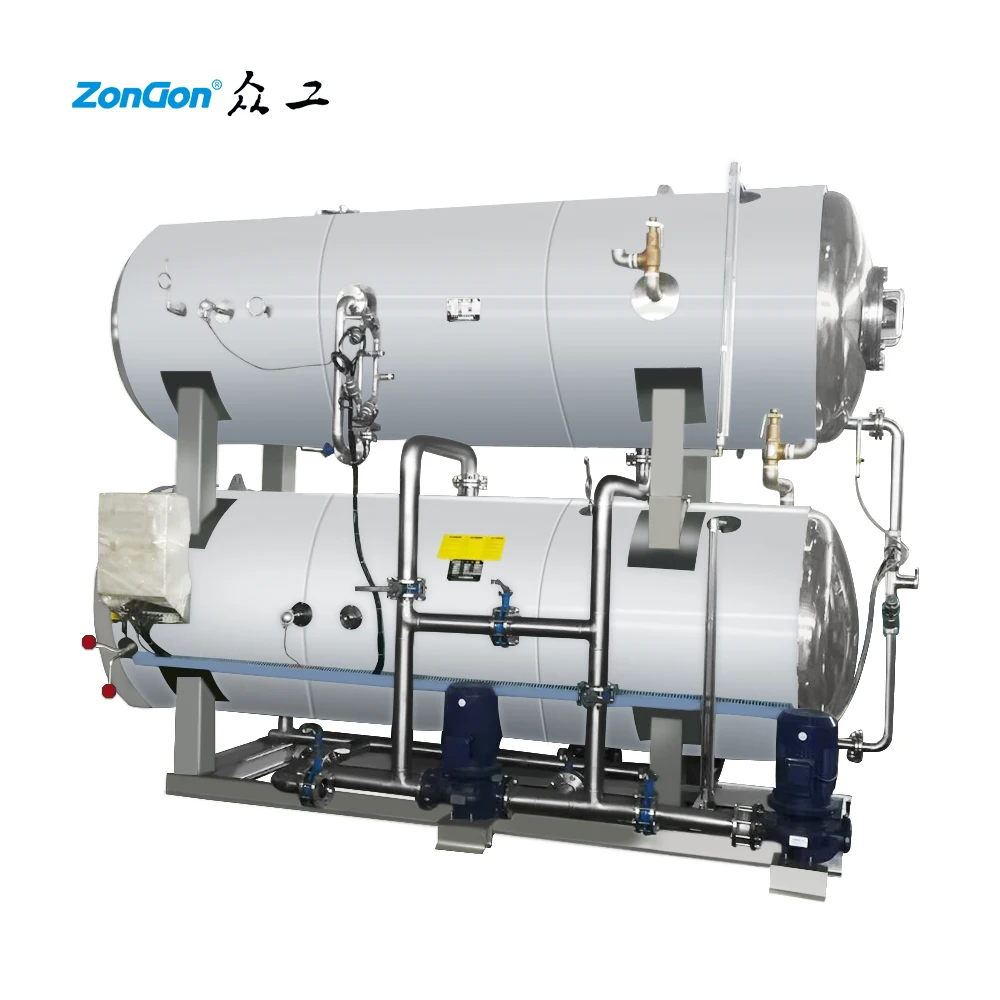

Double Layer Water Immersion Retort Sterilizer
Equipment Characteristics
A.The sterilizing water is preheated, and the sterilization temperature starts at a high point, which shortens the sterilization time and protects the product quality
B.The hot water agter the sterilization is recycled to the upper tank to save steam ,energy consumption and sterilization time
C.For flexible packaging products, especially large-head packageing ,the heat penetration rate is fast and the sterilization effect is good
D.PLC computercontrol ,sterilization to achieve standardization
E.it can be equipped with a FO value control system to make sterilization more scientific
F.The heat distribution is uniform and the product quality is easily controlled
Main Feature
1. Uniform temperature distribution:In the process of heating and sterilization, the water is continuously sprayed from nozzles adopted high speed spraying, so that the temperature in the pot is kept stable and the sterilization effect is improved.
2. Direct heating and indirect cooling, and prevent the second pollution. Sterilizing and cooling processes use the same water. it only takes 6-12min to rise the temperature from 20 DEG to 121 DEG.
2. Direct heating and indirect cooling, and prevent the second pollution. Sterilizing and cooling processes use the same water. it only takes 6-12min to rise the temperature from 20 DEG to 121 DEG.
3.Full-automatic control system
a.Simens touch screen
b.No-paper recorder
c.Imported automatic valves
Size Information
Model | 900 | 1000 | 1200 | 1300 | ||||||||
Kettle length(mm) | 1800 | 2200 | 2400 | 2700 | 3600 | 4000 | 3600 | 4000 | ||||
Capacity(m³） | 1.35 | 2.06 | 2.16 | 3.70 | 4.60 | 5.00 | 5.20 | 5.82 | ||||
Body thickness(mm) | 4 | 4 | 4 | 5 | 5 | 5 | 5 | 5 | ||||
Installed power(KW) | 6.2 | 7 | 7 | 11.5 | 11.5 | 13 | 13 | 13 | ||||
Designed pressure(Mpa) | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | ||||
Designed Temperature(℃） | 147 | 147 | 147 | 147 | 147 | 147 | 147 | 147 | ||||

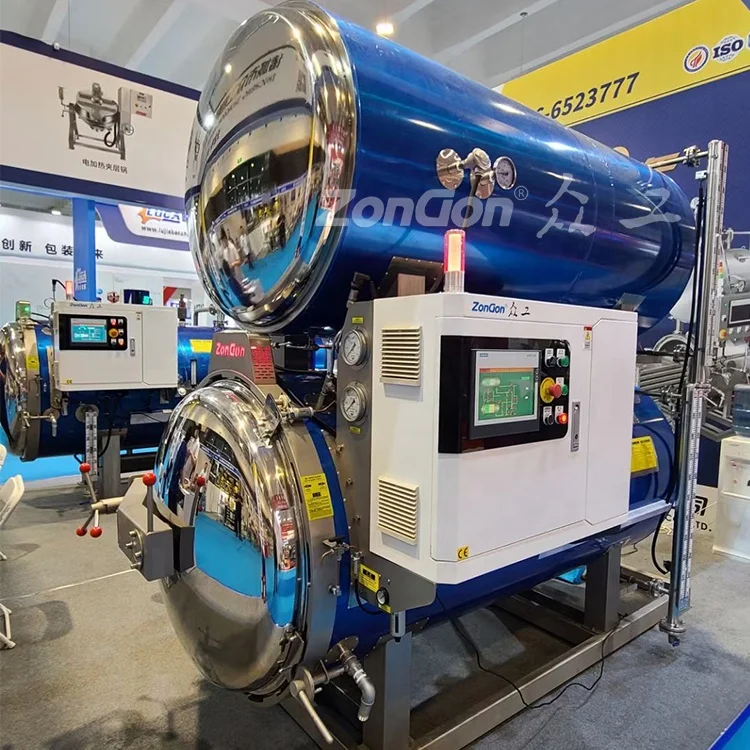

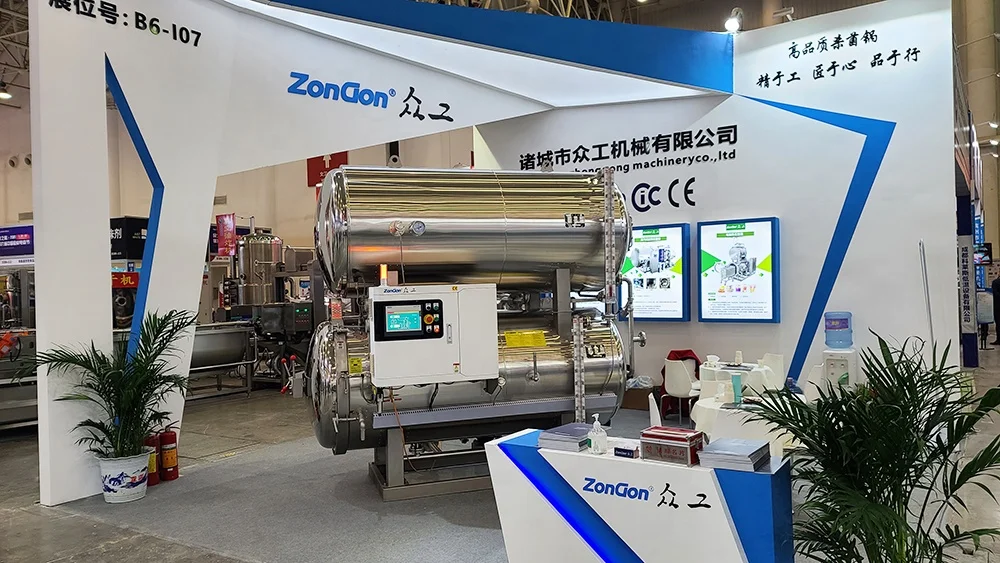

Detailed Images

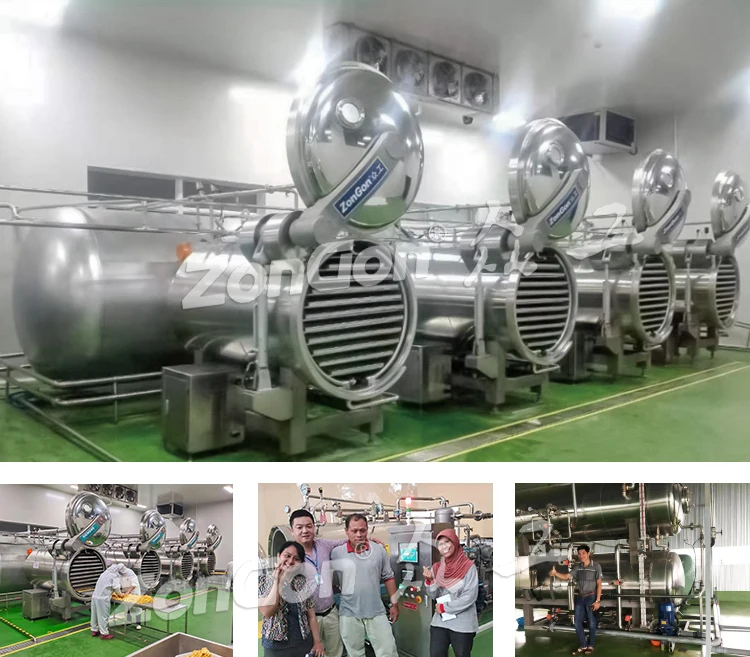

Customer Photos
Related Products
Company Introduction
FAQ
WE ALWAYS EXPLOR ALL THE POSSIBILITIES TO HELP CUSTOMERS TO SOLVE PROBLEMS AND UPGRADE THEIR PRODUCTS QUALITY-sterilizer retort autoclave
1. What if there is something wrong with the machine within one and half year?
We have two ways to solve this problem:
1) Phone call guidance to confirm the problem.
2) We will take video to show 'how to solve the problem'. All the problem can be solved by video guidance.
2.What if the PLC is suddenly broken down?
We use German Brand PLC, it is quite stable brand. If really broken down, what we usually do is:
1) We suggest customer to buy one more for storage. The computer we will also upload the program.
2) Once it is broken down, then take replace the new one, the broken one, send back to us, we re-do the system, and send it back to you again.
3.What is the difference between retort and autoclaving?
Both words refer to the process of sterilizing a given item. This item could be medical instruments, a sealed container of food, or anything else.So there is no difference between these two terms.
4.Is retort machine advisable to replace autoclave in microbiology laboratory?
A retort is an autoclave. The difference here is that our retorts can perform various processes i.e. water spray, water immersion .
1. What if there is something wrong with the machine within one and half year?
We have two ways to solve this problem:
1) Phone call guidance to confirm the problem.
2) We will take video to show 'how to solve the problem'. All the problem can be solved by video guidance.
2.What if the PLC is suddenly broken down?
We use German Brand PLC, it is quite stable brand. If really broken down, what we usually do is:
1) We suggest customer to buy one more for storage. The computer we will also upload the program.
2) Once it is broken down, then take replace the new one, the broken one, send back to us, we re-do the system, and send it back to you again.
3.What is the difference between retort and autoclaving?
Both words refer to the process of sterilizing a given item. This item could be medical instruments, a sealed container of food, or anything else.So there is no difference between these two terms.
4.Is retort machine advisable to replace autoclave in microbiology laboratory?
A retort is an autoclave. The difference here is that our retorts can perform various processes i.e. water spray, water immersion .
