rubber two roll mill / open mixing mill / rubber mixing mill

Product Overview

Description

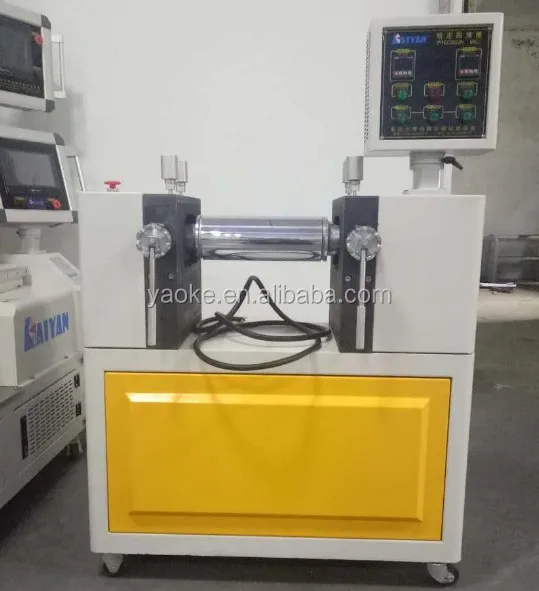

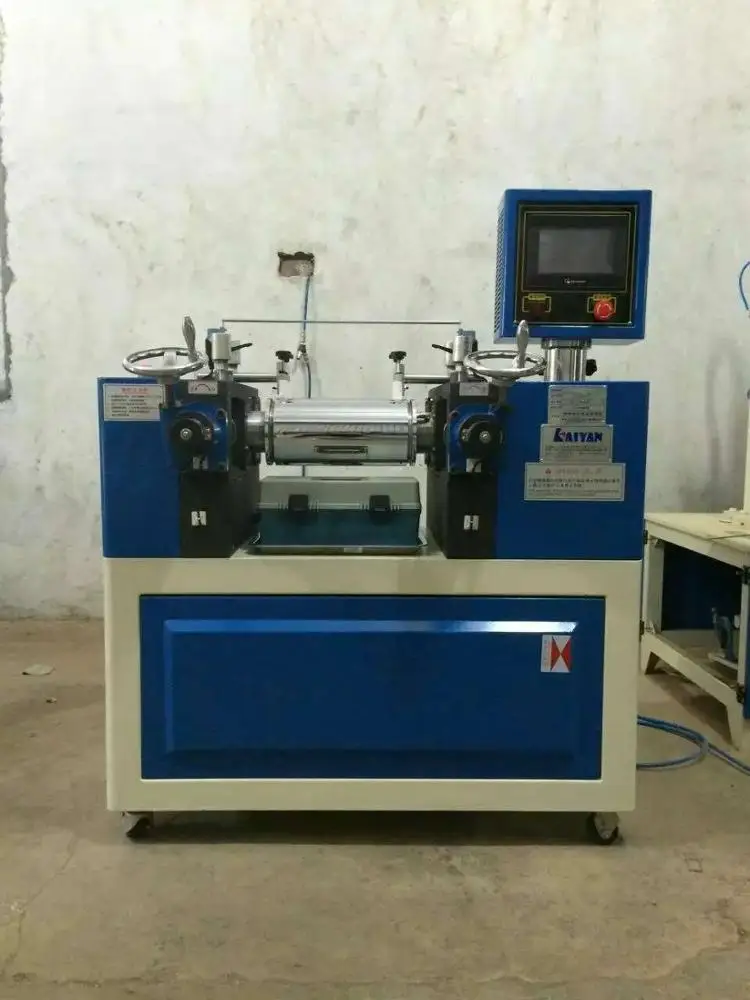

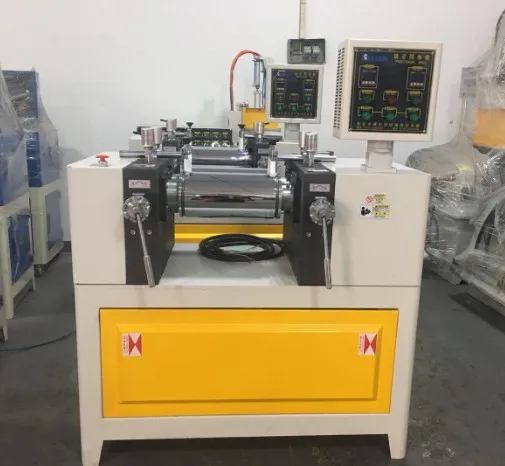

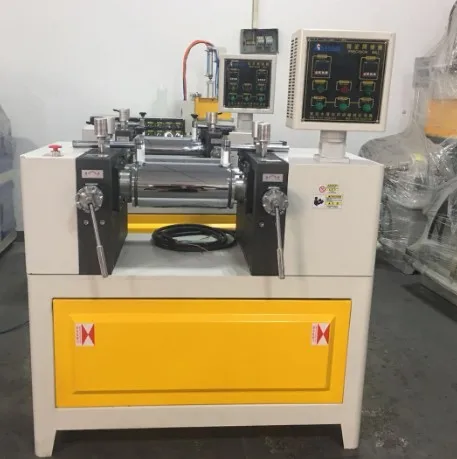

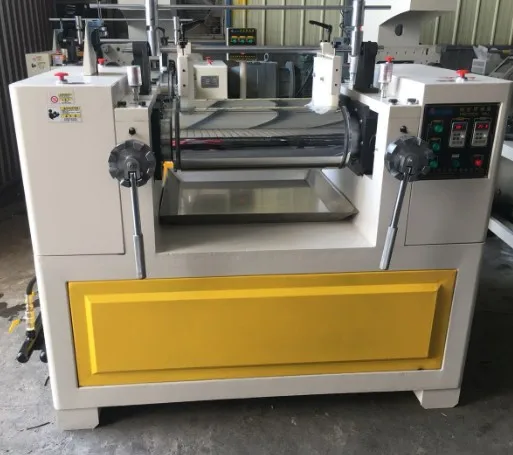

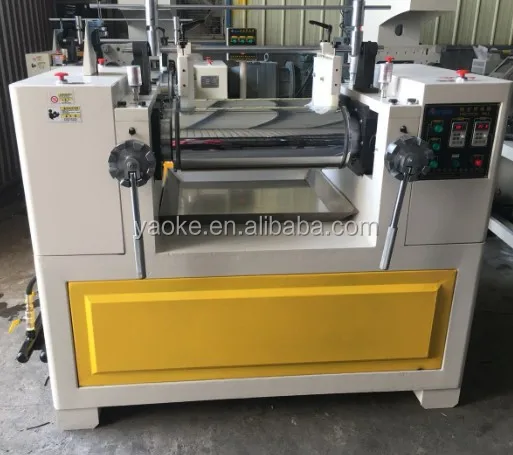

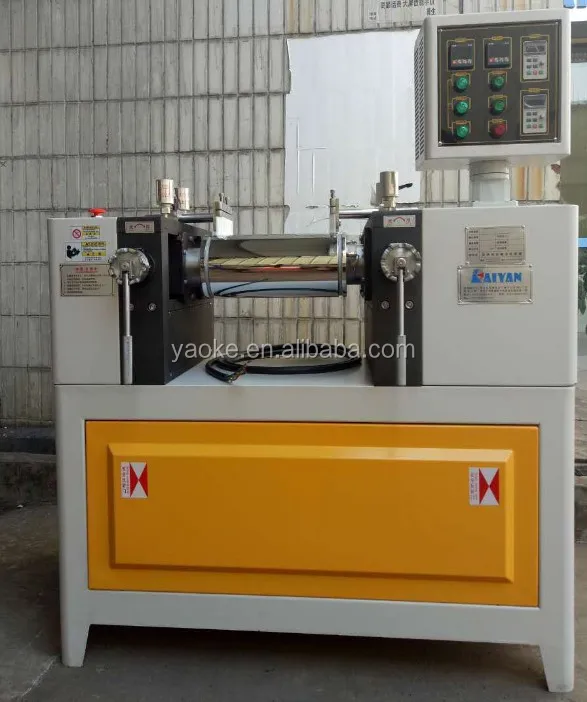

Rubber two roll mill / open mixing mill / rubber mixing mill

A. Introduce:

Lab Open Mixing Rubber Mill is suitable for polymers such as rubber and plastic industry mixing process

PVC, masterbatch and other chemical raw materials. As the raw material and mixed with the agent, and to

 achieve the desired color and quality.The machine uses special steam heating, or through water cooling,

roller surface temperature uniformity, never delamination, sample thickness adjustable and attached machine safety devices, lightweight and easy to use



B.Technical parameters:

Model	Lab Open Mixing Rubber Mill
Mixed capacity	0.1 ~ 3kg rubber (silicone 6KG)
The roller temperature	room temperature ~water ℃
Heating	friction heat - cold water
Temperature Accuracy	No preference
The roller speed	fixed speed (15 rpm or so - other speeds can be set)
Roller ratio	1:1.3
drum size	Ø150 * L350 (high hardness, hard chrome plated mirror treatment,  non-stick material, no delamination) Steel Digging technology  permanent fracture deformation.
Roller spacing	0.01 ~ 6mm adjustable
Safety devices	a plurality of touch touch-type emergency stop device (with reverse function)
Volume	(W * D * H) 1490 * 600 * 1390mm
The mechanical structure	steel
Power	AC380V, 10A
Motor	5.5KW 1 station
Weight	Approx 780 kg



1.What’s your MOQ?
At present we haven’t strict policy for this, so welcome orders with any quantity.

2. Are you a manufacturer or trade company?
We are a manufacturer. You can assure that we are a producer with full experience doing business in domestic and oversea.

3. We are not professional for operation and installation of your machine?
While it is not a stumbling block, our machine is easy to operate, no need to professional training, and the instruction manual and video sent to you are enough. What’s more, we have professional engineers and they can solve all questions.

4. How about packaging? If machine damaged, what should I do ?
Usually machine is packed with wooden case and standard export carton, plywood carton or as your requirement. Damage haven’t happened before, if happen, we will arrange replacement.

5. We haven’t do business before, how can I trust your company and machine?
We have been GOLD supplier for five years with no complaints on Alibaba. and our machine have exported to many countries and have a good feedback.

6. If I want to visit your factory, is the traffic convenient ?
Our company traffic is very convenient, it is only 20 minutes by car or taxi from our city airport to our company, if you come, we can pick you up in airport.

7. Does your product have CE certification ?
Yes, all our products passed CE certification

8. If there is not any size meet my need, can I customiz ?
Yes, just provide me your detail requirement, we can do as yours.
