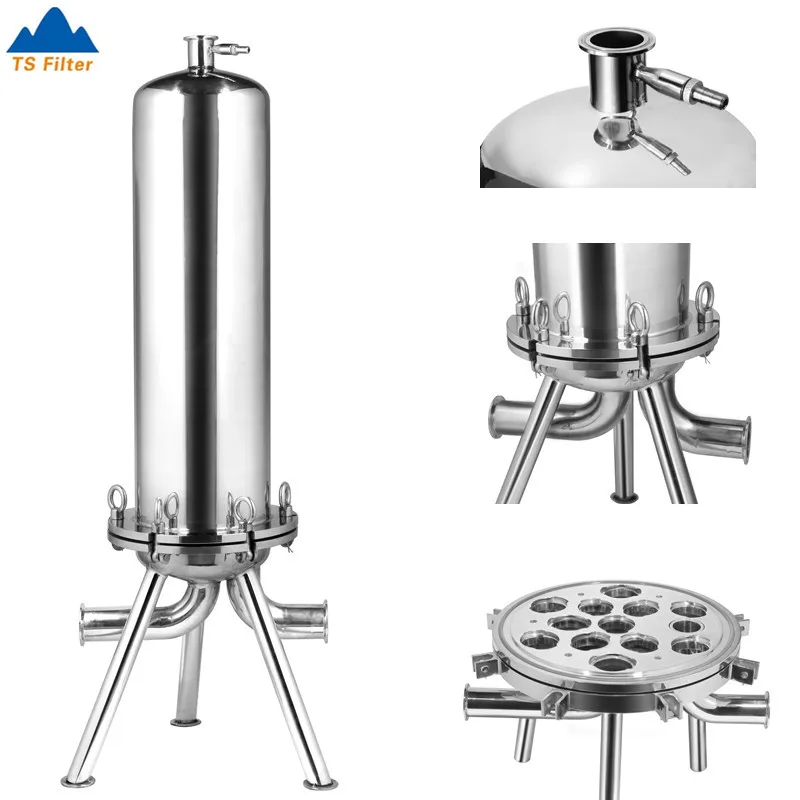

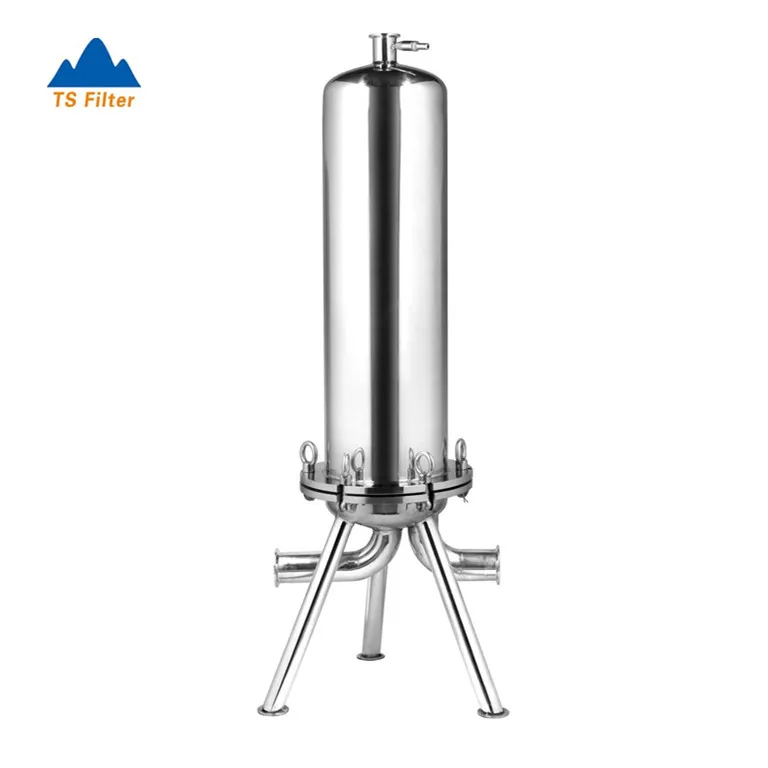

SS Wine Filter Housing Tri Clamp Connection for Wine Purifier Element Before Bottling

Product Description



These filter housings are sanitary designed according to the GMP requirements, manufactured from 304 or 316L stainless steel of the highest quality, available in 1,3,5,7, 8.....45 round configurations and in 10 inch, 20 inch, 30 inch and 40 inch length cartridge.

Stainless steel cartridge filter housings are suitable for a variety of liquid filtration applications(high purity beverage, chemicals and pharmaceuticals, water treatment, alcohol beverage industry, etc).

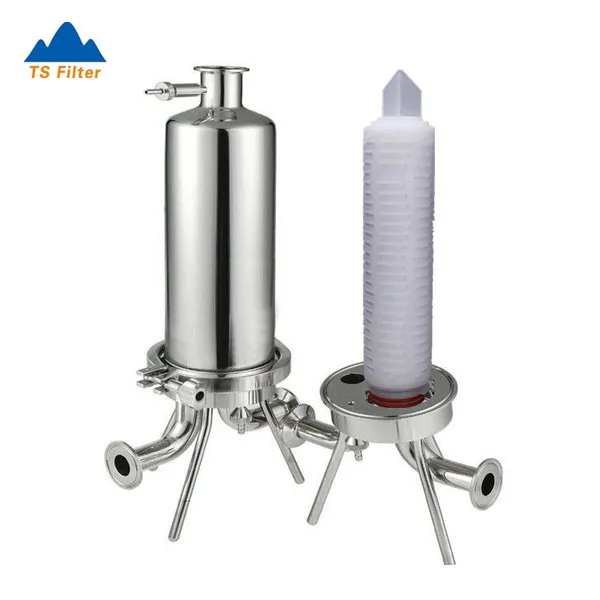

Cartridge Housing.jpgCartridge Filter.jpg





Features and Benefits





1. Mirror Surface Finish Complete Stainless Steel Construction;



2. Easy To Install Design With Sanitary Connections, Easy to Clean;



3. Housings Accommodate From One (1) to Many 10", 20", 30" or 40" Cartridges;



4. Clean-in-Place (CIP) /Steam-in-Place (SIP) Design;



Applications



> Water Treatment, RO system;



> Pharmaceuticals, API, Biologics;


> Food and Beverage, Wine, Beer, Mineral Water, Distillation Equipment;


> Paints, Inks Plating Solutions;


> Process Chemicals and Electronics Industry ;





Specifications





Material: Housing Stainless Steel 304 and 316L for Choice
O-Ring Silicone, Viton, EPDM, etc
Surface Finish: Interior/Exterior Electro polished, Ra≤0.2um
Connections: Inlet/Outlet Tri Clamp   1” to 10”
Or as your request
Flange
Thread
DIN 11851
Vent ¼" female
Drain 1" male or as your request
Lid/Cover Type: Swing Bolts or Tri Clamp(only for single round)
Length: 5, 10, 20, 30 40 inch
Operating Pressure: Max. 6 bar(87 psi)
Temperature: Max. 95 ℃ (sterilization 150 ℃)
Cartridge Adapter: 220(DOE), 222, 226, etc
Cartridge Capacity: 1, 3, 5, 7, 8, 9, 10, 12, 15, 20, 24, 30, 36, 45, etc
