Activate Molecular Sieve Zeolite Powder Polyurethane

Share on (62321453544):


Price:$1.75 - $5.00

Quantity:


Product Overview

Description

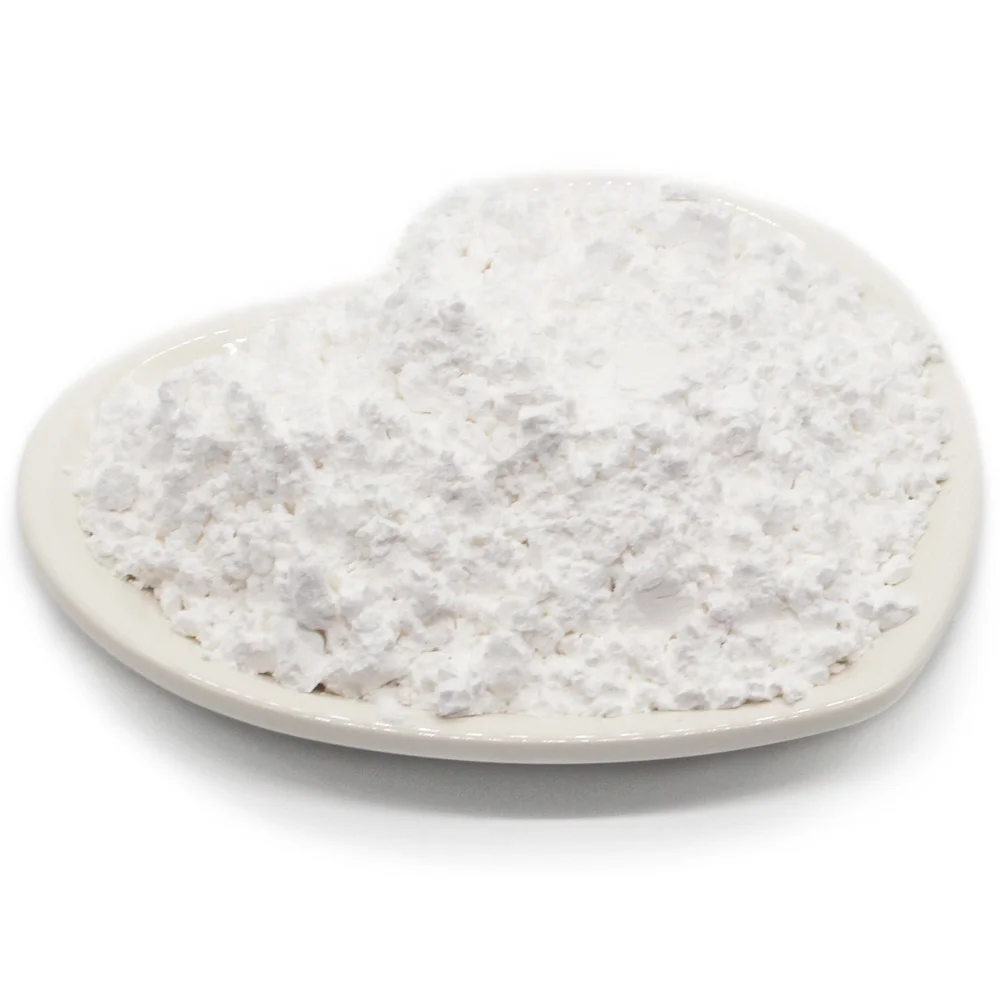

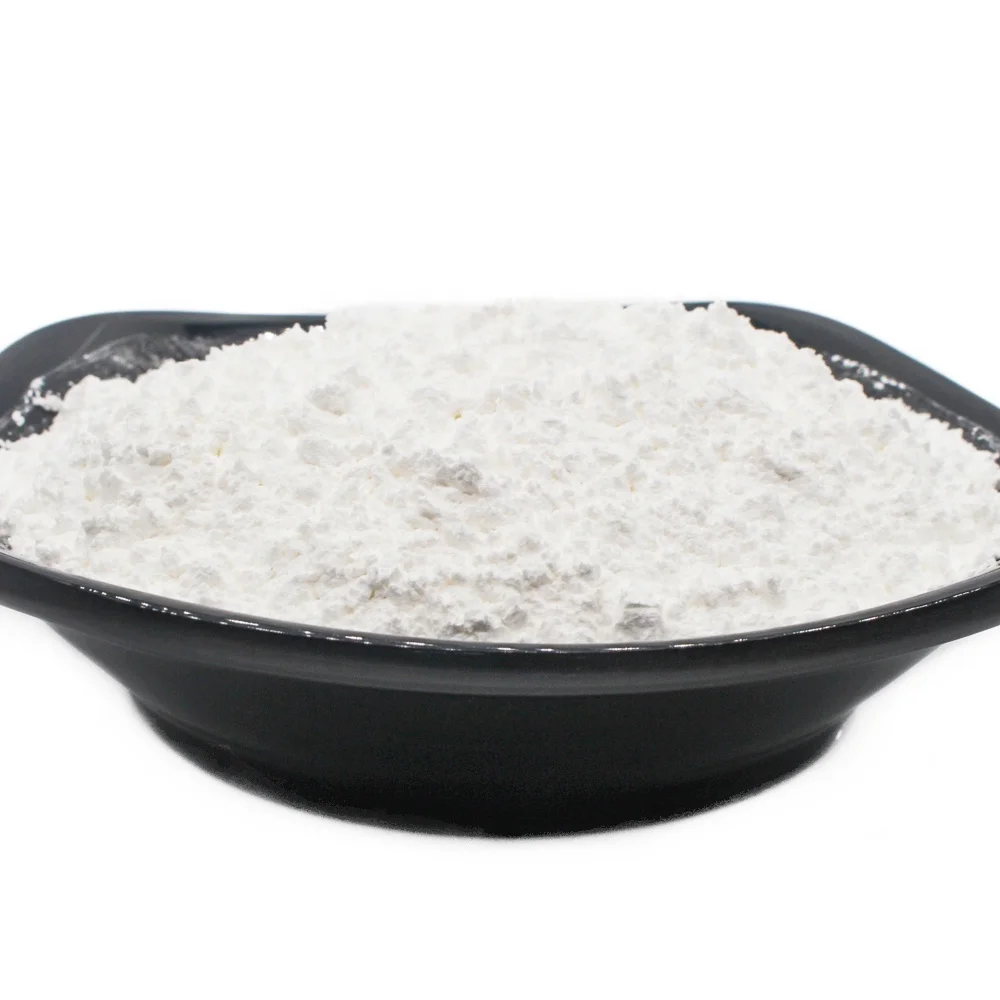

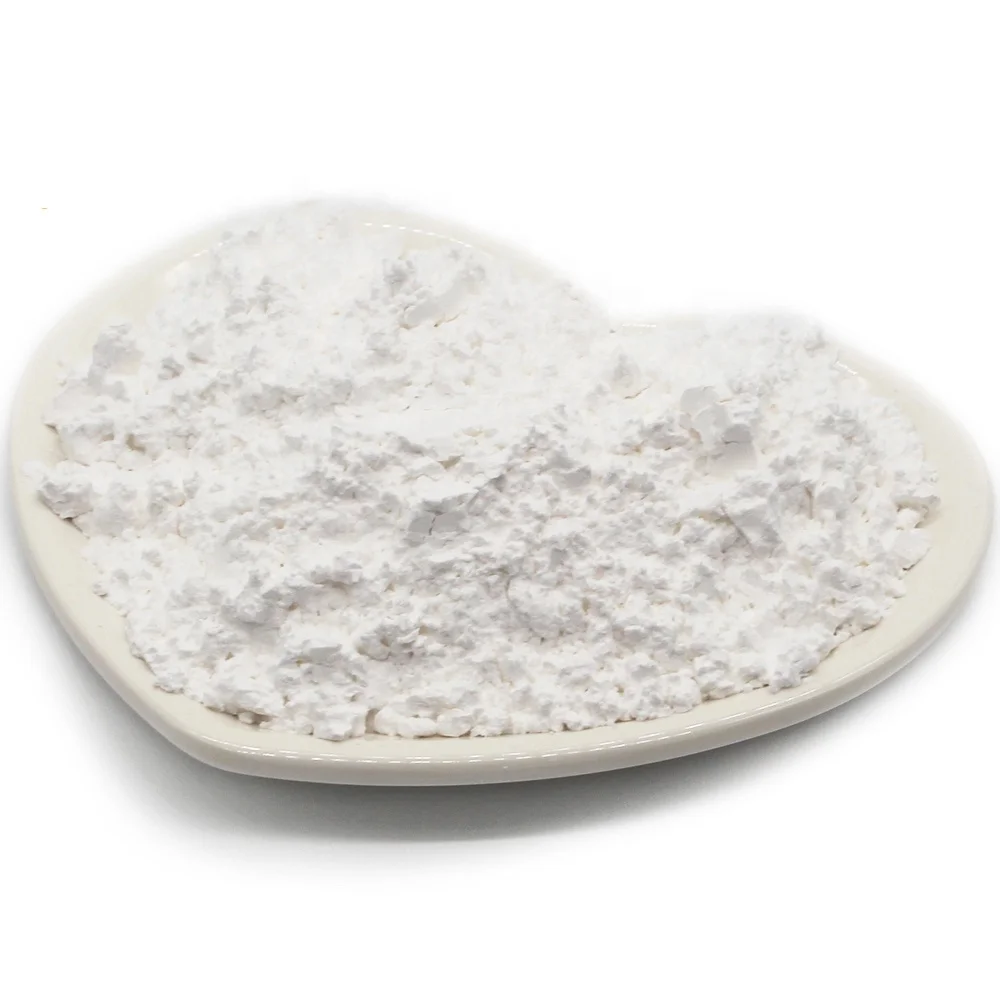

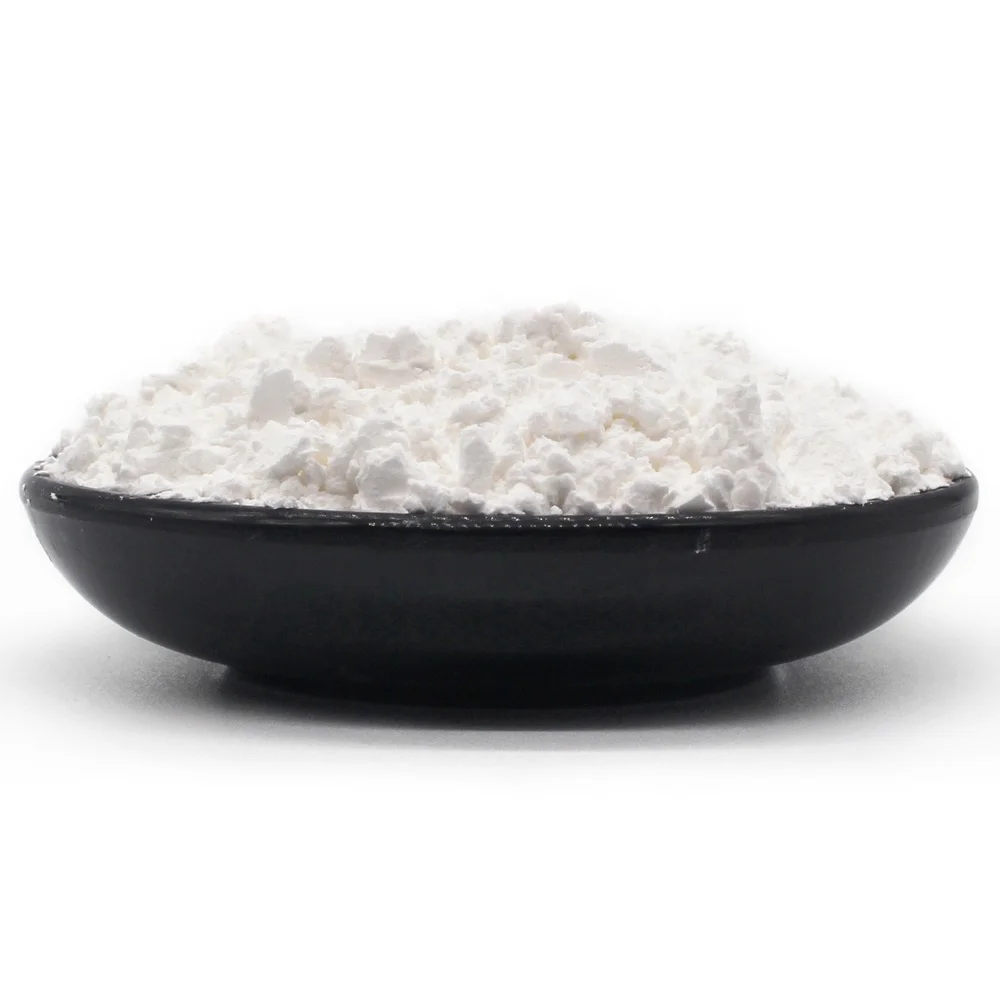

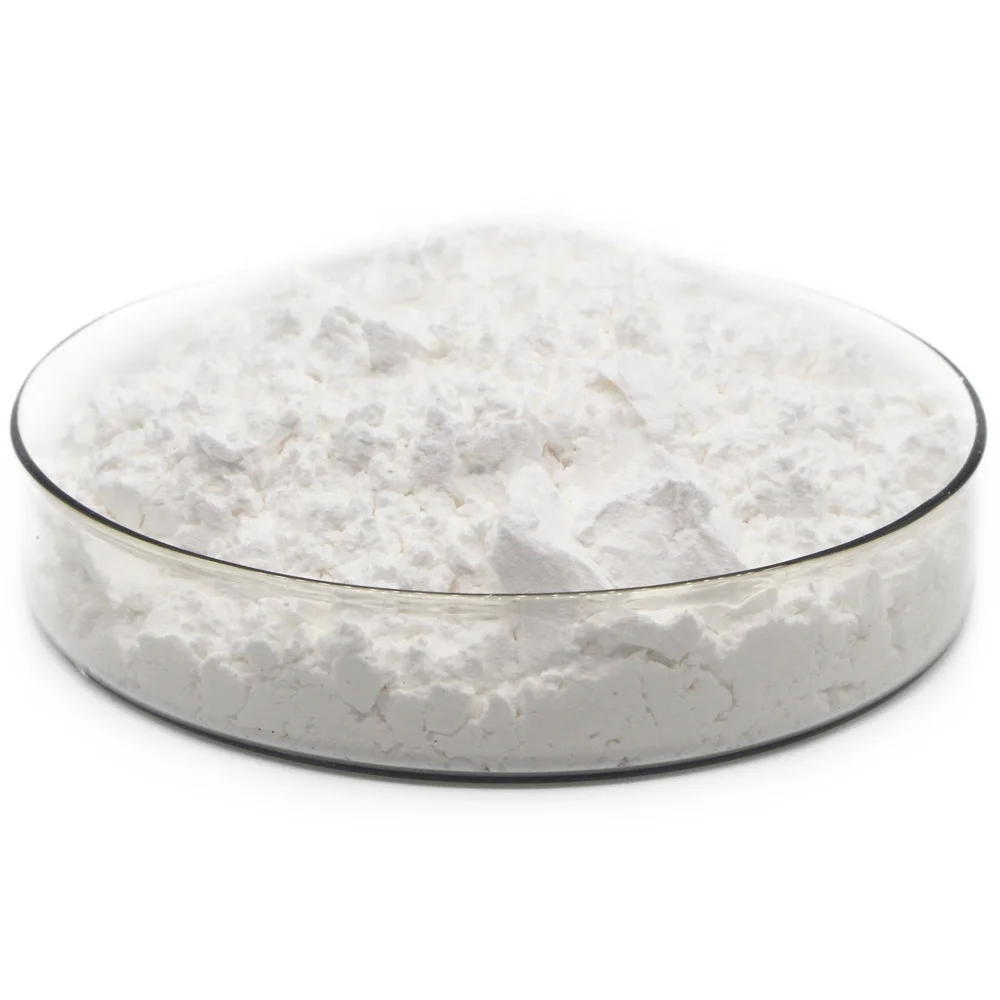

Activate Zeolite Molecular Sieve Powder used in Polyurethane Systems



Product Description




Activate Zeolite Powder


Activated Molecular Sieve Powder, is dehydrated synthetic powder molecular sieve. It has very strong activity because it loses most of its moisture during the high temperature roasting process.
"Packing-mall" Activated Molecular Sieve Powder, has the character of high dispersibility and rapid adsorbability. It is used in some special absorptive circumstances, such as being formless desiccant, being adsorbent mixed with other materials etc. It can remove water eliminate bubbles, increase uniformity and strength when being additive or base in paint, resin and some adhesives. It can also be used as desiccant in insulating glass rubber spacer.































































Model



Activated Molecular Sieve Powder



Color



White



Shape



Powder



Size



(μm)



2-4







(mesh)



300-325



Type



3A



4A



5A



13X



Nominal pore diameter



3 angstroms



4 angstroms



5 angstroms



10 angstroms



Bulk density (g/ml)



≥0.45



≥0.43



≥0.45



≥0.40



Static H2O absorption (%)



≥23.0



≥24.0



≥25.0



≥27.0



H2O content (%)



≤2.0



≤2.0



≤2.0



≤2.0



















































































Type



Packing-mall Molecular Sieves



Shape



Pellet / Cylindrical



Sphere / Beads



Size



1/16’’ 1/8’’



1.6-2.5mm


3.0-5.0mm


4.0-6.0mm



Type



3A



4A



5A



13X



13X-APG



Bulk density (g/ml)



≥0.70



≥0.70



≥0.70



≥0.62



≥0.62



H2O capacity (%)



≥21



≥21.5



≥22



≥25



≥27



CO2 adsorption (%)



-



-



-



≥18



≥18.5



Water content (%)



≤1.2



≤1.2



≤1.2



≤1.2



≤1.2



Wear ratio (%)



≤0.30



≤0.30



≤0.10



≤0.10



≤0.10



Size ratio up to grade (%)



≥98



≥98



≥96



≥96



≥98



Remarks: The data is for Sphere / bead, if need pellet data please contact us.






Warranty:    Free consultation during the warranty period.


=====================================================================================


Other Molecular Sieve for PSA / VPSA equipment:










13X HP Molecular Sieve
Application: PSA /VPSA Oxygen Generator





Size: 0.4-0.8mm, 1.4-2.4mm
N2 purity: 90-94%
H2O capacity:≥ 30%


CO2 capacity: ≥ 19.8%


N2/O2 selectivity: ≥ 3


Package: 55lbs / 275lbs iron drum











Carbon Molecular Sieve
Application: PSA Nitrogen Generator




Size: 0.95mm, 1.1-1.3mm, 1.6mm
N2 purity: 98.5-99.999%
Pressure: 0.6-0.8MPa
Bulk density: 650-700g/l
Package: 44lbs / 88lbs plastic drum














Packaging & Shipping











































Package



25kg/carton



30kg/paper drum



150kg/steel drum



1 Pallet




Quantity



750kg / 1,650lbs



540kg / 1,188lbs



600kg / 1,320lbs



Delivery Time



2~3 days



2~3 days



2~3 days



20’ feet




Quantity



15,000kg / 33,000lbs



10,800kg / 23,760lbs



12,000kg / 26,400lbs



Delivery Time



7~10 days



7~10 days



7~10 days



Remarks: The data is for ocean freight, and pallet size is 1.1*1.1*0.1mm








Application
