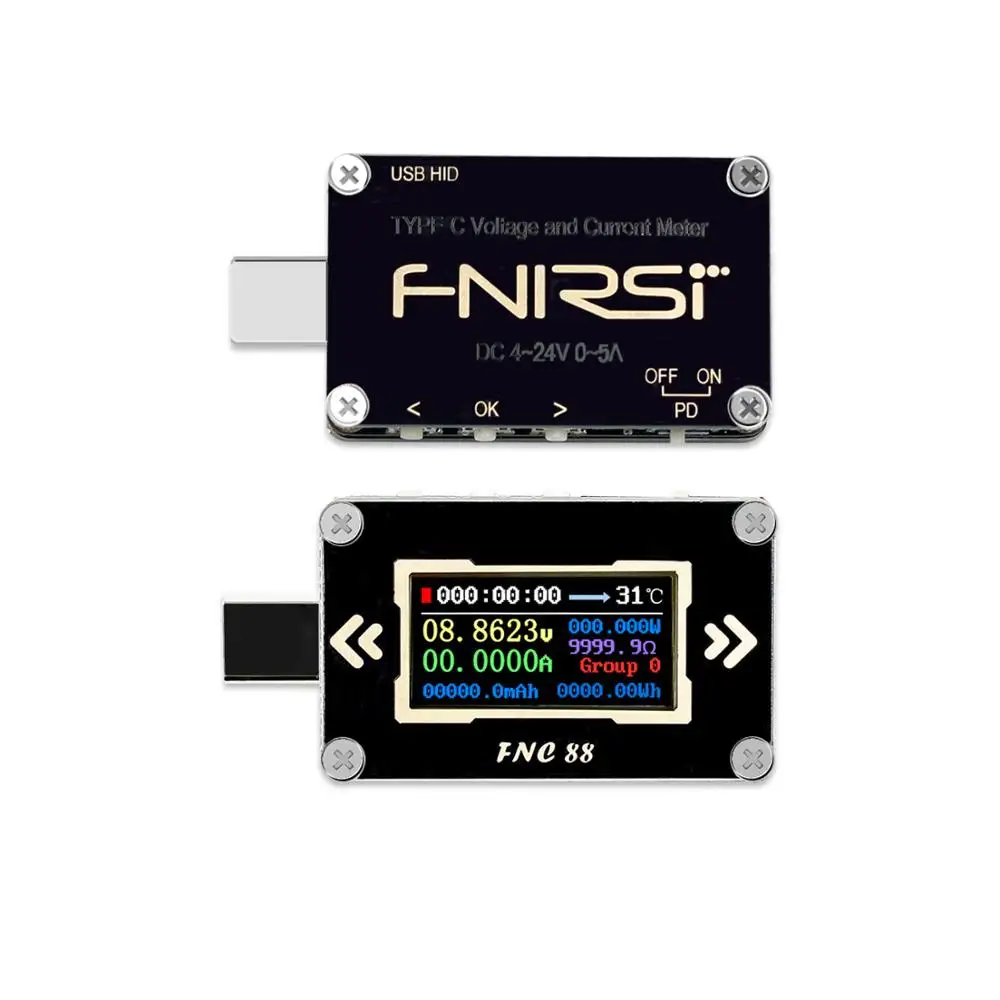

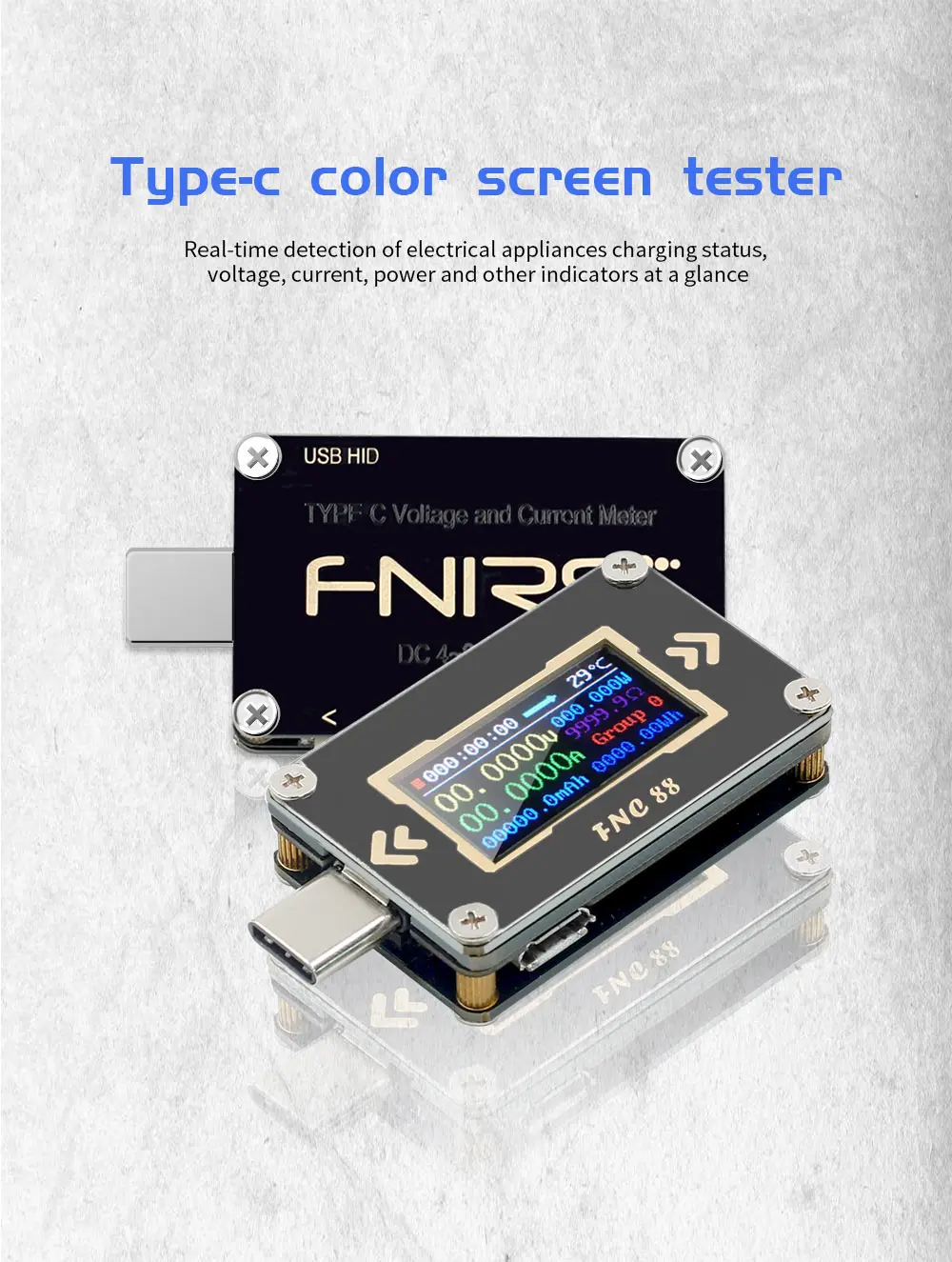

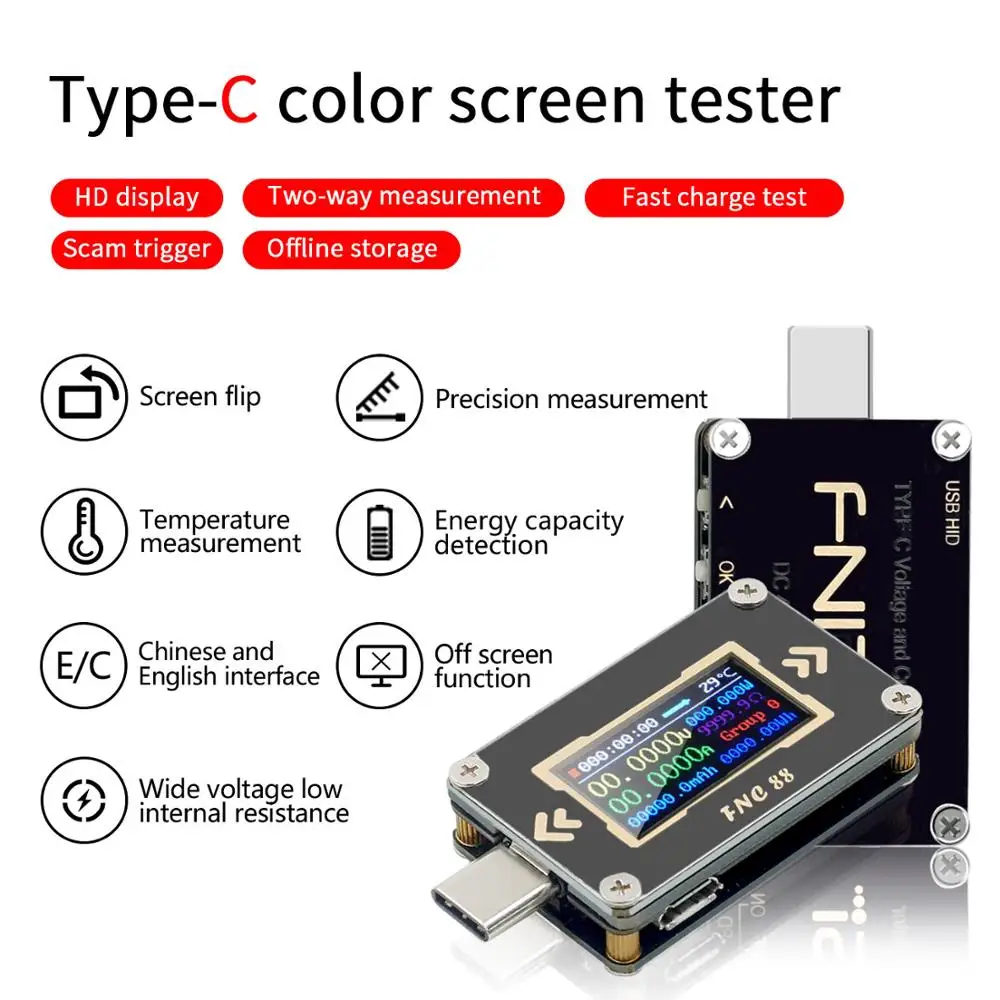

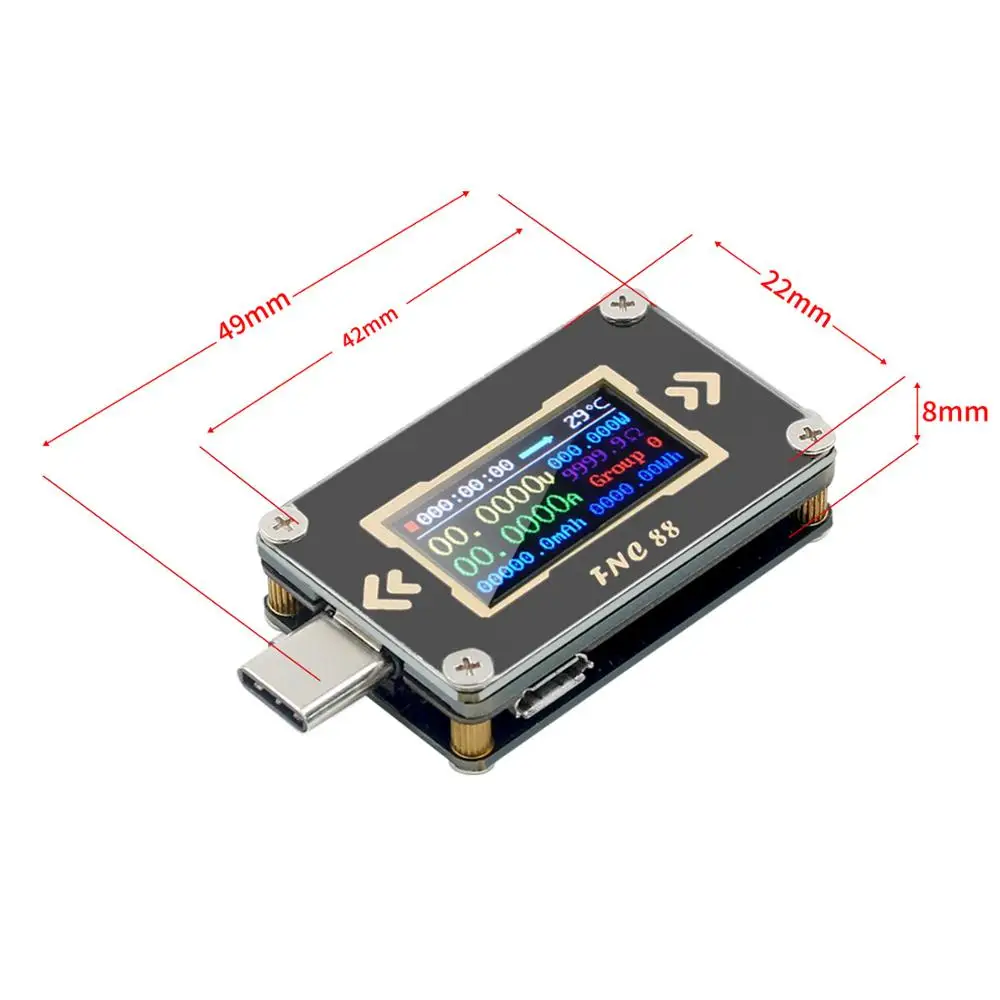

FNC88 Type C PD trigger USB C Voltmeter ammeter voltage 2 way current meter multimeter PD charger battery USB Tester

Feature:

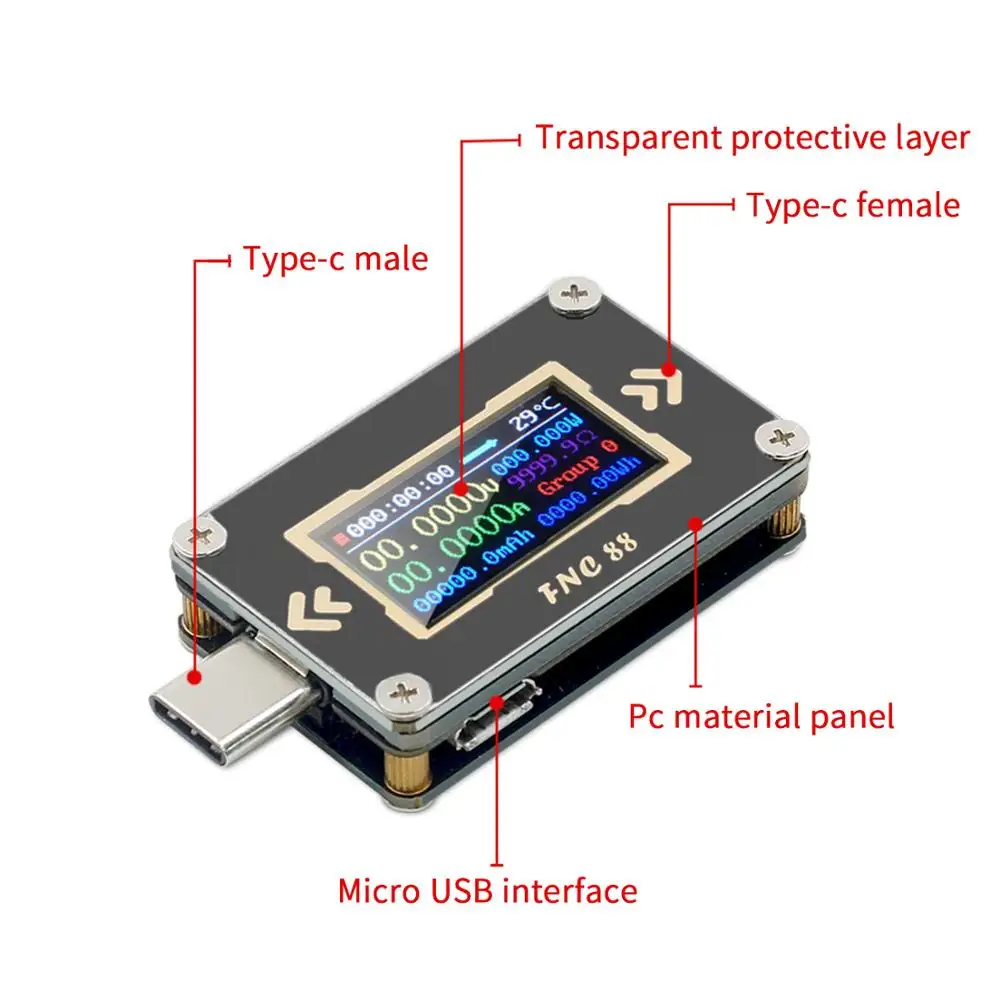

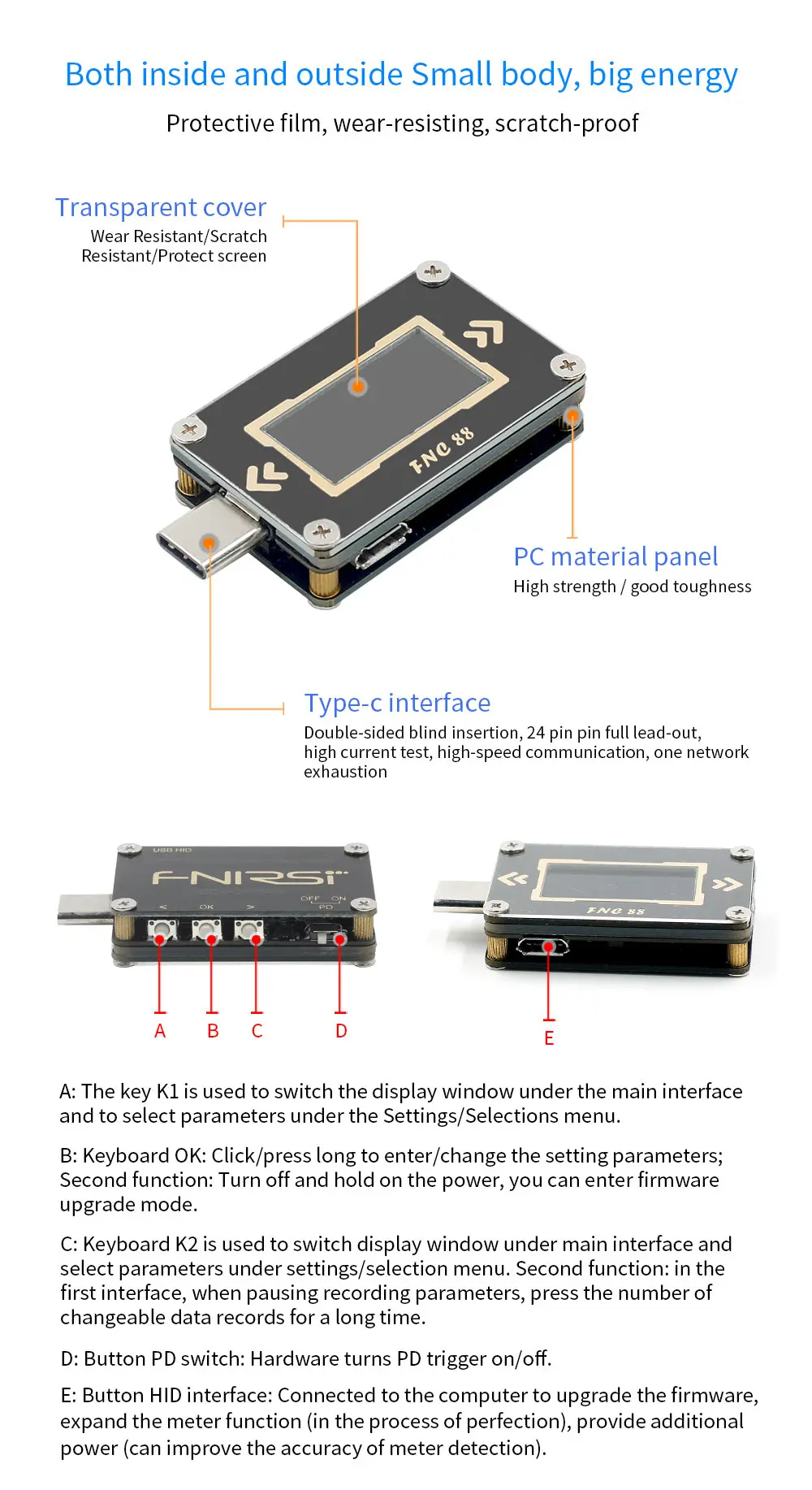

FNC88 interface:

1.A USB-C 3.1 male two-way (5A)

2.A USB-C 3.1 female seat two-way (5A)

3. A Micro USB female Data transmission

Voltage and current measurement system:

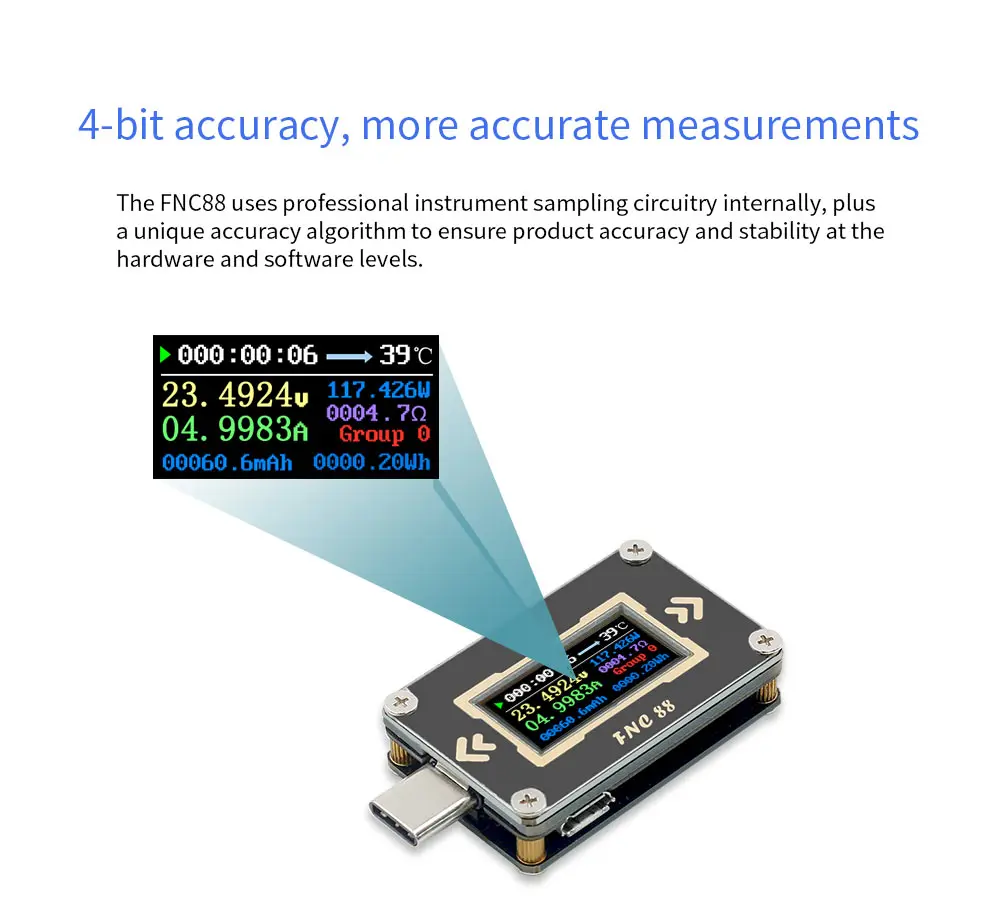

1.16Bit ADC high precision measurement chip

2.Sampling rate up to thousand times per second

3.Wide voltage measurement (0 - 24V)

4.High current measurement (0 - 5A)

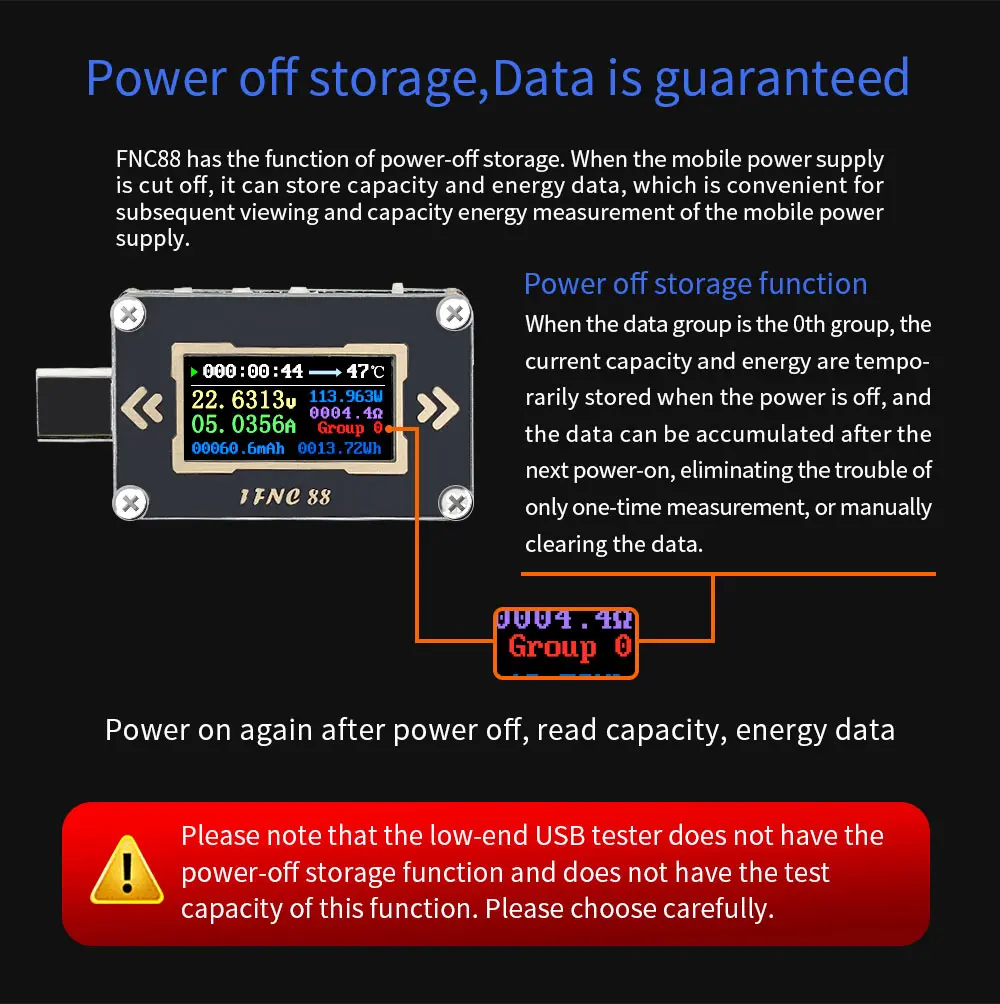

Offline data storage:

1. 5 groups of Capacity / Electricity data records

2. Select recording time interval

Fast charge protocol trigger (6 in 1)

1.Support Qualcomm QC2.0/QC3.0

2.Support Huawei FCP/SCP

3.Support Samsung AFC

Support USB Power Delivery (PD3.0) protocol:

1.Built-in PD physical chip

2.Supports fast charging protocol triggering such as PD2.0/PD3.0

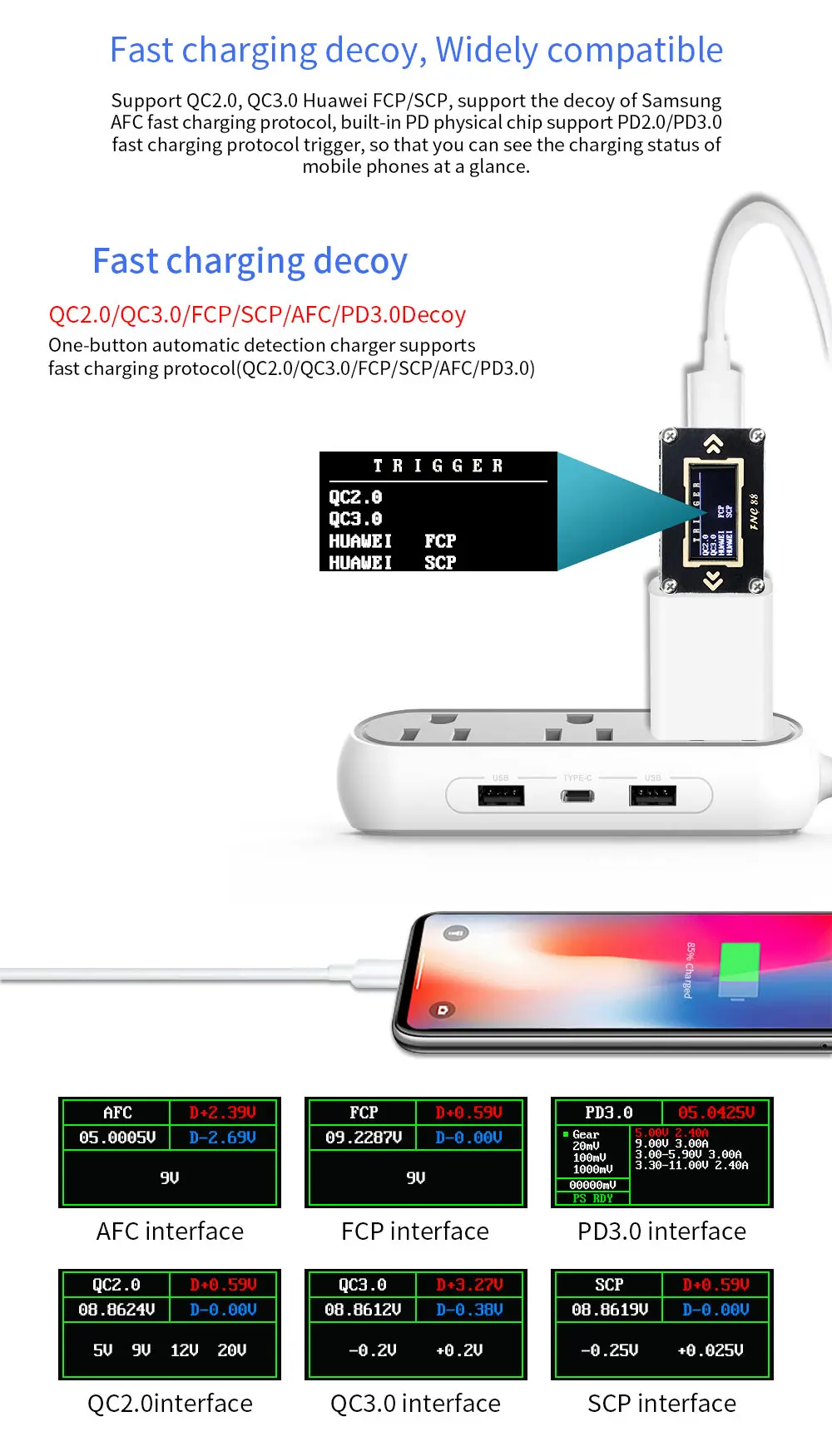

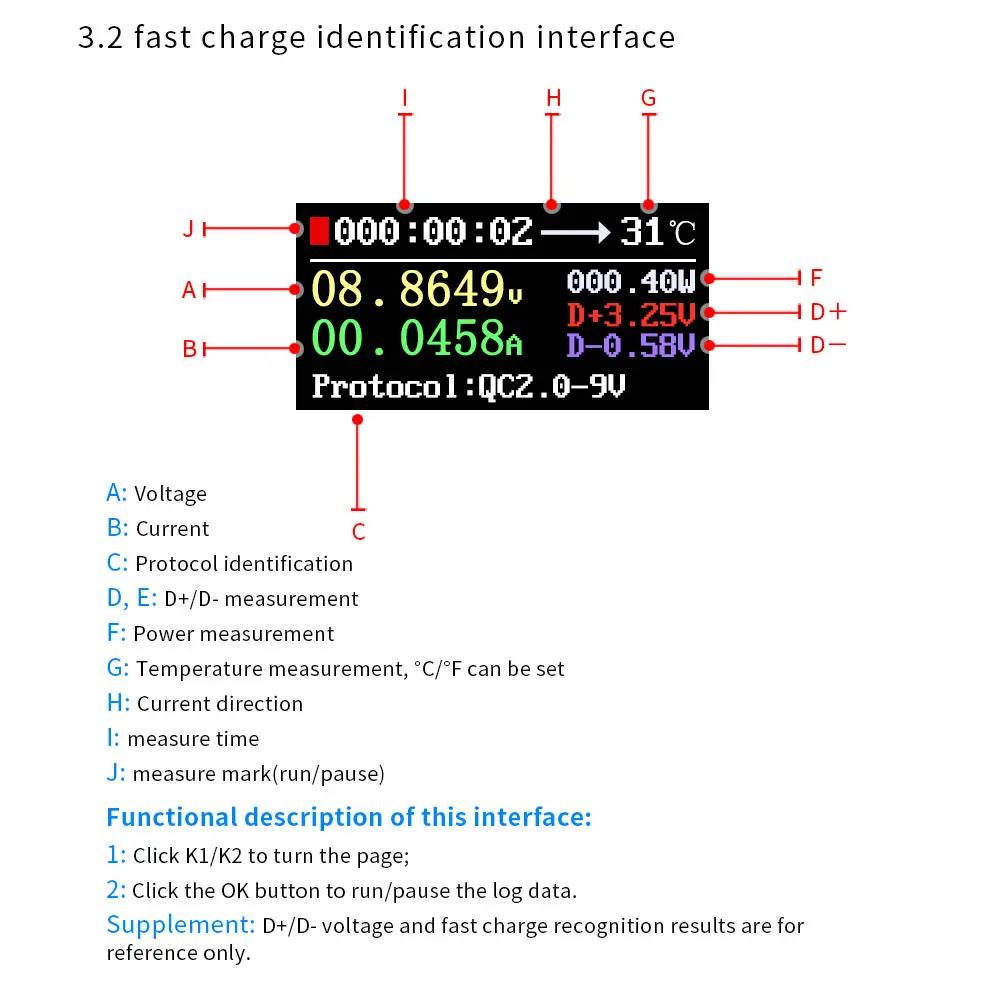

Fast charge protocol detection:

1.One-button automatic detection charger supports fast charging protocol (QC2.0/QC3.0/FCP/SCP/AFC/PD3.0)

PC software:

1.Support firmware upgrade, free installation driver(in perfection)

Other functions:

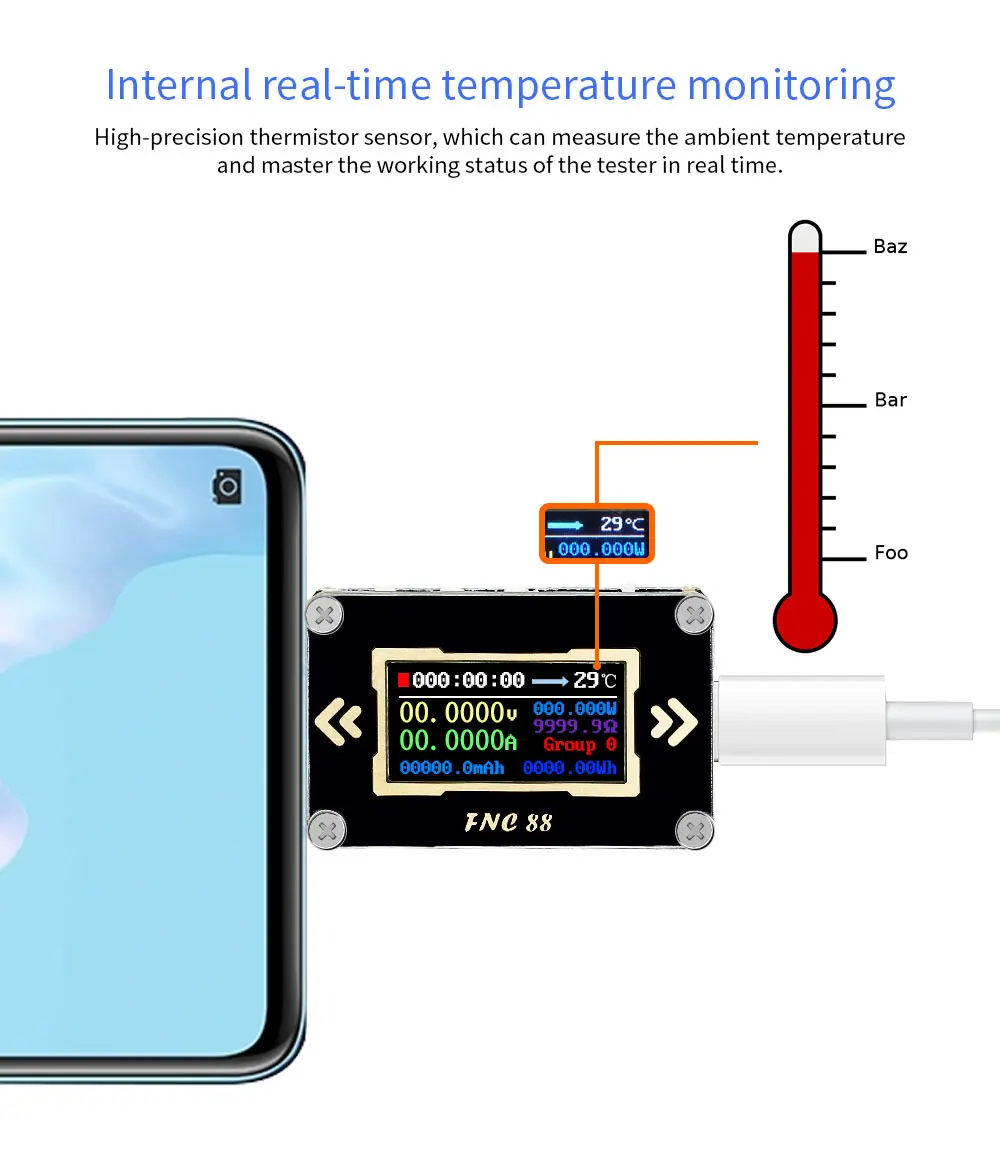

1.Equipment internal temperature monitoring

2.Customize the screen, timed dark screen

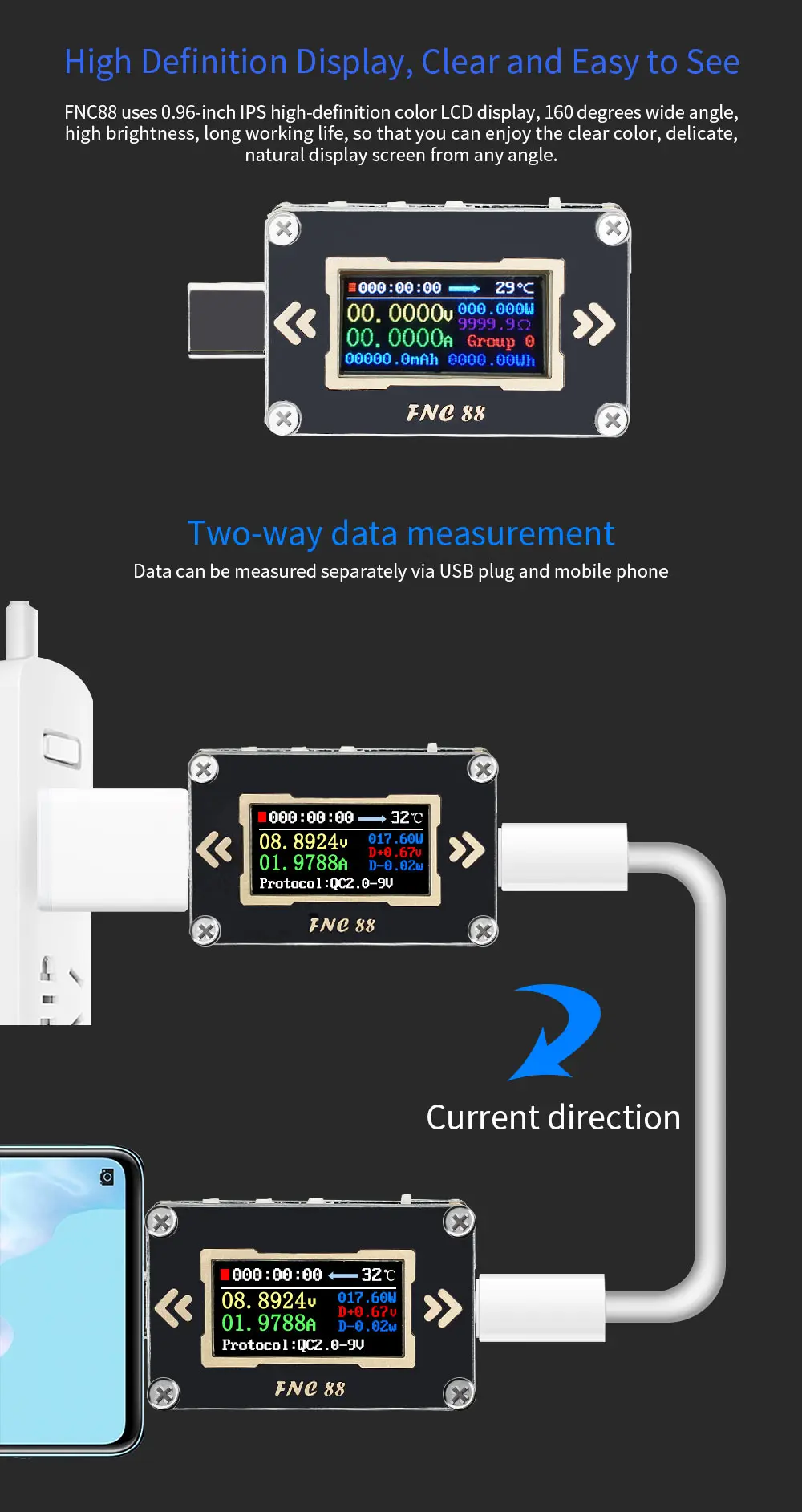

3. 0.96 inch HD IPS LCD screen, high wide angle, rich colors

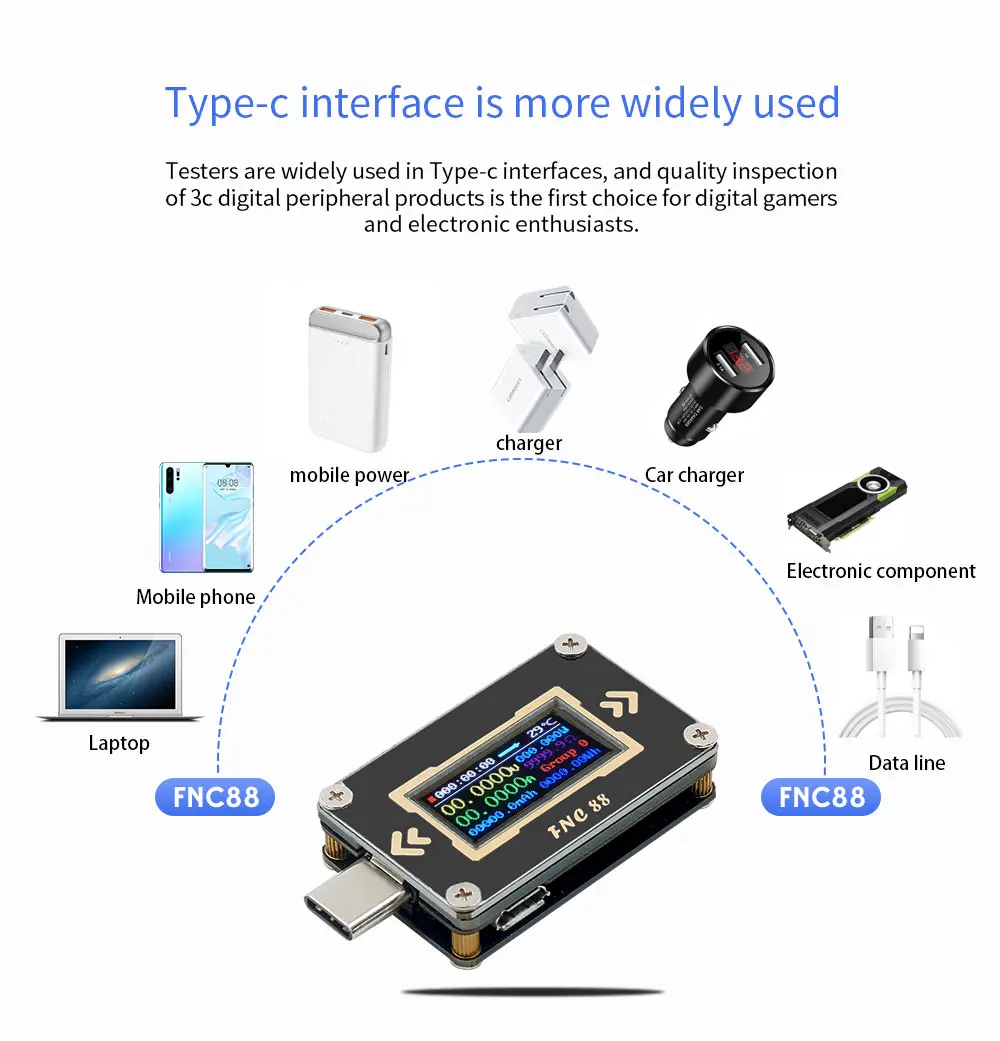

Application:

1.Mobile phone charging power detection

2.Mobile power input and output test

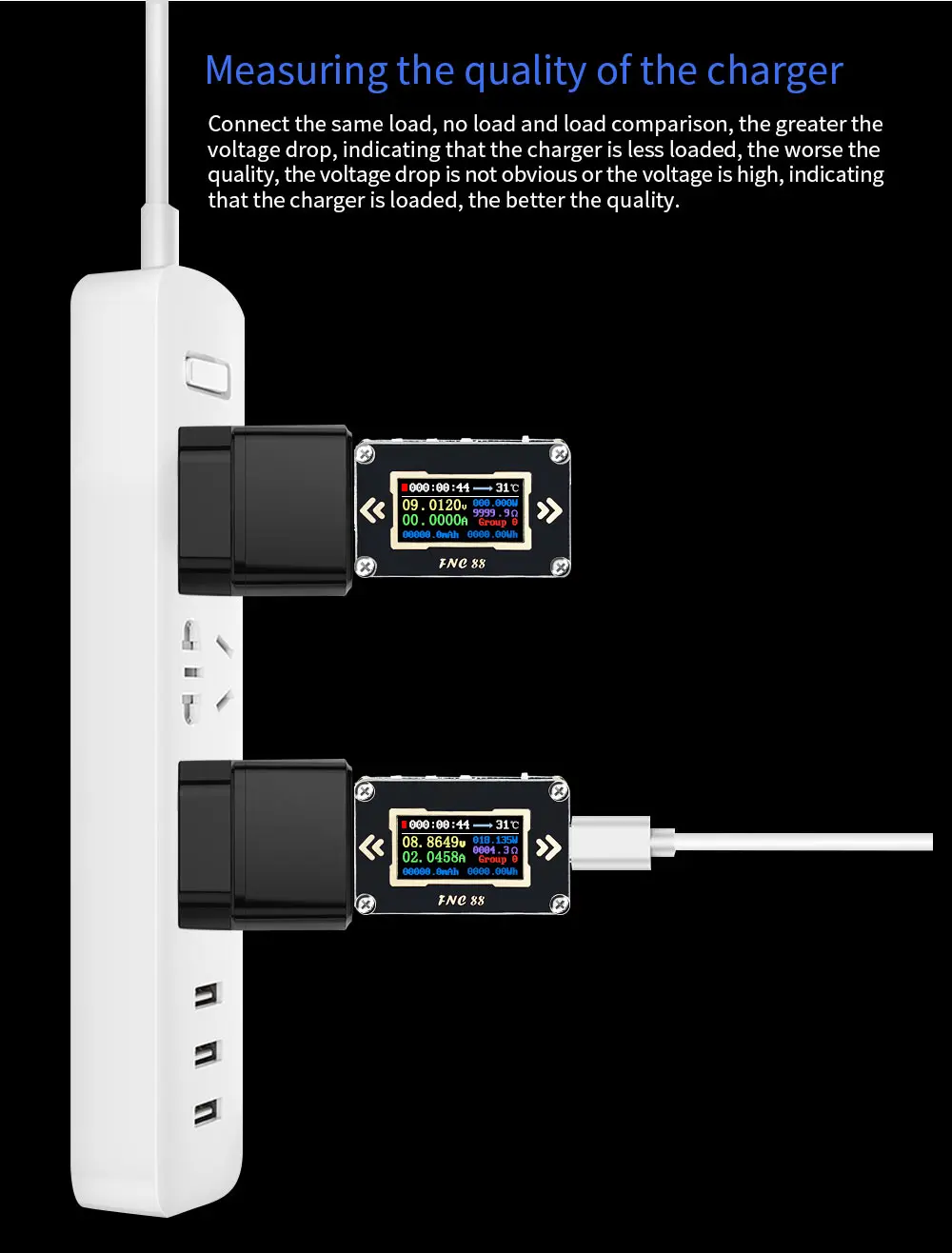

3.Charger fast charge protocol test

Product technical indicators:

Note:

1. Please do not connect more than 24V power to the USB tester.

2. When using the fast charge trigger function, please do not connect to various USB appliances. Applying high voltage when triggering may cause the equipment to burn or even catch fire.

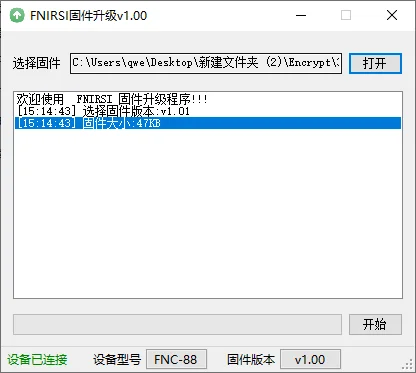

Firmware upgrade:

1. Open the FNIRSI firmware upgrade tool
2. Press and hold the OK button to access the HID interface and enter the firmware upgrade mode. Open the latest firmware and click Start to update.
