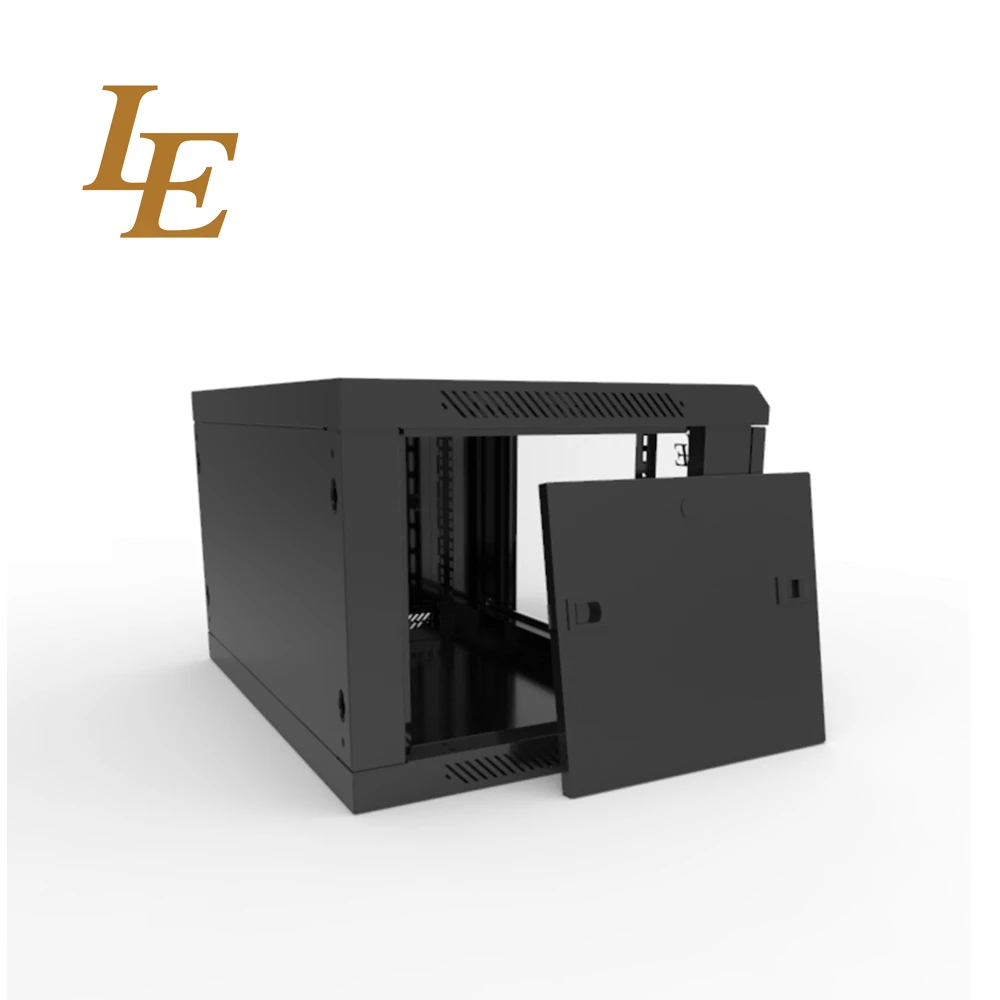

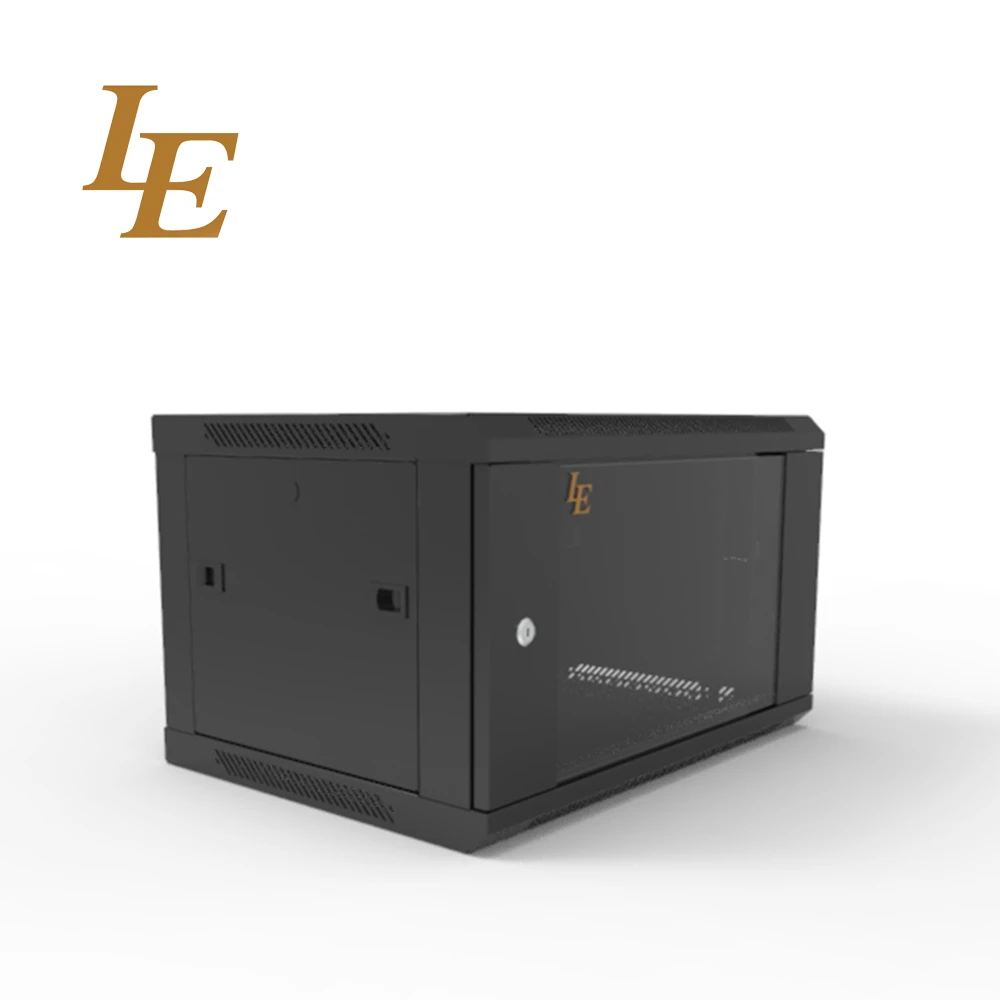

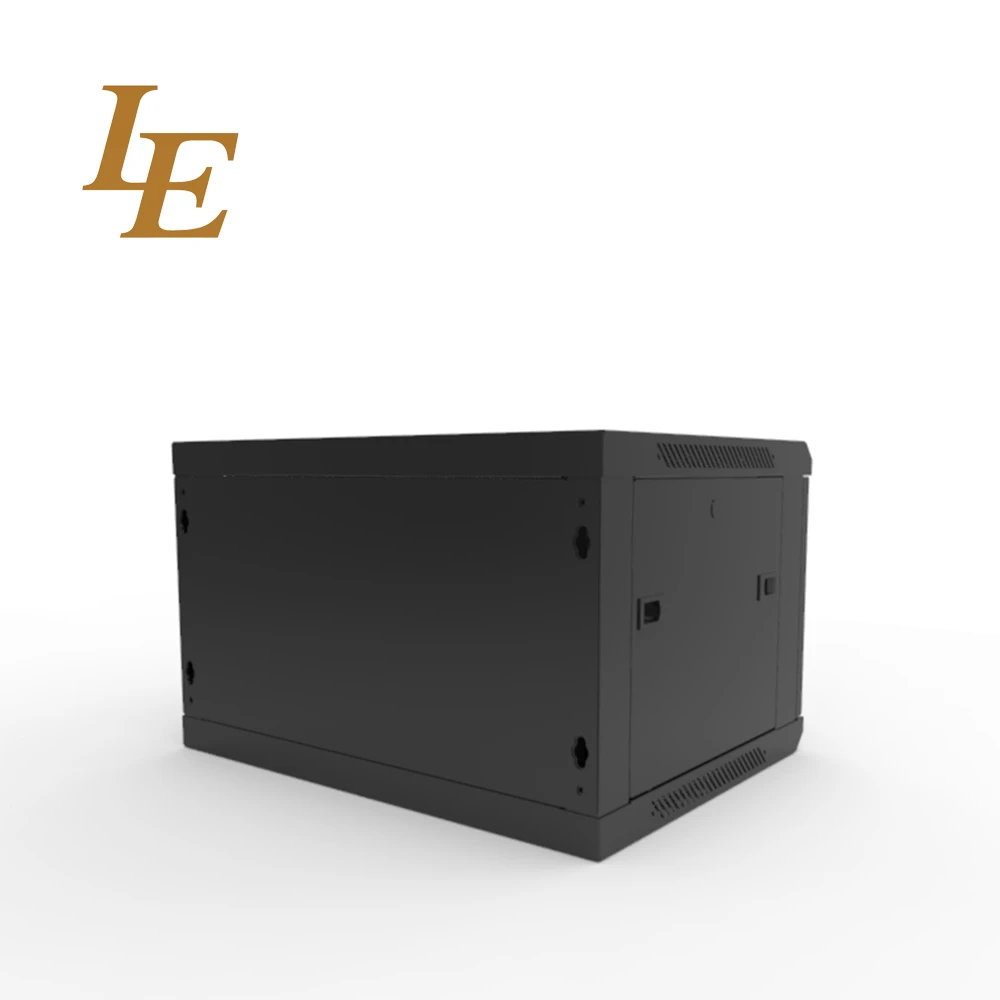

LE 19Inch 4U 6U 12U Wall Mounted TV Network Cabinet For Living Room

Product Overview

Description

   General Description for LE 19Inch 4U 6U 12U Wall Mounted TV Network Cabinet For Living Room:

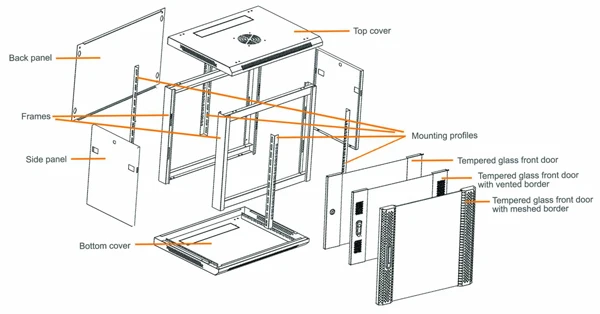

   1.Steel frame with assistant profile unassembled structure;
   2.Single section,compatible with 19" standard equipments;

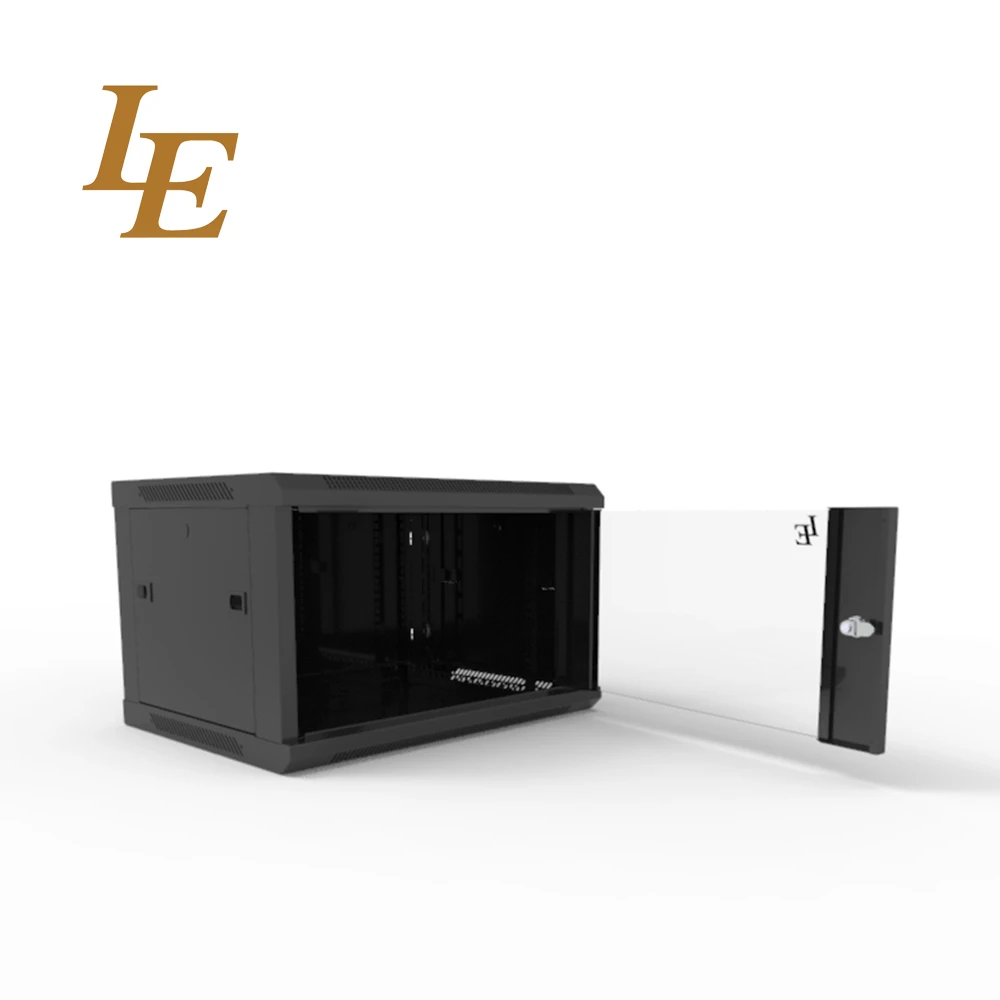

   3.5mm tempered glass front door with over 180 turning degree;
   4.Removable side panel,easy to install and lock optional;
   5.Cable entry on the top and bottom;

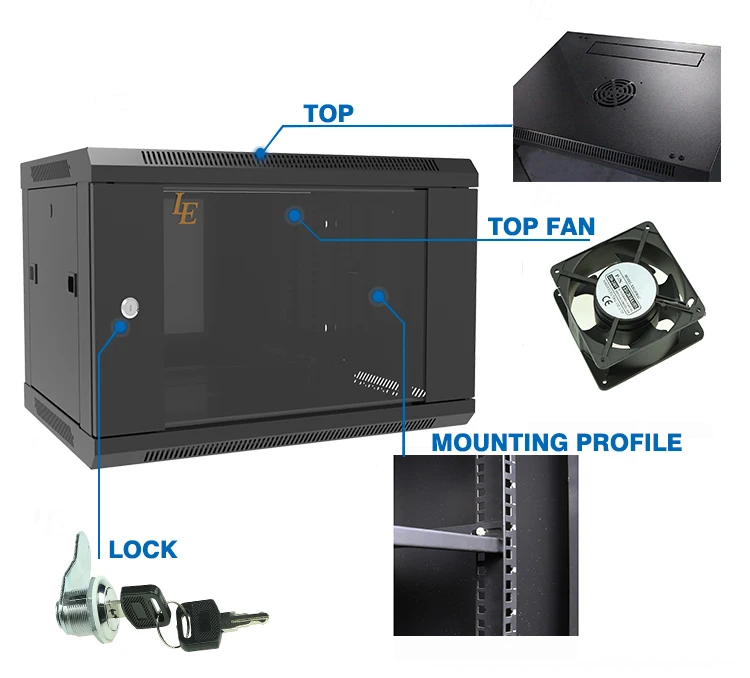

   6.L-shaped mounting profile,easy to adjustable on the mounting rail;7.

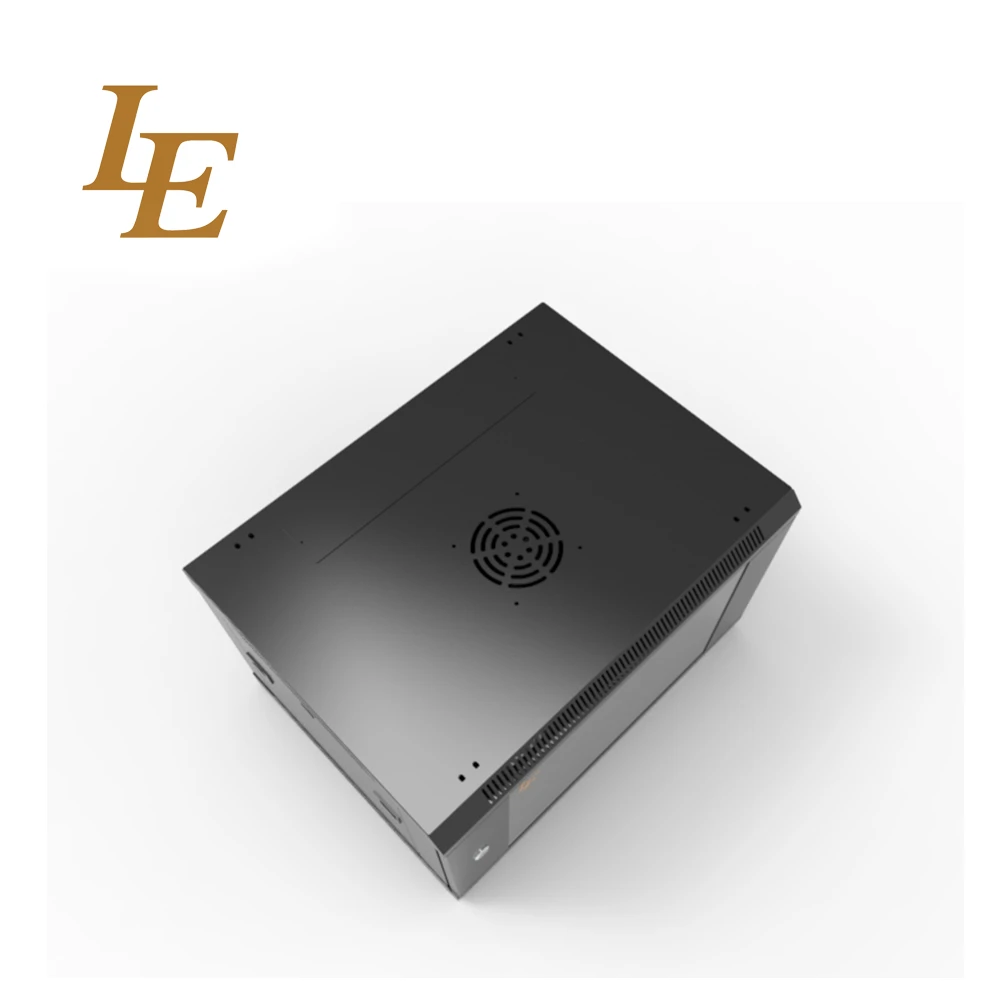

   8.Fan cutout on the top,easy to install fan;
   9.Back panel with four mounting holes,easy to fix on the wall;
  10.Various accessories for option;
  11.Flat packing,save the container space,easy to transport;

Standard	Comply with ANS/EIA RS-310-D,IEC297-2,DIN41491,PART1,DIN41491,PART7,ETSI Standard;
Material	SPCC quality cold rolled steel Thickness: 1.2mm Tempered glass Thickness:5mm
Loading Capacity	Static loading: 100kg
Degree of protection	IP20
Surface finish	Degreasing,Pickling,Phosphating,Powder Coated
Product specification	4U-18U

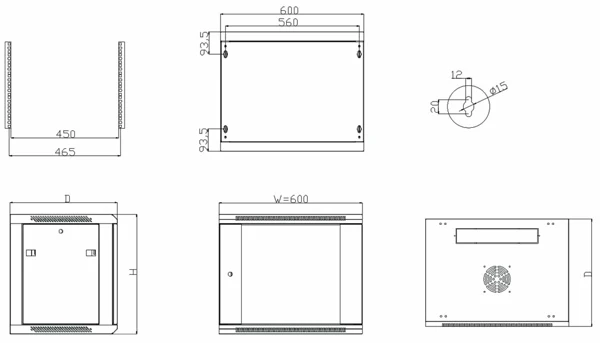

Width	600mm
Depth	450mm,600mm
Color	Ral9004; Ral9005; Ral7035















Our Advantages:
1. 100% MANUFACTURER.
2. Our steel is from Shanghai ShouGang group corporation, higher quality assurance.
3. Japan and Germany CNC machine, professional infrared test equipment, higher precision, more stringent testing.
4. Laser cutting machine and Germany WAGNER auto painting equipment, higher efficiency.
5. 5 ply corrugated with import Meika outside paper carton, glued to avoid scratch, more carefully protection.
6. Professional container loading team, take full advantage of the space and avoid shaking, save your delivery cost.
7. On time delivery rate more than 95%.
