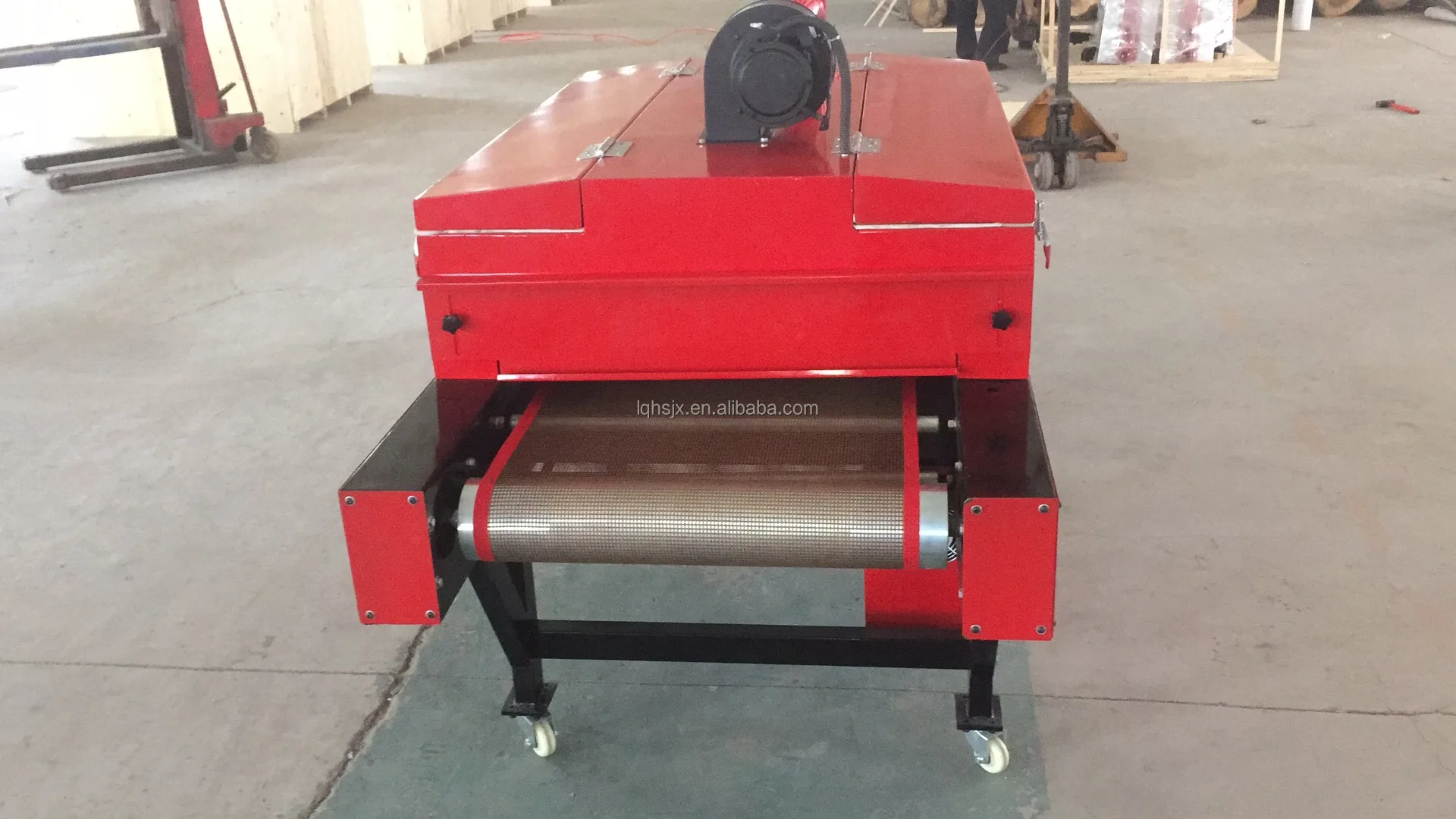

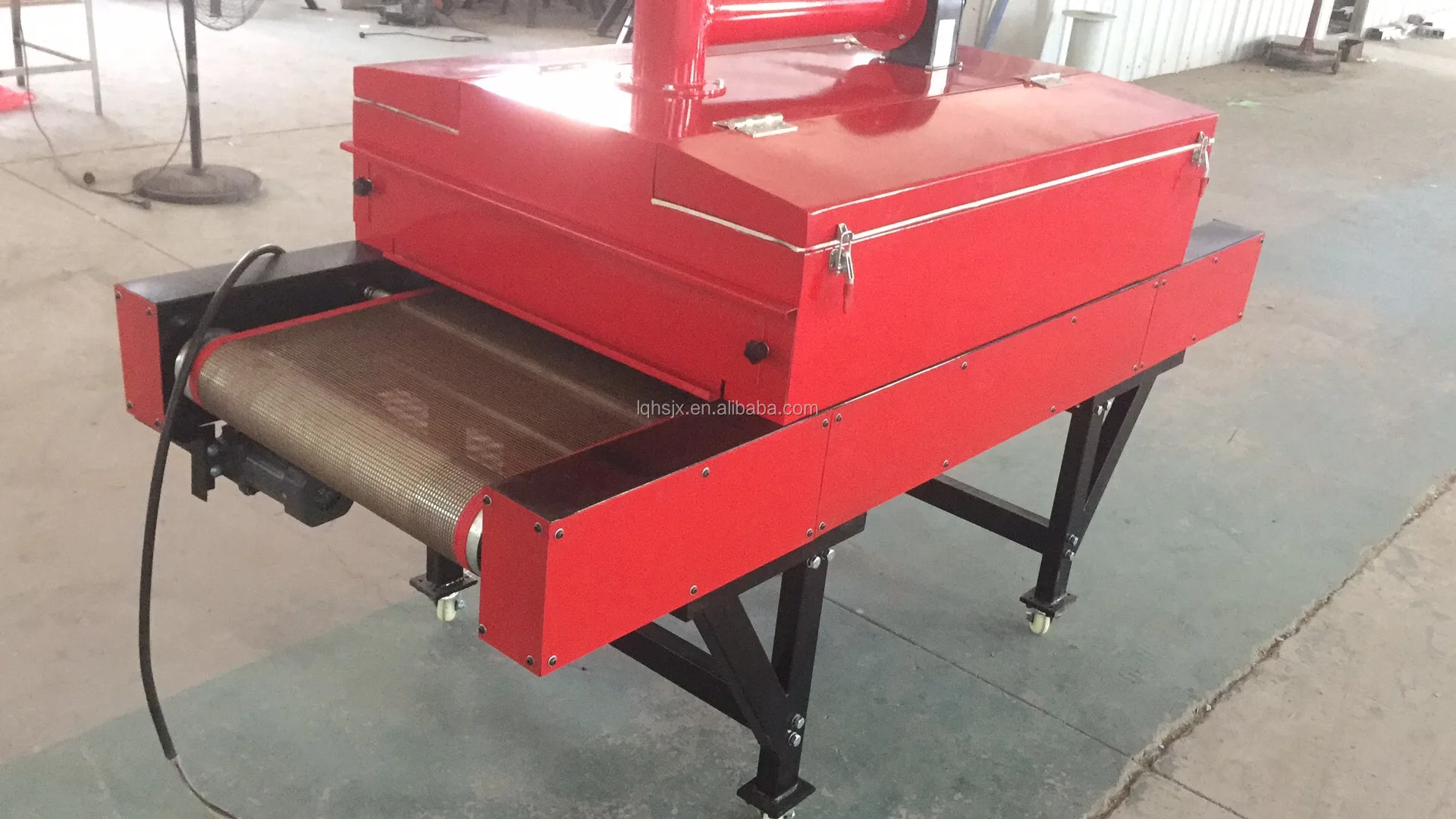

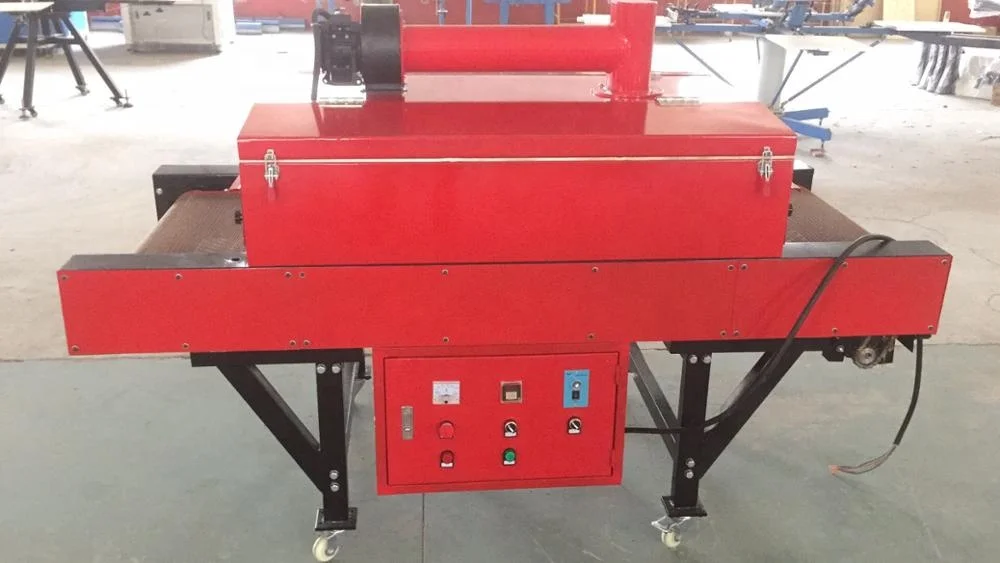

2000mm length conveyorir drying oven /ir screen printing dryer /infrared ray heating conveyor machine

2000mm length Tunnel ir drying oven /ir screen printing dryer /infrared ray heating tunnel machine

Description:

This conveyor tunnel dryer is widely used in the drying of screen printing industry,is especially suitable for solidifying heat-set and special type of printing ink.This tunnel dryerenables the production of printed products with good colorfastness, high flexibility and high gloss

Features:

1.Intelligent temperature control system,easy operation,can control of temperature deviation effective.

2.adopt hot circulating system,save energy effectivly.

3.Teflon screen belt , customers' designs are welcome

4.Far infrared heating pipe is especially suitable for solidifying heat-set and special type of printing ink.

5.Adjustable belt speed and tunnel temperature controls

1

Overall output length: 400 mm

2

Overall feedput length: 600 mm

3

Over tunnel length: 2000 mm

4

Over loading length: 1000 mm

5

Conveyor witdth:800mm

6

 Height of feedput and output:100mm

7

Drying area size:1000*800mm

8

Temperature adjustment: 0-200 Centigrade

9

Belt speed adustment: 0-50CM/MIN

10

Demension: 2100*1200*1100mm

11

Gross weight: 320KG

Warranty

For all our machines, we provide one-year warranty.
Life-long on-line technical support and provide free parts when problems occur within one year not including shipping cost.
Any warranty shipping cost to us is responsible by buyer.
Any shipping cost to buyer is responsible by us.
