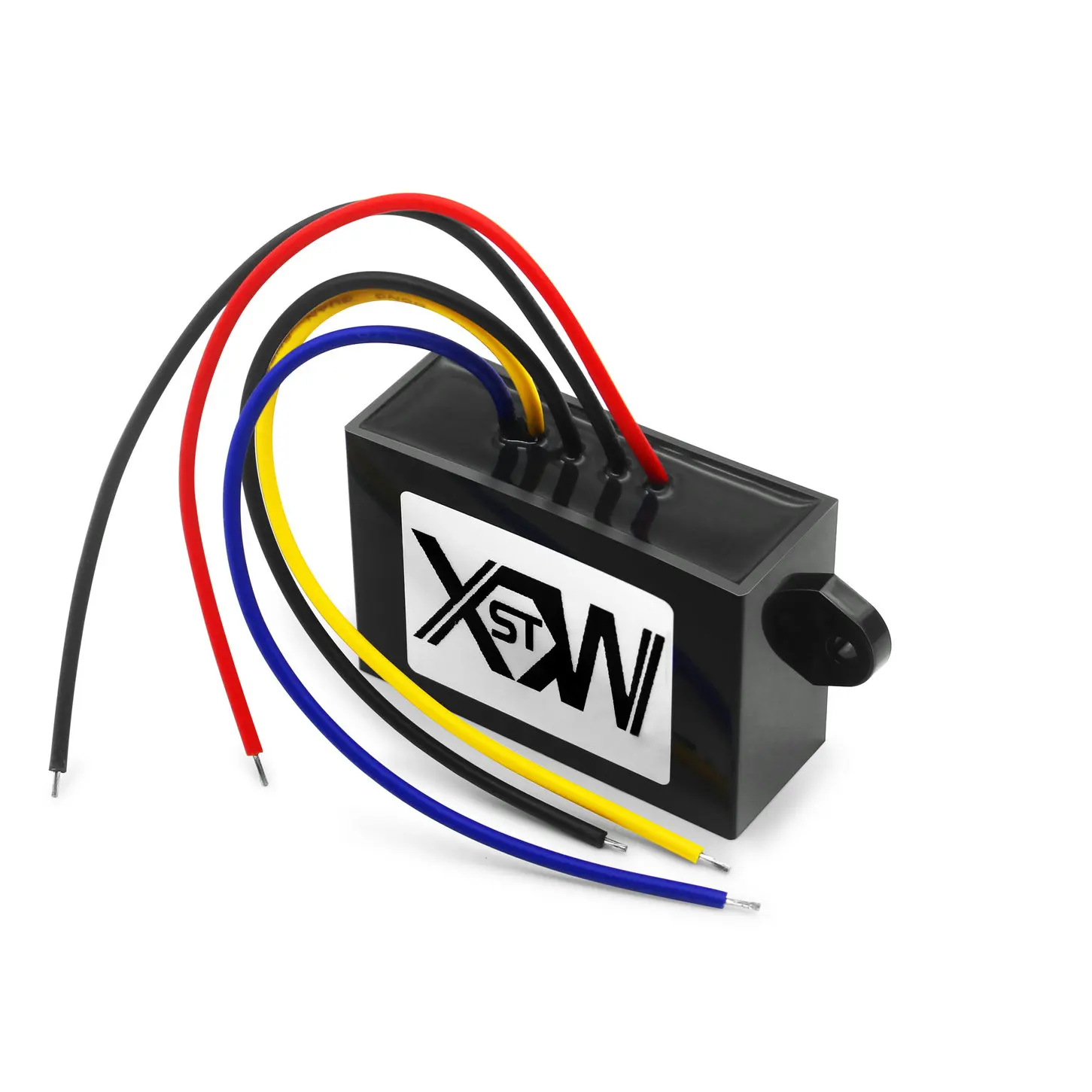

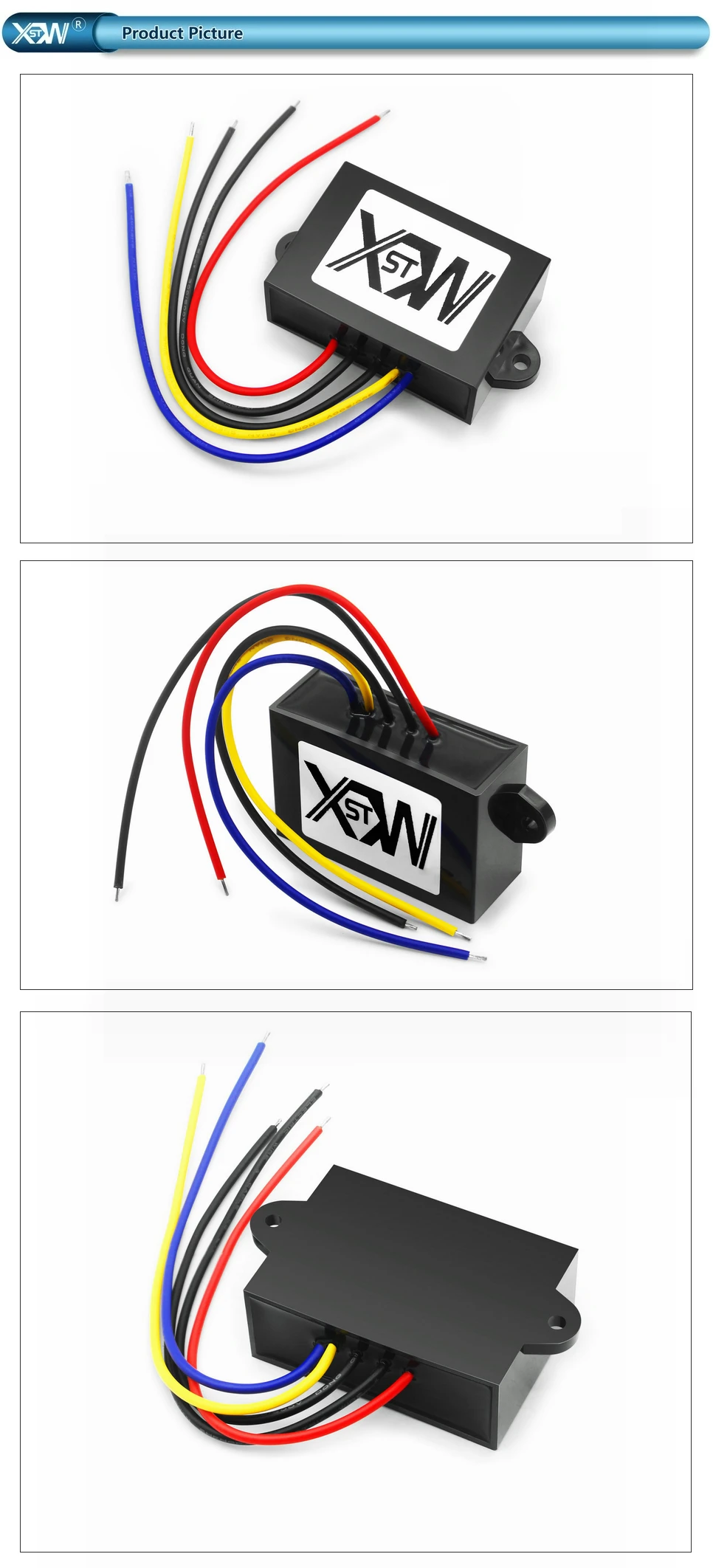

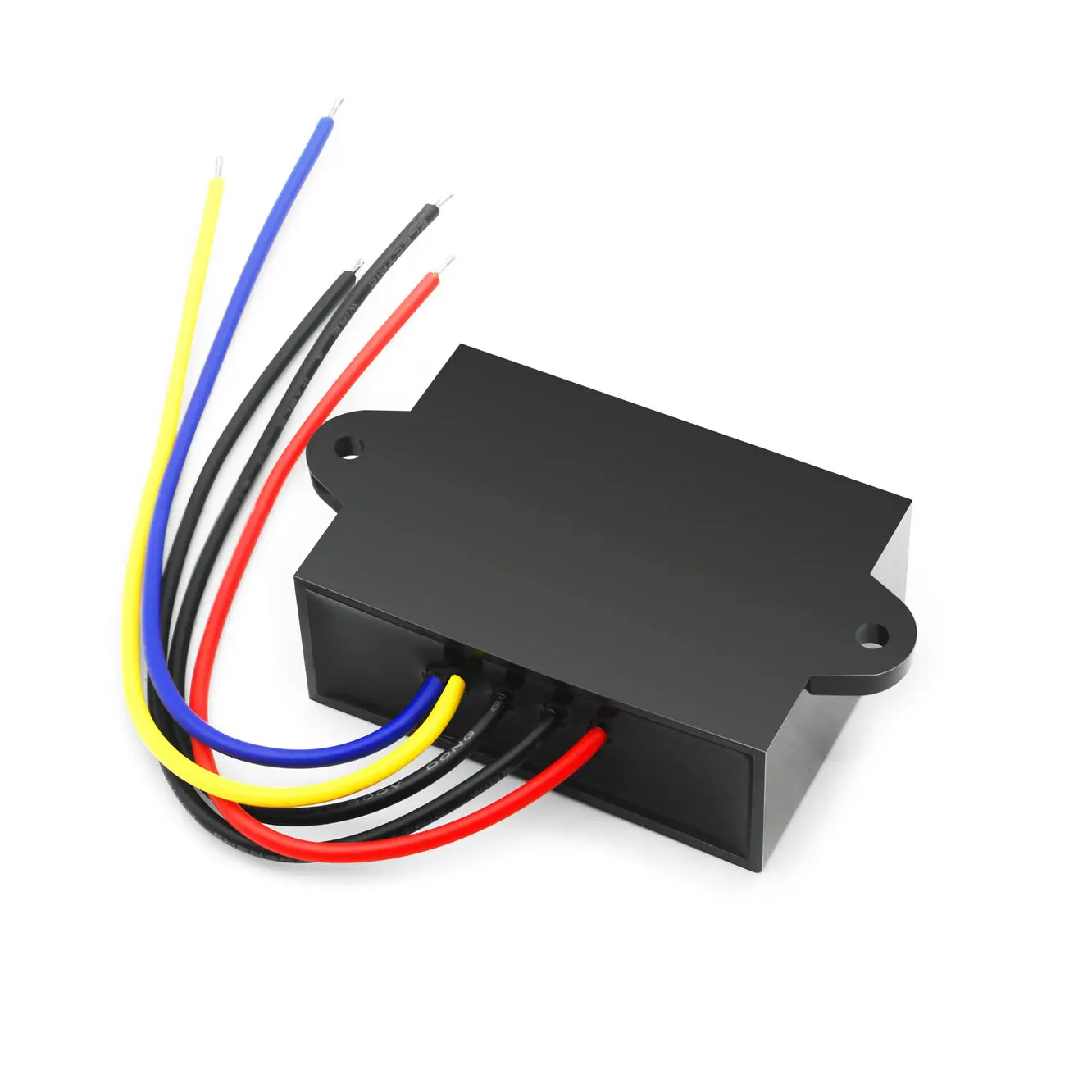

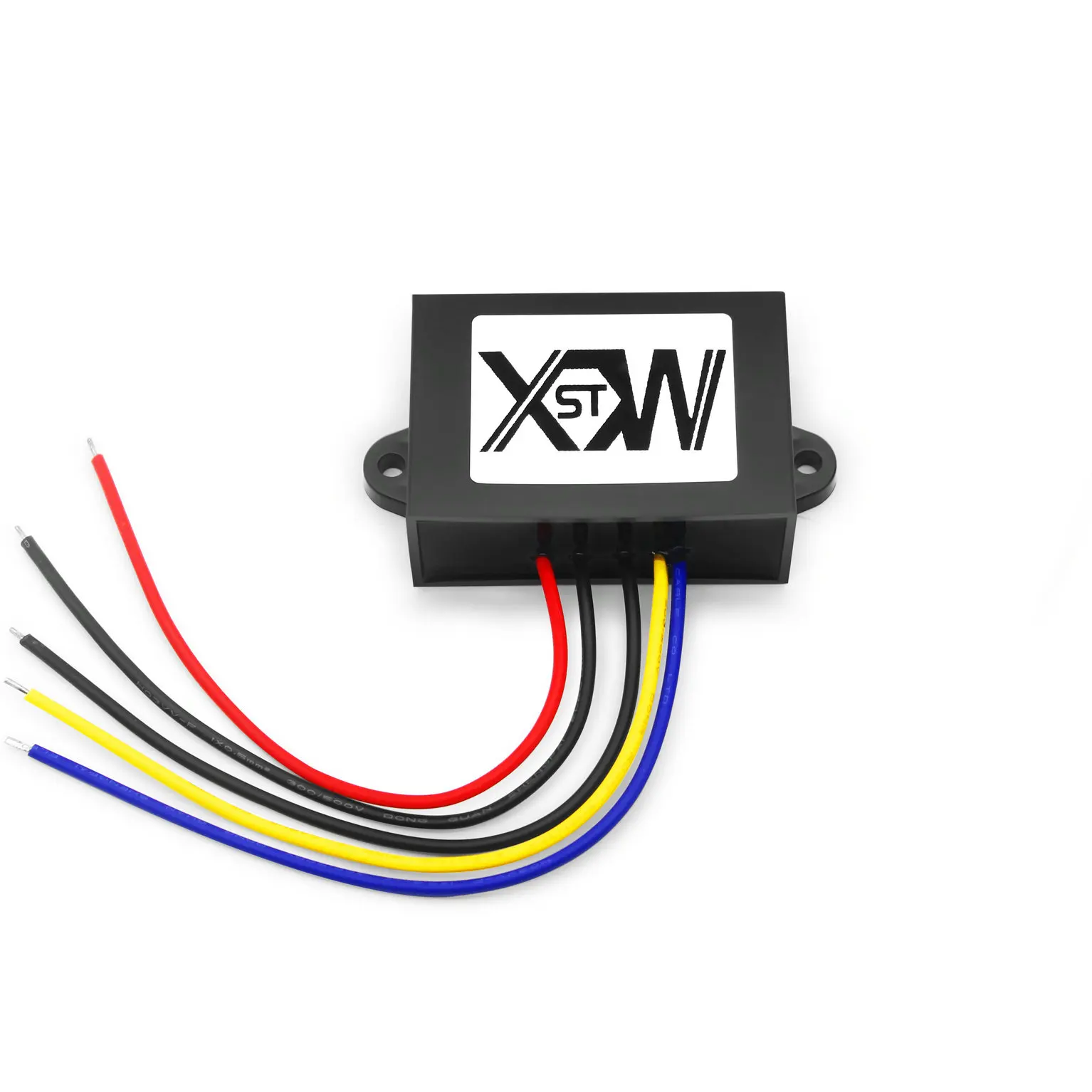

ACC controller dc to dc voltage reducer 30-72v 36v 48v 60v to 24v dc voltage regulator 1A 1.5A 2A buck converter

| Model No. | XW-3072-24-24W~48W-ACC | |
| Input | Input Voltage | DC 36V 48V 60V |
| Input Voltage Range | DC 30-72V | |
| Output | Output Voltage | DC 24V |
| Output Current | 1A /1.5A/ 2A | |
| Output Power | 24W /36W /48W | |
| Conversion Efficiency | > 93% | |
| Ripple (Full load test) | 40mV | |
| No-load current | 3.5mA | |
| Working Temperature | -40~85℃ | |
| Waterproof Rating | IP67 | |
| Cable Length | 13-14cm | |
| Protection | Over-current /Over-voltage/Over-heat /Short-circuit protection | |
| Case Material | Plastic | |

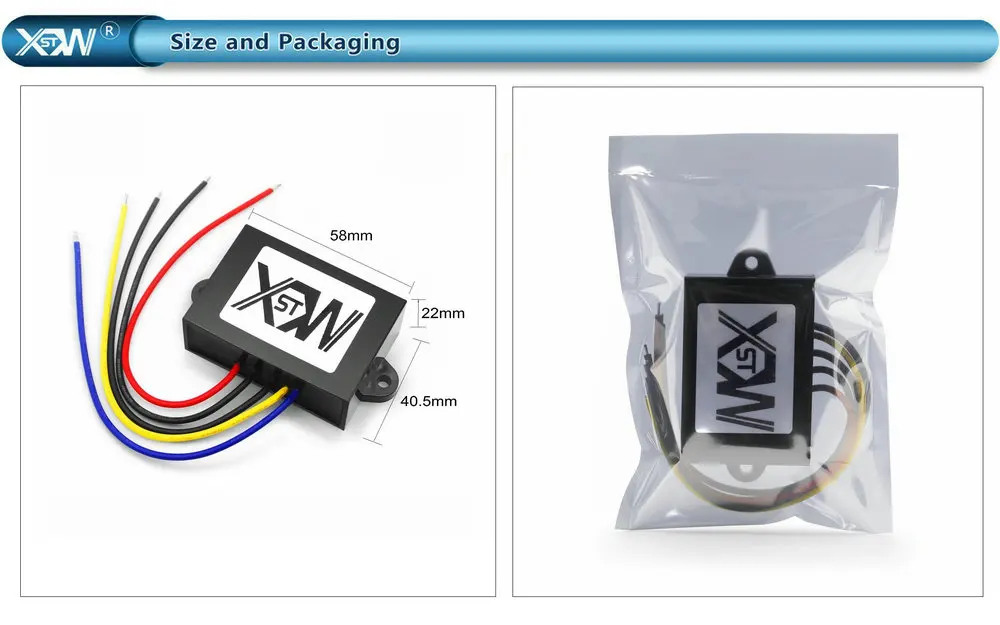

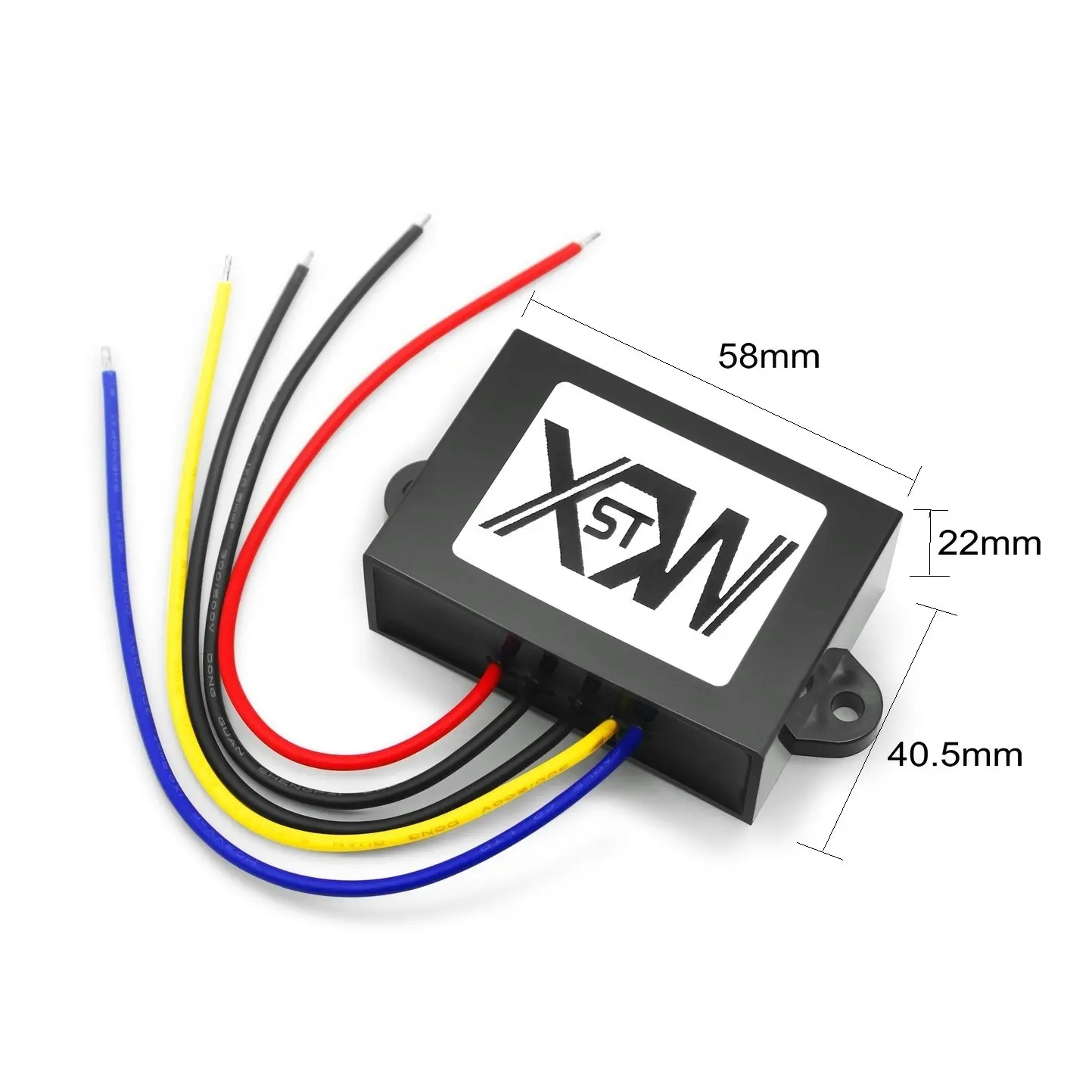

| Size | 58*40.5*22mm 97g/pc | |

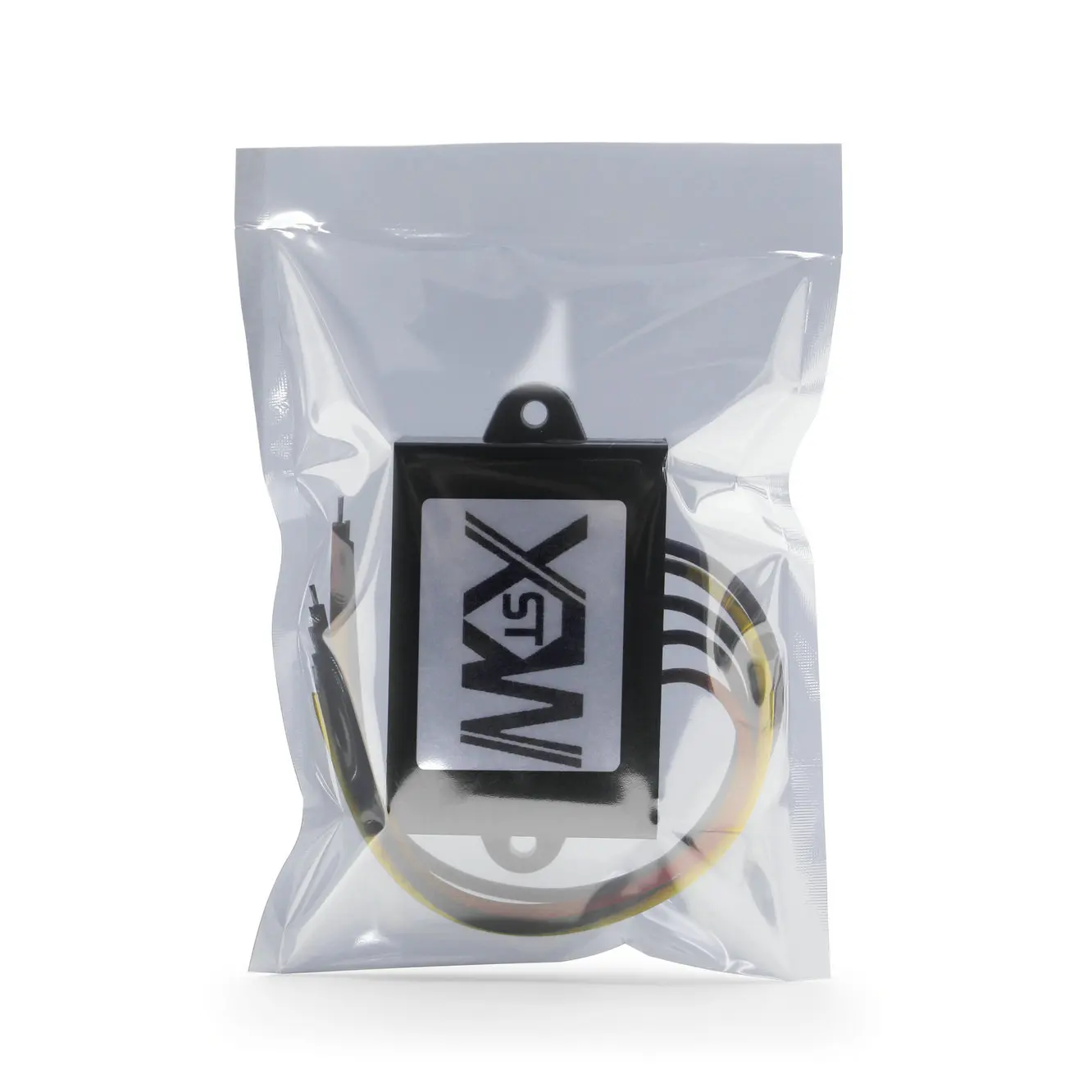

| Packing | Anti-Static Bag, 200 pcs/Carton 48*33*32cm, GW:21KG | |
Attention:

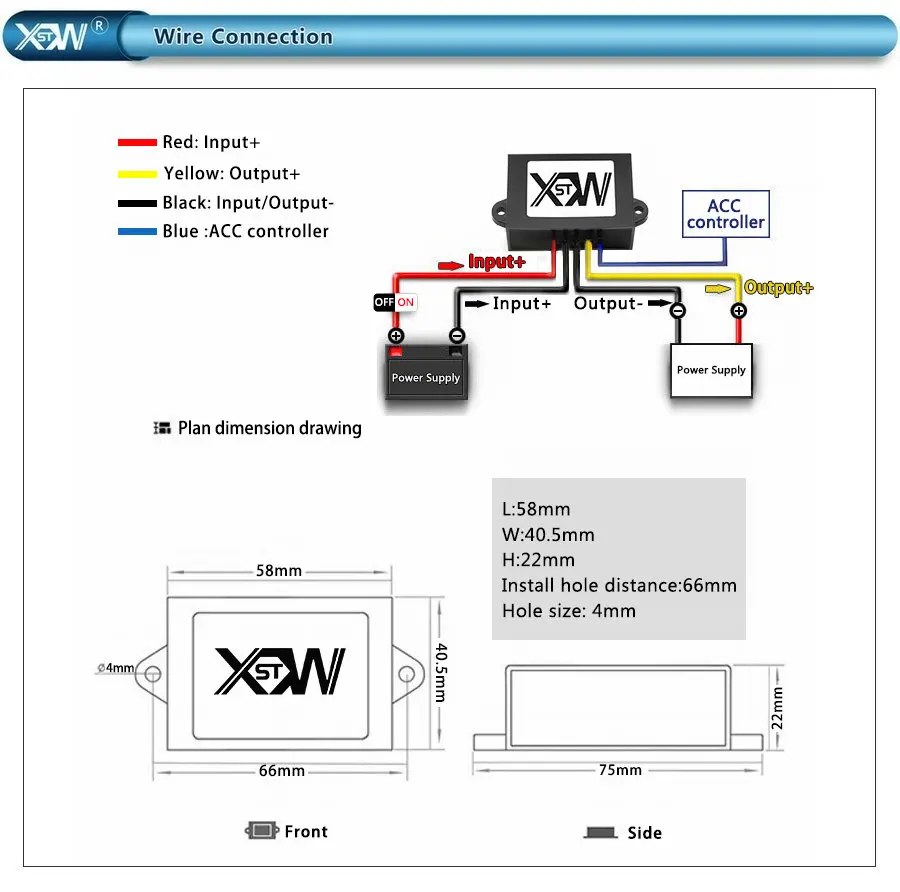

Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged
To assure this converter has the sufficient voltage and power pls make sure the voltage and power input is enough.








Huizhou Xinwei Technology, former as Shenzhen Xinwei Technology, is a professional leading manufacturer engaged in power conversion solutions more than 8 years. Our mian products include power supply DC-DC boost converters, DC-DC buck converters, Auto Buck and Boost DC-DC Converter ,Isolated DC-DC Converter and others . We have 600 square factory with 3 product line by advanced equipments and developing teams. XWST is international trademark. We look forward to cooperate with you in near future.
