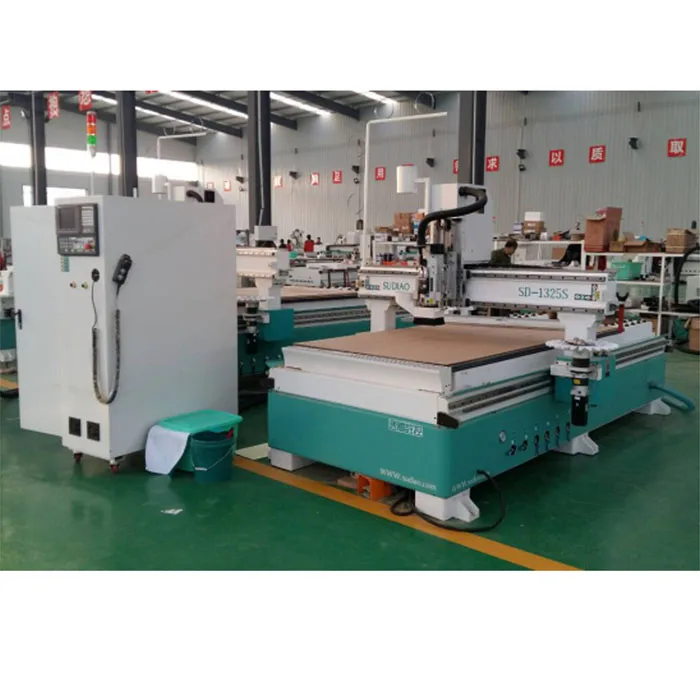

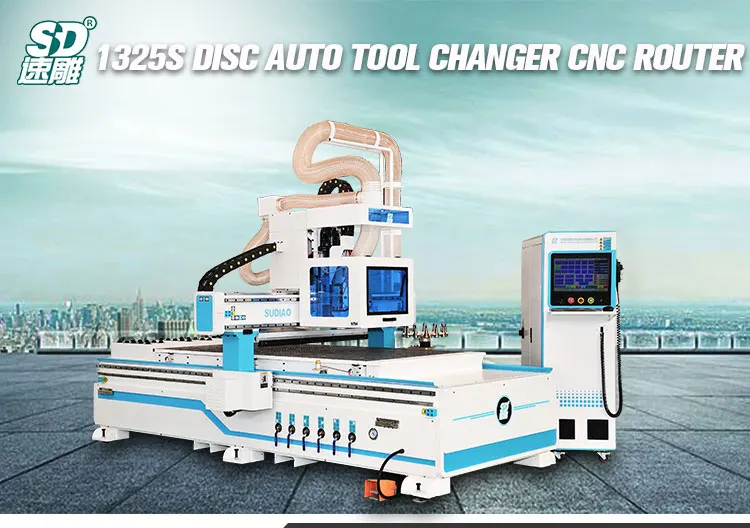

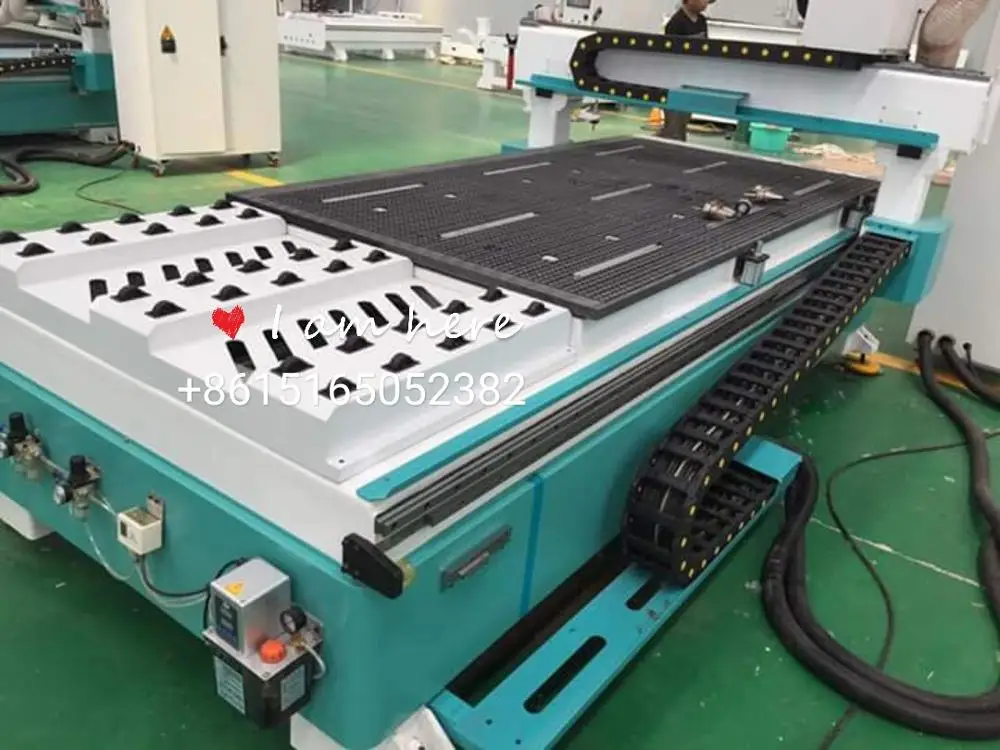

1325 ATC wood working cnc router cutting and craving machine

Product Overview

Description

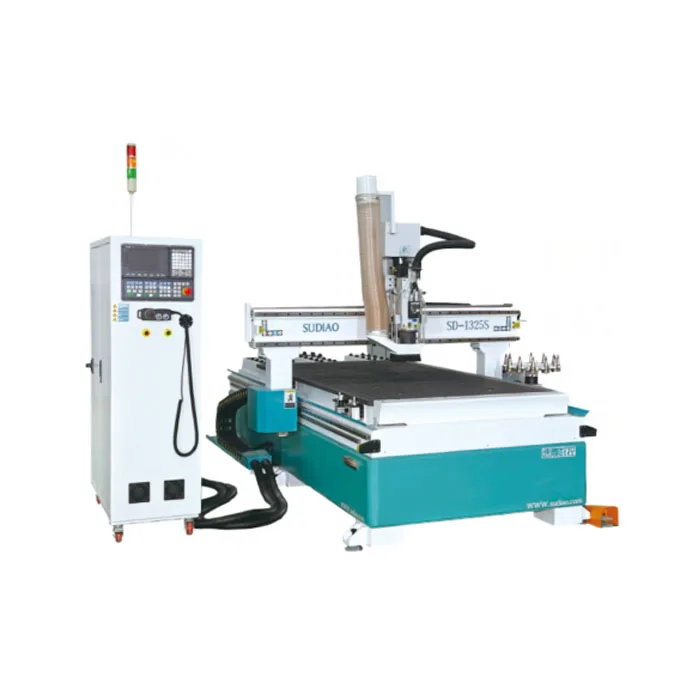

1325 ATC wood working cnc router cutting and craving machine

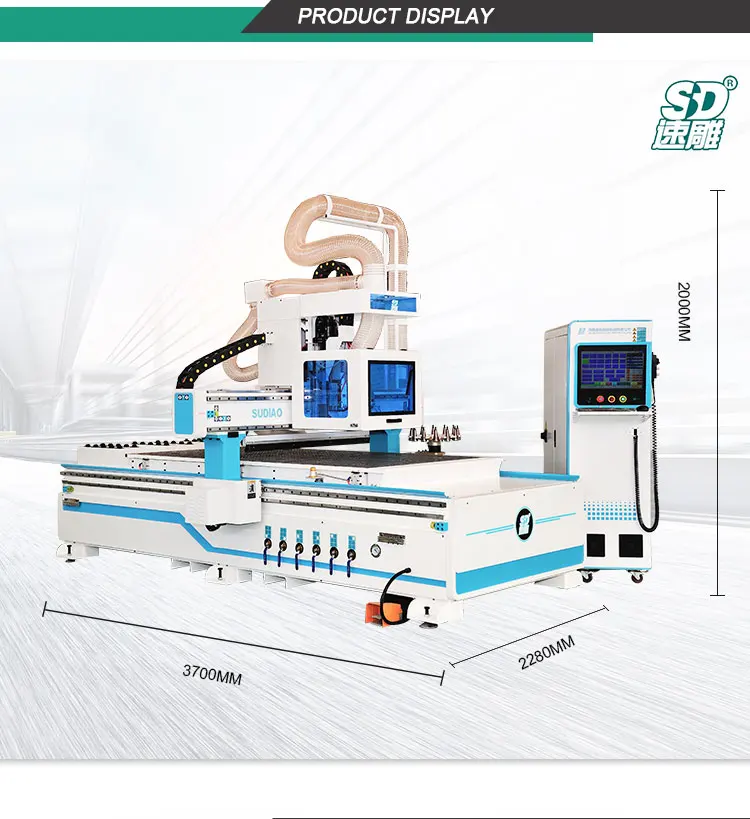

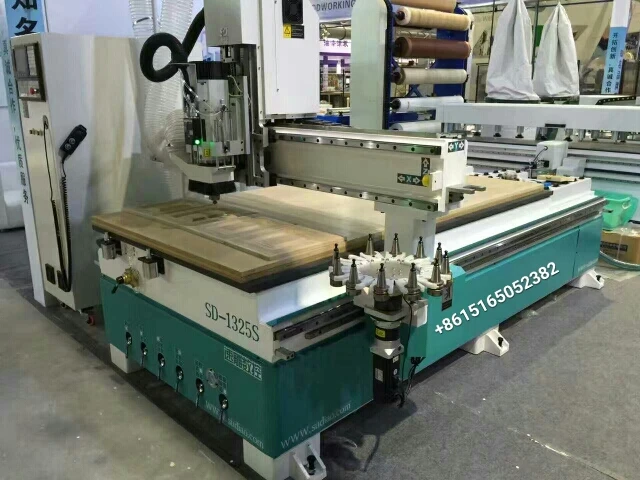

Model	SD-1325S ATC CNC Router
Working Travel	X axis		1300mm
	Y axis		2500mm
	Z axis		200mm

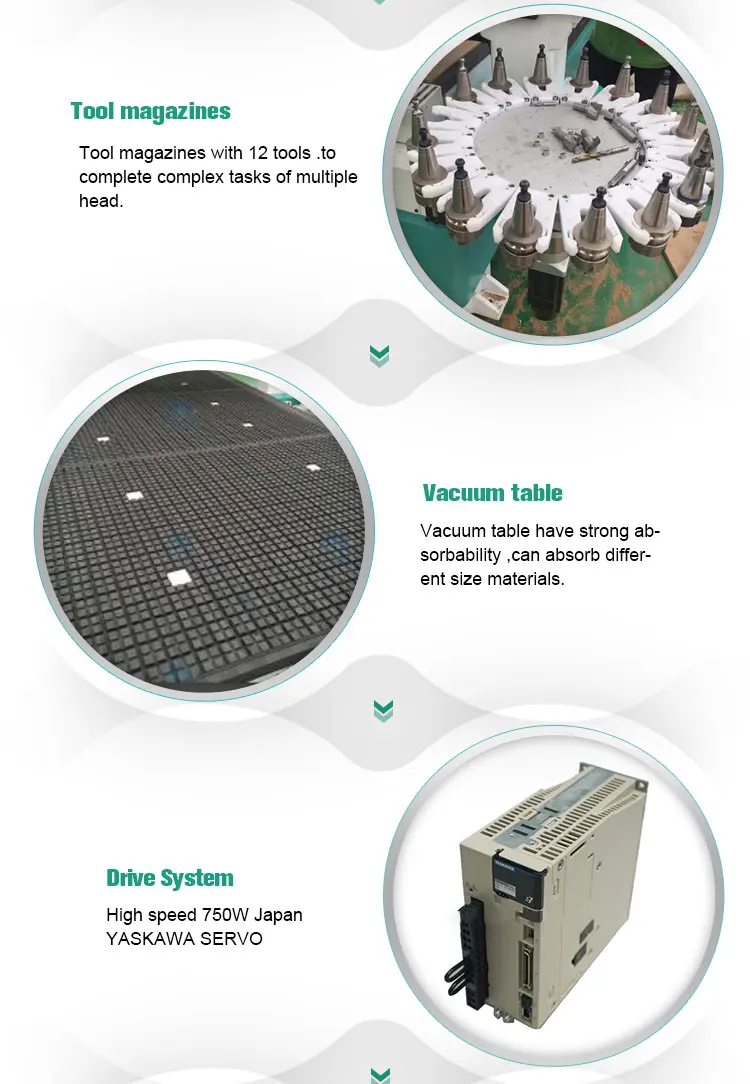

Table Structure	Vacuum suction

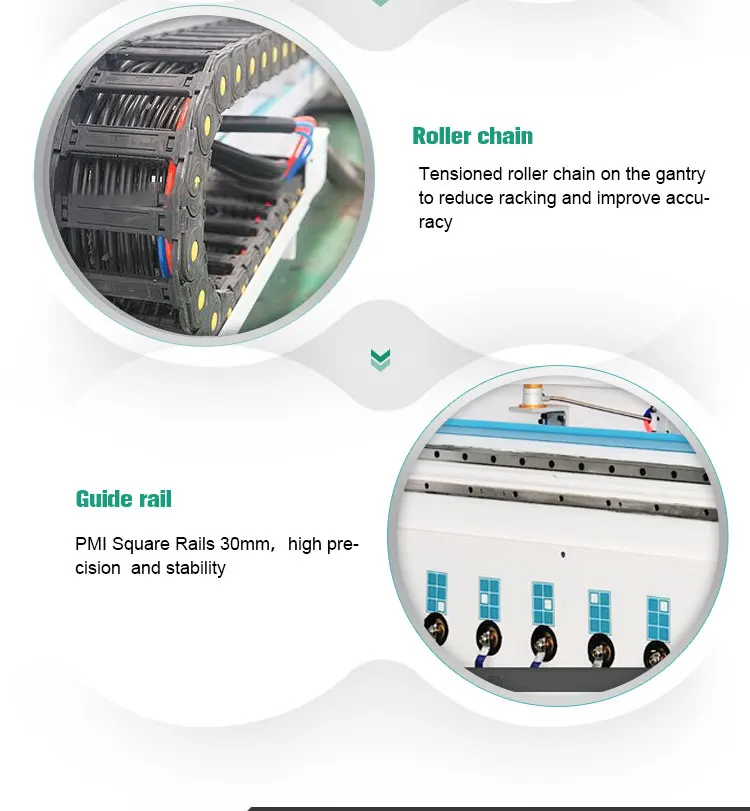

Orbit	HIWIN or PMI square orbit 30mm
Transmission Type	X,Y Rack, Z Ball screw
Working accuracy	±0.05
Re-positioning accuracy
Max air move speed	60000mm/min
Max working speed	25000mm/min

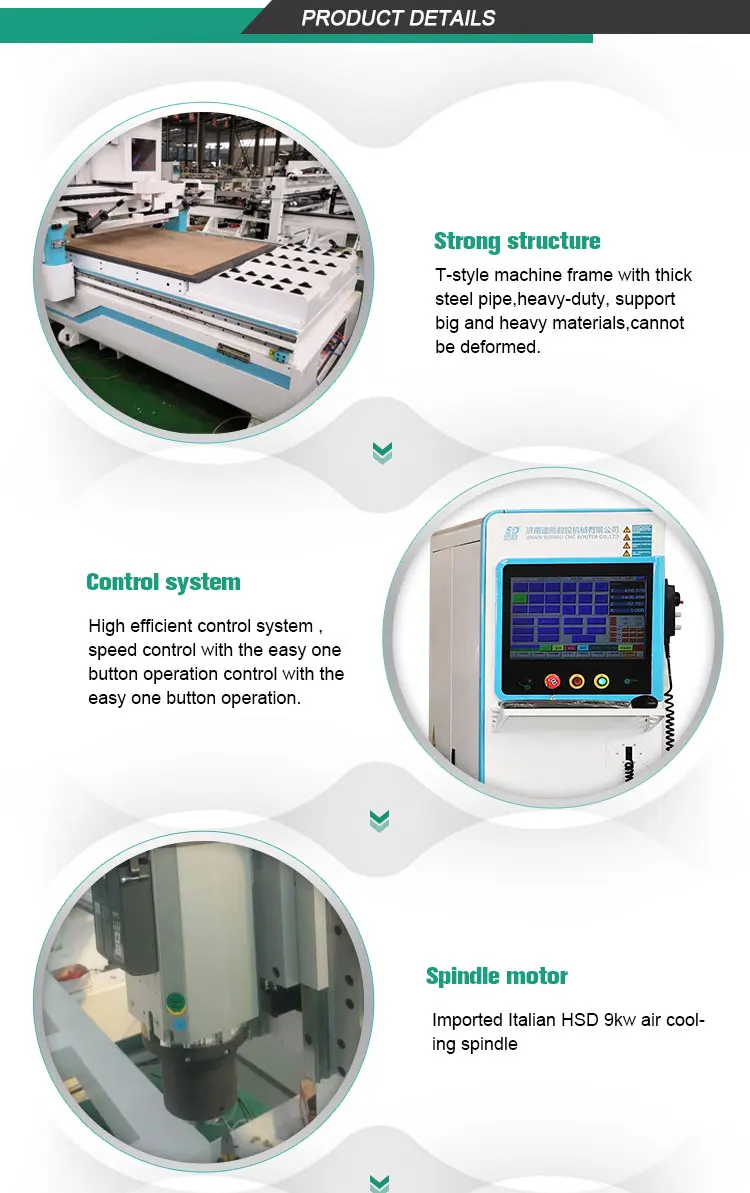

Spindle parameters	Type of cooling	Imported Italian HSD air cooling spindle
	Power	9KW
	Speed	0-24000r/min
Inverter	11KW Delta inverter
Drive system	750W Japan Yaskawa servo,Japan shimpo reducer
Command code	G code
Control system	Syntec
Oiling system	Automatic
Positioning Cylinders	Pneumatic pop up system
Working voltage	AC380V/3PH/50HZ
Supported File Formats	DWG, DXE, EPS, AI, PDF, BMP, JPG, TIF, GIF
Materials	MDF, Plywood, Hardwood, Melamine Laminates, Solid Surface Materials, Foam Core, Corrugated Plastic, Aluminium, Di-Bond, Soft Metals

1.Woodworking Industry: MDF, wood, acrylic, PVC, double-color board, brass, aluminum, marble, crystal.

2. Advertising industry: advertising billboard, sign making, acrylic cutting, graphic mold forming and processing of many kinds of advertising terms.

3. Architectural model industry: metal models of copper, aluminum, iron etc, and non-metal models, such as artificial marble, grave, plastic board, PVC, board etc.

4. Other industry: image engraving, embossing, craft and gift industryy.

JINAN SUDIAO CNC ROUTER CO., LTD.

12 Years of Experience Professional Trustful CNC Router Manufacturer in China. Over 20,000 Machines Sold Worldwide. 24*7 Service, 12 Months Warranty, Lifetime Support. Contact SUDIAO for High Performance and Reliable CNC Router at Bargain Prices. JINAN SUDIAO CNC Router Company Is Found In 2007 .



As A Professional CNC Router  Manufacturer SUDIAO Is Constantly Devoted in R&D and Manufacturing of Different Cabinet Kitchen Solutions Such As CNC Panel Production Line S6 , Smart CNC Nesting Machine S2/S3/S5 ,Five-Side Drilling Machine, Laser Model Side Drilling Machine, Assembled Solid Doors Process Center and Wood CNC Process Center . We Now Establish Several Branches and Agencies in 18 Countries Like USA UK France,Germany Canada.,etc



We Has Imported Advanced International Technology and Production Process.  Developing High Performance ,High Quality Machines to Meet the Different Customers Requirement is our Ceaseless Pursuit and Development Direction .



We Are Looking for Long Term Business Cooperation to Work Together.
