1W 3W 5W 6W 10W 15W 20W 25W 30W 40W 50W 100W SQP Horizontal Type Ceramic Core Cement Power Resistor

Product Overview

Description

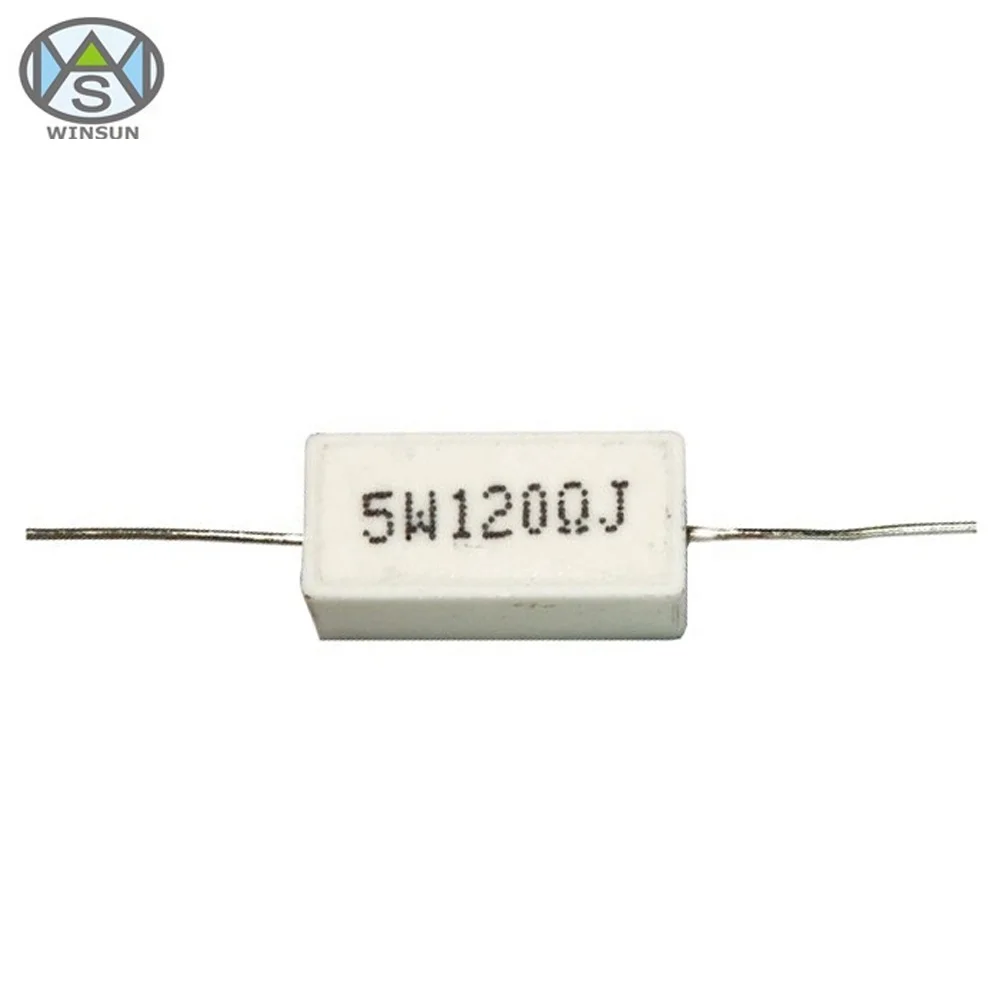

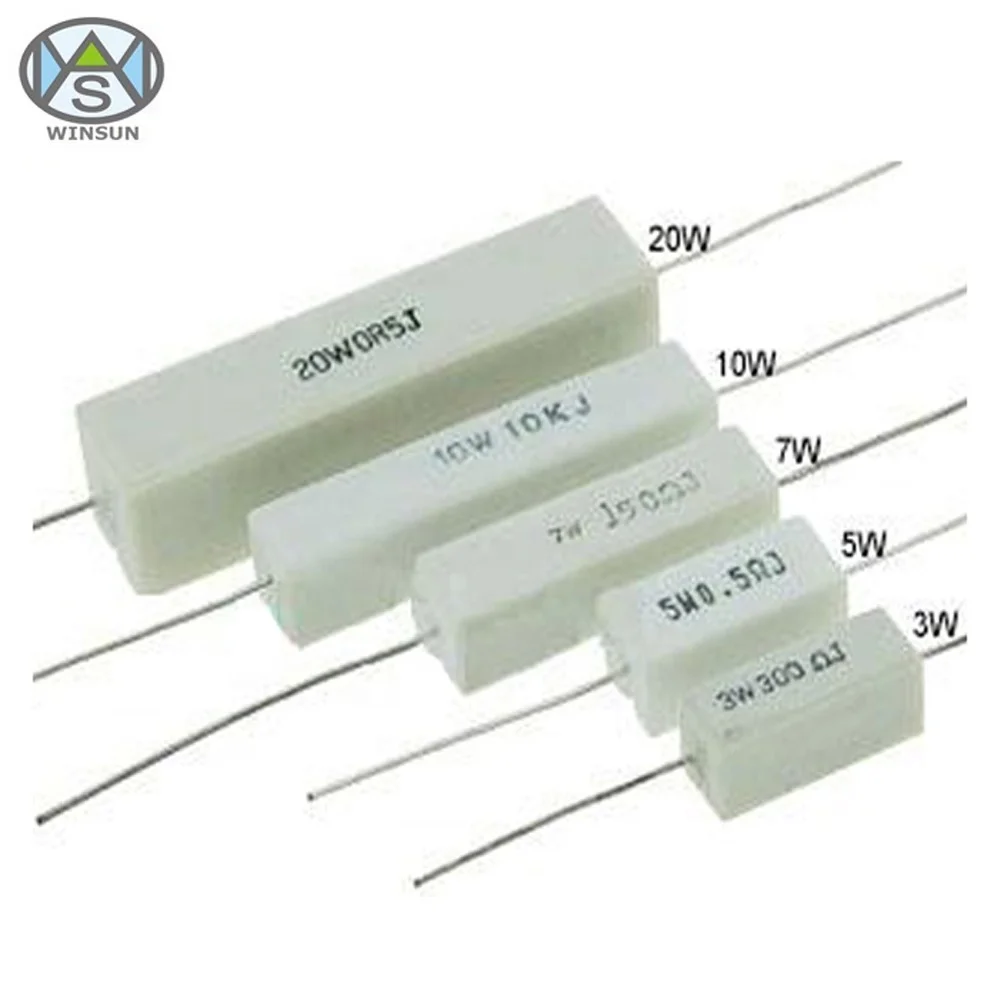

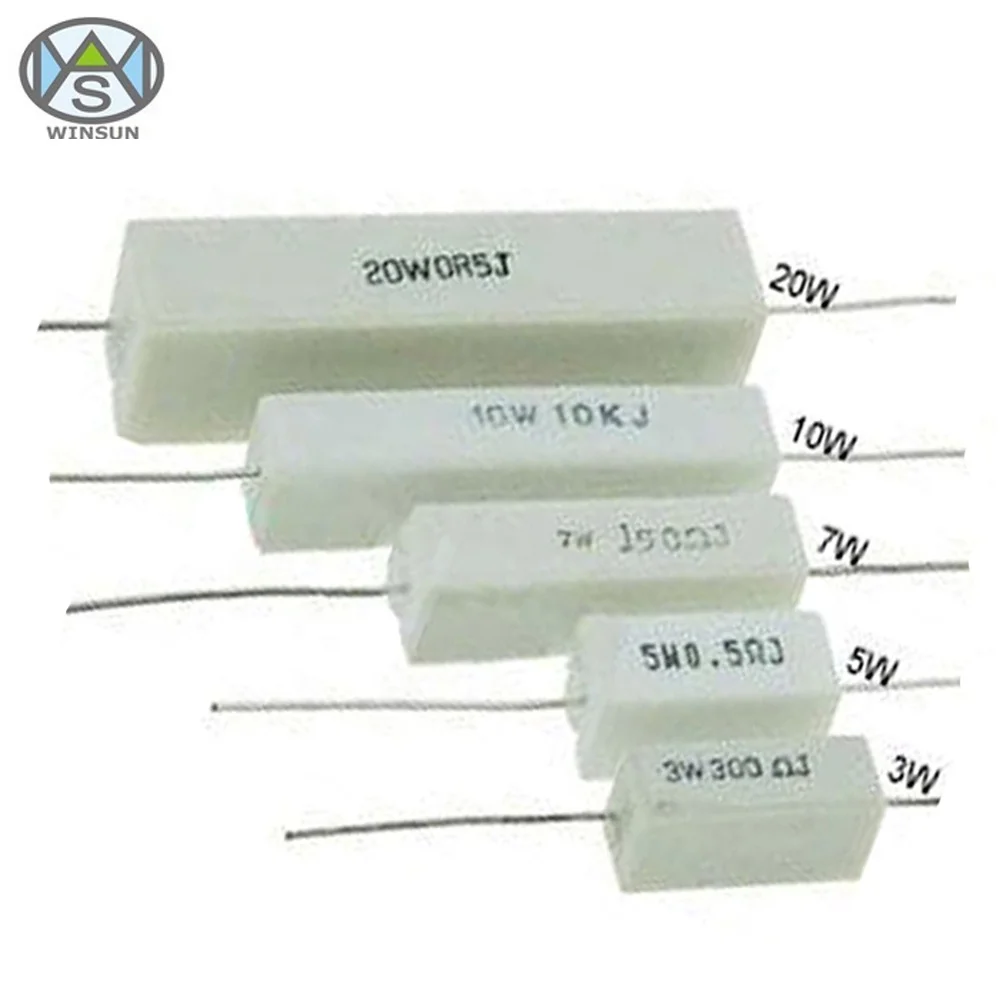

1W 3W 5W 6W 10W 15W 20W 25W 30W 40W 50W 100W  SQP Horizontal Type Ceramic Core Cement Power Resistor







    Cement resistors are made by cut trimming metal oxide film core or winding resistance wires around non-alkaline ceramic core, either is added with a layer of heat and humidity resistant and non-corrosive protective material. The wire wound resistor or metal oxide resistor is then placed in a square ceramic package sealed with special nonflammable heat-resistant cement



Feature:

1)Wide Resistance Range: 0.1 Ohm - 100K Ohm
2)Power Tating: 1W,2w, 3w, 5w, 7w, 10w, 15w, 20w, 30w, 40w, 50w, 80w, 100w
3)Maximun Working Voltage: 250v, 300v, 350v, 500v, 700w, 1000w
4)Maximun Overload Voltage: 500v, 600v, 700v, 850w, 1000v

5)Good heat-durability,low temperature coefficient, low noise,high load power,high insulating capacity.
6)Operating ambient temperature:-55°C to +275°C

7)Tolerance: +/-1%~+/-10%

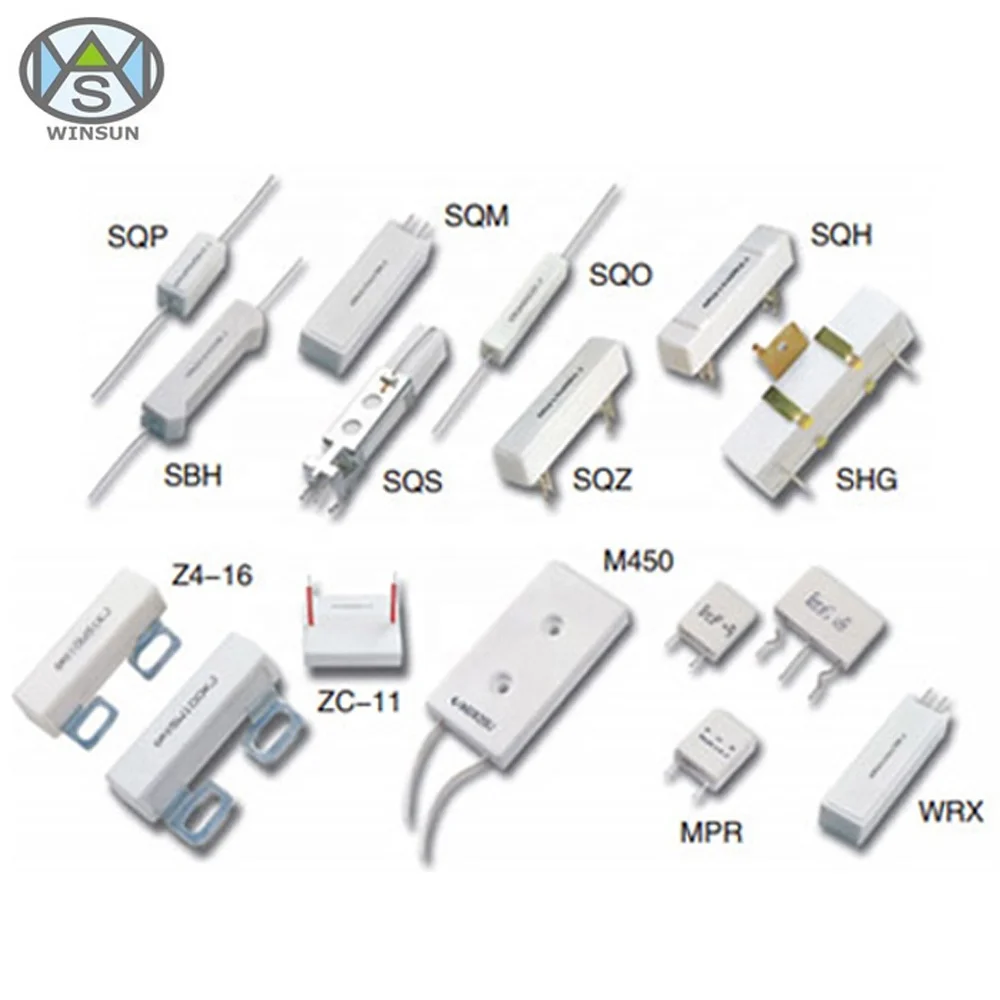

Description	Forming Type	Size	Tolerance	Range
RX/BRX/HRX Cement Resistors         NRX Non-inductive Cement  Resistors	SQP	1W-11W,15,17W,20W,25W	±5%  ±1%	RX/BRX/HRX 0R01-100K       NRX:0R1-47R
	SBH	5W-11W,15,17W,20W,25W
	SQM	1W-11W,15,17W,20W
	SQS	5W,7W,10W,15W,20W,25W
	SQO	4W,5W,6W,7W,8W
	SQZ	3W-11W,15,17W,20W,25W
	SQH	3W-11W,15,17W,20W,25W 30W,40W,50W,100W
	SHG	10W,11W,15W,20W,25W,30W,40W
	Z4-16, Z5-16	4W,10W
	ZC-11	5W
	M450	80W
	E	2W,3W,5W,7W,10W, 2W+2W,3W+3W,5W+5W,7W+7W
MPR Metal Plate Non-inductive Cement  Resistors	EC	5W	±5%  ±10%	0R01-4R7
Heated Cement  Resistors	B	16W	±5%  ±10%	0R1-220R
Temperature Fuse Cement  Resistors	M	5W,7W,10W	±5%  ±10%	0R1-47K
