Product Overview

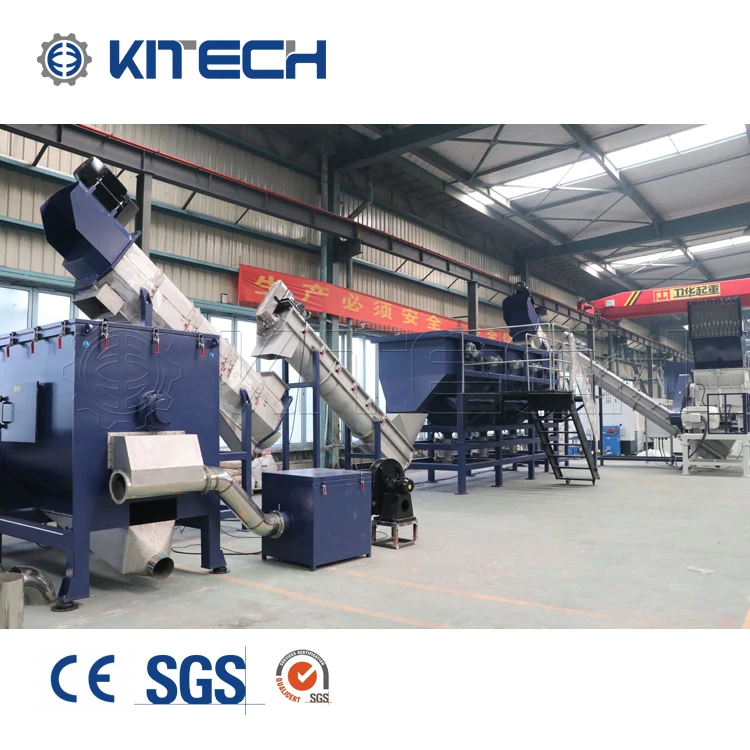

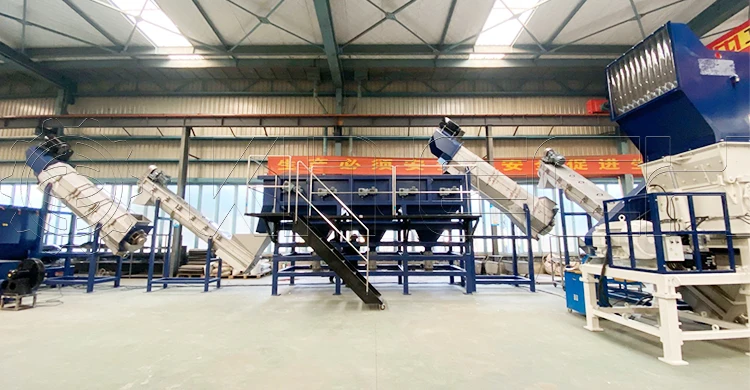

PE Film Recycling Machine For Washing Recycling Line
>>Soft Plastic (Film/woven bag/fiber/rope) Washing Line has smart modular design aiming at agricultural film, industrial packaging film, bag, blowing molding packaging bottle/box, injection and electronic waste recycling. It is including sorting, size reduction, metal removing, cold and hot washing, high efficiency friction washing and drying modular. Which can remove most of contaminants such as ferrous and nonferrous metals, sand, oil, glue, paper label and many other different contaminants efficiently. Moreover, turn key solution can be provided with all water treatment, processing of sludge, paper stick, labels and etc.
>>You can get a different module combinations designed by KITECH according to your requirements and material's condition. In range of capacity 300-2000kg/h with both economy and high-level different configurations.
Recycling Line
1. What can our machines do for you?
>>High automation, only 2 workers are required to operate
>>High production capacity (more than 30% higher than the same equipment in the same industry), low energy consumption (water, electricity, gas, chemical cleaning agent consumption is 20% lower)
>>Reasonable process design and good cleaning effect
>>Reliable components, internationally renowned brands, reliable quality, low maintenance costs
>>Cost-effective, high profit return
2. What kind of raw materials can this recycling line wash?
3. Working principle and flow chart:
>>After getting waste plastic raw material, KITECH Technicians will study and analysis the main contaminants to provide a proper solution to remove most of the impurities by mechanical, chemical, physical and other principle.
>>Main process of whole project including pretreatment of raw material → crushing → washing → drying → package → granulation.

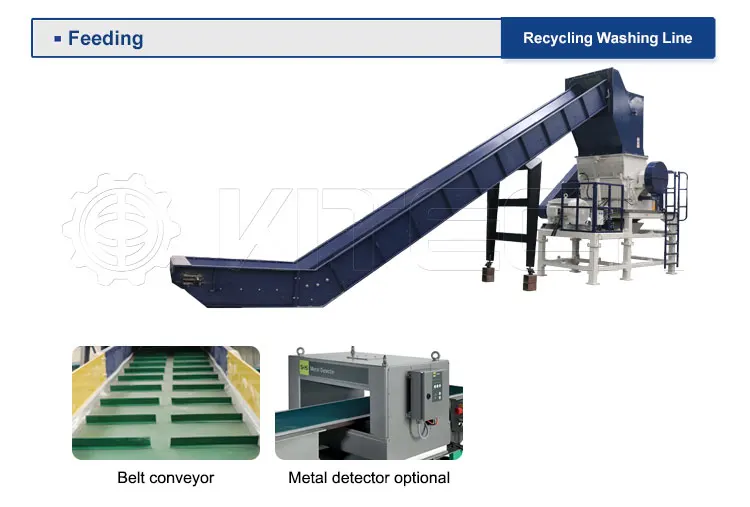

>>Belt conveyor is as a standard feeding device for plastic film, raffia, filament, woven bag, nonwoven fabric, etc. >>Screw conveyor and Nip roller as optional feeding method designed for different type of materials.
>>Metal detector can be installed on conveyor as optional item, Detecting and separating the metal to protect shredder or crusher effectively.

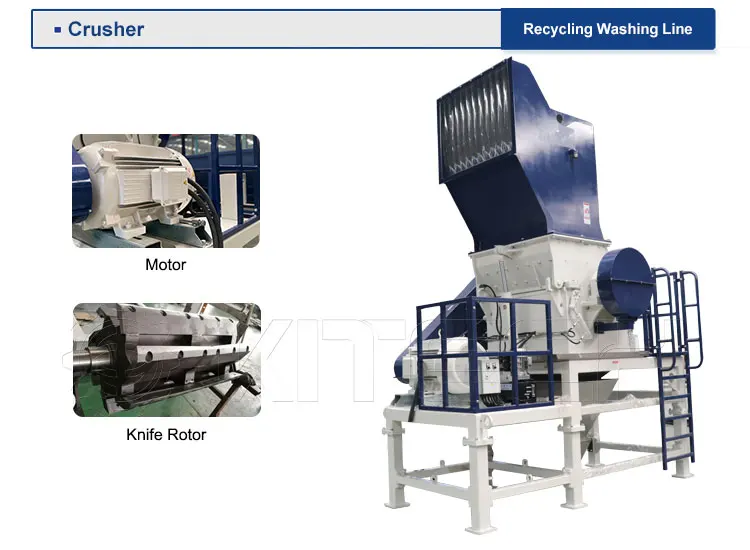

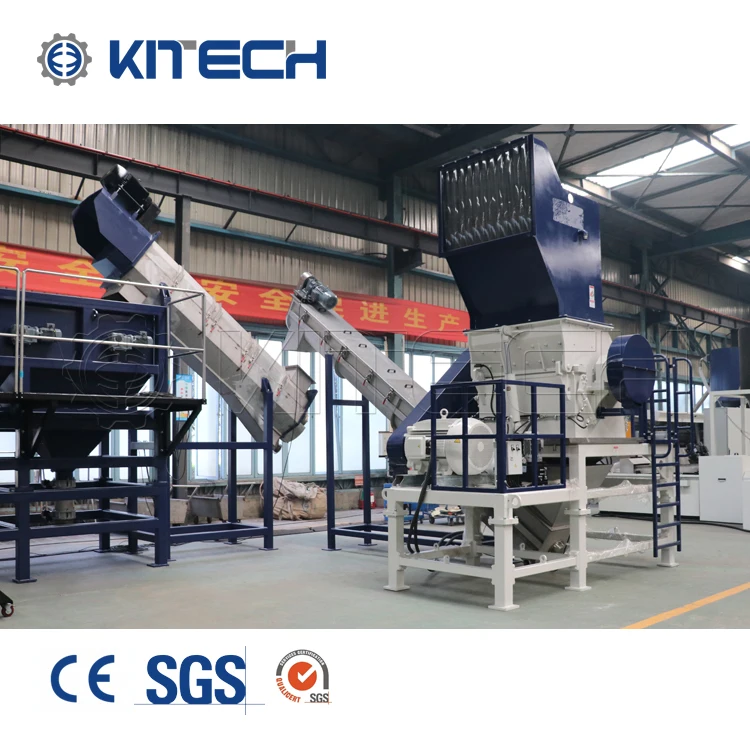

>>AGF series Granulator /Crusher can process Film, bags, Bottle, containers and other form of hollow thin walled plastics. It is equipped a 500-800mm diameter, 700-2000mm width rotor with a capacity range 100-5500kg/h.
>>It has a centrally hinged two-pieces cutting chamber with a robust welded steel construction, with the upper and lower sections of the housing meeting horizontally.
>>Reversible stator knives with double cutting edges are fitted as single elements to the lower section of the housing, allowing multiple re-sharpening and adjustment of the stator knives.
>>It has a centrally hinged two-pieces cutting chamber with a robust welded steel construction, with the upper and lower sections of the housing meeting horizontally.
>>Reversible stator knives with double cutting edges are fitted as single elements to the lower section of the housing, allowing multiple re-sharpening and adjustment of the stator knives.

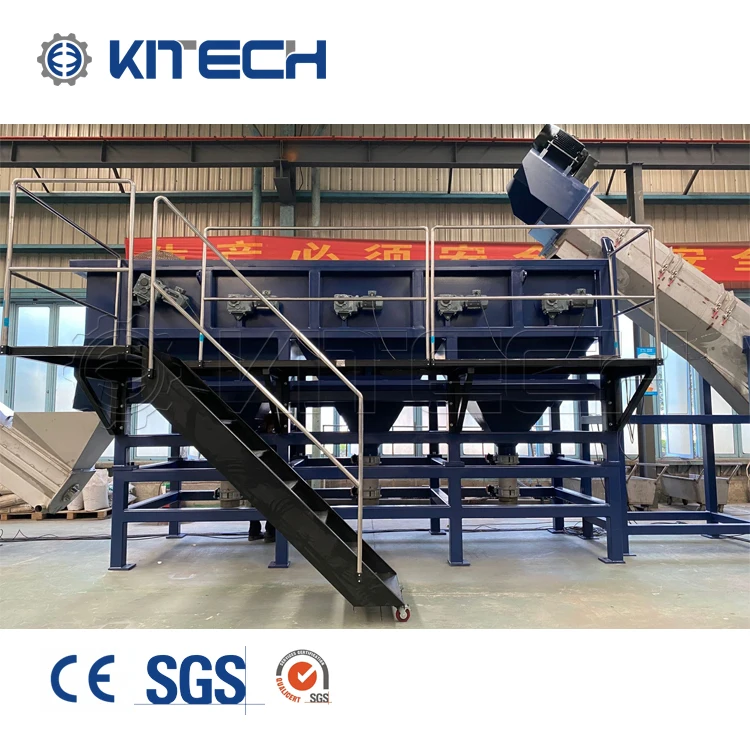

>>AFW flotation washer for cleaning size reduced plastic scraps, by rotary paddles and water, which can remove most of the dust,sands, sludge, soil and other sink contaminants.
>>The main principle is to use the specific gravity of water,specializing in the initial wash and rinse of submerged and floating materials,it can effectively separate the sediment and metal in the material. The system will discharge the sink contaminants,such as sands, sludge, sink plastic, metals through the pneumatic bottom valves automatically. It will ensure the good washing condition of water.
>>The main principle is to use the specific gravity of water,specializing in the initial wash and rinse of submerged and floating materials,it can effectively separate the sediment and metal in the material. The system will discharge the sink contaminants,such as sands, sludge, sink plastic, metals through the pneumatic bottom valves automatically. It will ensure the good washing condition of water.

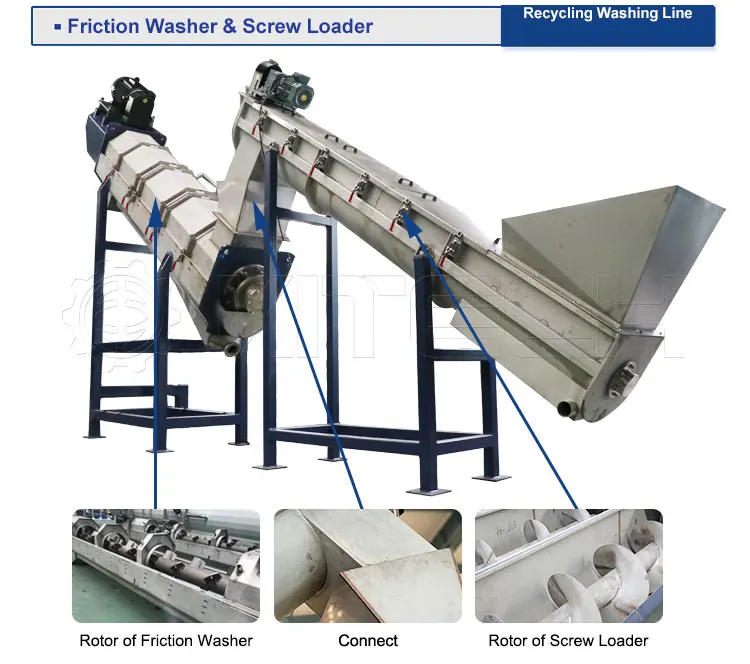

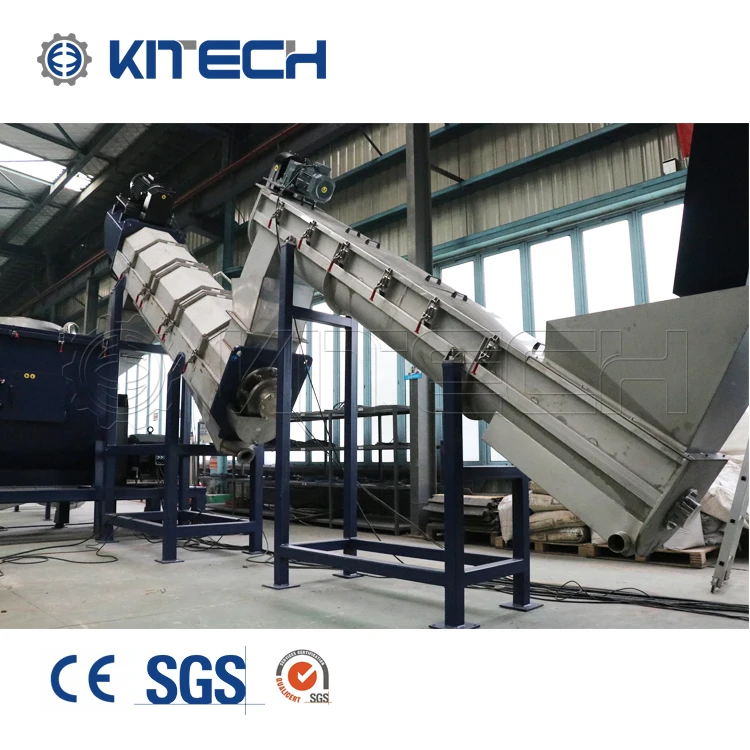

>>It is mainly used for strong friction cleaning,adopting spiral blade structure, medium and low speed friction principle to reduce or remove the adhesion of contaminants to the material.
>>Centrifugal the contaminants onto the screen, and adding clear water removes the sediment on the material through the centrifugal action during the operation, and clean the materials efficiently.
>>Centrifugal the contaminants onto the screen, and adding clear water removes the sediment on the material through the centrifugal action during the operation, and clean the materials efficiently.

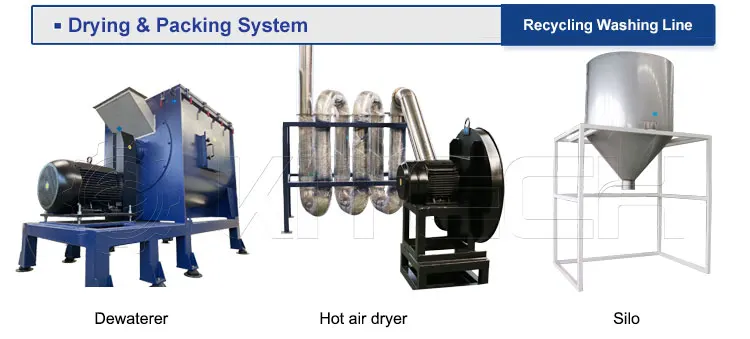

>>It is mainly used for removing moisture from the film/bags and other soft material. It can efficiently remove the humidity from soft plastic materials.
>>The equipment adopts centrifugal force to dry materials.To reduce the moisture content of the material to below 7 without melting.
>>The equipment adopts centrifugal force to dry materials.To reduce the moisture content of the material to below 7 without melting.
>>It is mainly used for the last drying process of the material before packaging, adopts the heating source from electricity,
steam, and other fuels.

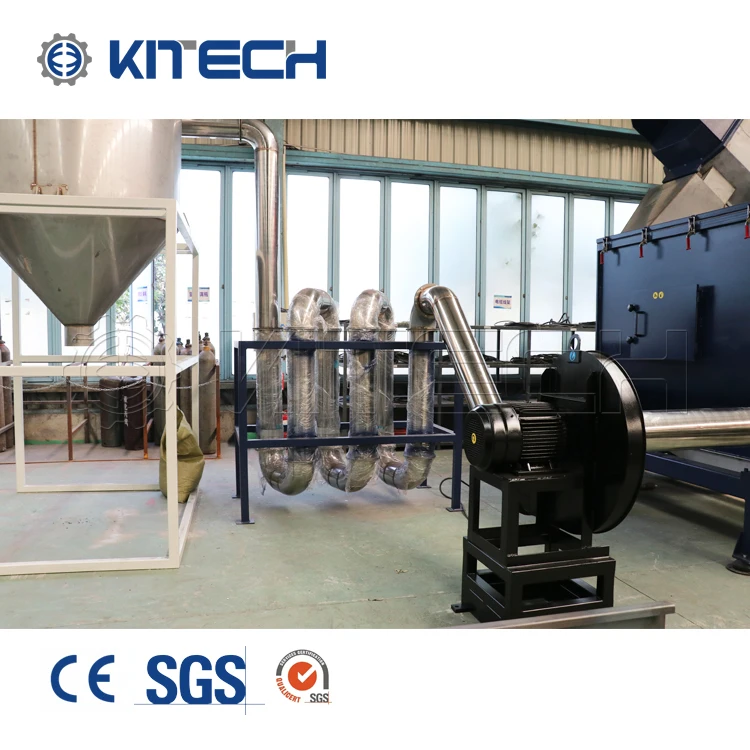

>>The hot air is generated by the heating package and the fan, and then the material is blown into the pipeline through the fan
and thoroughly dried by hot air. It can reduce the humidity about 1-2%.
steam, and other fuels.
>>The hot air is generated by the heating package and the fan, and then the material is blown into the pipeline through the fan
and thoroughly dried by hot air. It can reduce the humidity about 1-2%.
>>It is mainly stored materials, the silo sizes can be tailor-made with a volume from 1-10CBM, which is mainly made by stainless
steel.
steel.
Technical Data
Type | LDW300 | LDW500 | LDW1000 | LDW1500 |
Capacity(kg/h) | 250-300 | 400-500 | 800-1000 | 1250-1500 |
Dimension:LxWxH(m) | 29x10x5 | 35x12x6 | 50x12x6 | 70x15x6 |
Steam consumption(kg/h) | 0-150 | 0-200 | 0-300 | 0-450 |
Chemical consumption(kg/h) | 0-2 | 0-4 | 0-8 | 0-10 |
Energy consumption(kWh) | 120 | 180 | 280 | 395 |
Installation power(kWh) | 195 | 290 | 446 | 530 |
Man power(persons/shift) | 3 | 3 | 4 | 4 |
