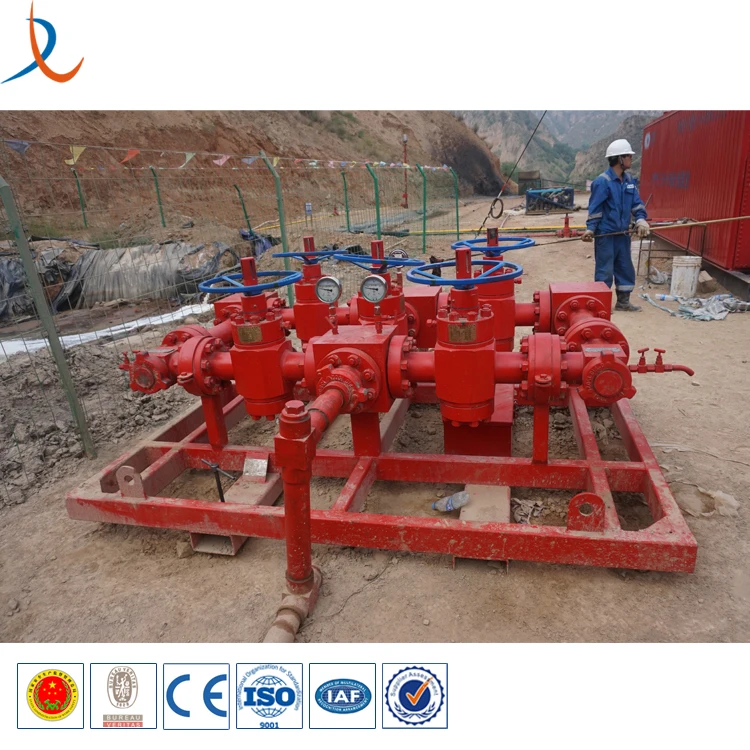

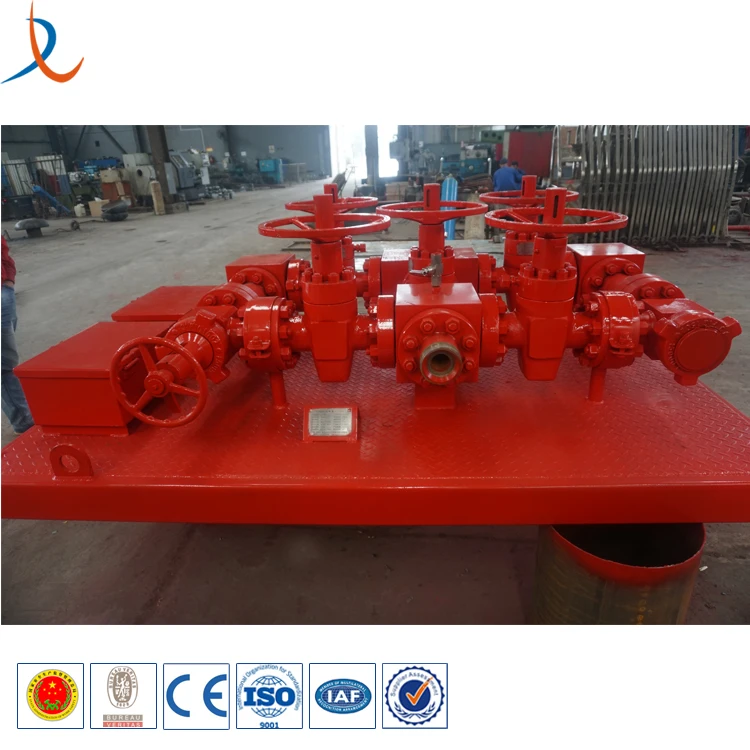

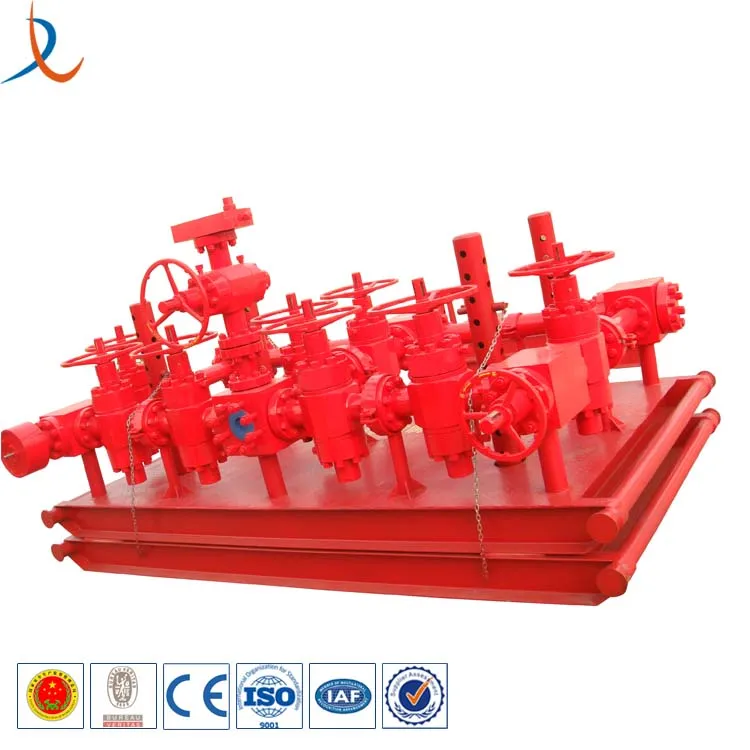

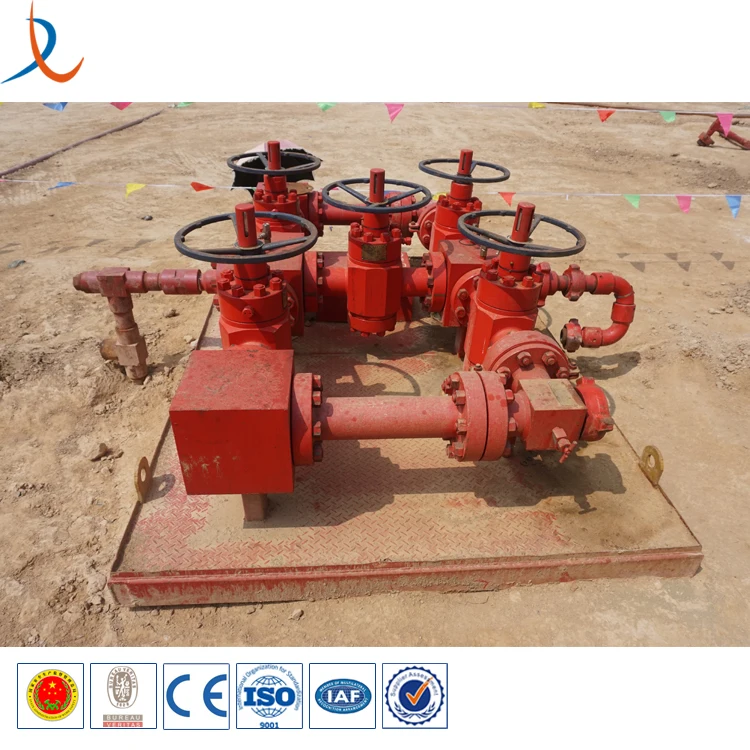

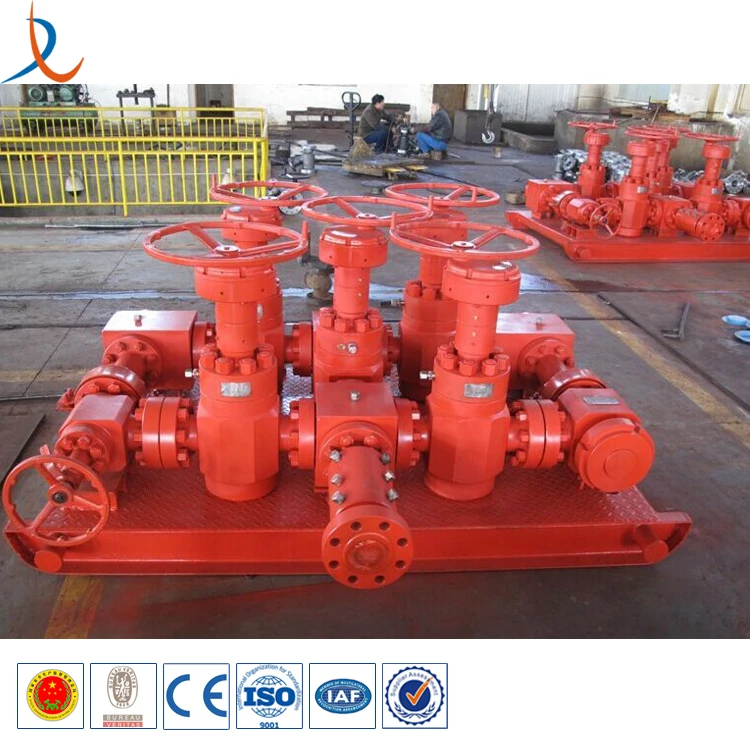

API 16C 10000psi 4 1/16 8 manual valves Choke Manifold And Kill Manifold
- Category: >>>
- Supplier: Luoyang Runcheng Petrochemical Equipment Co. Ltd.
Share on (62326478537):
Product Overview
Description
Product parameters
Choke Manifold is an assembly which consist of high-pressure valves and chokes, used for reducing the pressure from the well head. It is operated by opening and closing an adjustable or fixed choke.
Parameters of our choke manifold as below, contact us to get more information about our products.
Design Pressure | Size | Dimensions L X W X H | Configuration | ||
psi | inch | inch | |||
5000 | 3.1/16" | 90.9 x 89.6 x 32.5 | 5 x Manual Valves 1 x Adj.Choke & 1 x Pos. Choke 1 x Data-header | ||
5000 | 3.1/16" | 90.9 x 135.7 x 32.5 | 8 x Manual Valves 1 x Adj.Choke & 1 x Pos. Choke 1 x Data-header | ||
5000 | 4.1/16" | 85 x 165.7 x 90.0 | 8 x Manual Valves 1 x Adj.Choke & 1 x Pos. Choke 2 x Data-header & 2 x Lifting Arm on Skid | ||
5000 | 4.1/16" | 76 x 108.9 x 74.0 | 4 x Manual Valves 1 x Adj.Choke & 1 x Pos. Choke 2 x Data-header & 1 x Lifting Arm on Skid | ||
10000 | 3.1/16" | 99.9 x 151.0 x 53.4 | 2 x Hyd.Valves & 6 x Man. Valves 1 x Adj.Choke & 1 x Pos. Choke 1 x Data-header | ||
10000 | 3.1/16" | 99.9 x 151.0 x 39.44 | 8 x Manual Valves 1 x Adj.Choke & 1 x Pos. Choke 1 x Data-header | ||
10000 | 4.1/16" | 108 x 178.25 x 46.0 | 8 x Manual Valves 1 x Adj.Choke & 1 x Pos. Choke 1 x Data-header | ||
10000 | 4.1/16" | 85 x 120.0 x 85.0 | 4 x Manual Valves 1 x Adj.Choke & 1 x Pos. Choke 2 x Data-header & 1 x Lifting Arm on Skid | ||
15000 | 3.1/16" | 177 x 175 x 44.61 | 6 x Manual Valves 4 x Pos. Choke 2 x Skids | ||
15000 | 3.1/16" | 161.9 x 103.5 x 72.1 | 2 x Hyd.Valves & 6 x Man. Valves 1 x Adj.Choke & 1 x Pos. Choke 1 x Data-header | ||
15000 | 4.1/16" | 103.5 x 161.9 x 58.5 | 2 x Hyd.Valves & 6 x Man. Valves 1 x Adj.Choke & 1 x Pos. Choke 1 x Data-header | ||
15000 | 4.1/16" | 96 x 175.0 x 72.2 | 8 x Manual Valves 1 x Adj.Choke | ||
Products Description
Application and design code of our choke manifold as below:
Application
Exploration well testing
Extended well testing
Clean-ups and flowback operations
Multiphase flow metering
Design Code & Standards
API 6A PSL 3 PR1/PR2
NACE MR0175
CE/PED
DNV 2.7-1
Exploration well testing
Extended well testing
Clean-ups and flowback operations
Multiphase flow metering
Design Code & Standards
API 6A PSL 3 PR1/PR2
NACE MR0175
CE/PED
DNV 2.7-1

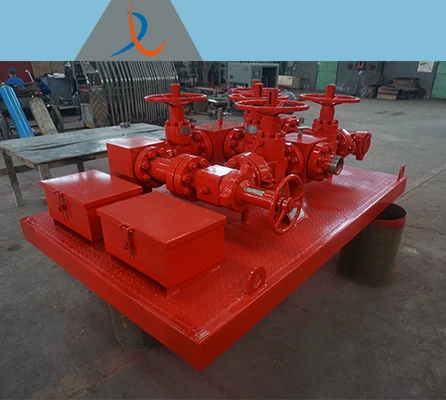

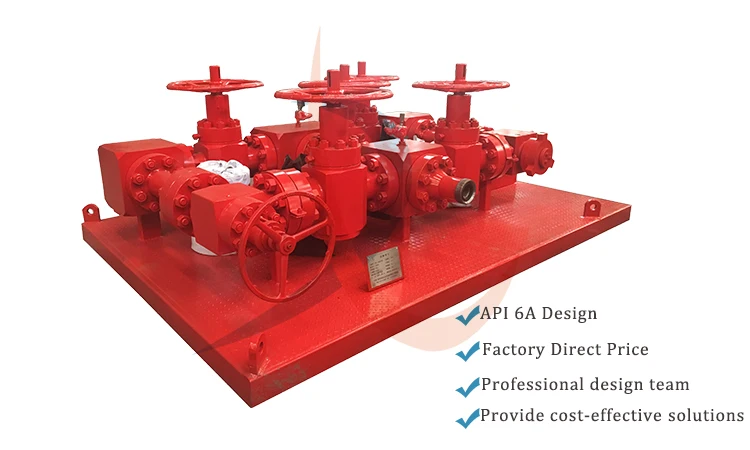

Detail photos of our choke manifold as below:
More detail product configurations about choke manifold , please contact us and SEND INQUIRY to us, we will reply you within 24hours.
