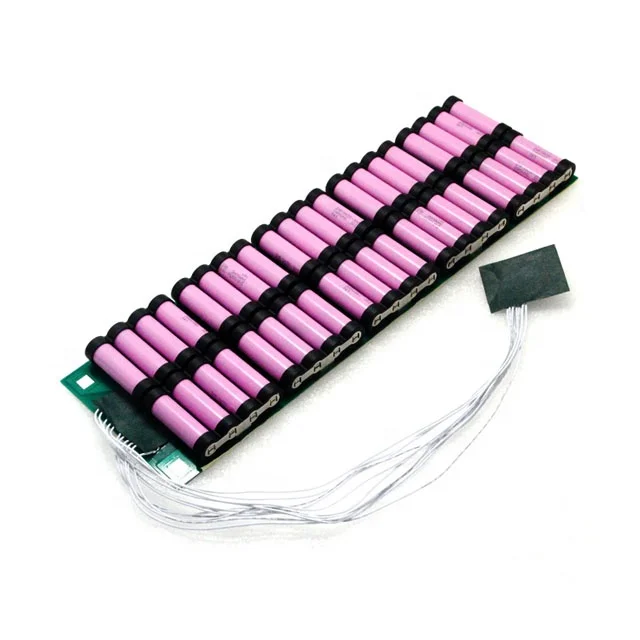

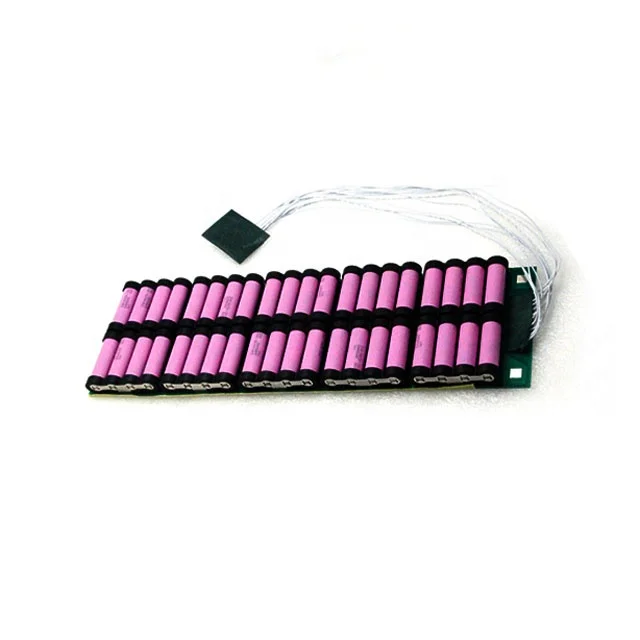

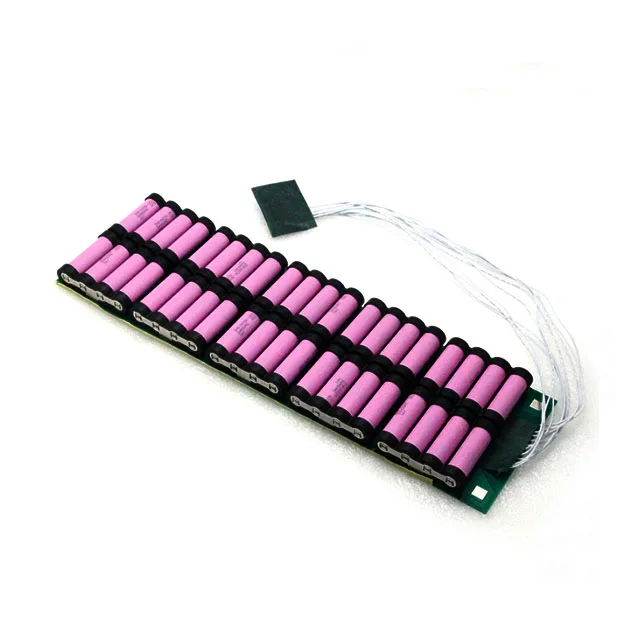

Flexible 10S4P 36V/37V 12Ah with 18650 30Q battery cell for electric skateboard battery pack

Product Overview

Description



LiTech 10S4P 37V 12Ah battery pack is a Lithium-Ion rechargeable Battery Pack with Battery Management System integrated, normal voltage at 37V, rated capacity at 12Ah, with 15cm long 9AWG open wires for charge and discharge (it comes with bare leads in default but connector can be customized accordingly), it is mainly used on electric tools, electric toys, electric bikes, electric scooters, electric boats...



Voltage Range	36V - 42.5V
Capacity	Nominal Capacity: 12Ah
	Minimum Capacity: 11.98Ah
Charge Cut-off Voltage	42.5V
Discharge Cut-off Voltage	36V
Continuous Discharge Current	40A
Discharge Peak Current	60A
Charge Current	20A
Cycle Life	≥ 800 cycles, DOD 100% @ rated current and temp.
Weight	2900g ± 10 g
Dimension	450X140X25 mm
Operation Temp.	Discharge at -20°C ~ 60°C & Charge at 0°C ~ 45°C
Communication Protocol	Independent choice

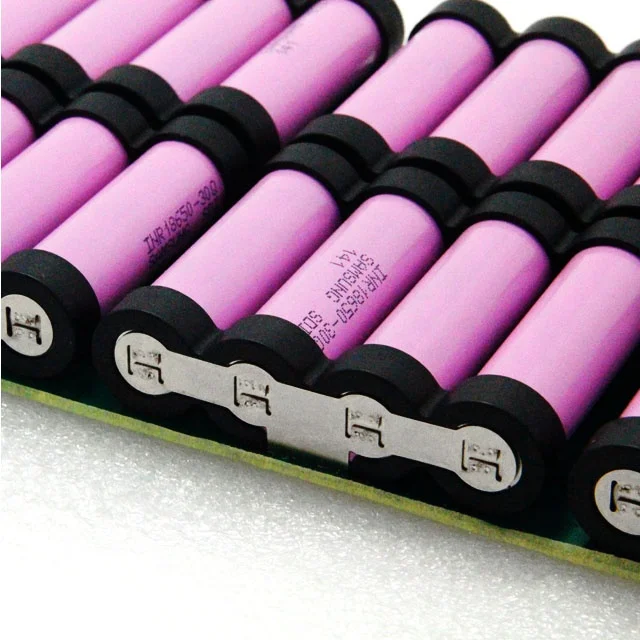

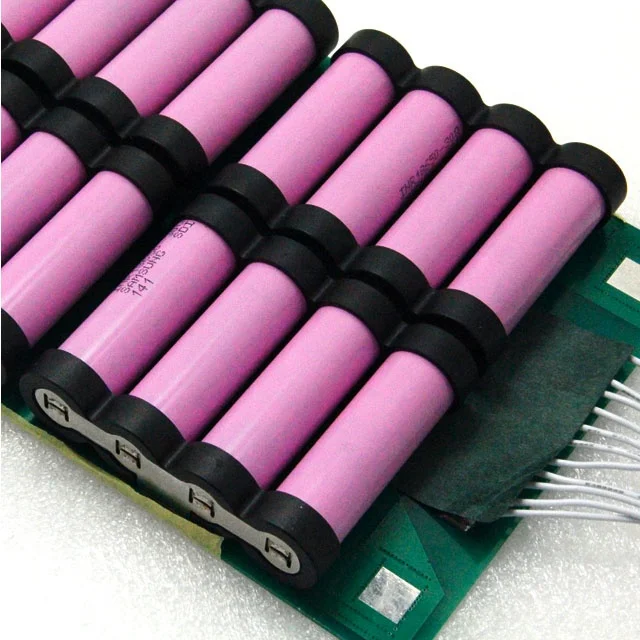

We strictly control each prodcution procedure, closer look at our battery inside



During production, there are more than 20 different testings

 are applied on all the battery packs



Battery is dangerous if you select wrong partner, LiTech will guarantee

 you on safety and reliability, make your products more robust.
