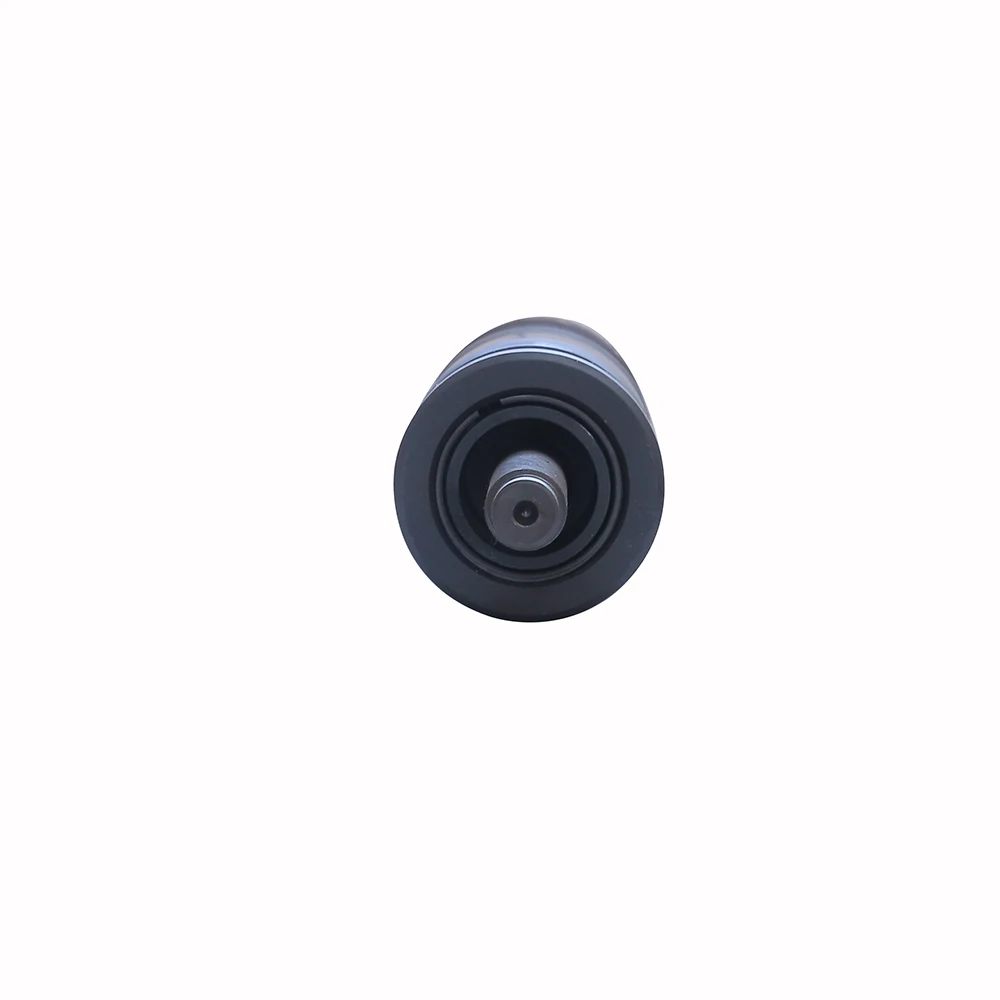

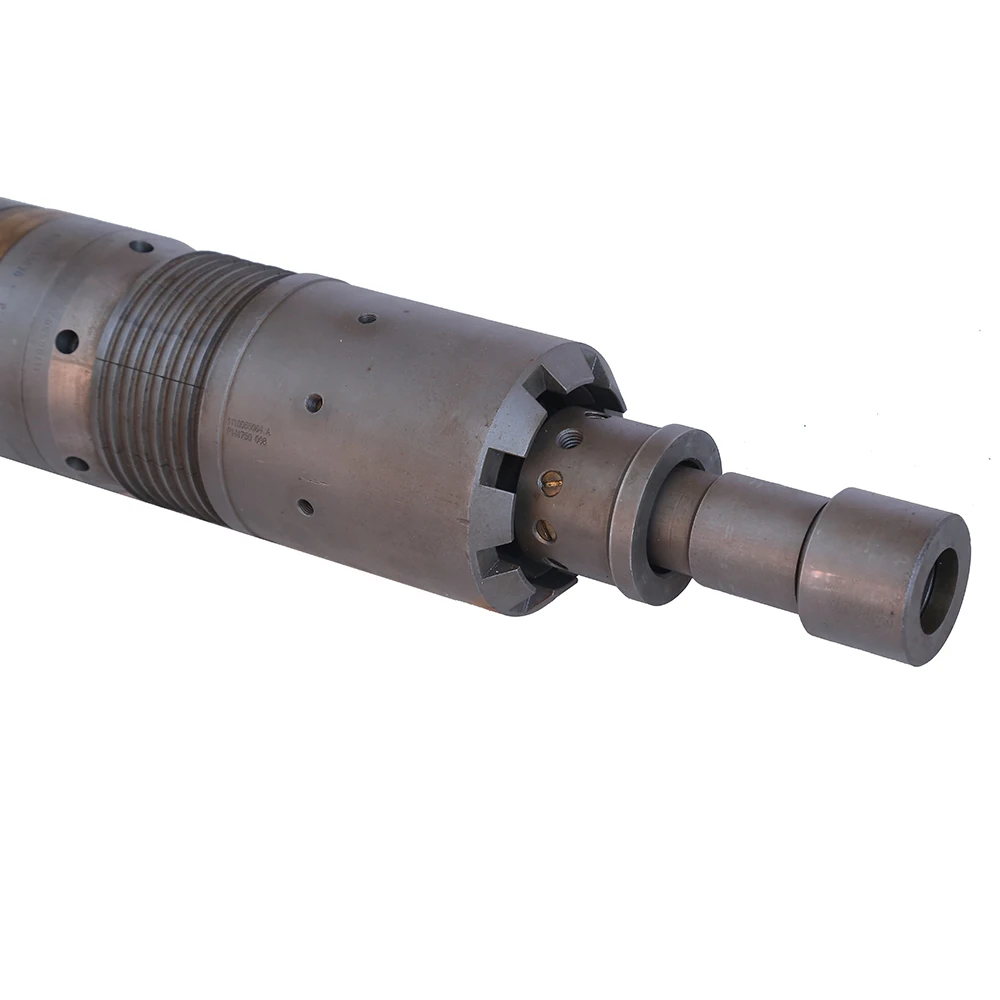

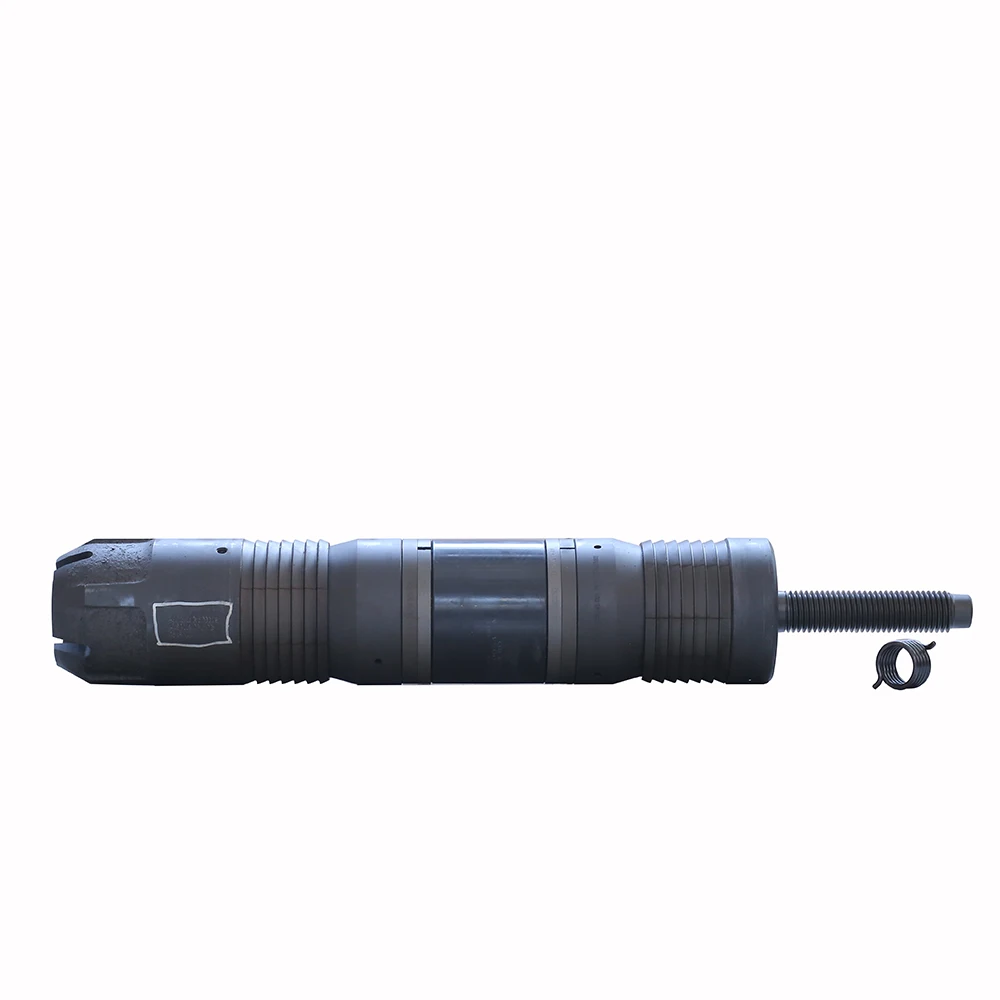

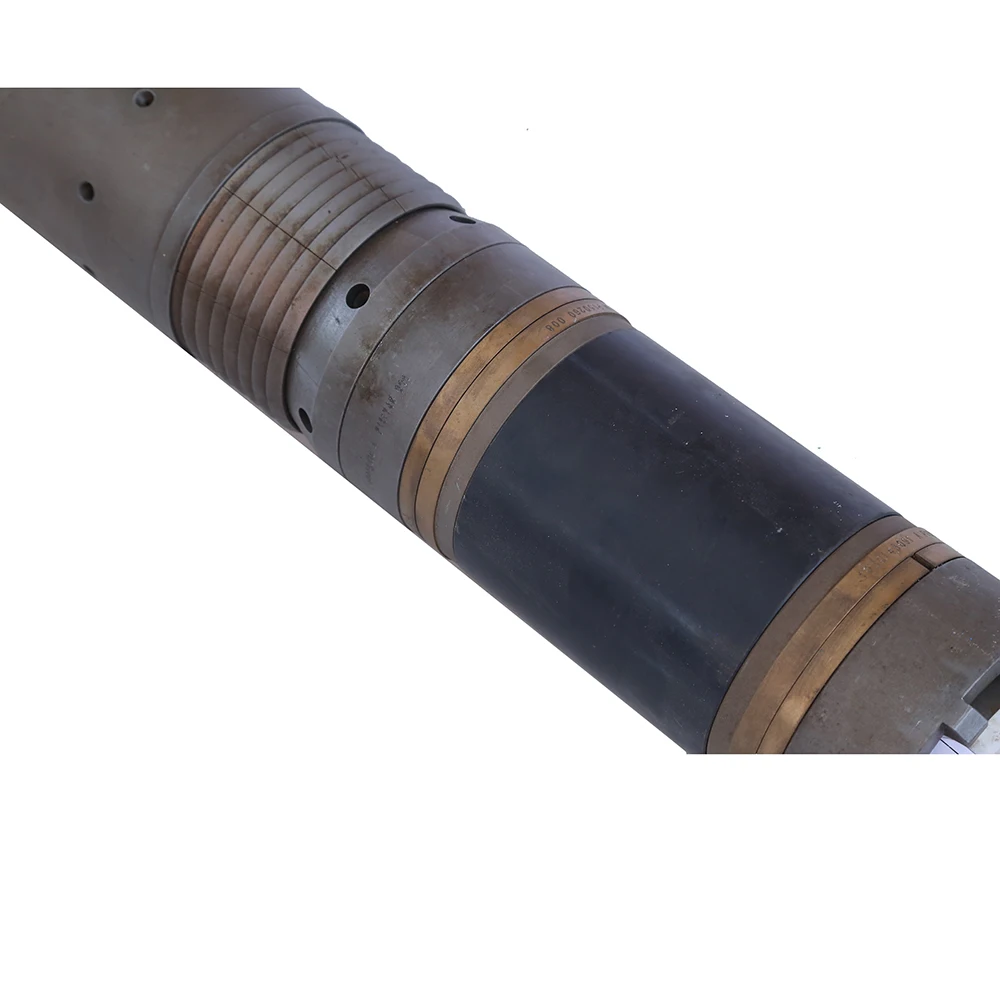

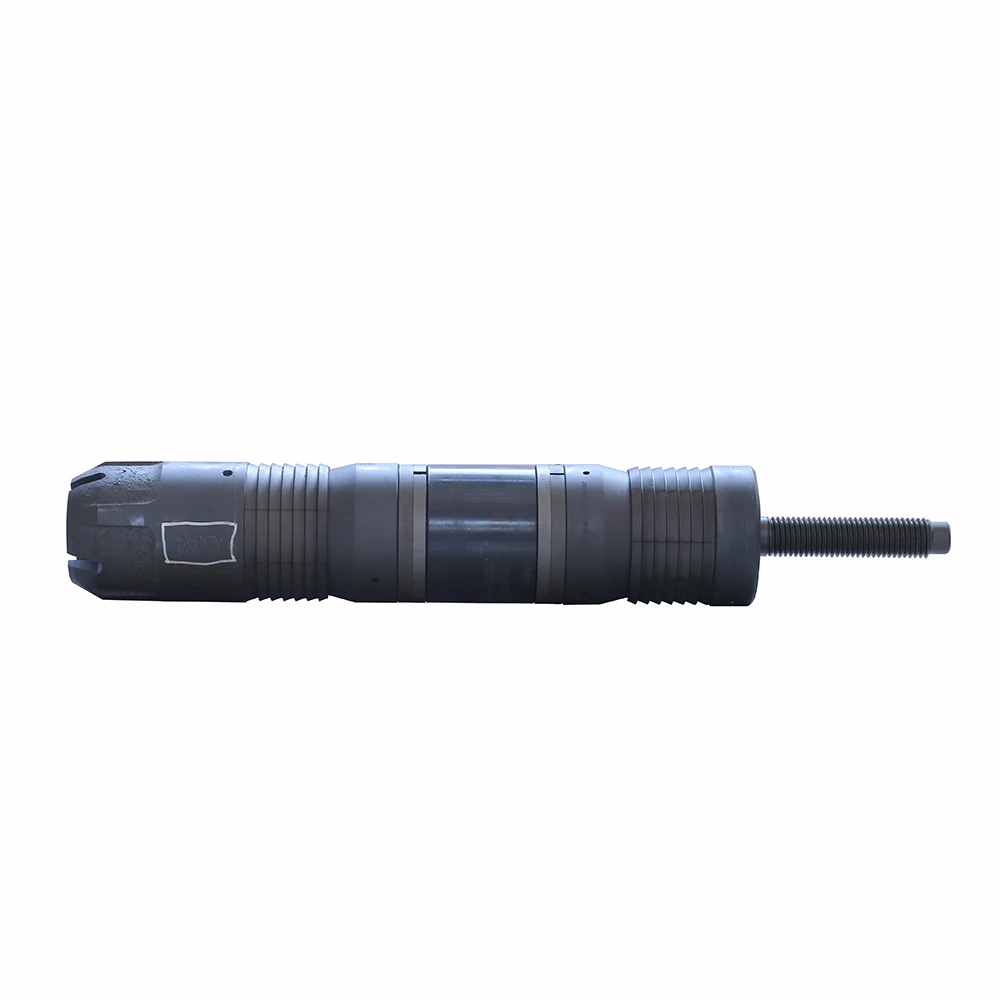

Well completion tools Drillable hydraulically actuated and mechanically set bridge plug

Product Overview

Description

Bridge plug

1. Description



Weldon's mechanical bridge plug is hydraulic actuated and mechanically set. With a small OD, this tool can withstand high pressure and is designed for easy drill out. It can be used in zone isolation for squeeze cementing, fracturing, and plug and abandonment either temporary or permanent.



2. Features



1) Drillable cast iron construction

2) Available in tubing and casing sizes from 2-3/8” to 20”

3) Wireline, tubing, or coiled tubing set.

4) Anti-swab/anti-preset characteristics with 360° slips.

5) Angled backup design prevents element extrusion.

6) Setting force held in place by ratcheting, internal lock ring.



3. Technical Data



Casing	WT.(lbs/ft)	Setting range (mm)	OD Max. (mm)	Total Length (mm)	Working temperature (F)	Setting Force(MPa)	Working Pressure(MPa)
5"	11.5-20.8	115.8-106.3	100.01	562.84	275	17.3	70
5 1/2"	13-23	126.2-118.6	109.52	446.67	300	20.7	70
5 3/4"	14-25.2	127.3-120.9	119.38	512.24	300	17.3	70
6 5/8"	17-32	142.11-160.4	136.4	503.81	300	24.8	70
7"	17-35	166.1-152.5	144.45	480.97	300	24.8	70
9 5/8"	40-58.5	224.4--214.2	206.24	558.8	300	24.8	50





For more oilfield tools, please send us an inquiry.
