automatic sealed tin beverage can depalletizer machine
- Category: Packaging Machine >>>
- Supplier: Zhejiang Xinwei Food Machinery Co. Ltd.
Share on (62328883468):
Product Overview
Description
Product Description

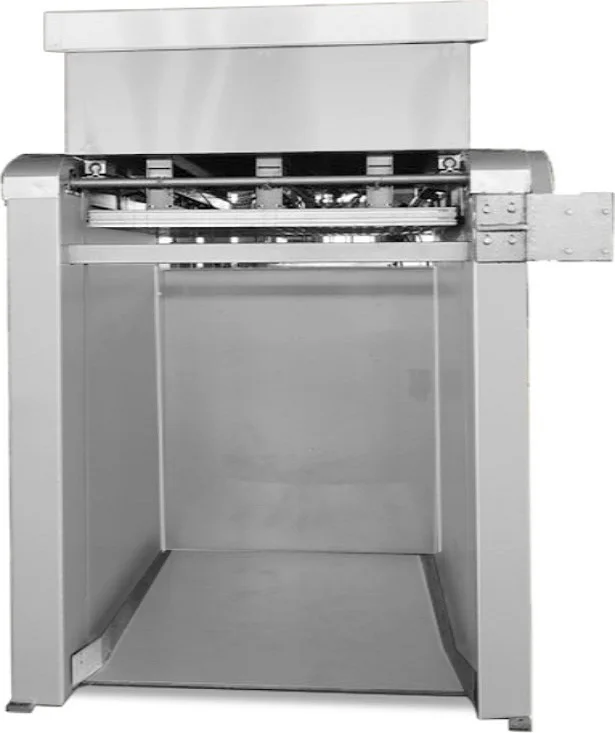

This machine is used for depalletizing various tinplate beverage cans and cans.
The machine has such features as stable and accurate movement, fewer faults, durable etc.. High degree of automation, can replace manual palletizing mode, save a lot of manpower, greatly improve production efficiency.
It is an indispensible ideal equipment for large and medium-sized beverage factories and canneries.
The machine has such features as stable and accurate movement, fewer faults, durable etc.. High degree of automation, can replace manual palletizing mode, save a lot of manpower, greatly improve production efficiency.
It is an indispensible ideal equipment for large and medium-sized beverage factories and canneries.
working principleof depalletizing

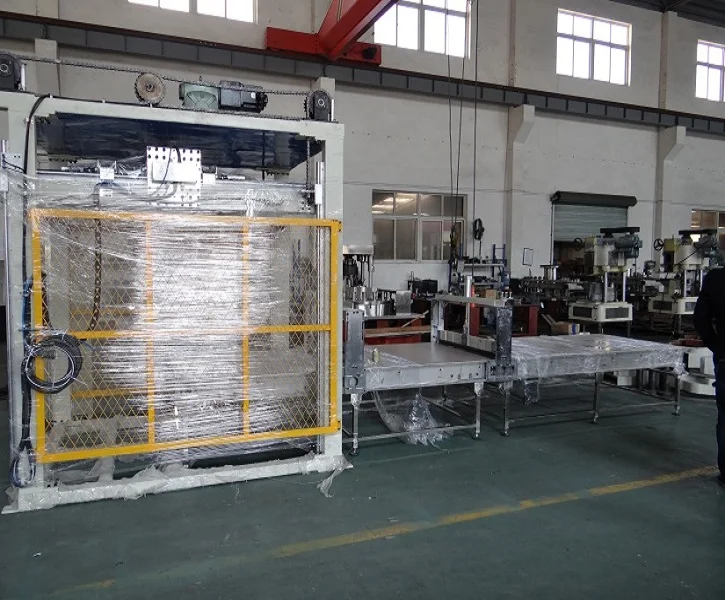

The forklift truck carries the stacked tanks from the constant temperature warehouse to the unloading position and starts to work.
The stack plate elevator lifts the whole stack plate after positioning to the unloading height. When the tank is unloaded, the empty stack plate is removed. It can adjust the speed the rising or falling independently to meet the needs of operation.
The tank unloading process: When the tank is sent to the height of unloading tank, the permanent magnet steel suction cups suck the whole layer of tank to the net conveyor, then return to the ready position, continue to push out one layer and then send it to the net belt. The action circulates back and forth until the whole stack is unloaded.
The stack plate elevator lifts the whole stack plate after positioning to the unloading height. When the tank is unloaded, the empty stack plate is removed. It can adjust the speed the rising or falling independently to meet the needs of operation.
The tank unloading process: When the tank is sent to the height of unloading tank, the permanent magnet steel suction cups suck the whole layer of tank to the net conveyor, then return to the ready position, continue to push out one layer and then send it to the net belt. The action circulates back and forth until the whole stack is unloaded.
Size Information
Main technical parameters
Model | XWXDJ-400 |
Production capacity | 400cans/min |
Palletizing height | ≤1600mm |
Total power of motor | 5.2kw |
Palletizing dimension | 1100*1100mm |
Outline size | 5500*2000*2000mm |
Weight | 2000kg |
Service
Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.
* View our Factory.
After-Sales Service
* Engineers available to service machinery overseas.
* Field installation, commissioning and training.
* Field maintenance and repair service.
* Field installation, commissioning and training.
* Field maintenance and repair service.
Company Introduction
Zhejiang NewWay Food Machinery Co., Ltd. is located in Zhoushan, the Oriental Pearl City Thousand Island City. It is 16 kilometers away from Mount Putuo airport. There are multiple flights to and fro Shanghai international airport everyday, 98 kilometers away from Ningbo Lishe airport, the traffic is very convenient.
The company is mainly engaged in the design and manufacture of beverages, canning machine and sealing machine packed with tinplate, aluminum, plastic and paper materials, as well as related products. Undertake the whole production line of easy-to-open beverage (including steam, non steam), sauce filling and sealing production line, Babao porridge canning, food, fruit and vegetable canning production line, etc.
The company fully uses CAD and CAM to design products. It is in a leading position in the field of filling and sealing equipment for canned food and beverage in China. The company specializes in the production of high-speed canning filling and sealing units and production lines, which make due contributions to the localization of similar imported equipment, reduce investment costs in the food and beverage industry, improve labor productivity of enterprises, and promote the rapid development and growth of the industry.
The company relies on strong technical force and effective technical guarantee, flexible business philosophy and quality service, advanced manufacturing technology, excellence in product quality and good reputation, to serve the vast number of new and old customers and welcome friends from all walks of life to visit and patronize.
The company is mainly engaged in the design and manufacture of beverages, canning machine and sealing machine packed with tinplate, aluminum, plastic and paper materials, as well as related products. Undertake the whole production line of easy-to-open beverage (including steam, non steam), sauce filling and sealing production line, Babao porridge canning, food, fruit and vegetable canning production line, etc.
The company fully uses CAD and CAM to design products. It is in a leading position in the field of filling and sealing equipment for canned food and beverage in China. The company specializes in the production of high-speed canning filling and sealing units and production lines, which make due contributions to the localization of similar imported equipment, reduce investment costs in the food and beverage industry, improve labor productivity of enterprises, and promote the rapid development and growth of the industry.
The company relies on strong technical force and effective technical guarantee, flexible business philosophy and quality service, advanced manufacturing technology, excellence in product quality and good reputation, to serve the vast number of new and old customers and welcome friends from all walks of life to visit and patronize.
