Oilfield completion tools Wireline set Retrievable bridge plug

Product Overview

Description

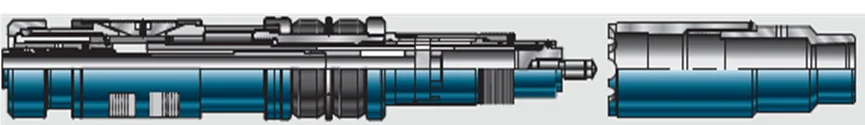

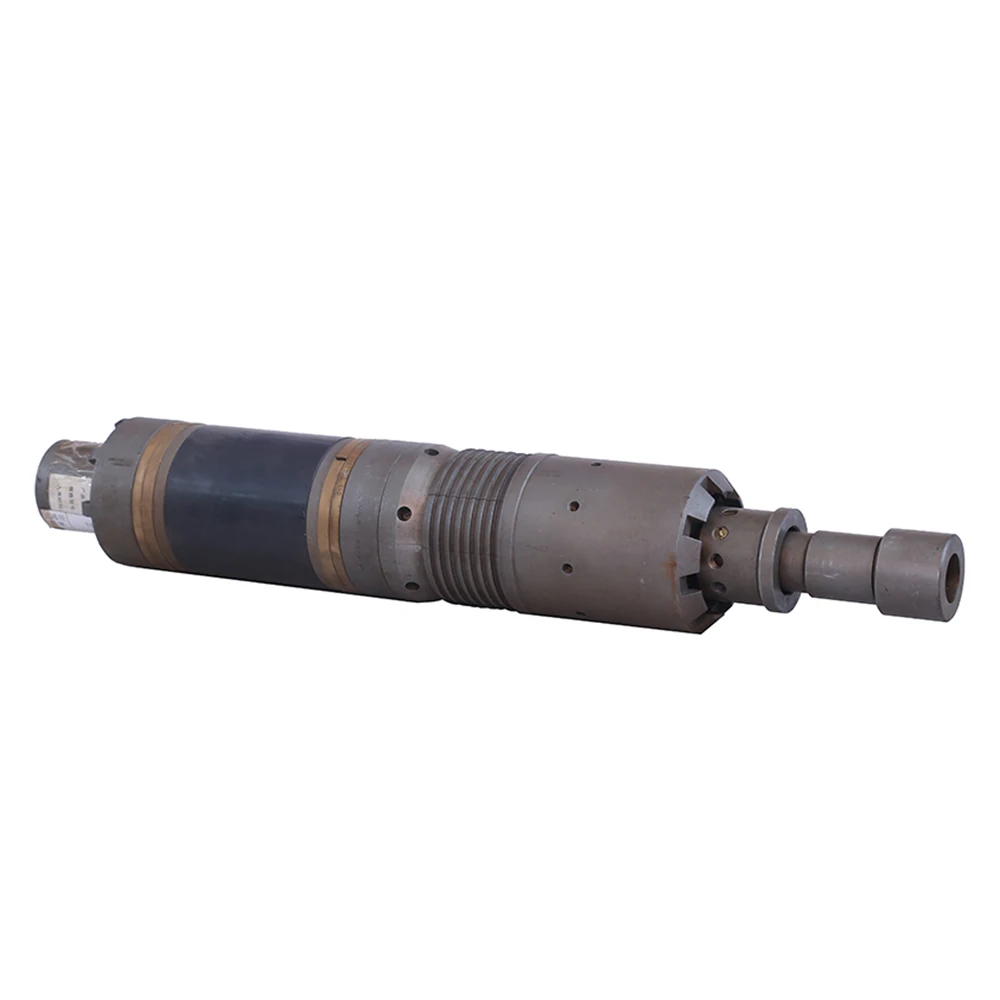

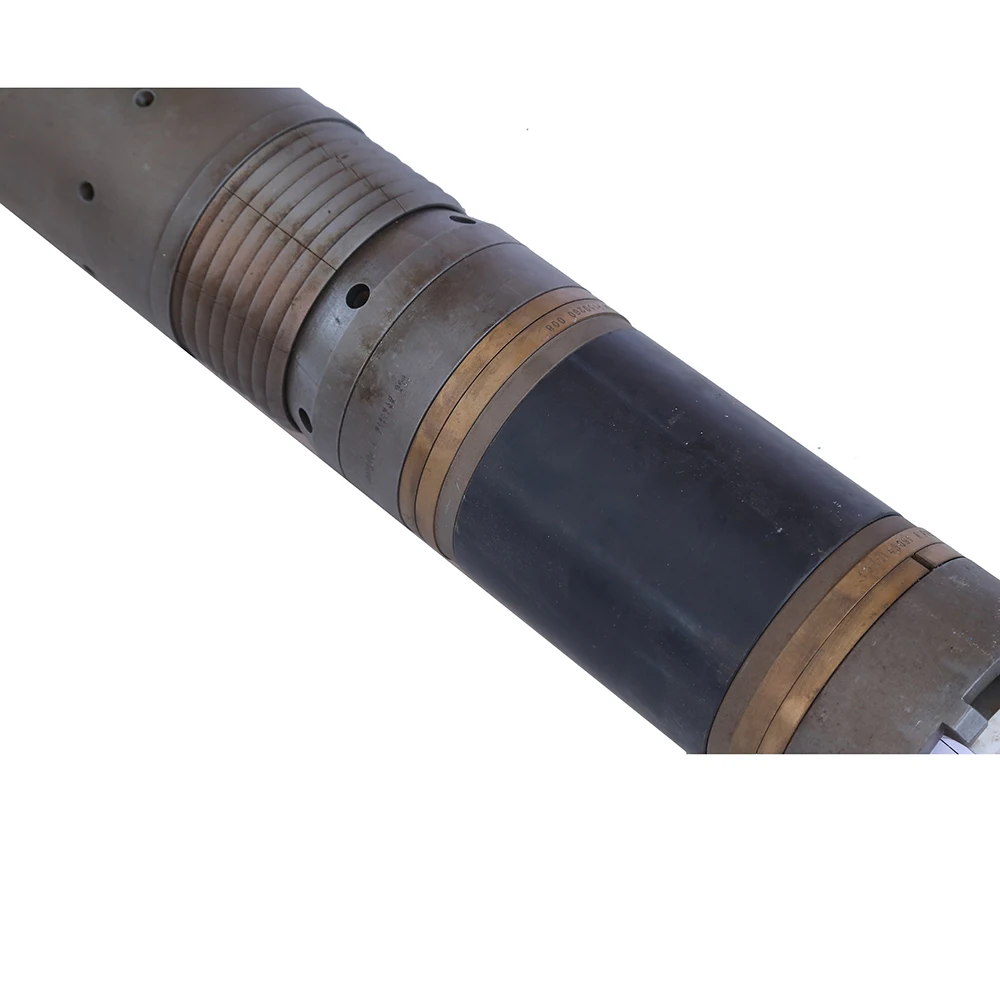

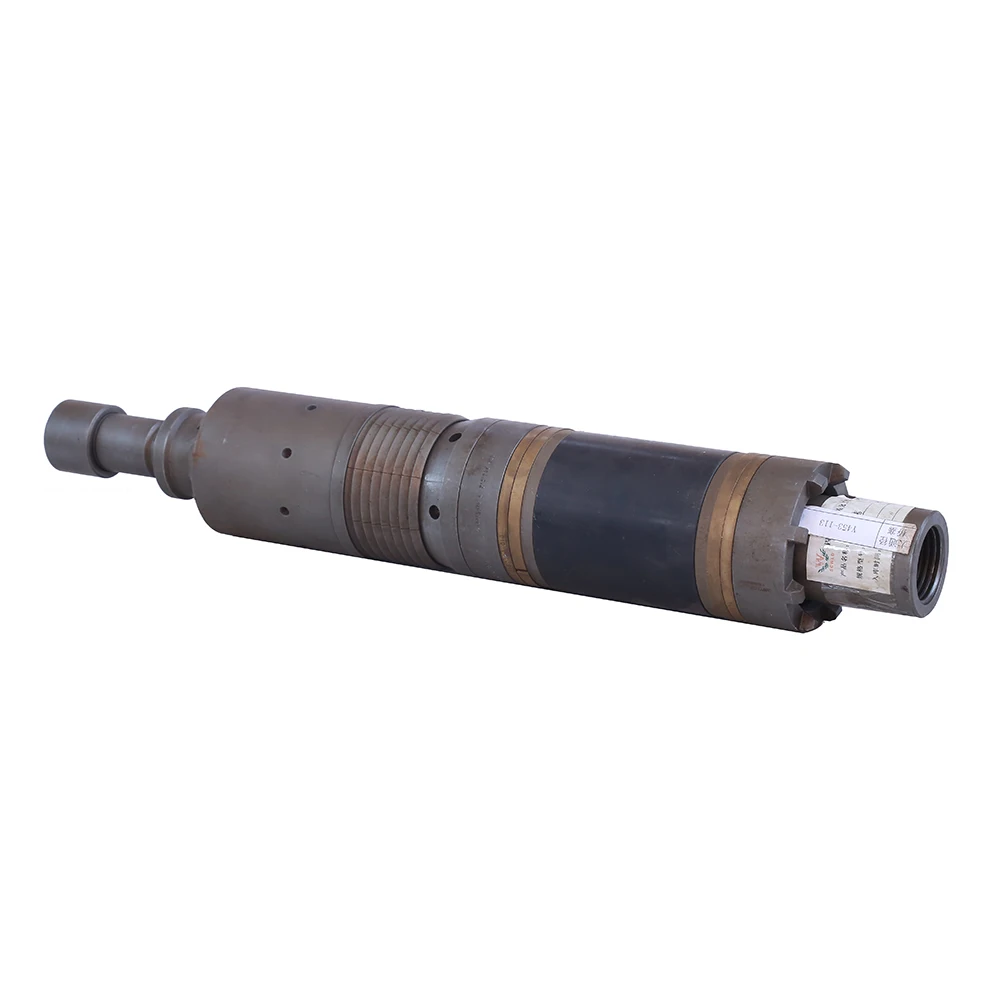

Retrievable bridge plug

1. Application

Retrievable bridge plugs are used for temporary plugging, water plugging, testing, and work with packers for acid fracturing.





2. Technical Features



1) Simple structure, wireline set or hydraulic set.

2) can be safely setted the casing of P-110 steel grade;

3) Assembly will not set until the hydrostatic pressure at a pre-determined depth is reached or annulus pressure is applied;

4) Two-way slip anchoring, subject to upper and lower pressure difference;

7) Working temperature rating of 150 ° C (300 ° F);

8) Available for all kinds of casing from 5 1/2′′ to 9 5/8′′.



3. Technical Parameters



Type	Total Length (m)	WT.(lbs/ft)	ID(mm)	OD(mm)	Release Force(t)	Pressure(MPa)
5 1/2"	0.95	20~23	118.61~121.36	114.3	13.6	70
		15.5~20	121.36~125.73	117.88		70
		13~15.5	125.73~128.1	121.43		70
7”	1.025	32~35	152.5~154.78	147.62	25	70
		26~29	157.07~159.41	151.58		70
		23~26	159.41~161.69	154.38		70
		17~20	163.98~166.06	159.15		70
9 5/8"	1.025	40~47	220.49~224.4	214.29	25	55
		47~53.5	224.4~216.78	208.73		55

3.  Model







Besides, we also provide other specifications of bridge plug for your selection, please feel free to contact us directly or send a inquiry ;-)
