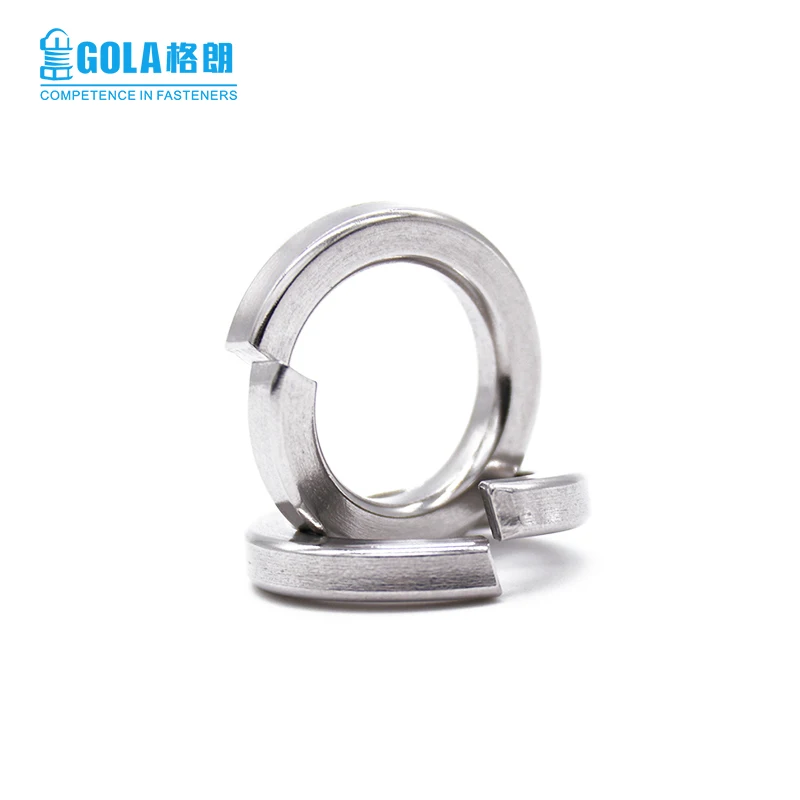

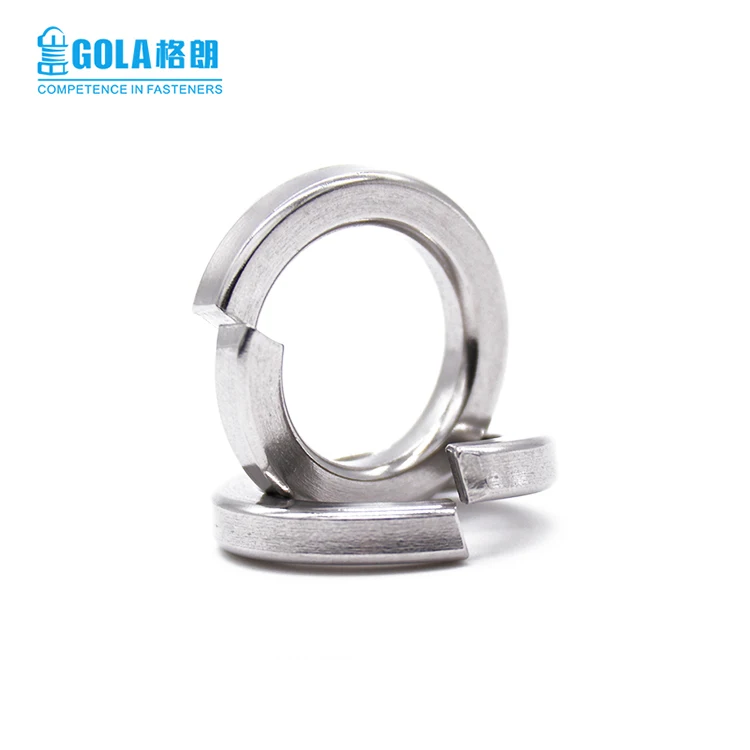

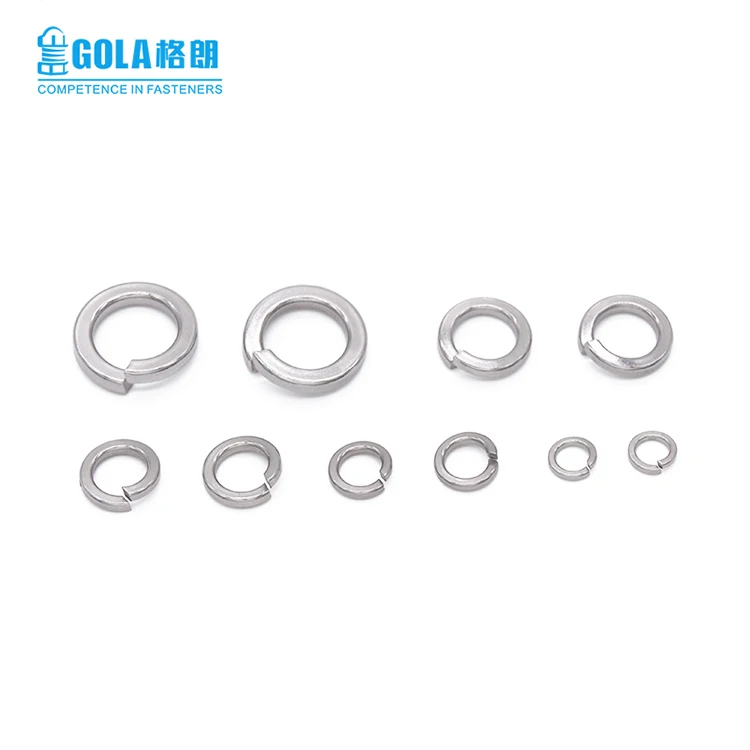

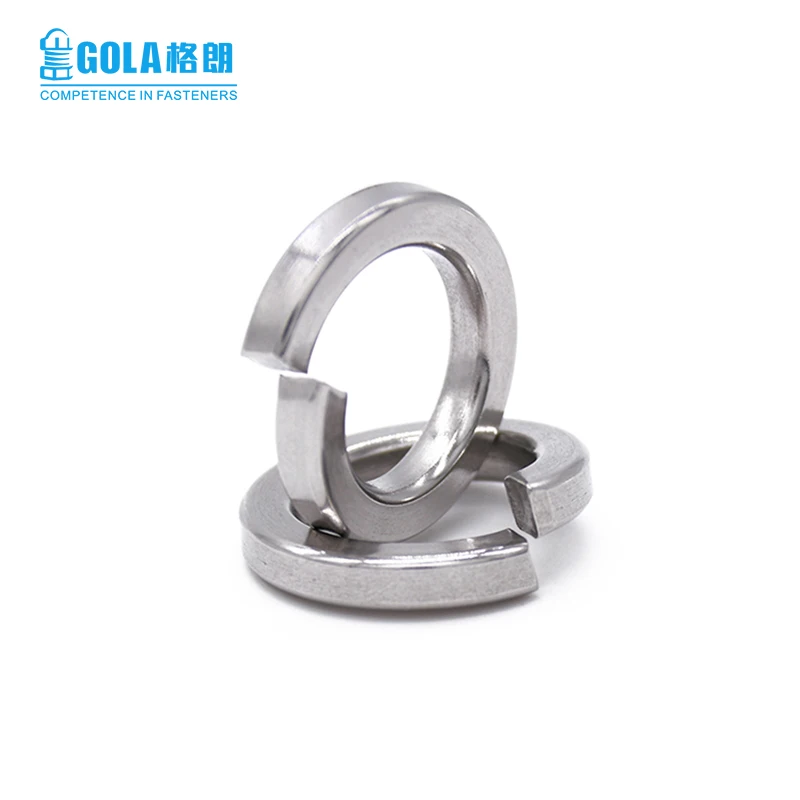

Ultra Thin 304 Stainless steel DIN988 Shim Washer
US $0.01-$0.12
Share on:
Product | Spring Washer |
Material | SS304, SS316 |
Standard | DIN, GB/T, ANSI |
Size | M6 M8 M10 M12 M14 M16 M20 |
Finish | Nature |
Package | Carton( 6 packs in one carton, and weight is around 22-25kg) |
Lead time | 5 to 15 working days |
Customize | Available |
MOQ | No MOQ for standard item, negotiable for customized item. |
Size(d) | M6 | M8 | M10 | M12 | M14 | M16 | M20 | ||
d | min. | 6.10 | 8.10 | 10.20 | 12.20 | 14.20 | 16.20 | 20.20 | |
max. | 6.68 | 6.68 | 10.90 | 12.90 | 14.90 | 16.90 | 21.04 | ||
s | min. | 1.50 | 2.00 | 2.45 | 2.95 | 3.40 | 3.90 | 4.80 | |
max. | 1.70 | 2.20 | 2.75 | 3.25 | 3.80 | 4.30 | 5.20 | ||
H | min. | 3.20 | 4.20 | 5.20 | 6.20 | 7.20 | 8.20 | 10.00 | |
max. | 4.00 | 5.25 | 6.50 | 7.75 | 9.00 | 10.25 | 12.50 |
ITEM | CHEMICAL ELEMENTS COMPOSITION | ||||||||||||||
C(%) | Si(%) | Mn(%) | P(%) | S(%) | Ni(%) | Cr(%) | Mo(%) | ||||||||
SS304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.0-11.0 | 18-20 | ||||||||
SS316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.0-14.0 | 16-18 | 2.0-3.0 |
