Single port 17" Rackmount with USB/VGA cable KVM 1701M lcd KVM switch Console
- Category: KVM Switches >>>
- Supplier: Shenzhen Pontron Technology Ltd.
Share on (62329454457):
Product Overview
Description
Product Description
Main features

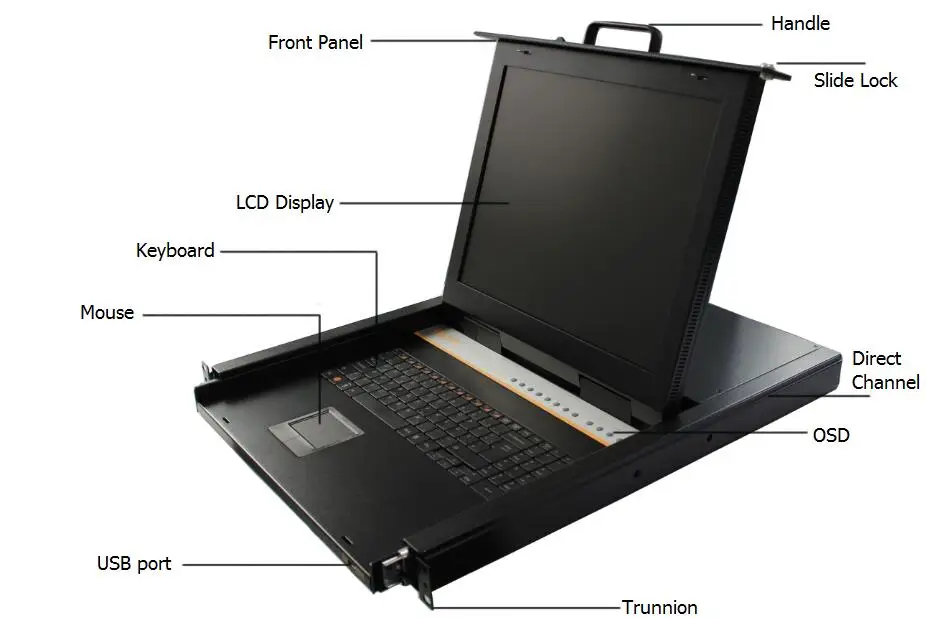

« 19’’ 1U rack mount 17’’ LED KVM switch with touch pad+Mouse
« 104keys keyboard with integrated Digital&E-switch keys.
« Supports 1024*1280 @ 75HZ resolution, 250 nit brightness.
« Supports front USB for keyboard/mouse
« Support USB+PS2 local console
« Supports computer indicator when user switch to another computer.
« Support cascading connection, max up to 512 computer.
Introduction
« Withdrawing installation design, the length can be adjusted to fit the rack space.
« Humanized design, can be installed and removed by only one person , which improves the efficiency of the administrator.
« To switch the host computer though the hotkey or OSD menu, which can manage up to 512 computers.
« Password security protection, only authorized users can view and manage on-line computer.
« Support a variety of brand industrial computer and the sever, eg: EVOC / Lenovo / IBM / DELL / HP/ SUN, ect .
« Support various operating system: Window XP, 7 /8 / 10 ,Microsoft, Linux, Unix,etc.
Specification
|
Model |
KVM-1701M |
|
|
Computer connect |
Direct 1 |
|
|
Max:1 |
||
|
Keyboard |
104 Mechanical mute Keyboard |
|
|
Mouse |
Touchpad |
|
|
Switch Mode |
||
|
Switch Scan Time |
1-255 second ( OSD adjustable ) |
|
|
Cable Port |
Local console |
Keyboard / Mouse/ Display (2*USB +2*PS/2+1* HDB-15 female ) |
|
Connector port |
4 * HDB-15 female ( Yellow ) |
|
|
Power supply |
1 * 3 pin AC power supply socket |
|
|
Panel
|
Size |
17’’ TFT LED |
|
Resolution |
1024 * 1280 |
|
|
Max Color |
16.7M |
|
|
Brightness |
300nit |
|
|
Contrast ratio |
700:1 |
|
|
Pixel Pitch |
0.297 x 0.297 mm |
|
|
Power input |
DC12V input ( AC100-240V 47-63Hz, 35W ) optional |
|
|
Work environment |
Operating Temp |
-10℃~60℃ |
|
Storage Temp |
-20℃~70℃ |
|
|
Humidity |
0%-95%RH |
|
|
Cabinet Material |
high-strength and Anti-corrosive steel plate |
|
|
Color |
Insulated black (optional) |
|
|
For Cabinet |
800-1040mm |
|
|
Net weight |
12KG-16KG |
|
|
Gross Weight |
16KG-21KG |
|
|
Dimension(L x W x H) |
448*480.4*44mm(KVM-1701M); 567.8*480.4*44mm(KVM-1704M/ 1708M/ 1716M ) |
|
|
Package (L x W x H) |
708mm*608mm*195mm |
|
|
Certificate |
CE , FCC , RHOS |
|
Ordering information
|
KVM - 1701M |
1U Rack mount 17" TFT LCD KVM switch, W/ keyboard +touchpad , W/ 1 port VGA , W/ 12V power supply, W/ USB cable. |

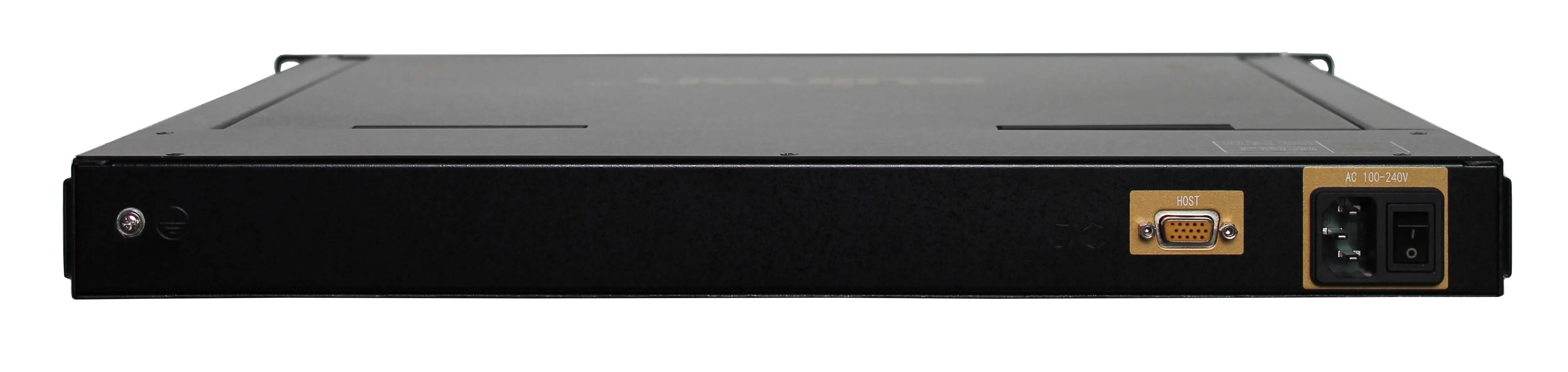

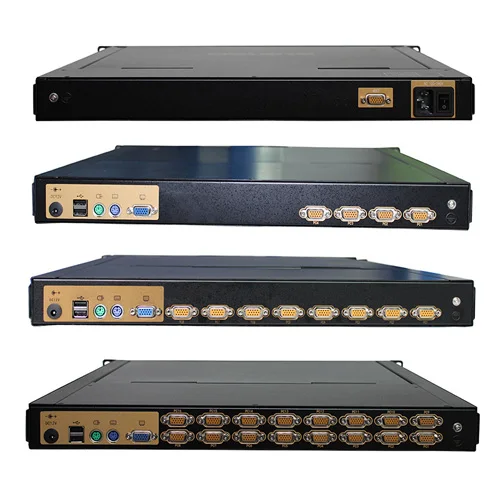

IO View

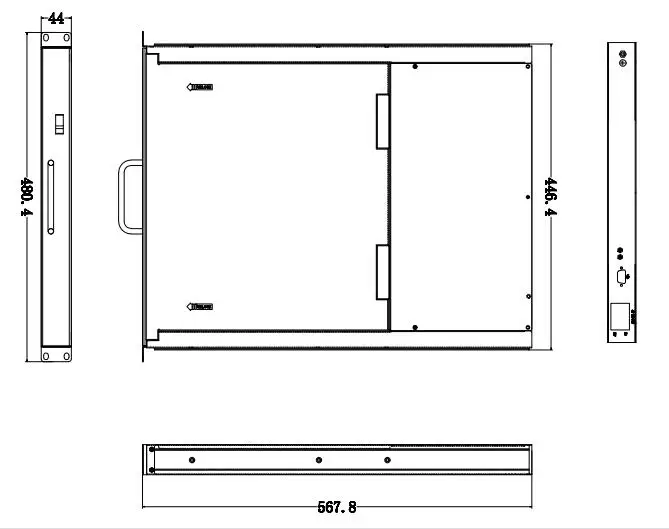

Drawing

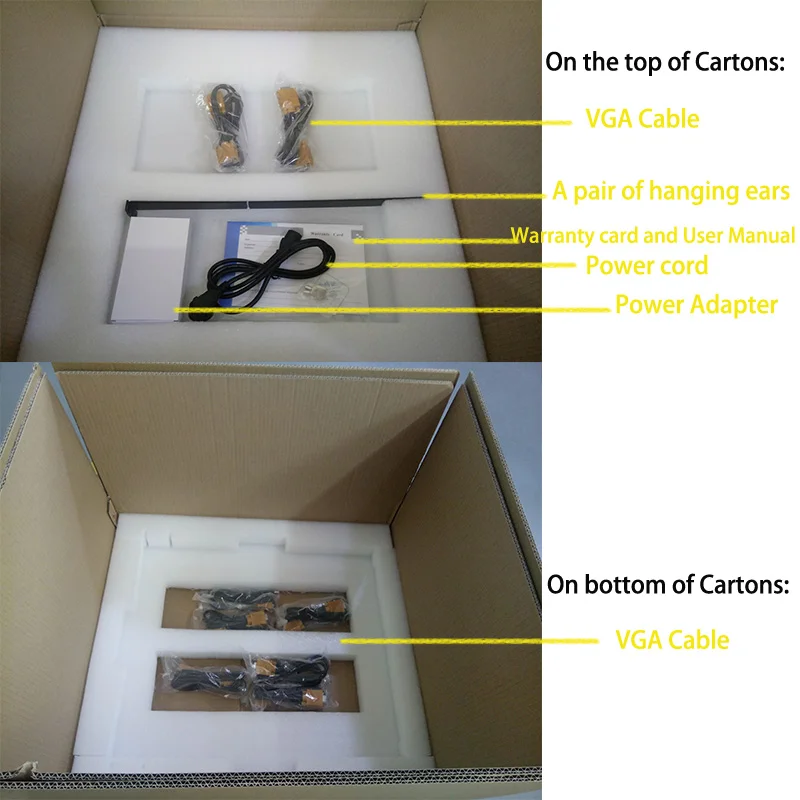

Accessories
Our Promise
1.12Hours , up to 48 Hours for the UV Test
2.Double Carton Package, with Thickening and hardening treatment and PE bag outside!!!!
Packaging & Shipping
