Classic Woodworking Metal Sheet Board Door Panel Laminator Solvent Glue Industrial PVC PE PP Film Laminating Machine

Share on (62330208644):


Price:$22,500.00 - $27,000.00

Quantity:


Product Overview

Description


Classic Woodworking Metal Sheet Board Door Panel Laminator Solvent Glue Industrial PVC PE PP Film Laminating Machine













 PRODUCT INFORMATION




































TECHNICAL CHARACTERISTICS
Overall4000*1500*1800mm
Weight4500kg
Feed Rate1-16m/ min
Total Power9kw
Compressed Air Pressure6 bar
Working Voltage380ACV, 52 Hz





































MATERIAL CHARACTERISTICS
Profile Width100-700 mm
Profile Height10-120 mm
Min Profile Length500 mm
Film Width100-700 mm
Film Roll Internal Diameter76.2 mm
Film Roll Maximum Diameter400 mm














 PRODUCT INFORMATION


















 DETAILS DISPLAY

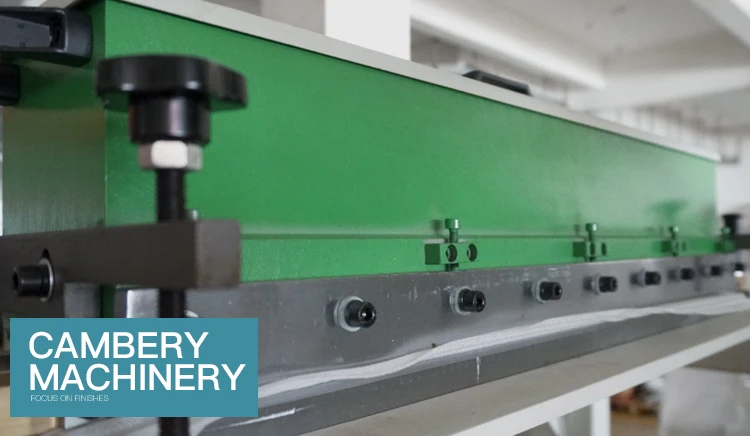

GLUE APPLICATOR


1. Non-stick surface treatment


2. Adjustable opening and precise glue application

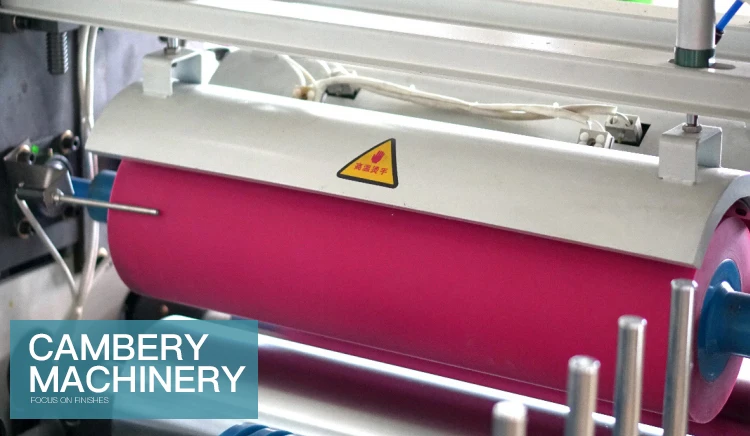

LAMINATION GROUP


1. Specified silicon press roller


2. Separate heating, dependant temperature and pressure control


3. Used for various door panel lamination

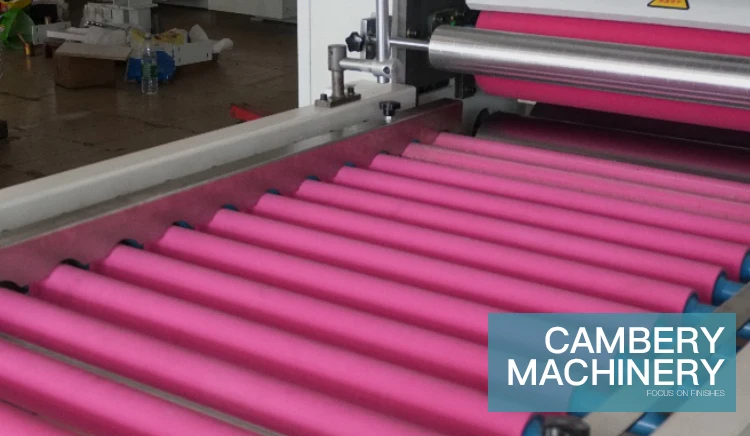

TRANSPORT WHEELS


1. Equipped with high quality silicon roller group and robust metal bearings


2. Fast and flexible switch for various intended uses
















 APPLICATION

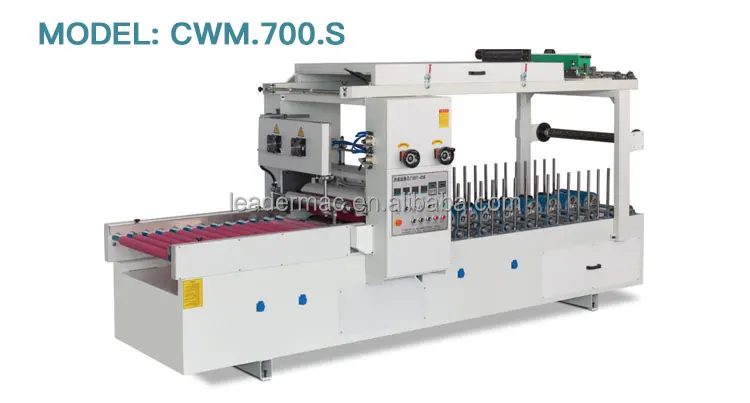

CWM.700.S









Lamination of door panel with various film like CPL, melamine paper, PE, PVC rolls













If you want to know more, Please clickContact Us >












 HOT SALE






















 COMPANY OVERVIEW










FOSHAN CAMBERY MACHINERY CO., LTD.


Cambery Machinery was founded in 2009 and is specialized in the industrial surface finishing systems, including laminating and profile wrapping.


We are not only a machine provider, but also the end user for every machine we made; we built the training center for the machines operation to offer the courses for more than 1,000 persons from our clients and employees. With one decade of striving for easy wrapping for customers, now we are offering the turn-key solutions for uninterrupted gluing system, quick-switch for various profiles, and the automatic loading and unloading platform. etc.


It is time to say goodbye to the nightmares caused by high turnover of technicians; our machines are accessible even to green hands who are new to the business thanks to our perfect aftersales service and fit-for-purpose training centre.



.jpg









PERFECT PRODUCTION LINE


Our company has a standard workshop to ensure the quality of each step of production.











WELCOME TO VISIT US


Cooperation with up to 50 countries around the world.










If you want to know more, Please clickView More  >















 OUR CERTIFICATION










If you want to know more, Please clickView More  >












 FAQ











Q1. Warranty


A1. 12 months warranty is effective from the date of acceptance of the machine.





Q2. Payment Terms


A2. TT 30% down payment, 70% before shipment.





Q3. Delivery Time


A3. 15-30 working days from the receipt of the down payment.





Q4. Machine installation


A4. Cambery could assign the technician to the place for the on-site


      installation if requested by the purchaser.





Q5. Technical Support


A5. Every machine is assigned by a specialist. The response is available within


      12 hours while the solution for the troubleshooting is provided within 48


      hours.





Q6. Demo and Testing


A6. Cambery built a training center for the clients and employees to study the


      machines operation. You are welcome to visit our factory anytime for the


      machines’ demo. Furthermore, we could run the machine with the


      materials provided by you and help you achieve your business efficiently.
