China Supply Manufacturer Railway Use Hand Held Hydraulic Rail Tamping Machine

Product Overview

Description

Introduction of  China Supply Manufacturer Railway Use Hand Held Hydraulic Rail Tamping Machine

Internal combustion tamping picks a small road suitable for railway track maintenance machinery, mainly used for ballast track tamping homework. Its novel design, compact structure, is a kind of way rapidly up and down, stamping equipment, convenient operation is particularly suited to switch tamping homework.
This machine is mainly composed of gasoline engine, the vibration damping device, a transmission axis, a vibration body and hand, constitute a complete independence of handheld tamping machine, neither the long cables, no heavy soft shaft, compact and reasonable structure, easy to use.   zmwm06

Parameter of  China Supply Manufacturer Railway Use Hand Held Hydraulic Rail Tamping Machine

model	ND-4
petrol engine power:	1.42kw
vibrating force:	≥4.2KN
idling amplitude:	>5mm
frequency:	120~140HZ
diameter of vibrating & tamping bar:	52mm
rev. speed of eccentric block:	7000-8000r/min
total weight:	16kg
brand	China Coal
packing	wooden case

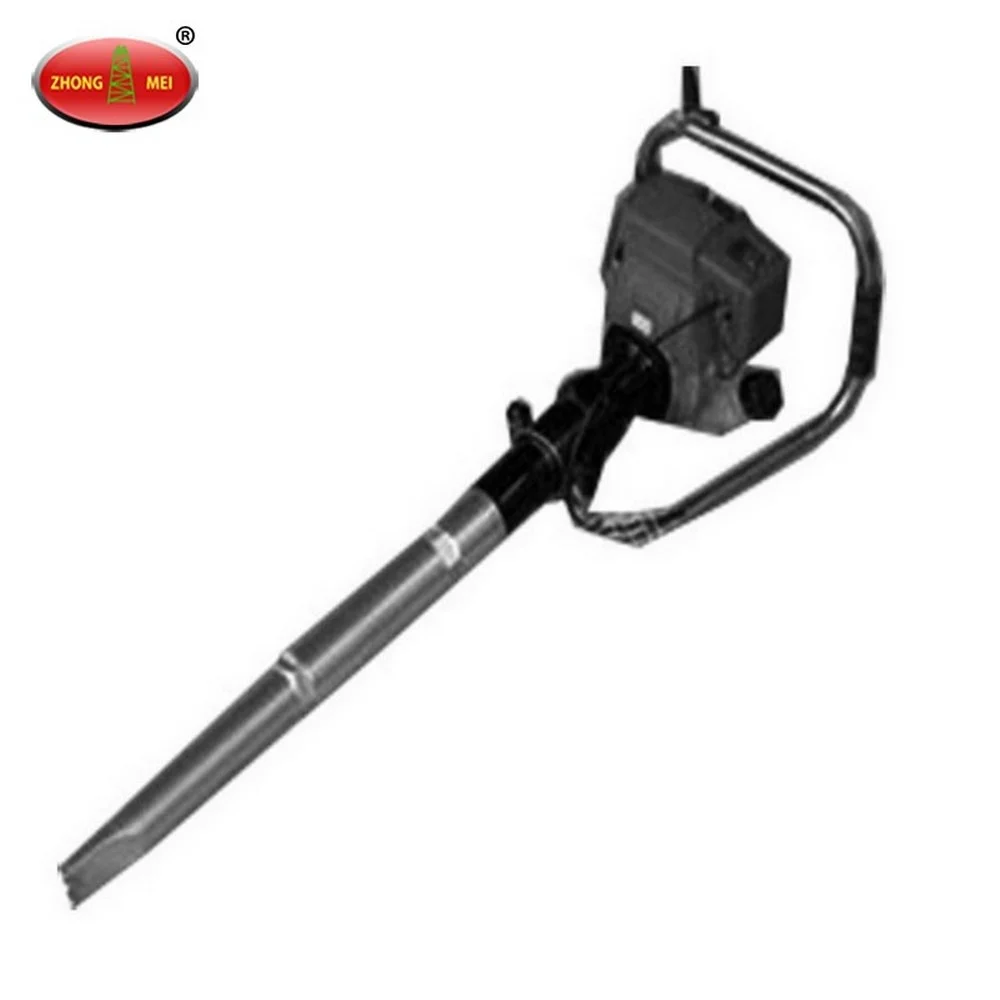

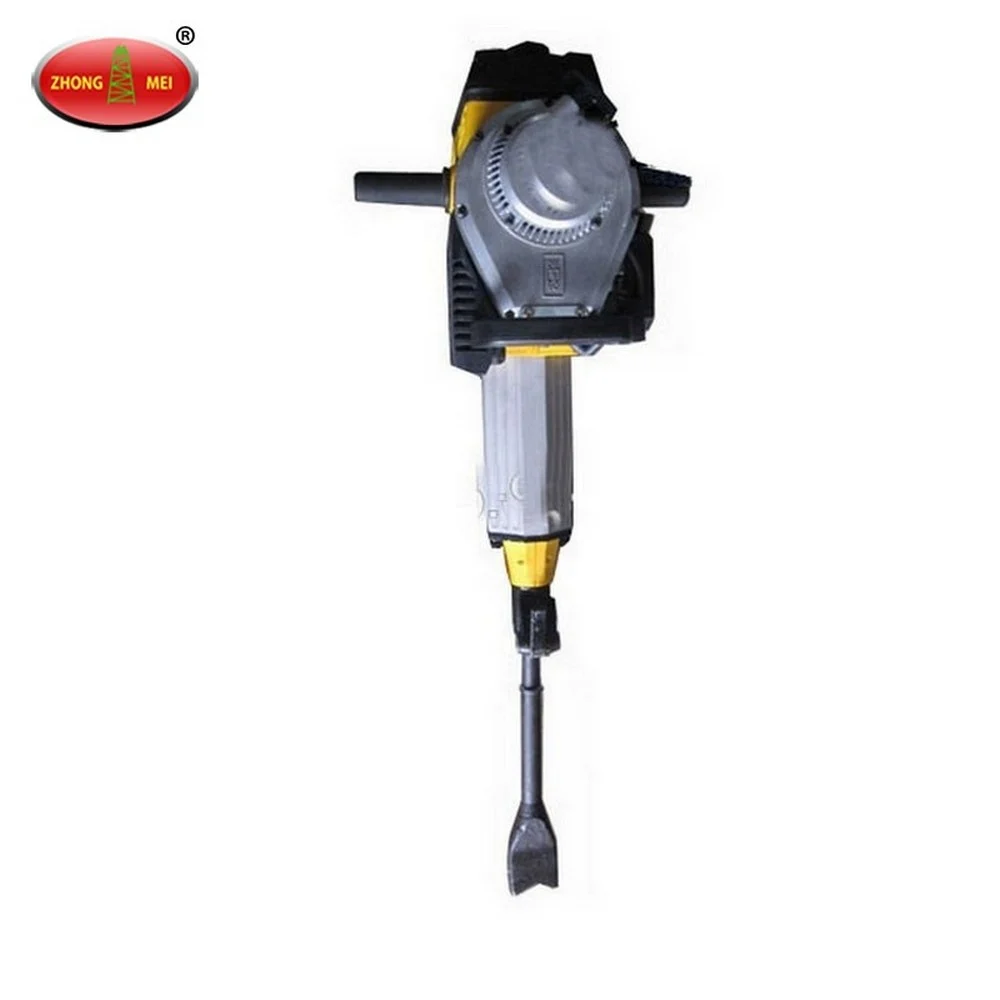

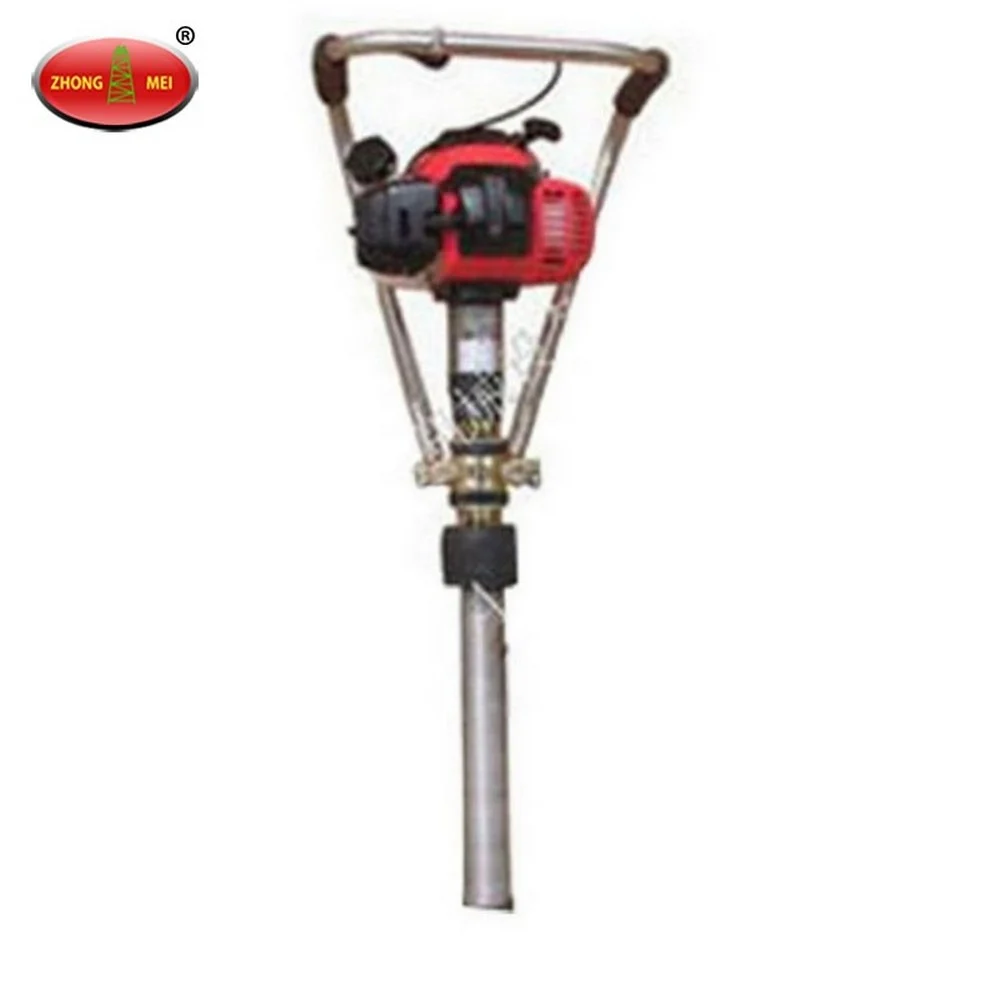

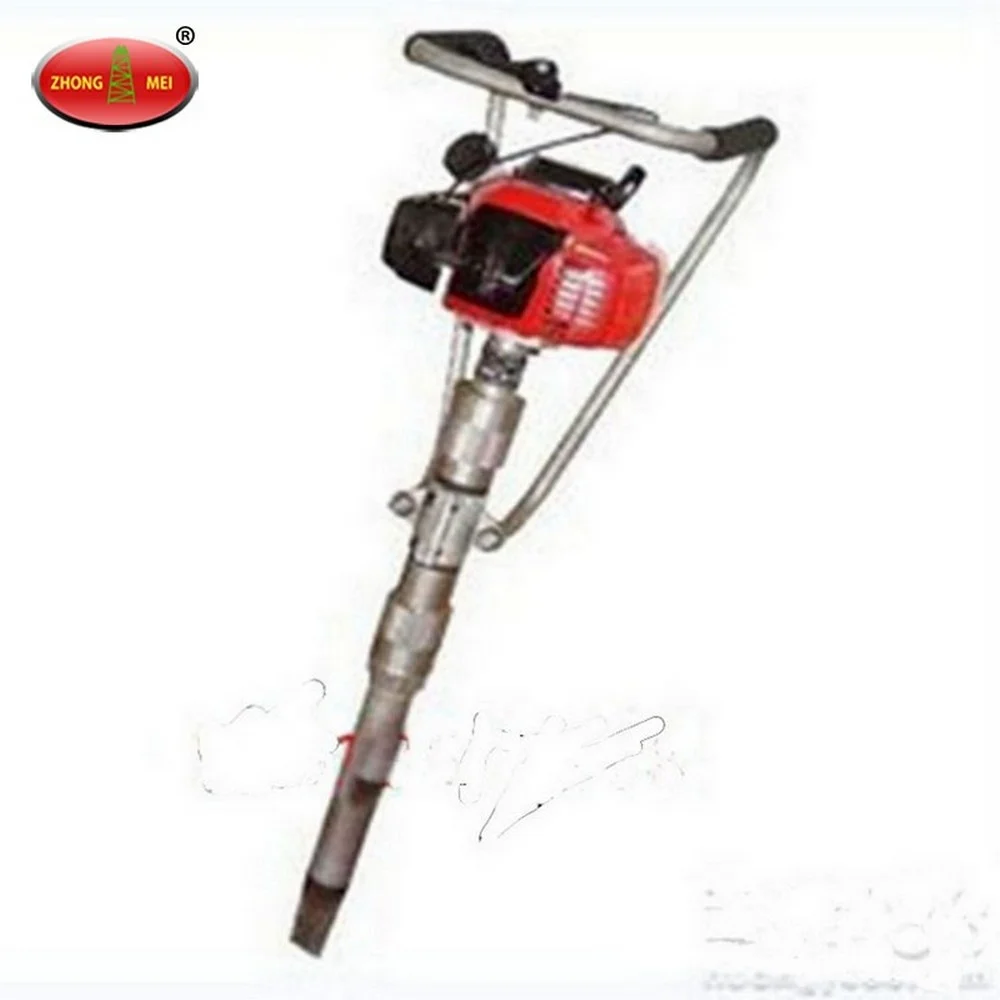

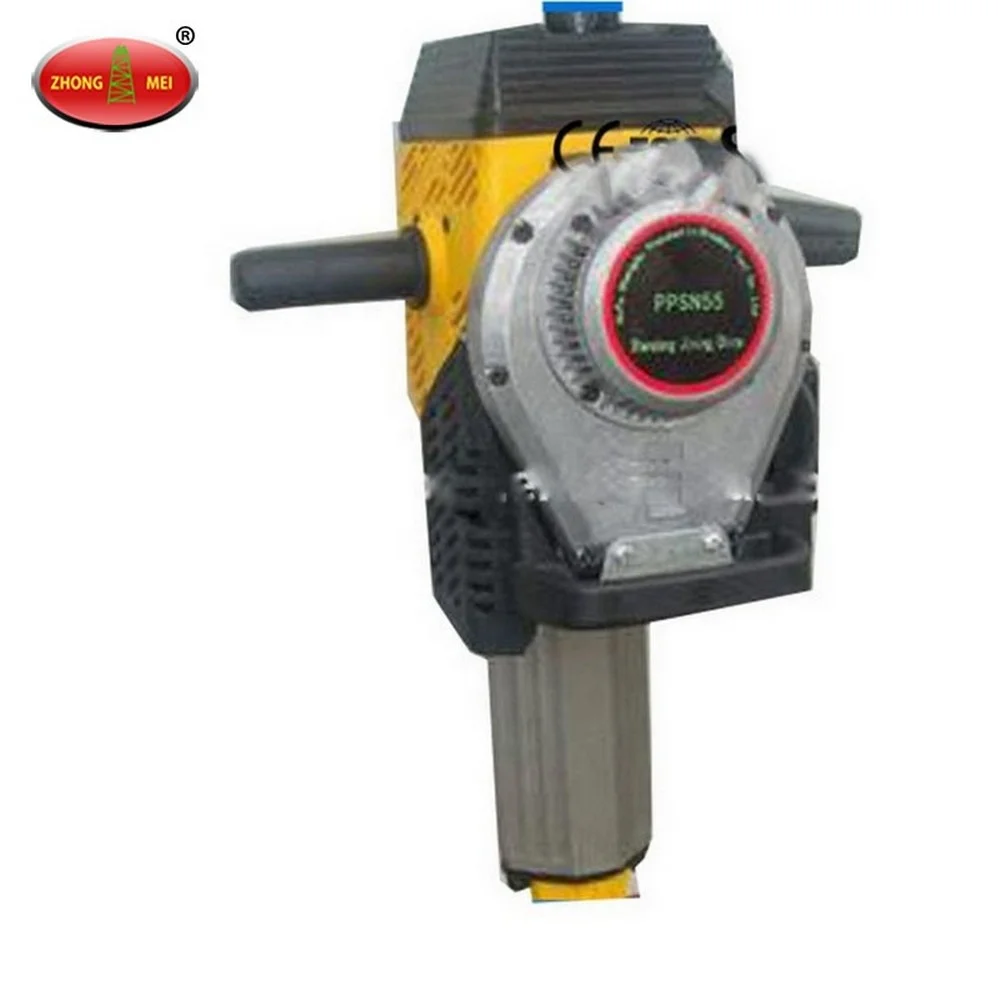

Pictures of China Supply Manufacturer Railway Use Hand Held Hydraulic Rail Tamping Machine
