Introduction of ND-4 Internal Combustion Soft Shaft Rail Tamping Machine With Best Price

ND-4 rail tamping machine is applicable to any rail type line maintenance ballast tamping operation.

Tamping are of good quality and low failure rate and easy maintenance, road speed, applicability, not only to tamping line, still can tamping switch, price performance ratio is high, very suitable for railway ballast tamping operation needs.    zmwm06

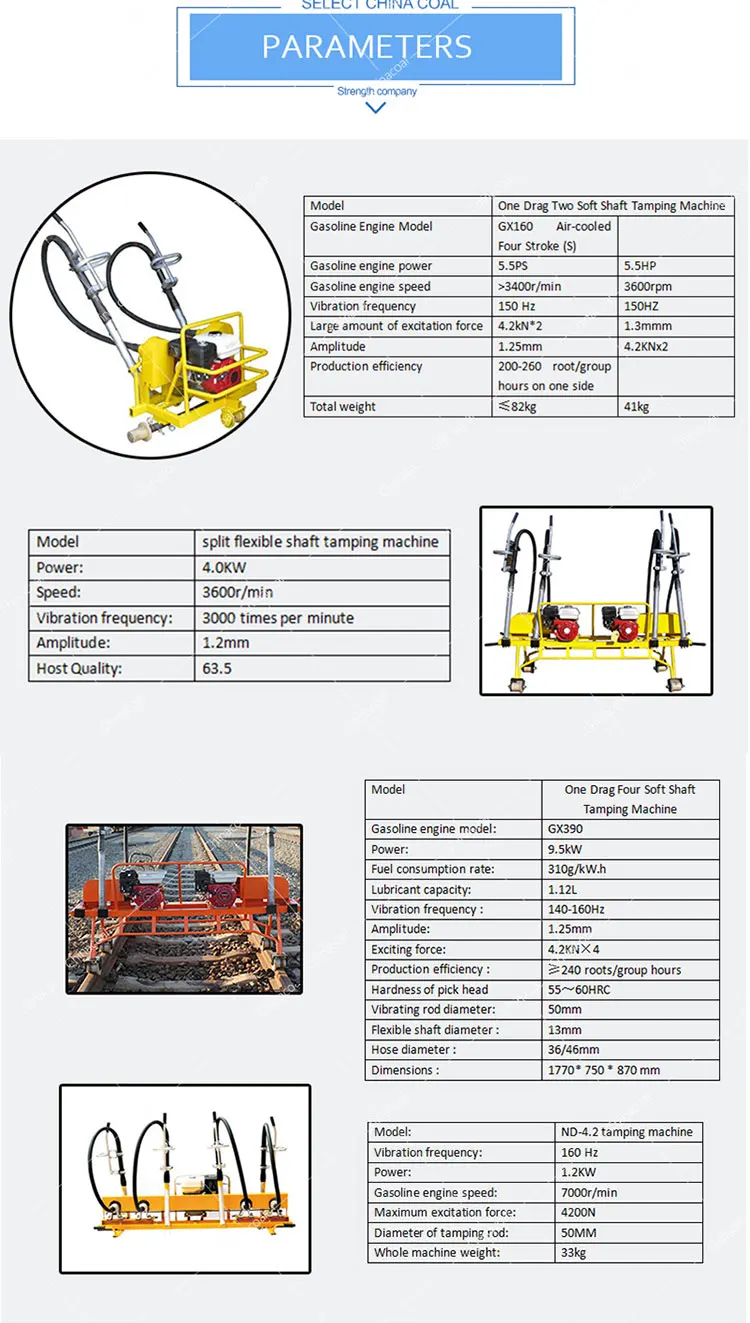

Parameter of ND-4 Internal Combustion Soft Shaft Rail Tamping Machine With Best Price

Model	ND-4.2*2	ND-4.2*4
Power	GX270 Gasoline engine	GX390 Gasoline engine
Maximum output power	6.6KW	9.5KW
Fuel oil consumption	310g/kW.h	310g/kW.h
Lubricating oil capacity	1.1L	1.12L
Vibration frequency	140-160Hz	140-160Hz
The amplitude	1.25mm	1.25mm
Max Vibration force	4.2kN*2	4.2kN*4
Production efficiency	120-180pc/hour	200-260pc/hour
Vibrating pickax number	2	4
Vibrating pickax diameter	50mm	50mm
Soft shaft diameter	13mm	13mm
Hose diameter	36/46mm	36/46mm
Overall dimensions	800*750*850mm	1770*850*870mm
Weight	95kg	180kg

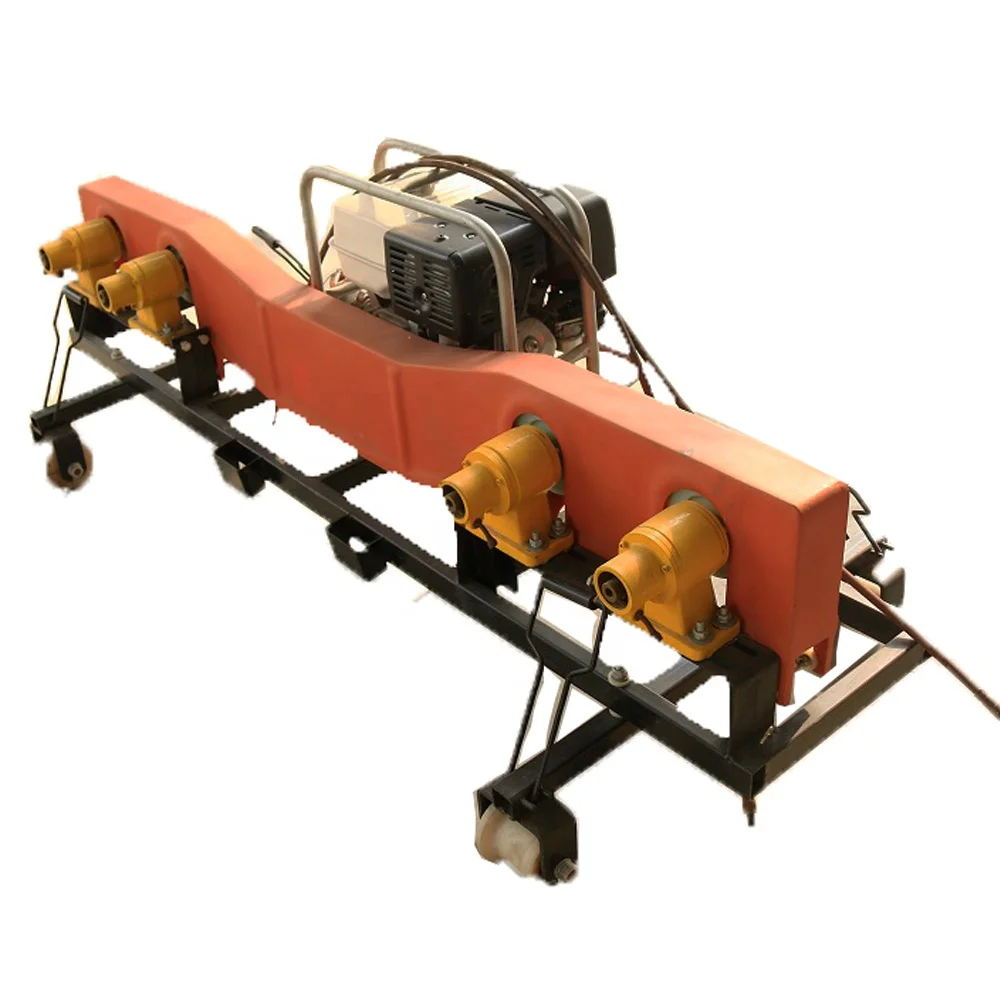

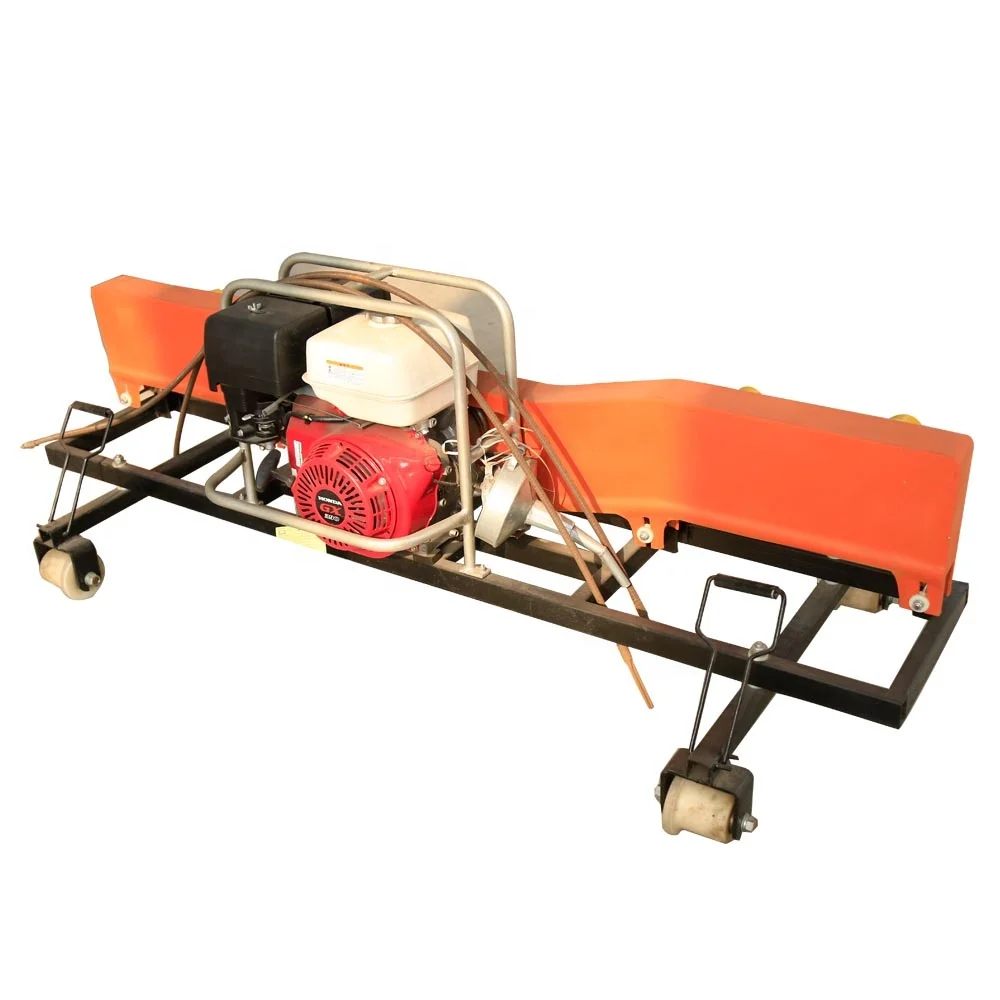

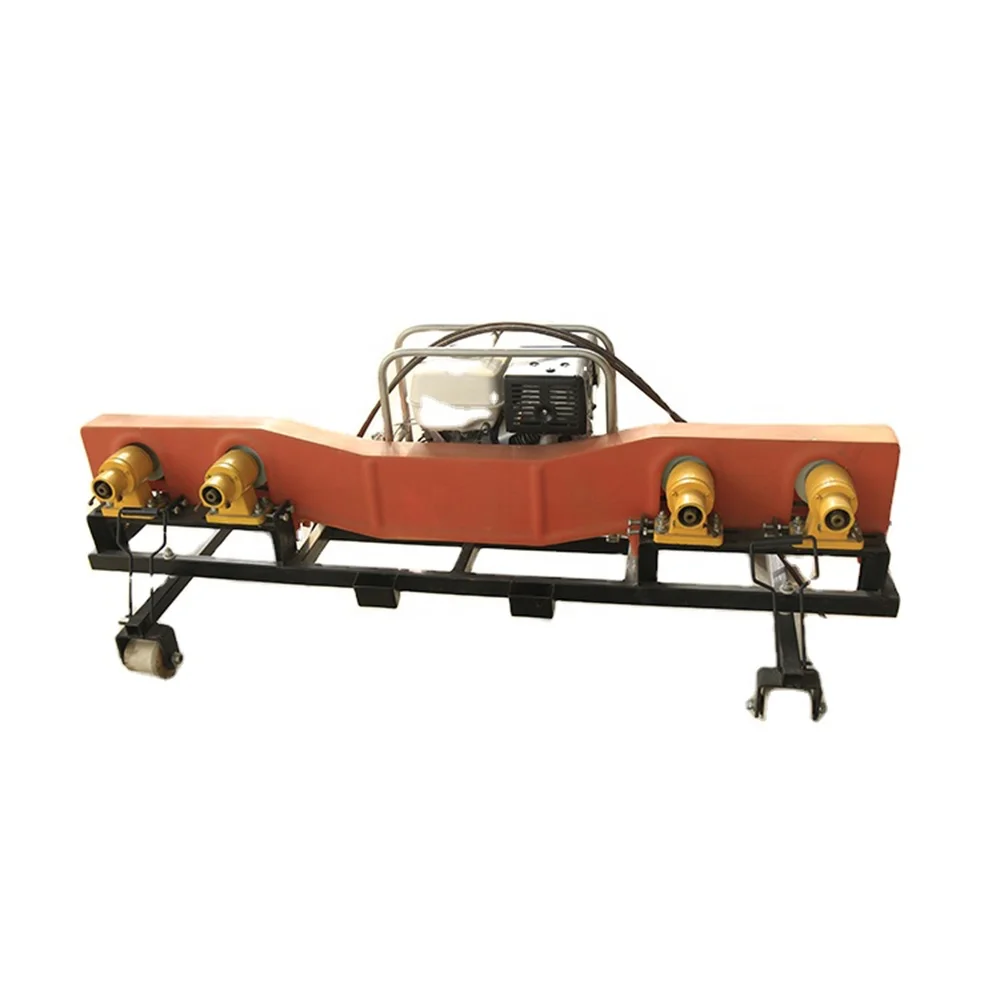

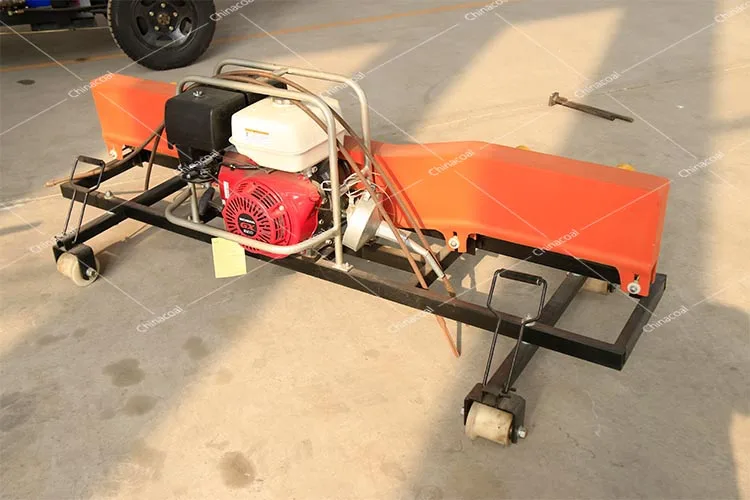

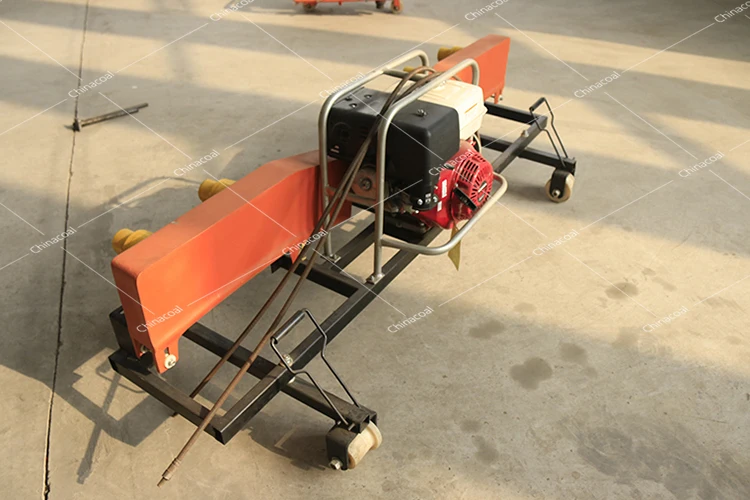

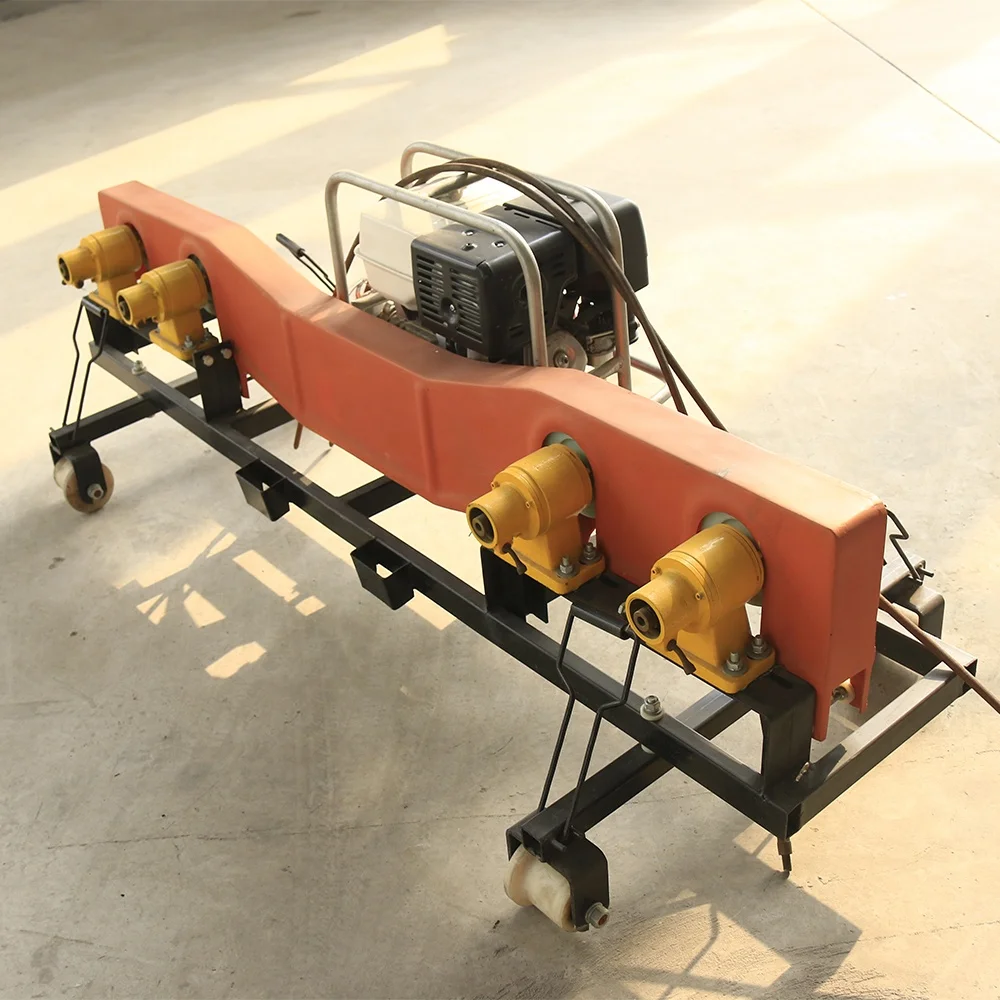

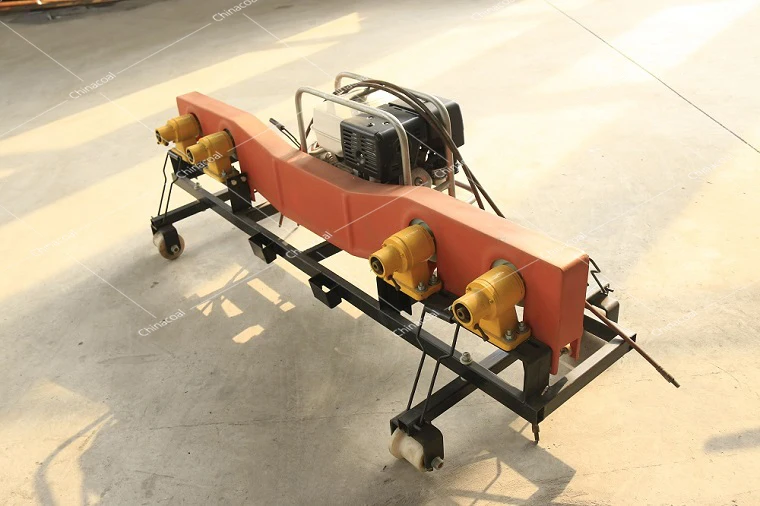

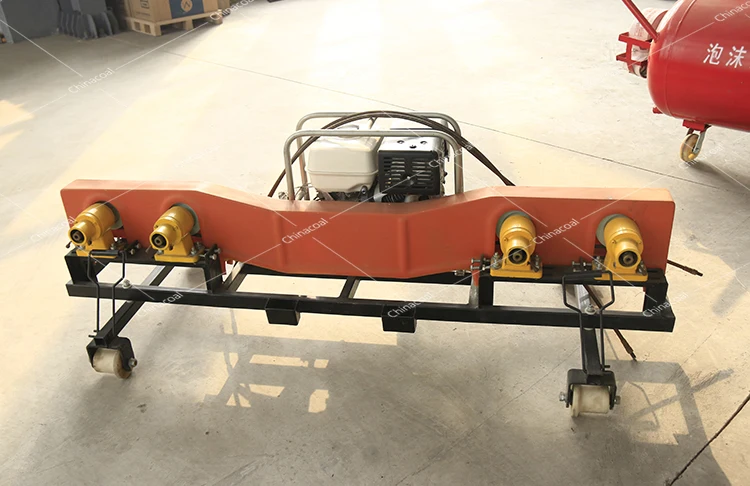

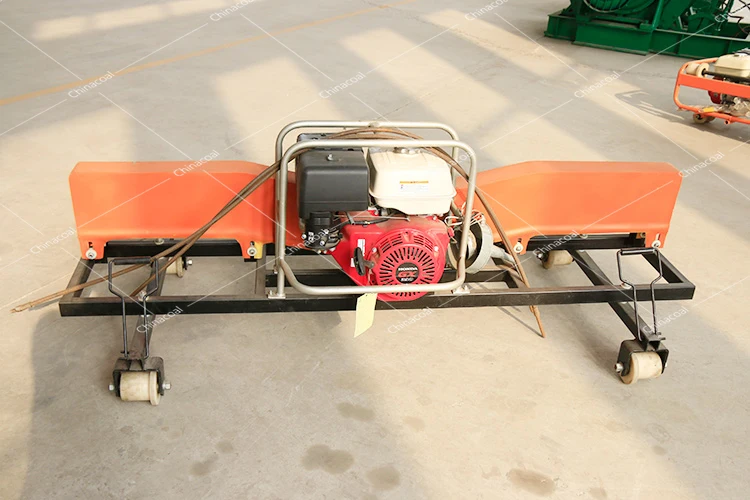

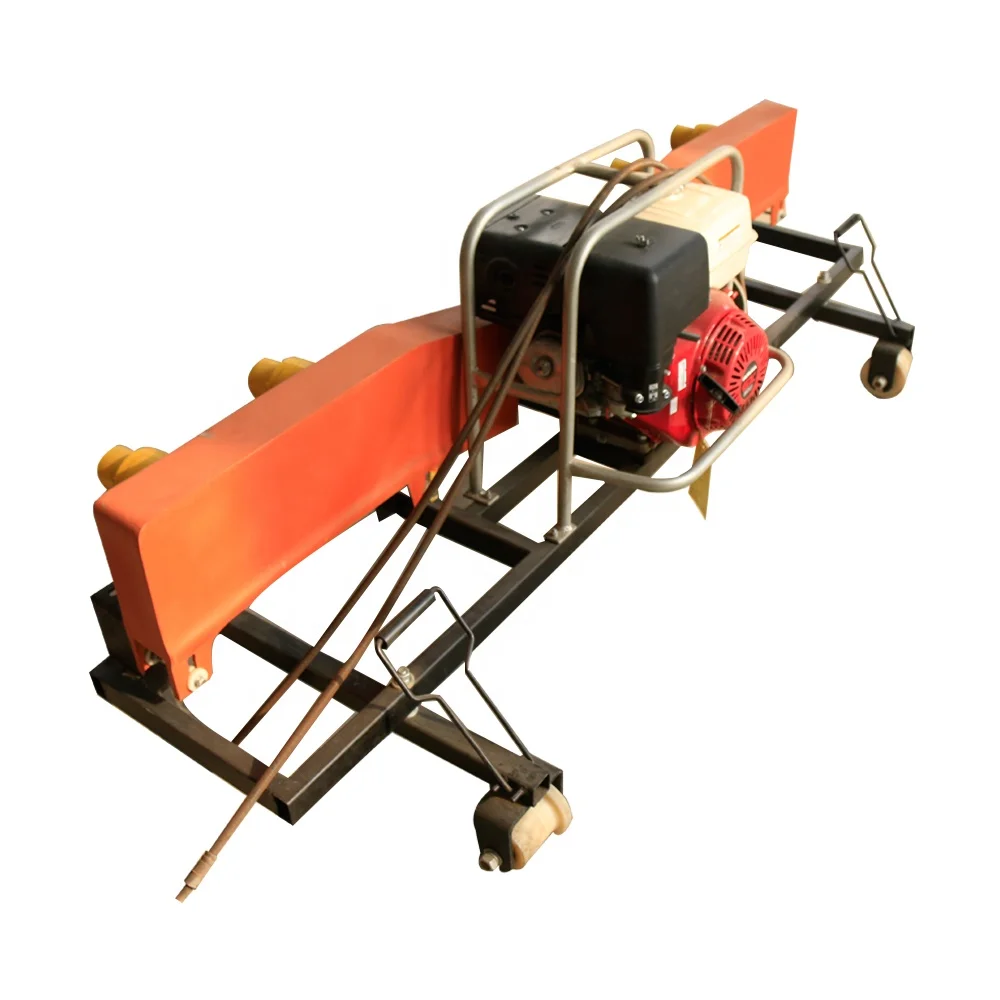

Pictures of ND-4 Internal Combustion Soft Shaft Rail Tamping Machine With Best Price
