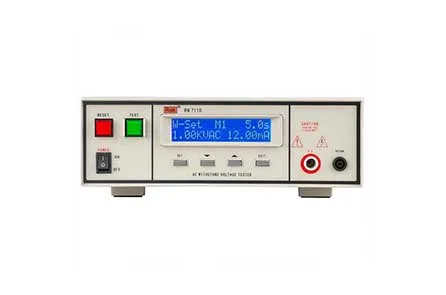

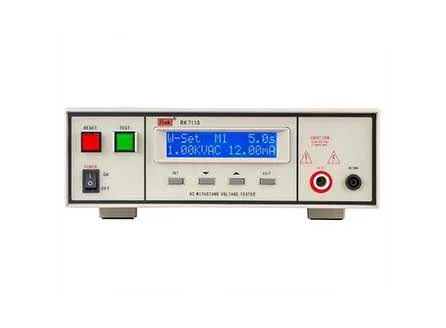

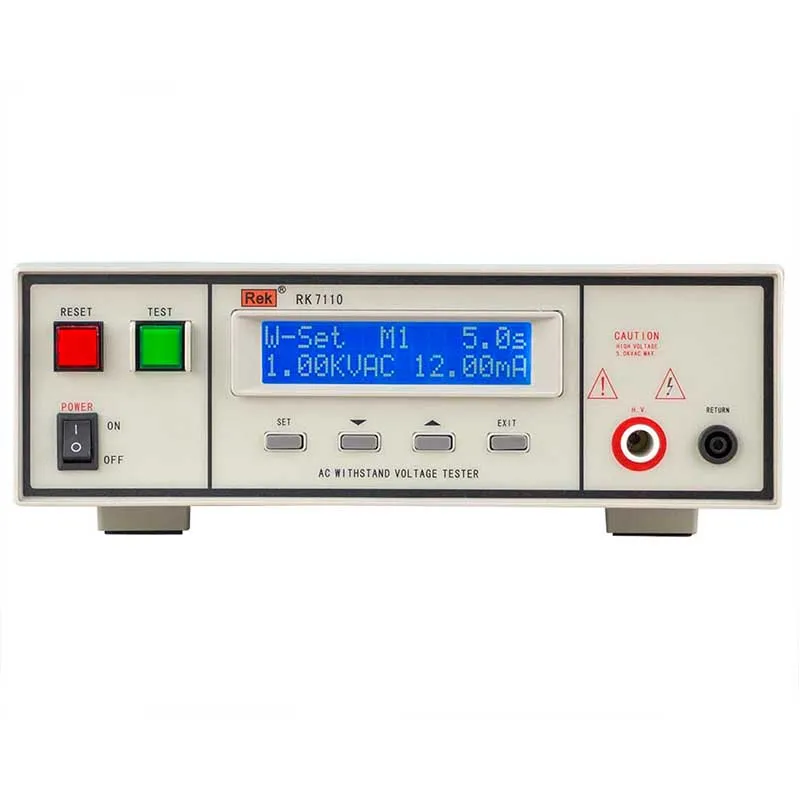

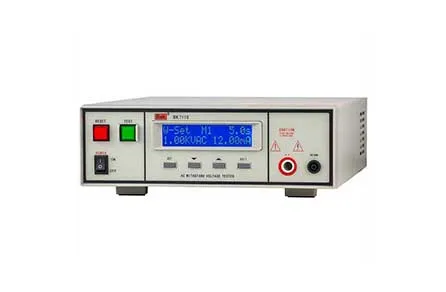

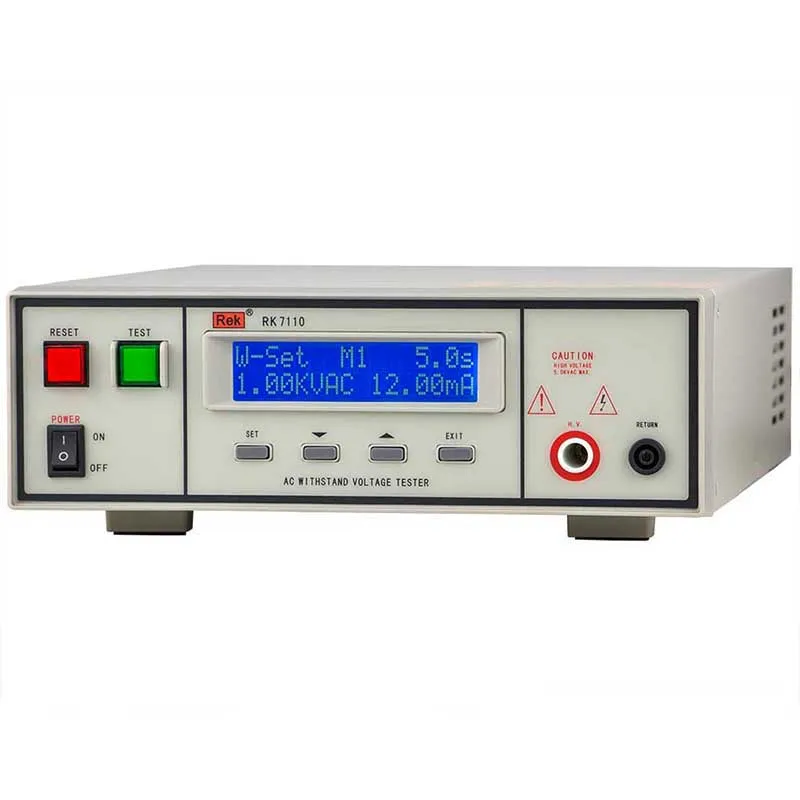

wholesale good quality Rek RK7110 AC dc Programmable withstanding voltage tester hi pot tester / PLC Interface
- Category: Testing Equipment >>>
- Supplier: Shenzhen Meiruike Electronic Technology Co. Ltd.
Share on (62330508530):
Product Overview
Description
Product Description
model | RK7110 |
Output voltage | AC 0 ~ 5kV |
Test accuracy | ± (2% set value + 5V) |
Test current | AC 0.10~12.00mA |
Test accuracy | ± (2% set value + 2 Counts) |
Test time | 0.2 ~ 999.9s |
Output frequency | 50Hz/60Hz (optional) |
Input characteristics | single phase 47 ~ 63Hz, 115V / 230V AC ± 15% (optional) |
Communication interface | Input: Test/Reset Output: Pass/Fail/Test/Process |
Test alarm | buzzer, liquid crystal display "FAIL", indicator light |
Memory group | 5 groups of memory, 4 test modes per group (W, IW-I, I-W linkage) |
Keyboard lock | optional "lock" or "no lock" |
size | 380 × 290 × 100mm |
Weight | 8Kg |
Accessories | test line, ground wire, power cord |
- product description
This series of program-controlled withstand voltage tester is a high-performance safety tester designed with high-speed MCU and large-scale digital circuit. Its output voltage and output voltage rise and fall. The frequency safety of the output voltage is controlled by the MCU. It can display the breakdown current and voltage value in real time, and has a software calibration function. It can intuitively, accurately and quickly test the electrical safety performance indexes such as breakdown voltage and leakage current of various objects to be tested. And can be used as a high voltage source to test components and overall performance.
Details Images
High voltage test line
power cable
Standard grounding test line
Product Usage
1. The voltage rises according to the set time gradient, and the breakdown point can be analyzed.
2, zero-crossing start, zero-cross cut, to prevent damage to the device under test
3, the current upper and lower limit settings
4, with 5 groups of memory group capacity, test results are automatically saved
5, with arc detection function (by 1-9 level)
1, components: diodes, triodes, high-voltage silicon reactors, various electronic transformers, connectors, high-voltage electrical appliances
2, household appliances: televisions, refrigerators, air conditioners, washing machines, dehumidifiers, electric blankets, chargers, etc.
3, insulation materials: heat shrinkable sleeve, capacitor film, high voltage bushing, insulating paper, insulated shoes, insulating rubber gloves, PCB circuit boards, etc.
4, instrumentation: oscilloscope, signal generator, DC power supply, switching power supply, etc.
5, lighting appliances: ballasts, road lights, stage lights, portable lights and other lamps
6, electric heating appliances: electric drill, pistol drill, gas cutting machine, grinding machine, grinding machine, electric welding machine, etc.
7, wire and cable: high voltage line, cable, cable, silicone rubber cable, etc.
