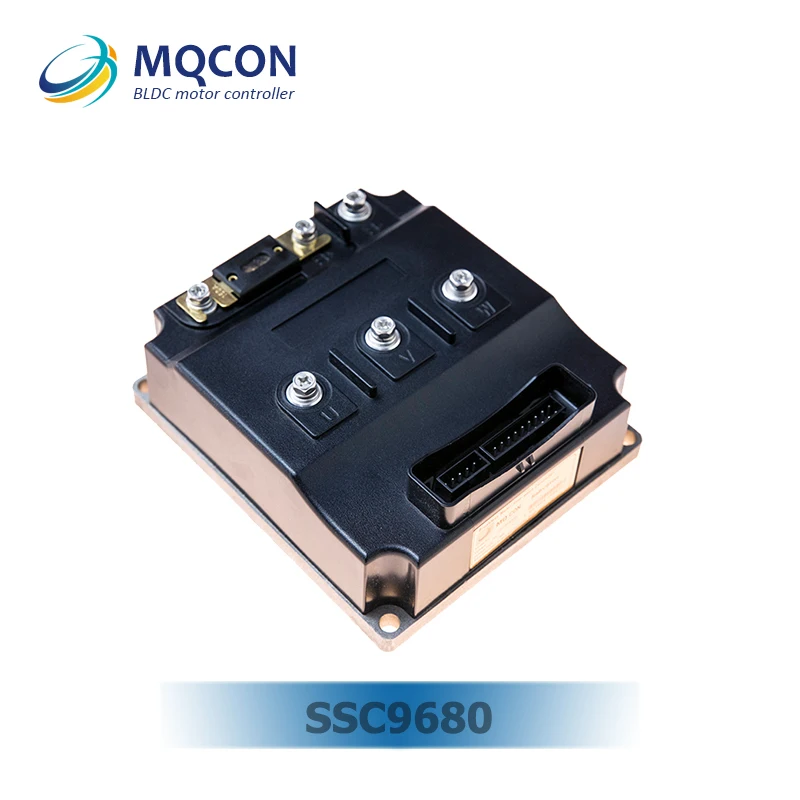

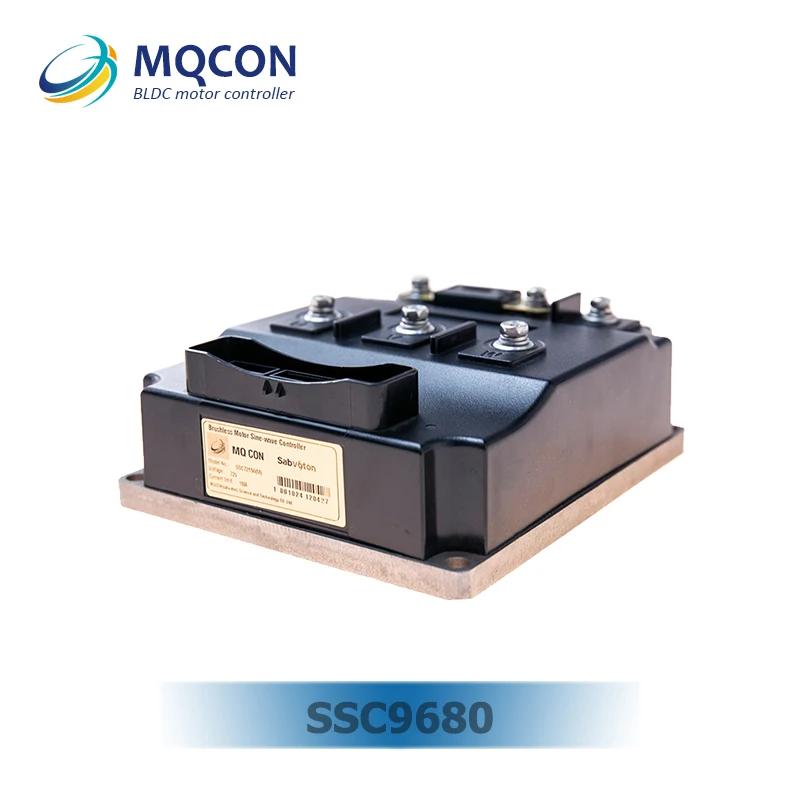

Sabvoton SVMC 60v72v96v45a 200a is suitable for brushless dc controller sine wave drivers of hub motors

Product Overview

Description

Controller Features



MQ(Sabvoton) motor controller is designed for brushless dc motor control, which is applied for high power electric bicycle, electric scooter, mini electric car and so on.

• FOC sine-wave controller applied to BLDC or PMSM
• The controller match one motor to get best electric angle no more than 3 minutes for the first time.
• minimizing the torque pulsation, achieving non-noise, on-vibration run with great Comfort
• The precise current ring can provide accurate torque input to meet the requirement 0f large torque output during vehicle starting and climbing.
• work efficiently, reducing the heat consumption and extending the mileage
• built-in protection: block protection, over-current protection, over-heat protection, over-voltage protection and so on, guaranteeing the system and driver safety
• status and fault intelligence management provide the information including the run-mode, fault type and so on, LED also twinkle in different way to indicate the fault type, all these make the diagnosis and repair easily
• convenient external interface: reversing, cruise, ebs, anti-theft and so on
• parameters and functions can be configurable by computer or mobile phone
• CAN bus is optional for meter or BMS application

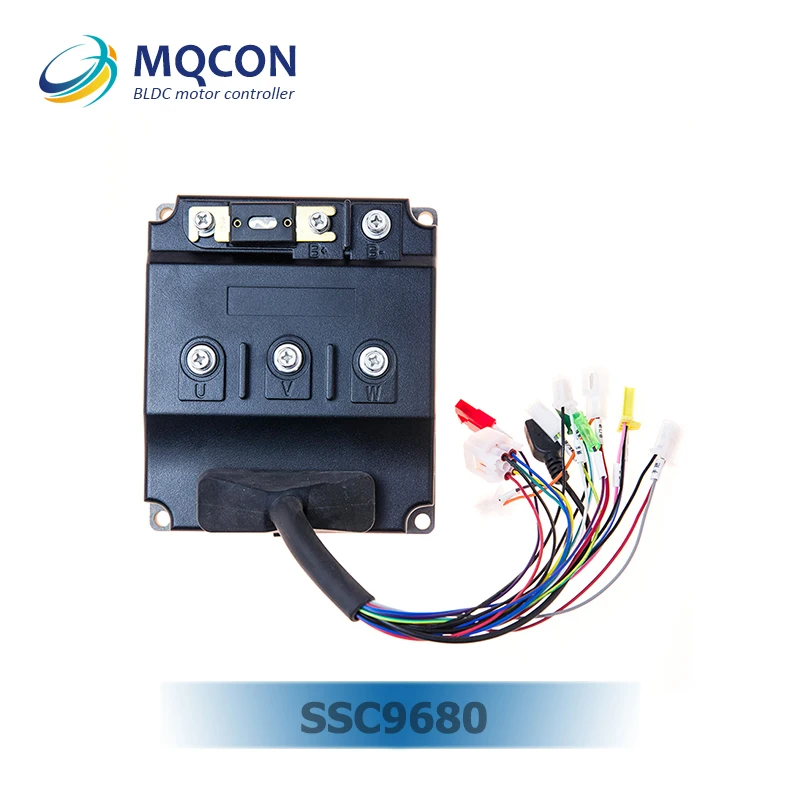

 Wires Cotrol Drawing

General Functions

• Default functions for SSC model: Hall, throttle, ignition, hall speed signal, high brake, 0-5v e-brake, three speed switch, temp sensor, reverse, low brake. (support regen braking, can adjust the regen power by software.)

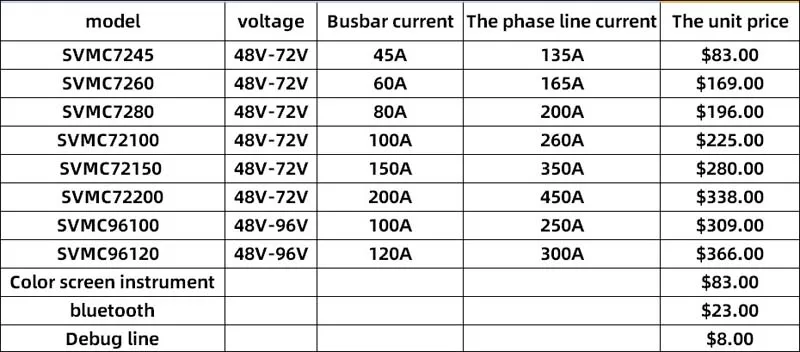

 Model List
