Product Overview

Description


Product Description

Durable Agricultural Fully Automated Polycarbonate Sheet Greenhouse Price

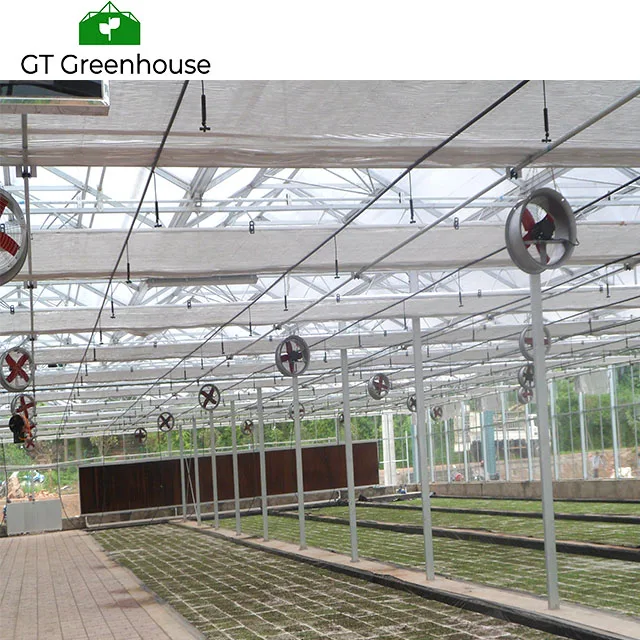

Polycarbonate greenhouse belongs to one kind of intelligent greenhouse, including basic systems: top ventilation system, side ventilation system, electronic control and distribution system, structure system, shed covering system, external shading system, internal shading system, etc. Other systems increase according to their own requirements. Greenhouse greenhouses generally use polycarbonate panels, and according to the thickness of the panels, the quality guarantee period of different prices will also change.

\t
Durable Agricultural Fully Automated Polycarbonate Sheet Greenhouse Price
\t
Frame Structure
\t
thickness
\t
mm
\t
1~2.5
\t
size
\t
mm
\t
20/25/32/42/48/60
\t
zinc coating
\t
g/m2
\t
50~120, could be thicker than 250g/m2 if you need
\t
Coverage
polycarbonate sheet
\t
density
\t
g/cm2
\t
1.2
\t
heat deflection temperature
\t
℃
\t
135
\t
service temperature-ling term
\t
℃
\t
-50 to ± 100
\t
elongation at break
\t
﹪
\t
〉80
\t
Design Parameters
\t
wind resistance
\t
km/h
\t
120
\t
Wind load
\t
KN/m2
\t
0.35
\t
Rain drainage
\t
m3/h
\t
140
\t
Permanent load
\t
KN/m2
\t
0.15

Polycarbonate Panels are the jack-of-all-trades for plastic sheets. Durable, versatile, and easy to work with, polycarbonate panels can be used in hundreds of custom projects. Patio and pergola coverings, skylights, custom greenhouses and other structures. We've even had customers use them for solar cookers and biomass generators. There is no limit to their use.


Polycarbonate panels are less expensive in comparison to almost any other plastic sheet, and they are easier to work with than glass or acrylic. Use polycarbonate panels for your next custom project.

We offer various sizes and can manufacture to specification as well. The structures are either naturally ventilated with roof and side curtains, or have a pad and fan cooling system with digital control boards.

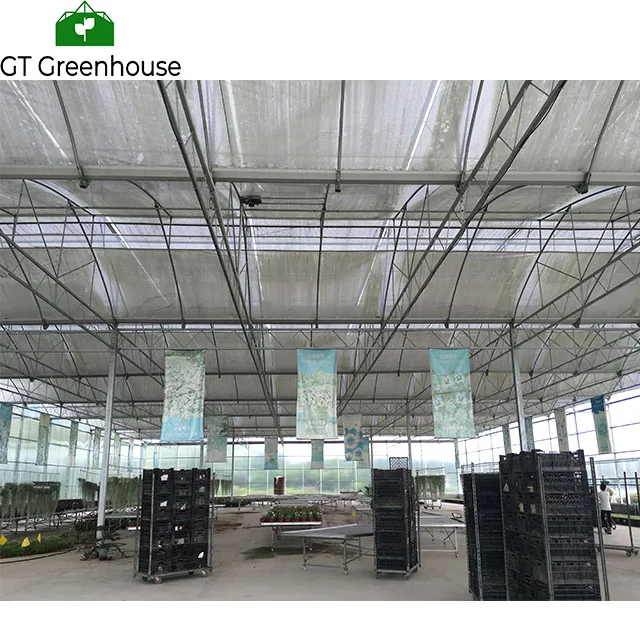

In the Multispan greenhouse range we build 6, 8, 10 and 12m structures, We build Multispan greenhouses only up to 500m² in size. Anything bigger is more affordable and quicker to import.

We use only the best quality hot galvanized piping for our structures, and all our piping and channels are 2mm plus thick. All the parts on our structures are hot dipped galvanized after welding.

Main Features

1) Reasonable design. We will match the design according to the local climate and environment.

2) Our professor can give you his knowledge in order to have better grow and production in your greenhouse.

3) We have a life time after sales service.

4) Our 72hs inquiry service will solve your greenhouse doubts or problems in a right way.

5) We have a professional installation team, we can deliver to you engineers and team work, this in order to develop a right process in the building and location of your greenhouse.


Polycarbonate Greenhouse

1) High light transmittance and UV resistance.
2) High impact resistance and temperature resistance.
3) High thermal insulation and sound insulation with linear expansion coefficient.
4) Energy-saving and anti-fogging performance.

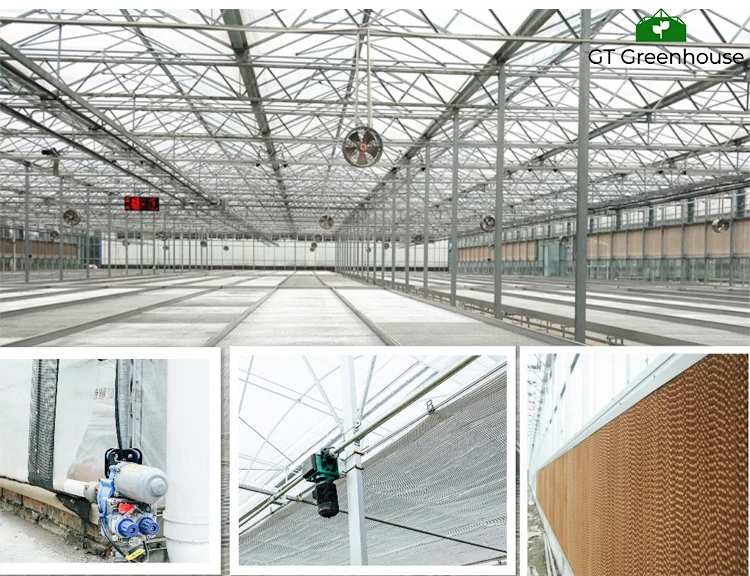

Detailed Images

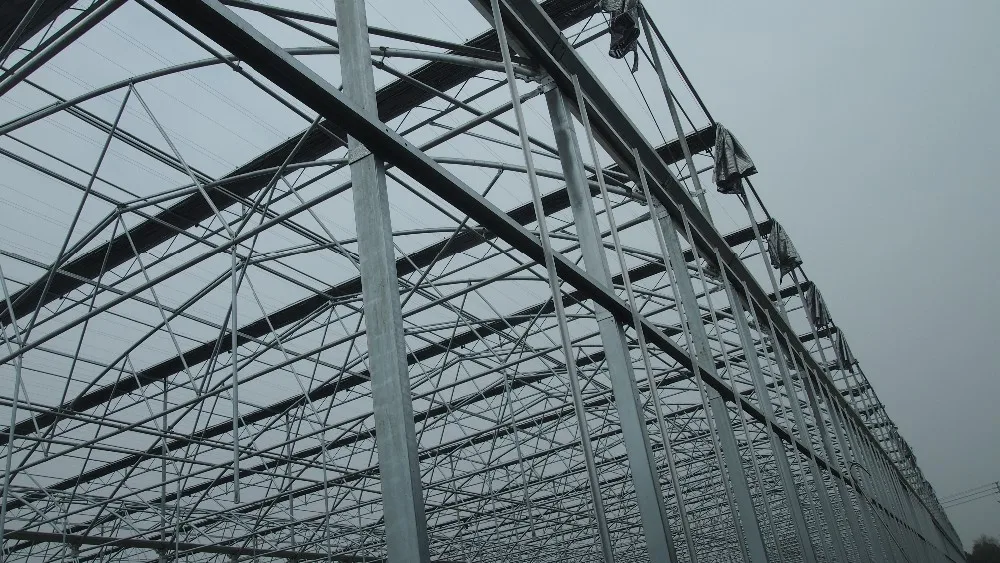

Structure and Coverage

Name: Steel structure and film covering

Material: Hot galvanized steel structure

                 PO film

Original: China

Warranty time: 15 years for structure

                            5 years for plastic film

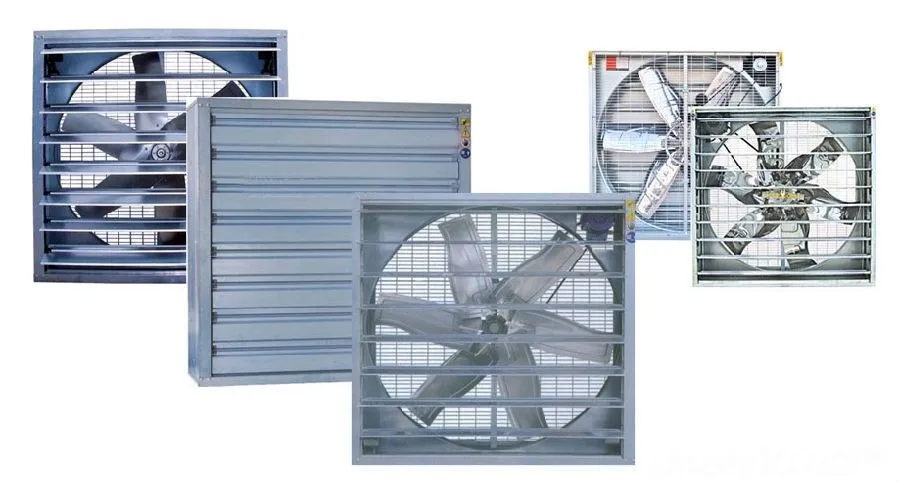

Cooling fan

Name:  Exhust fan
Size: 1380x1380mm, thickness: 450mm
Air volume: 47000m3/h
Power: 1.1KW
Work power: 60Hz,240V/ 50Hz, 380V

Warranty time: 1 year

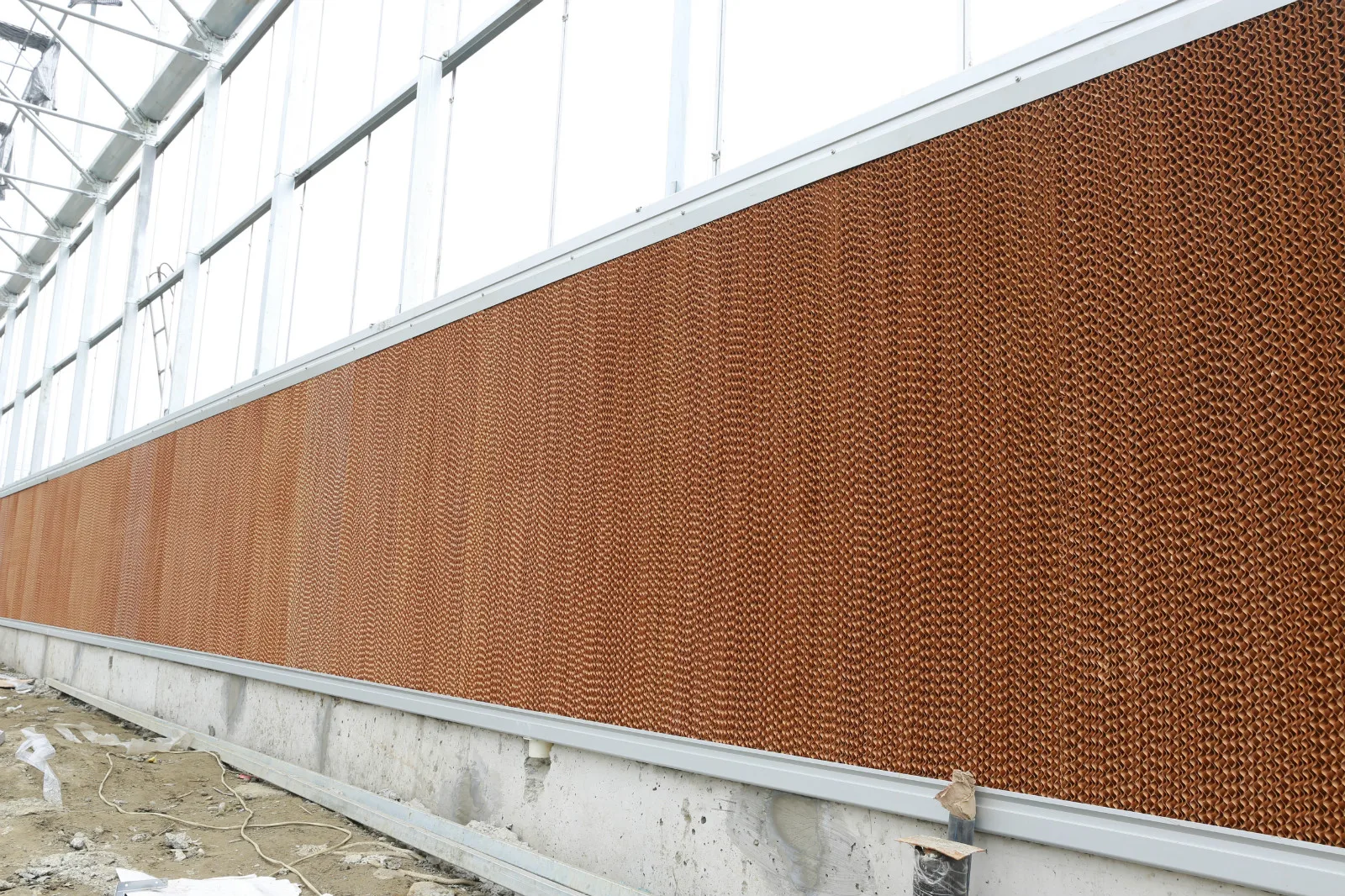

Cooling pad

Height: 1.5m/1.8m
Thickness: 10cm/15cm
Material: Special paper honeycomb
                 Aluminum frame
                 PVC pipe
                 Water pump

Plastic film roll up motor

Size: 245×162×101mm
Voltage: DC24V
Power: 40W

Torque: 45N·m

Current: ≤3.0A

Rated speed: 3.1r/min

Motor route: 4m

Roll up pipe:  φ22/φ27.5


Related Products

Blackout greenhouse

97.8% Response Rate

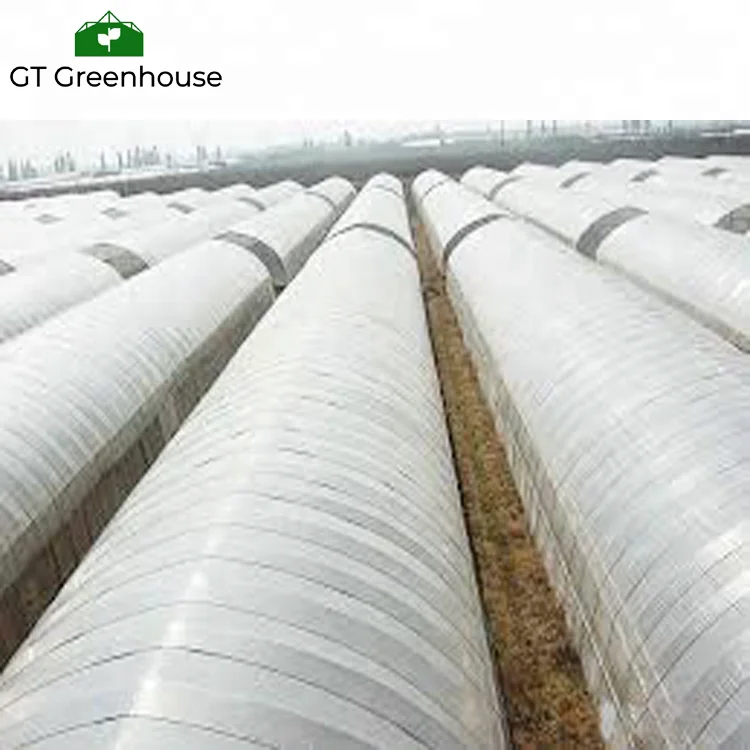

Plastic film greenhouse

94.7% Response Rate

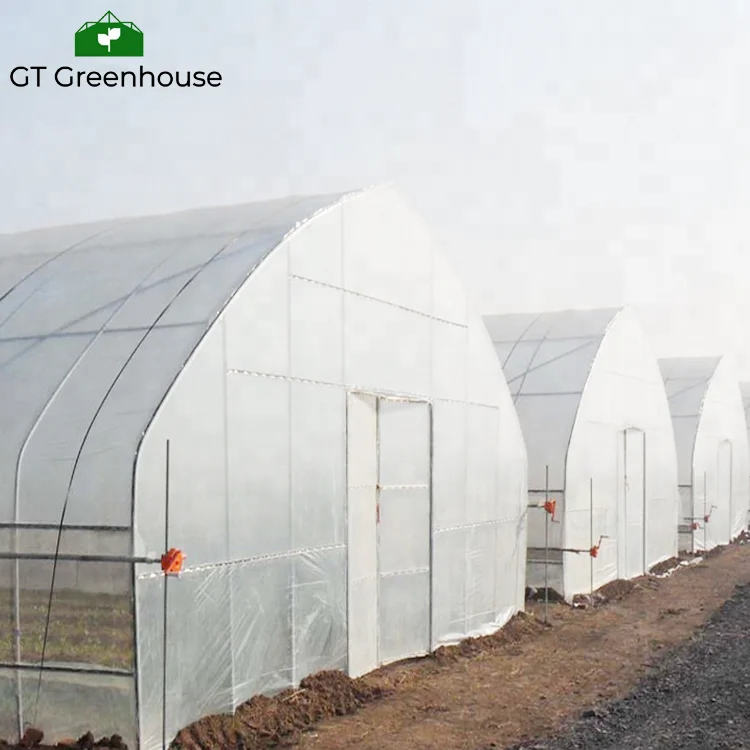

Single span greenhouse

95.5% Response Rate

Our Service
Customers
Certifications
Packing & Delivery
Contact us

FOR THE PROFESSIONAL AND PRACTICAL OFFER PROVIDED, SOME INFORMATION REQUIRED AS FOLLOWING , IF YOU HAVE ANY DIFFICULT PROVIDING WITH INFORMATION PLEASE CONTACT AS FOLLOWING


1.GREENHOUSE – WIDTH, LENGTH AND HEIGHT
2.CROPS – CROPS TYPES
3.LOCAL CLIMATIC CONDITIONS -
THE POSSIBLE HIGHEST AND LOWEST TEMPERATURE
THE INDICATION OF RELATIVE HUMIDITY
THE MAXIMUM WIND VELOCITY
THE MAXIMUM SNOW DEPTH IF SITED SUBJECTED TO SNOWFALL
