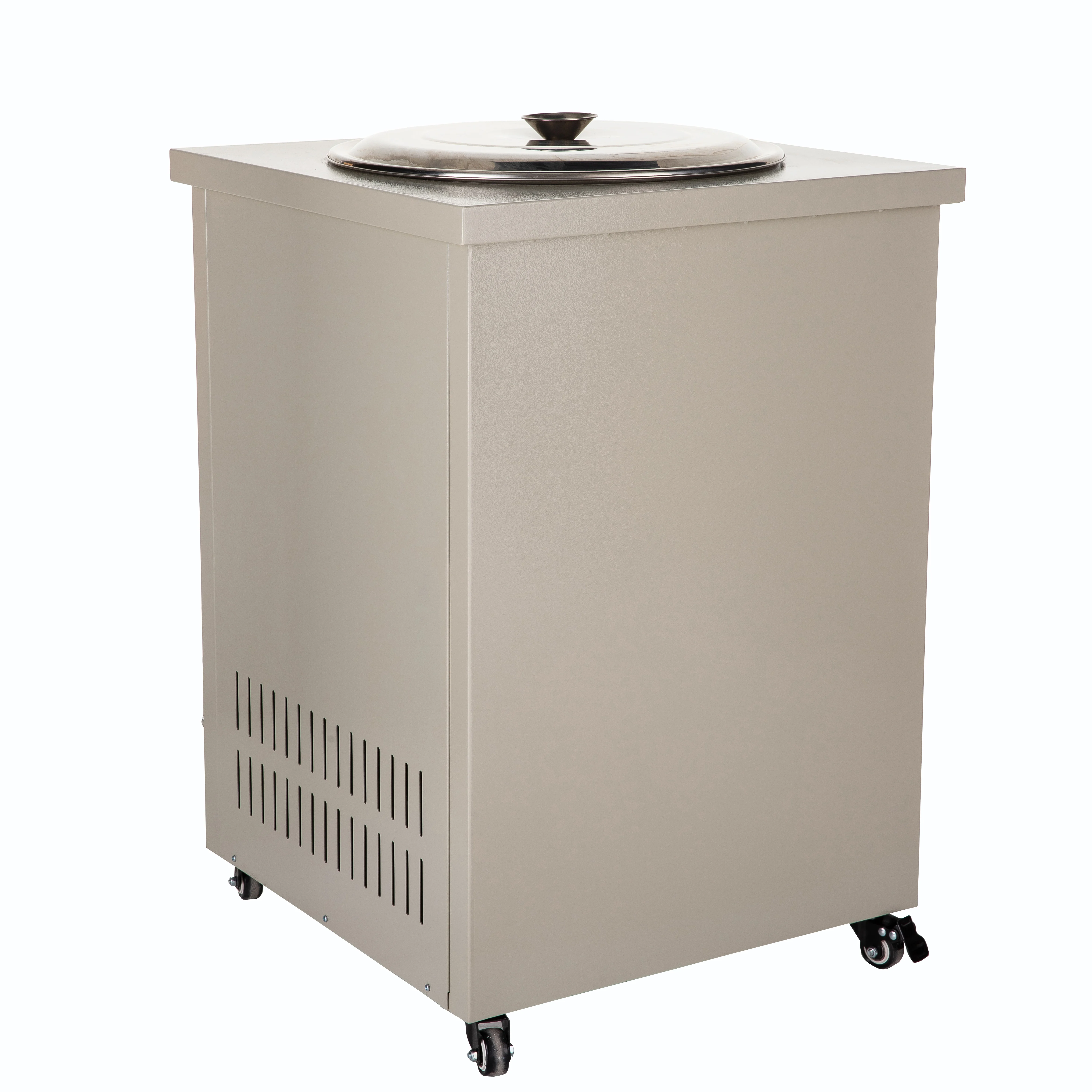

10L Bath 200 Degree Celsuis High Temperature Water Oil Heating Bath Circulator For 10L Jacketed Glass Reactor

Product Overview

Description

10L Bath 200 Degree Celsuis High Temperature Water Oil Heating Bath Circulator For 10L Jacketed Glass Reactor





Zhengzhou Sykes Heating Bath Circulator GXC Series can provide heating fluid to jacketed reactors or other devices. Heat transfer fluid can be water or oil according to specific temperature requirements. It is widely used for drying, concentration, distillation, dipping in chemical reagents, dipping medicines and biological products.

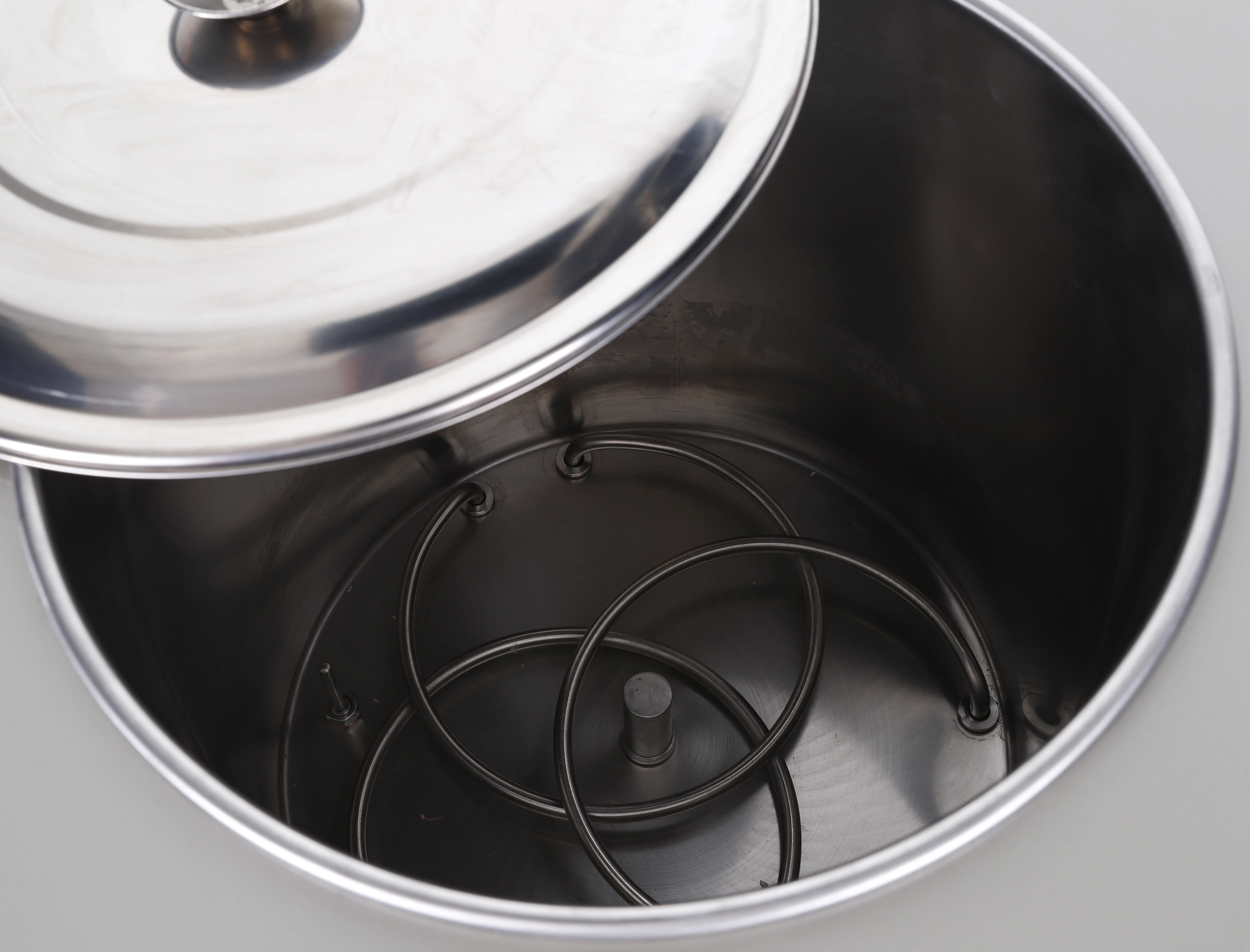

1. Bath adopts anti-corrosion SUS304.

2. Heating tube will be immersed in the middle of the oil/water, high thermal efficiency, low power consumption, electronic thermostat features.

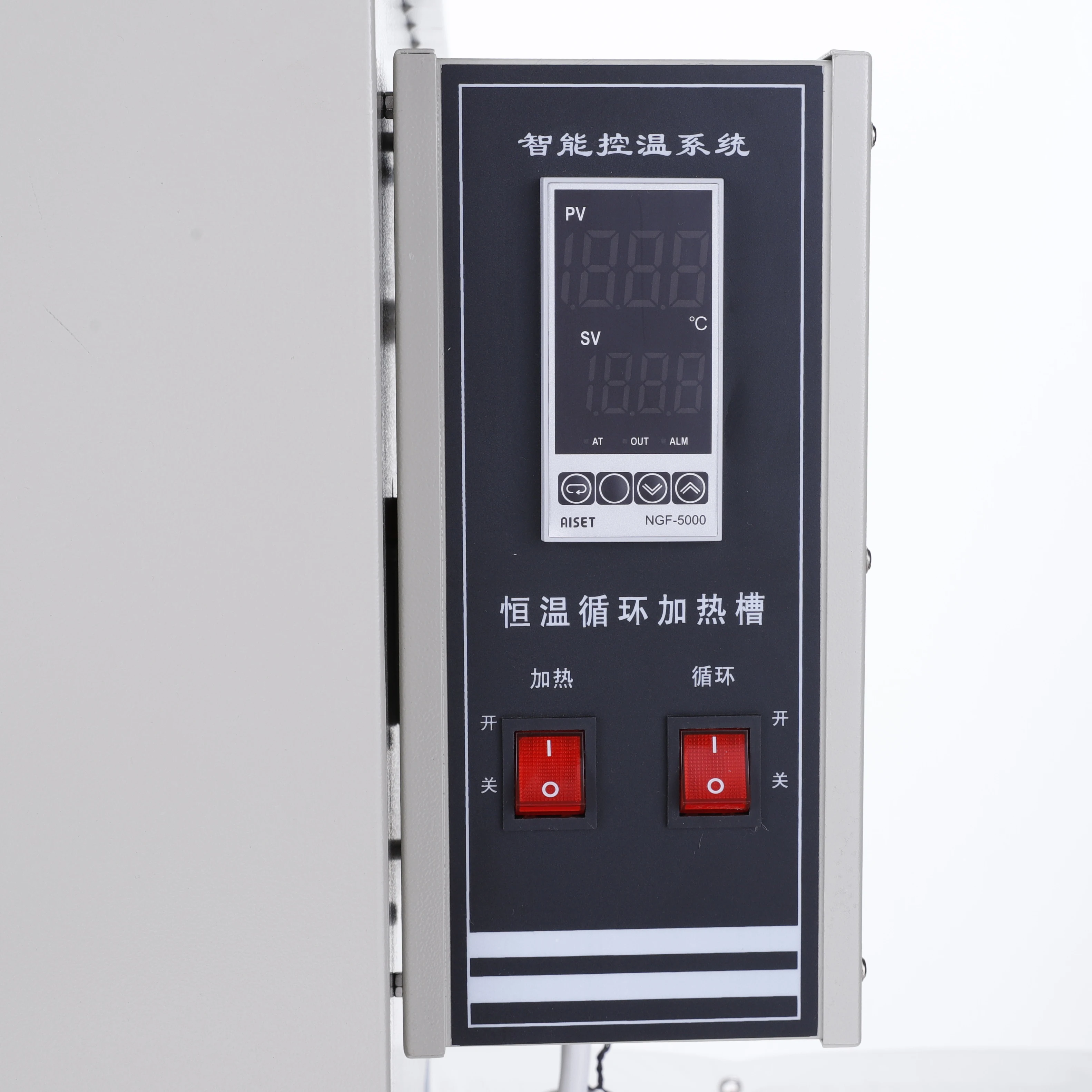

3. Intelligent temperature control with high precision.

4. High temperature circulating pump adopts full stainless steel magnetic pump, has a stable performance, reliable quality, no leakage, etc.

5. Air cooled type

6. Equipped with lockable caster.







Product	Water Oil Heating Bath Circulator
Model	GXC-10
Bath Material	SUS304
Bath Liquid Capacity	10L
Housing Material	Spray Coated Steel
Movement Mode	Lockable Caster
Maximum temperature for no-loading ( ℃ )	200℃
Heat Transfer Fluid	Water or Oil
Temperature Range	Water Bath:Room Temperature -98℃; Oil Bath:Room Temperature -200℃
Heating Power	2000W
Temperature Control Mode	Intelligent Temperature Control
Temperature Stability	±1℃
Flow of Circulating Pump	20L/min
Pressure of Circulating Pump	1.45Mpa
Oil Heat Transfer Fluid	Viscosity: 50
Power Supply	220V/50HZ
