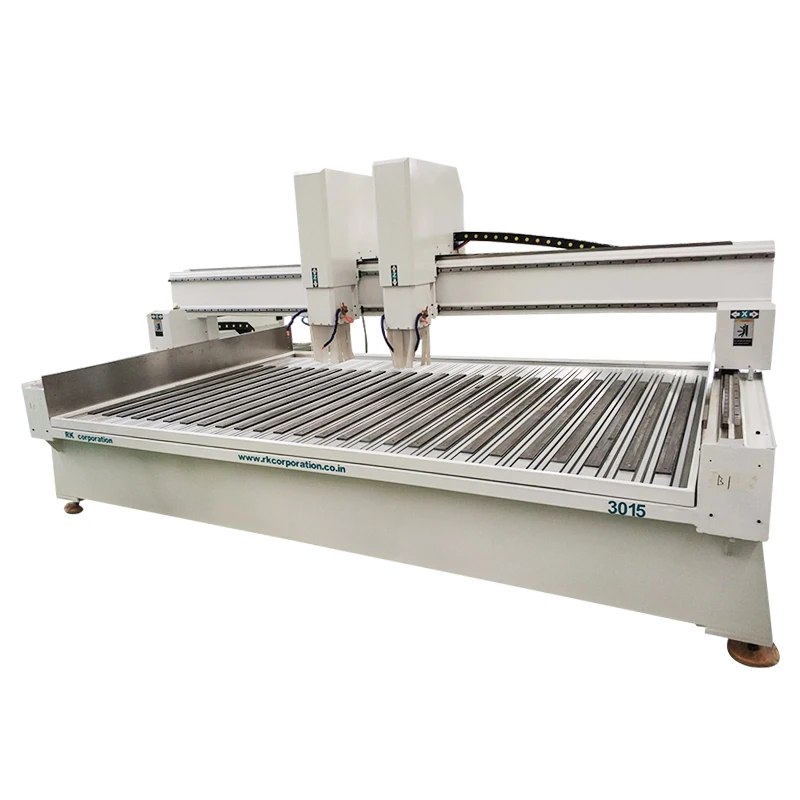

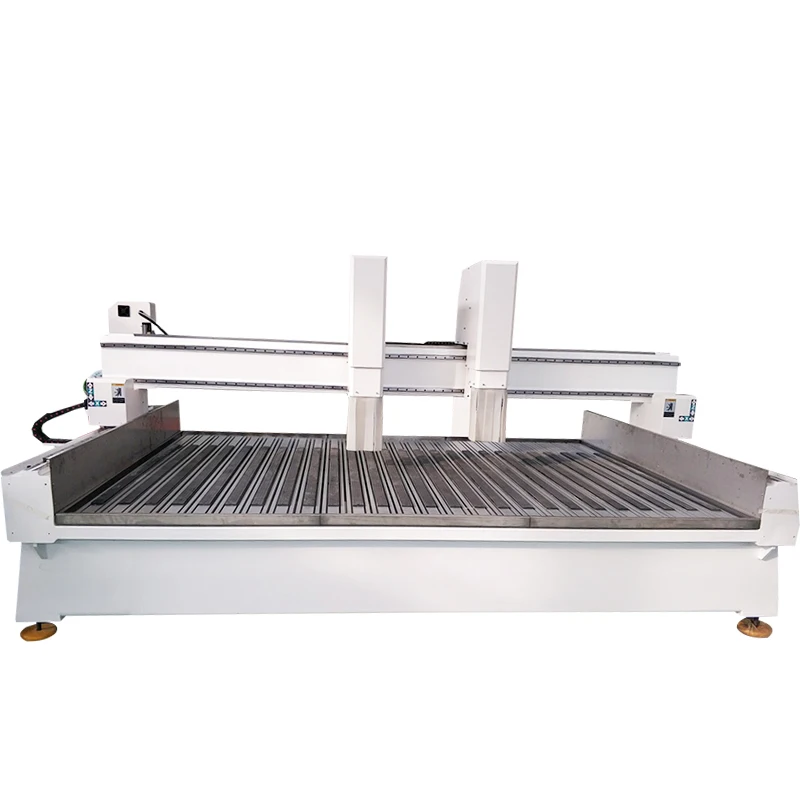

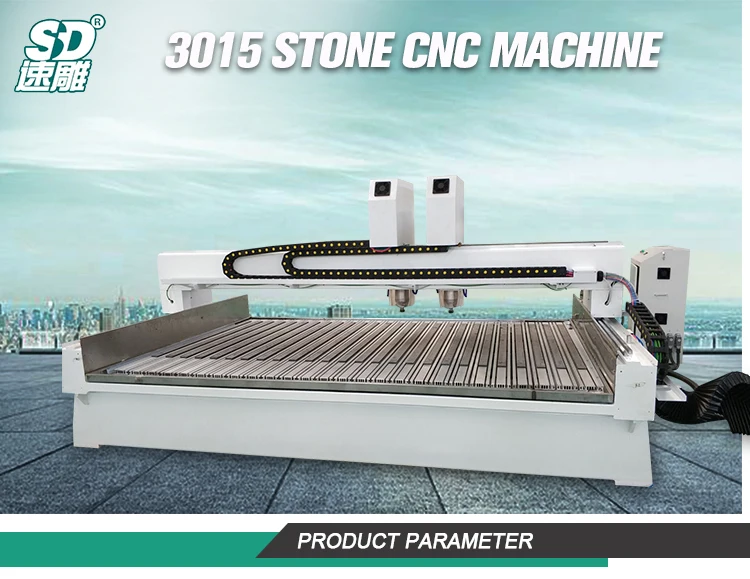

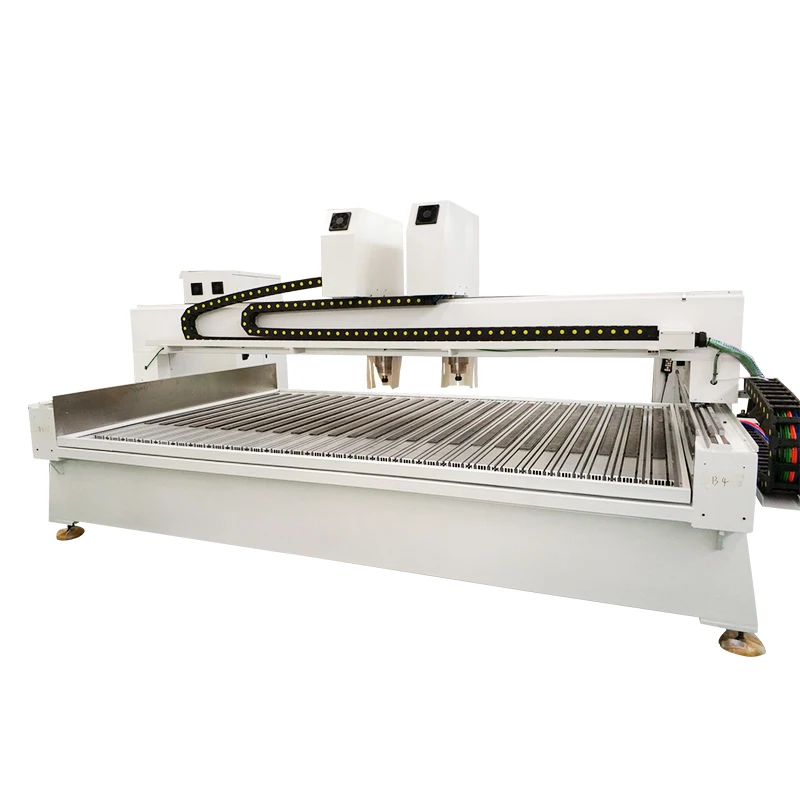

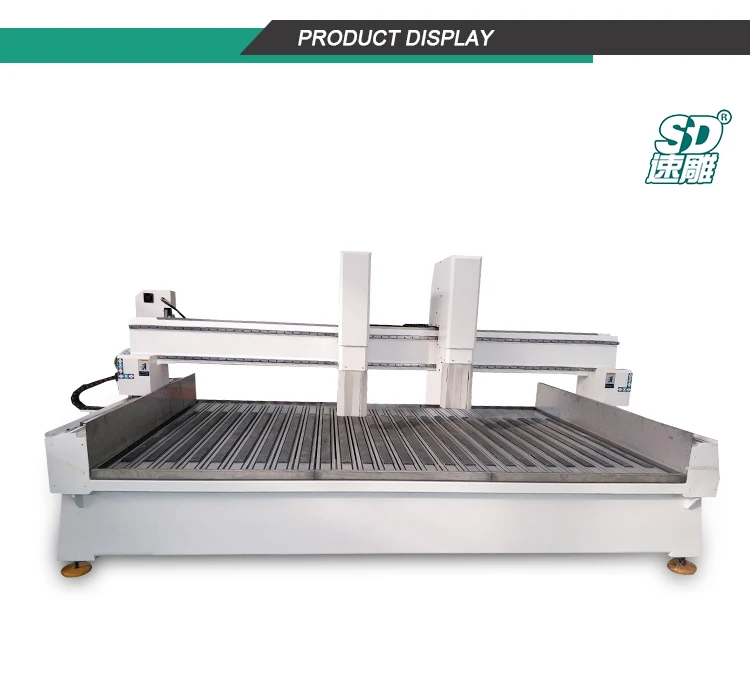

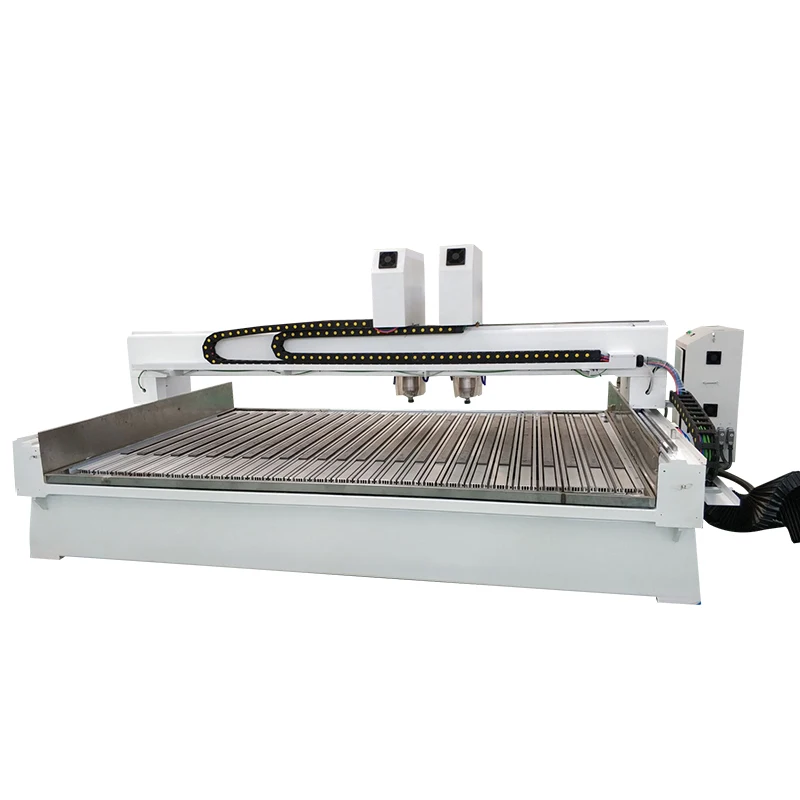

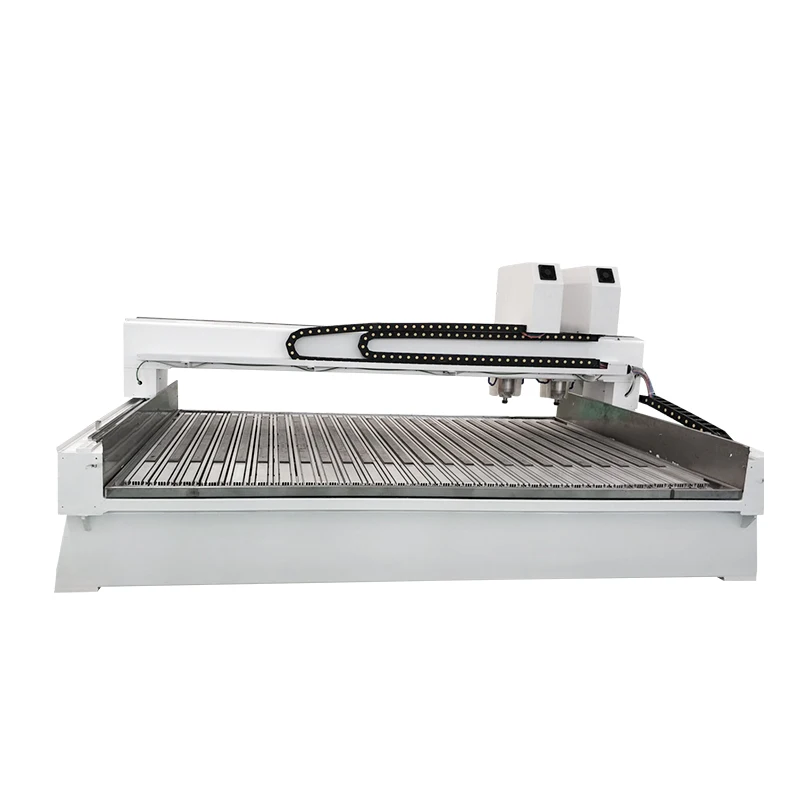

High speed 3 axis 3D marble cnc router cutting carving machine

Product Overview

Description

High speed 3 axis 3D marble cnc router cutting carving machine



Size	4.8x2.2x1.8m
Voltage	380V
Working Size	1500X3100X300mmmm

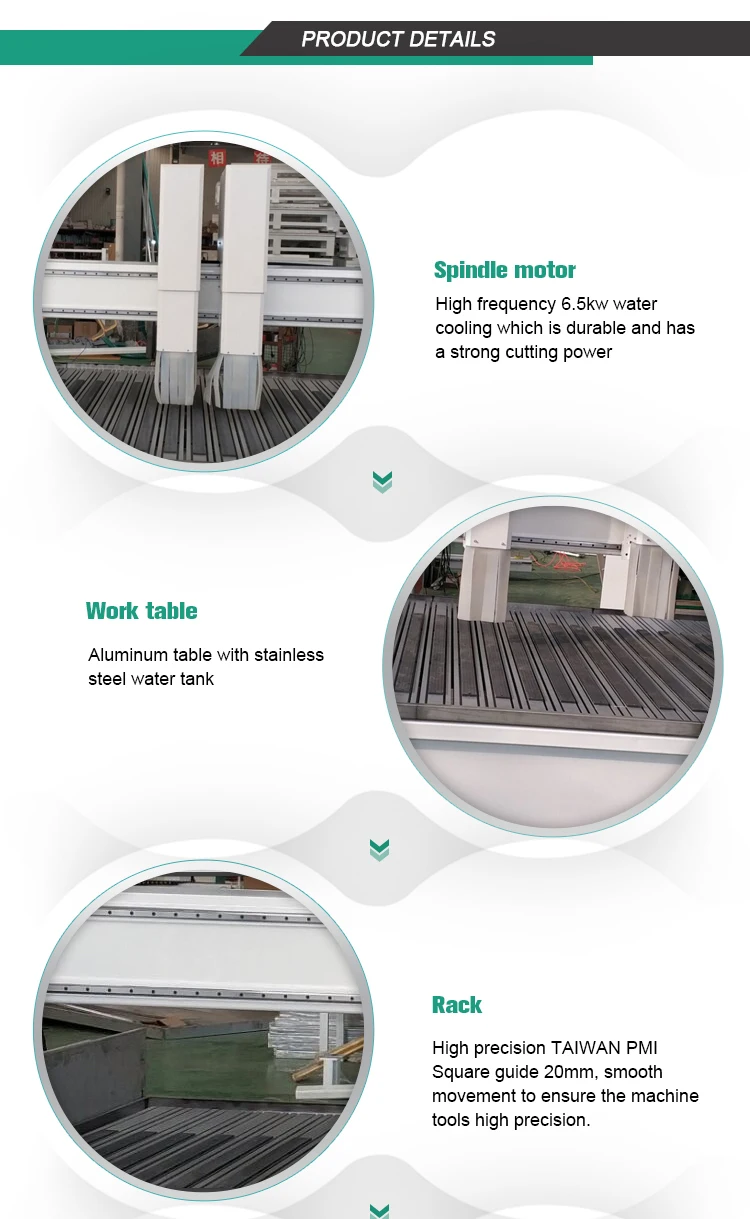

XYZ Rails	TAIWAN PMI Square guide 20mm
Spindle	6.5kw Water Cooling(optional: two spindle )
Table	Aluminum table with stainless steel water tank

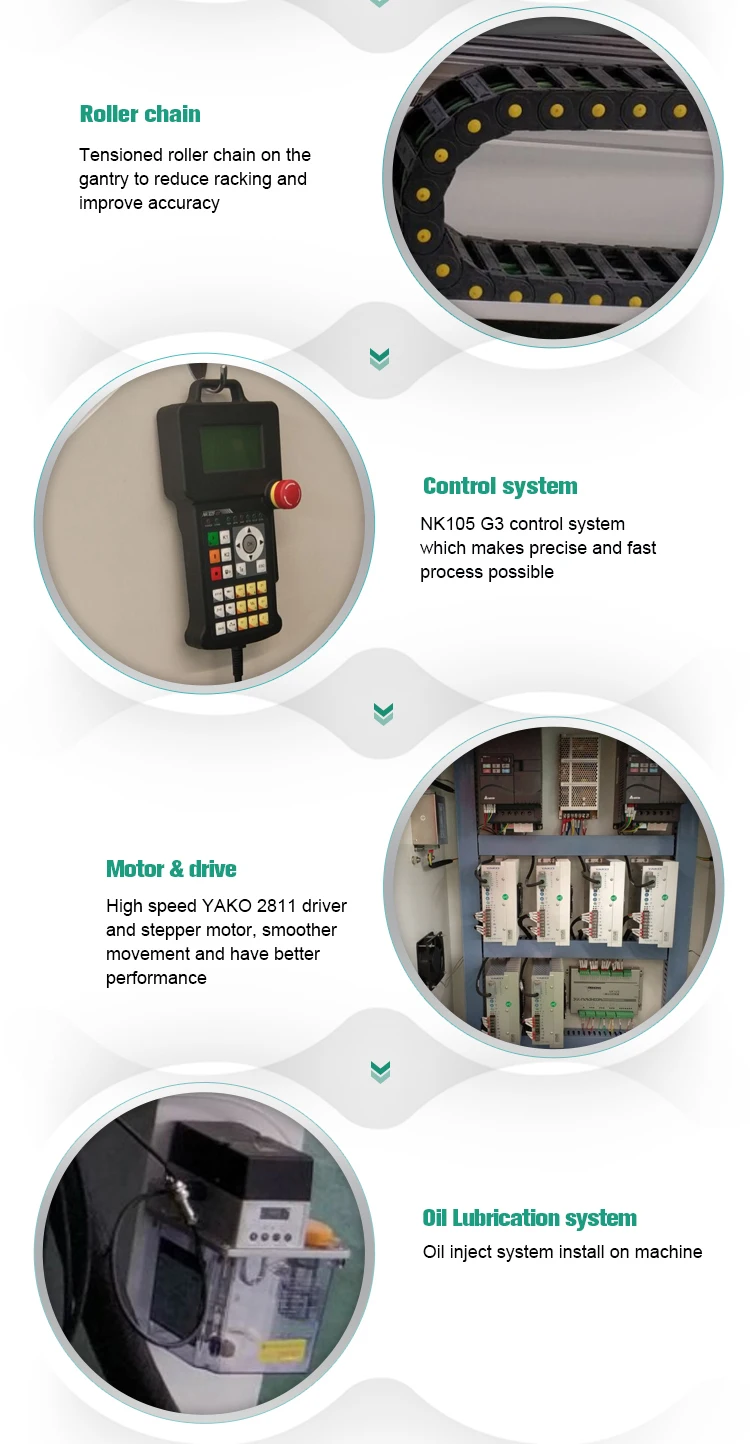

Motor&Drive	YAKO 2811 driver and stepper motor
Inverter	7.5kw delta
Control	NK105
Motor	XY 450B Stepper motor, z axis 450Cmotor with  brake
Softeware	Uncancam / type / artcam etc

Stone engraving machine is mainly used in the engraving of the hard materials. Such as: marble, granite, glass, stone, etc.

12 Years of Experience Professional Trustful CNC Router Manufacturer in China. Over 20,000 Machines Sold Worldwide. 24*7 Service, 12 Months Warranty, Lifetime Support. Contact SUDIAO for High Performance and Reliable CNC Router at Bargain Prices. JINAN SUDIAO CNC Router Company Is Found In 2007 .



As A Professional CNC Router  Manufacturer SUDIAO Is Constantly Devoted in R&D and Manufacturing of Different Cabinet Kitchen Solutions Such As CNC Panel Production Line S6 , Smart CNC Nesting Machine S2/S3/S5 ,Five-Side Drilling Machine, Laser Model Side Drilling Machine, Assembled Solid Doors Process Center and Wood CNC Process Center . We Now Establish Several Branches and Agencies in 18 Countries Like USA UK France,Germany Canada.,etc



We Has Imported Advanced International Technology and Production Process.  Developing High Performance ,High Quality Machines to Meet the Different Customers Requirement is our Ceaseless Pursuit and Development Direction .



We Are Looking for Long Term Business Cooperation to Work Together.
