Новый бренд Pentax Digital Theodolite ETH502

Share on (62331958302):


Price:

Quantity:


Product Overview

Description



Product Description

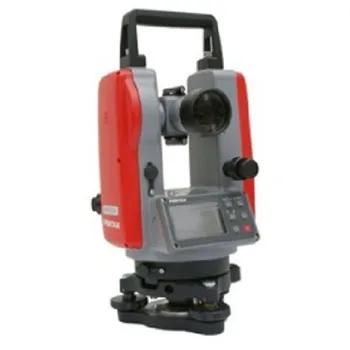

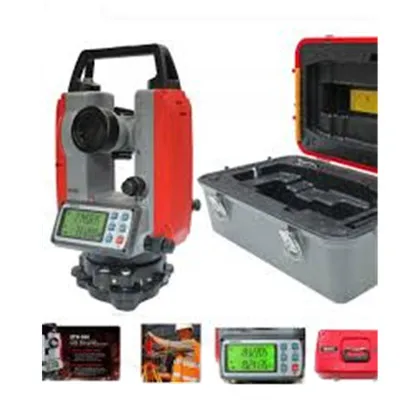

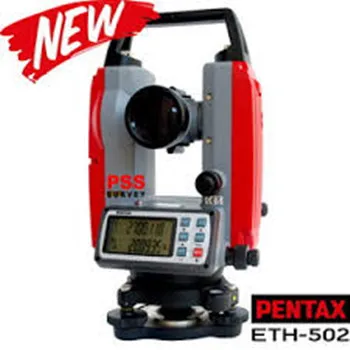

New Brand Pentax Digital Theodolite ETH502







Key Features include
· Large easy to read-display
· Zero set and reverse angle display
· A row of soft keys allows simple and fast operation.

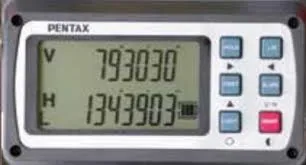

· A large display (LCD) is incorporated on both sides of the instrument. Both vertical and horizontal angles are displayed in degrees or gons.
· All the models have a bright 30x magnification telescope which ensures sharp and clear images even in poor light conditions.
· Clockwise and counter-clockwise angle measurement
· Conversion of the vertical angle to a percentage grade
· Zero setting of the horizontal angle at any position
· Horizontal angle 'Hold key function
· Clockwise and counter-clockwise angle measurement
· Conversion of the vertical angle to a percentage grade
· Zero setting of the horizontal angle at any position
· Horizontal angle 'Hold key function
· Powered by Alkaline batteries
Applications
· Setting out right angles and checking plumb
· Alignment measurements
· Anchor bolt layout
· 90° layout













































































































































































































































































Electronic Theodolites ETH-500Series Specification
Model ETH-502ETH-505ETH-510ETH-520
TelescopeImaging Erect image
 Objective aperture 45 mm
 Magnification 30 x
 Resolution ≤ 3"
 Field of view 1° 20'
 Shortest focusing distance 1.35 m
 Stadia multiplication constant 100
 Stadia addition constant 0
Angle MeasuringAngle measuring mode Absolute encoder
 Angle measuring accuracy2"5"10"20"
 Angle display1"/5"1"/5"5"/10"10"/20"
 Angle unit 360°/400G
CompensatorTilt sensor Automatic vertical compensation
 Tilt compensatorYesYesNoNo
 Soft switchON/OFFON/OFF- -- -
 Compensation range ± 3'
Display unitTwo-sided Two-sided
Optical plummet ImageErect Erect
 Magnification 3 x
 Angle of vision
 Focusing range 0.5 m ~ ∞
 Sensitivity of tubular vial mm30"/230"/240"/2 mm40"/2 mm
 Sensitivity of circular vial 8'/2 mm
Dust & Water Protection  IP44
Type of base  Detachable
Power supplyBattery 4 x single three (AAA) type dry battery
Ambient temperatureFor operation -20°C - +50°C
WeightInstrument 4.5 kg
MeasurementsCarrying case 1.9 kg
 Instrument W 175 mm x L 170 mm x H 334 mm
 Carrying case W 330 mm x L 450 mm x H 220 mm

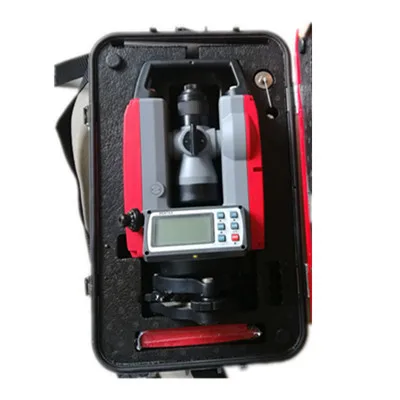

Packaging & Shipping








Our Factory
















Company Information


Shanghai Magcach Technology Co.,Ltd


We are a survey solution provider who sell survey equipment, and offer survey service


Product range: Total Station,Theodolite ,Auto level, GPS/GNSS receiver, Echo Sounder,UAV,Survey Accessories ,GPS Positioner/Locator ,Laser Distance Meter ,Wifi Camera ,Concrete Tester Hammer or Test tools ,Hardness Tester/Thickness Gauge /Surface Roughness Tester,Construction Detection Insturments,etc. Most of our products are listed on our website:www.magcachtools.com .





Contact us


Shanghai Magcach Technology Co.,Ltd


Add.: Rm.805,No.A Building ,Jindu Road 1128#,Minhang District ,Shanghai,China   Post code :201108


Contact Person :Rebecca Zhou


Mobile:+86-18221338069


Wechat: zdhrebecca


Whatsapp:+86-18221338069


Skype:zdhrebecca1979


Website: www.magcachtools.com





FAQ


1.What kind payment method we accept?


T/T, Western Union, Trade Assurance on Alibaba, Moneygram .





2.How can you guarantee payment safety ?


Our company supports TRADE ASSURANCE service. If you will choose payment through ALIBABA TRADE ASSURANCE service, you payment will be guaranteed. Because we are not able to receive payment until you confirm goods receipt.





3.What kinds of shipment for goods and how long time it takes ?


Our company supports DHL, FEDEX, UPS, TNT, CHINA POST, by sea,by air and other methods. Shipping time is 3-5 days after the paments are received.





4.Does your company ship battery or not ?


Our company can receive battery order and ship to customer normally, except for a few special countries





5.Do you have other items not displayed on your website ?


Yes, our company supplies full range survey products. If you are looking for product not whowed  on our website. Please contact us freely. We will reply you in time.
