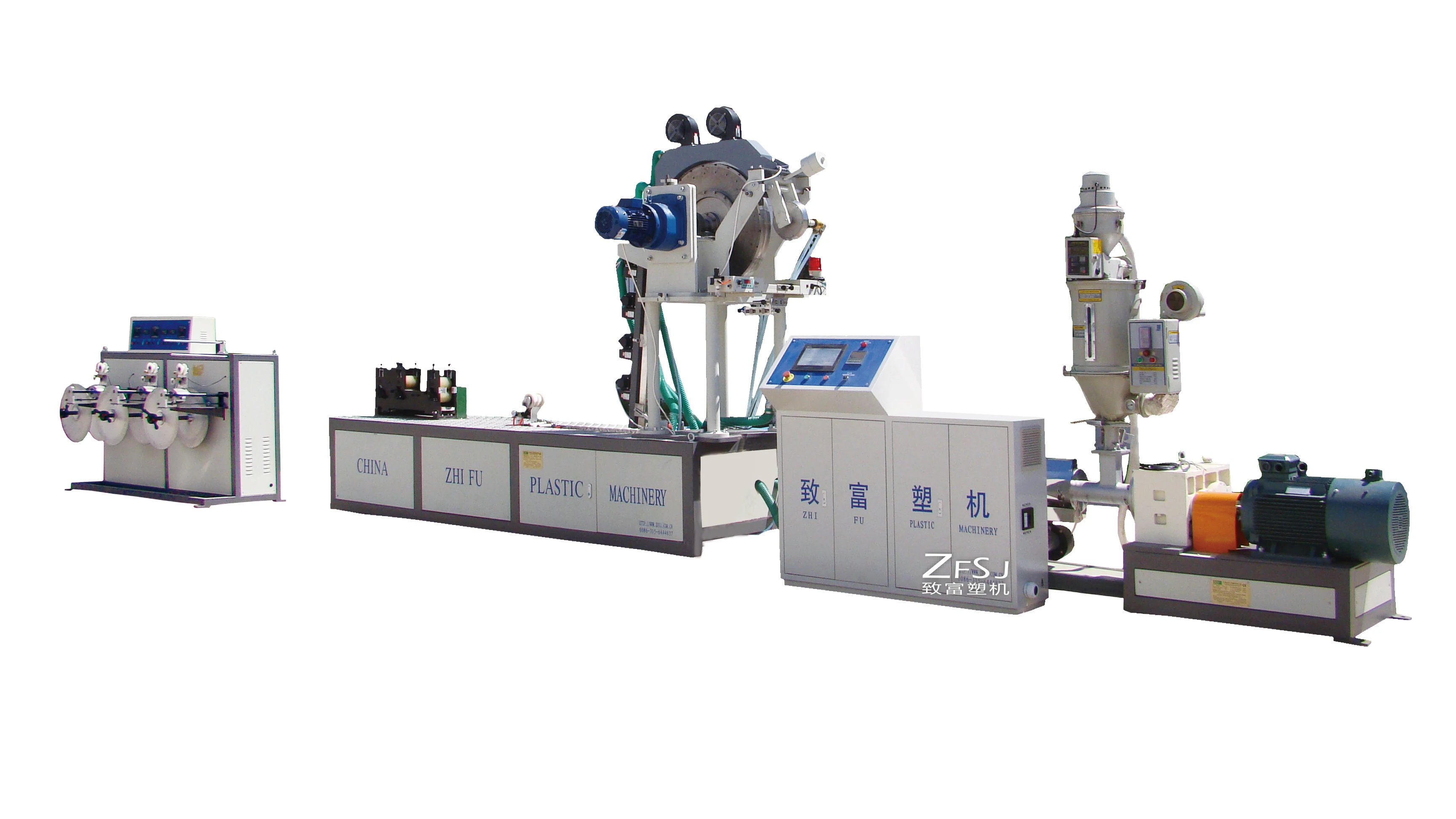

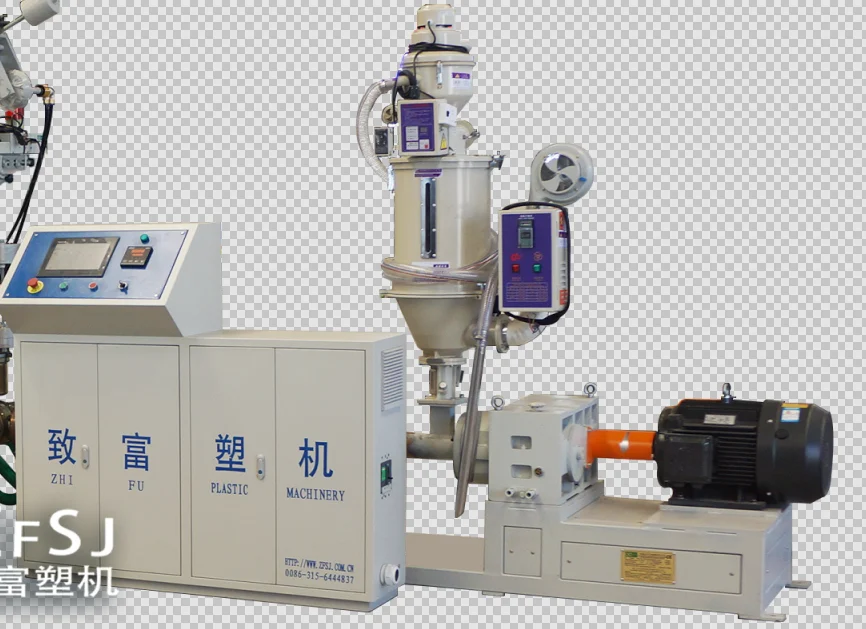

PLC CONTROLLED SINGLE BLADE LABYRINTH DRIP IRRIGATION TAPE MACHINE
PLC CENTRAL CONTROL
The production line adopts PLC Central control , man-interface operation , with high production speed , stable woking condition and high automation .
FREQUENCY CONVERSION CONTROL
The extruder , shaping device , and tractor all adopt frequency conversion control , which works more stable and saves energy sonsumption
COOLING SYSTEM
The cooling system device is strong , making the drip irrigation tape cooling and sizing rapidly , thus increasing the production speed .

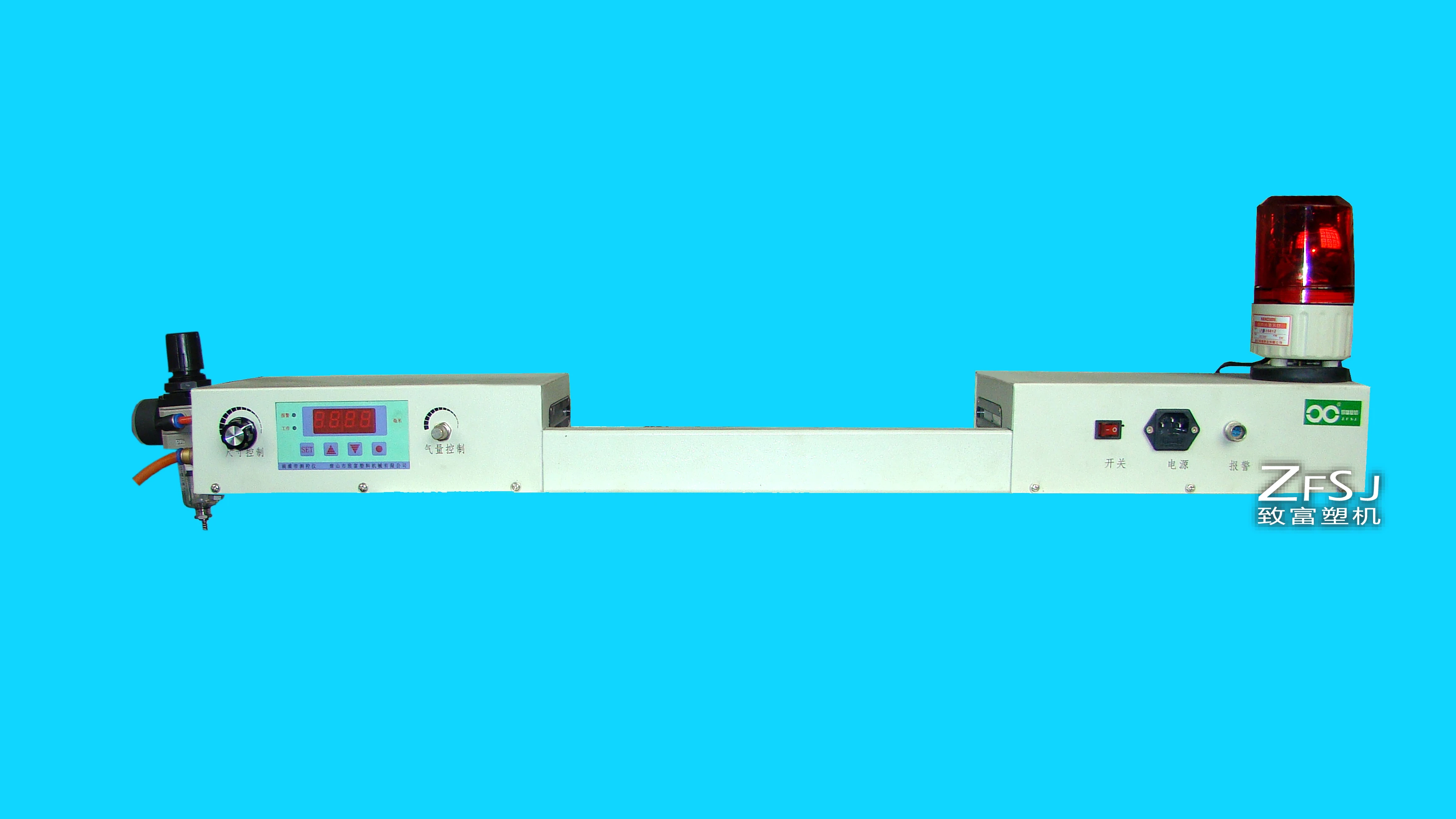

AUTOMATIC DIAMETER GAUGE
The diametert of tape is controlled by automatic diameter gauge , the measurement and control of tape is accurate , steady and reliable .
HEATING SYSTEM
The heating system of extruder and extrusion mold adopt temperature control module , the accuracy of controlling the temperature
is high, which makes the materials plasticized well and the tape surface even .
is high, which makes the materials plasticized well and the tape surface even .
THREE STATION WINDER
The machine adpots three station winder which recude the labor intensity . the drip irrigaiton tape is curled by moment electrical machinery . the drip irrigation tape can overcome the tension emerged effectively . the machine still has the equipment to calculate the length of the drip irrigation tape . the rolling length can be setted casually below 2500meters . the rolling machine has the functions of memory and automatic alarming ect .
Product Paramenters
MOLDE | SJDY-65-AIV |
SPECIFICATION | DIA:12MM, 16MM , 20MM |
MACHINE SPEED | 100-110M/MIN |
MAIN DRIVING POWER | 18.5KW |
MAX EXTRUDING CAPACITY | 75KG/H |
HEATING POWER | 25KW |
FILTER CHANGING METHOD | DURABLE NET |
DRIVING POWER OF SHAPING WHEEL | 1.5KW |
DRIVING POWER OF TRACTOR | 0.75KW |
WINDING MOTOR | TORQUE MOTOR 6N.M*3 |
WATER COMSUMPTION | 1M3/H |
AIR COMSUMPTION | 0.3M3/H |
INSTALLATION POWER | 58KW |
OVERALL DEMENSION(l*W*H) | 13.5M*1.75M*2.6M |
WEIGHT | 2500KG |

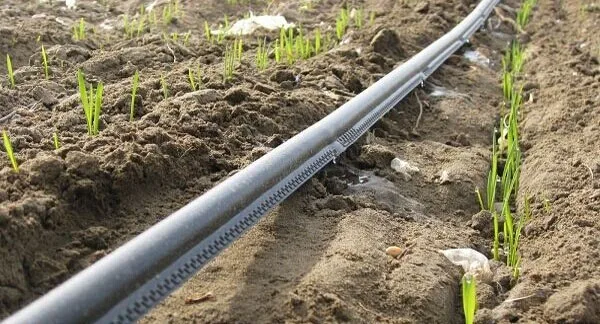

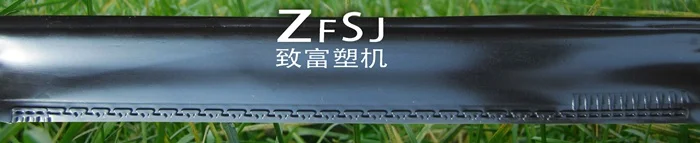

Final product
Product packaging
WOODEN BOX
SUITABLE FOR SEA TRANSPORTION AND LAND TRANSPORTION
Certifications

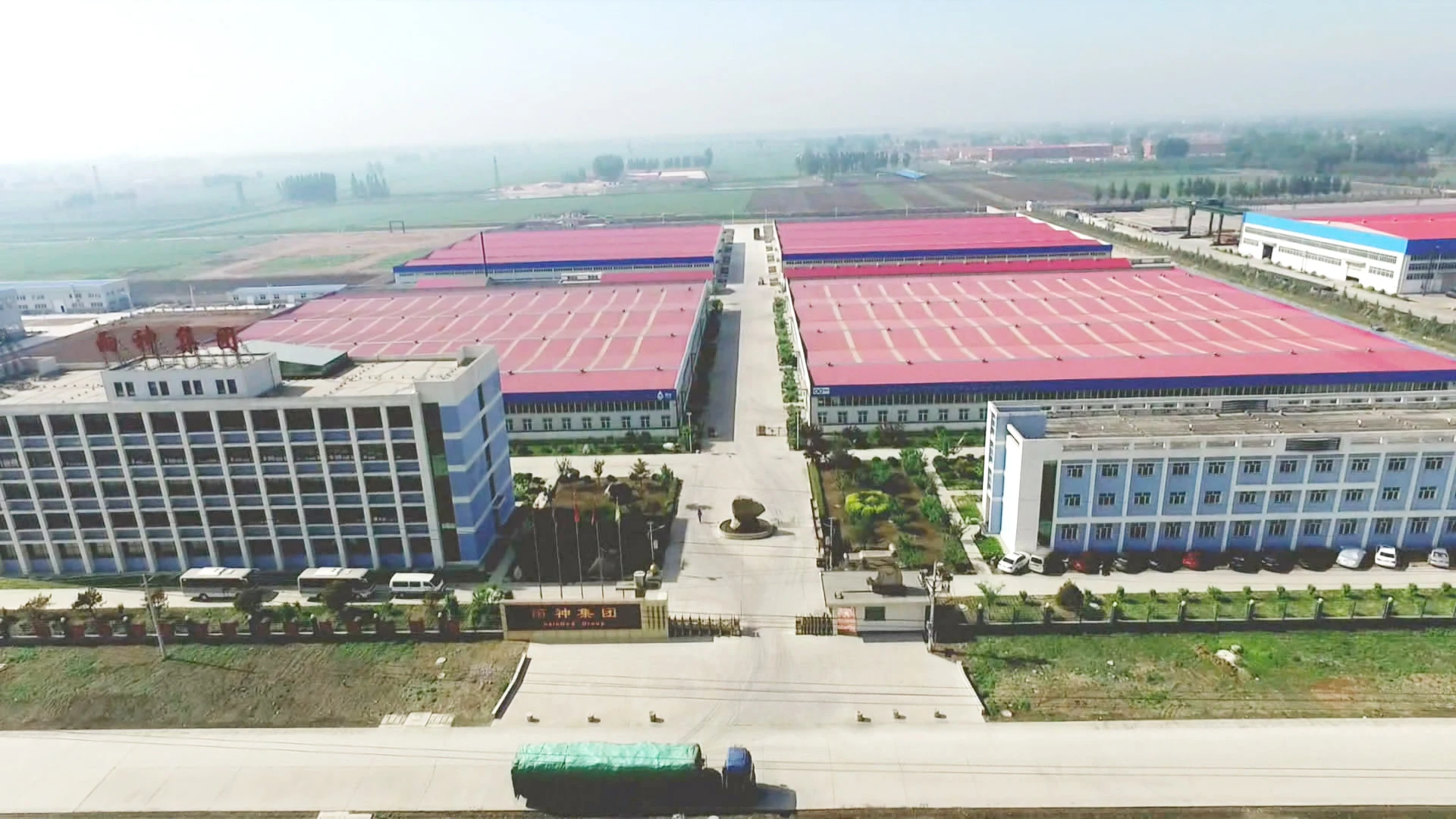

Company Profile
